Heavy Duty Cycloid Gear Motor 15kW 20Hp

The Heavy Duty Cycloidal Gear Motor 15kW 20Hp is a gear motor designed for industrial production lines requiring powerful and durable transmission. With a power of 15kW (20Hp), the device helps enhance working efficiency, delivering high torque and stable long-term operation. This heavy-duty gear motor series is especially suitable for high-intensity working environments that require equipment with excellent load capacity and superior durability.

Overview of the Heavy Duty Cycloidal Gear Motor 15kW 20Hp

Electric Motor

• Material: Sturdy cast steel body, integrated with specialized geometric heat dissipation ribs to optimize airflow and cool down quickly when running at 20Hp load.
• Characteristics: Equipped with a thermal sensor to protect windings from overload. The motor provides stable traction, well-meeting high-intensity and durable operation cycles.

Gearbox

• Function: Converts input speed into high torque, solving the need for strong traction in a compact, space-saving design.
• Characteristics: Transmits force through multiple simultaneous contact points on the disc circumference instead of single teeth, increasing mechanical impact resistance and ensuring absolute safety during heavy-duty operation.

Structure of the Heavy Duty Cycloidal Gear Motor 15kW 20Hp

The Heavy Duty Cycloidal Gear Motor 15kW 20Hp is formed by combining a cycloidal gearbox with a 3-phase electric motor system, creating a high-performance and durable transmission unit.

3-Phase Electric Motor 15kW 20Hp

• Stator: Uses technical steel sheets surface-treated with nano insulation coating technology, enhancing magnetic field performance and minimizing eddy current losses.
• Rotor: Cast from pure aluminum or special copper, designed in an optimized geometric shape to ensure low inertia, helping the machine start quickly and reach rated speed in an extremely short time.

Cycloidal Gearbox

• Cycloidal Disc: Crafted from vacuum heat-treated forged steel, ensuring a uniform steel molecular structure capable of withstanding extreme torsional stress without deformation.
• Eccentric Shaft: Machined with absolute coaxiality, acting as a rotational movement guide for the cycloidal disc, minimizing high-frequency vibration and noise.
• Power Transmission Pin Assembly: Pins are wrapped in high-grade engineering plastic or wear-resistant alloy, optimizing contact between the cycloidal disc and the housing, delivering maximum transmission efficiency.
• Oil Chamber: Utilizes a pressure oil chamber design, ensuring the lubricating film always covers all frictional components, minimizing heat generation during movement.

Technical Specifications of the Heavy Duty Cycloidal Gear Motor 15kW 20Hp

Below is a summary of all detailed specifications including foot-mounted, flange-mounted types, and accompanying electric motors, helping customers easily select the appropriate configuration:

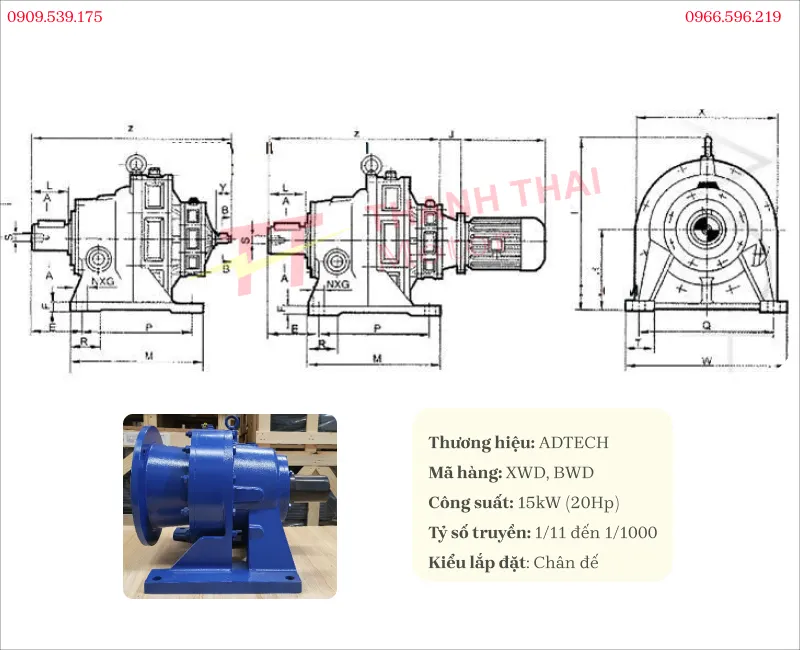

Foot-Mounted Heavy Duty Cycloidal Gear Motor 15kW 20Hp

This is a specialized transmission device line for industrial systems requiring large load capacity, outstanding with sturdy construction, stable operation, and superior lifespan. Detailed product specifications:

Technical Specifications:

Applications:

• Heavy-Duty Conveyor & Handling Systems: Provides powerful and stable traction for large-scale conveyor systems, freight elevators, or crane equipment in manufacturing plants, warehouses, and mechanical workshops.
• High-Capacity Crushers and Presses: Applied to operate continuous crushers and presses in mining, metallurgy, or building materials production due to high compressive strength and impact resistance.
• Industrial Mixing Lines: Provides slow rotation speed with high torque to operate mixing tanks for chemicals, fertilizers, building materials, or large-scale food and cosmetic processing.

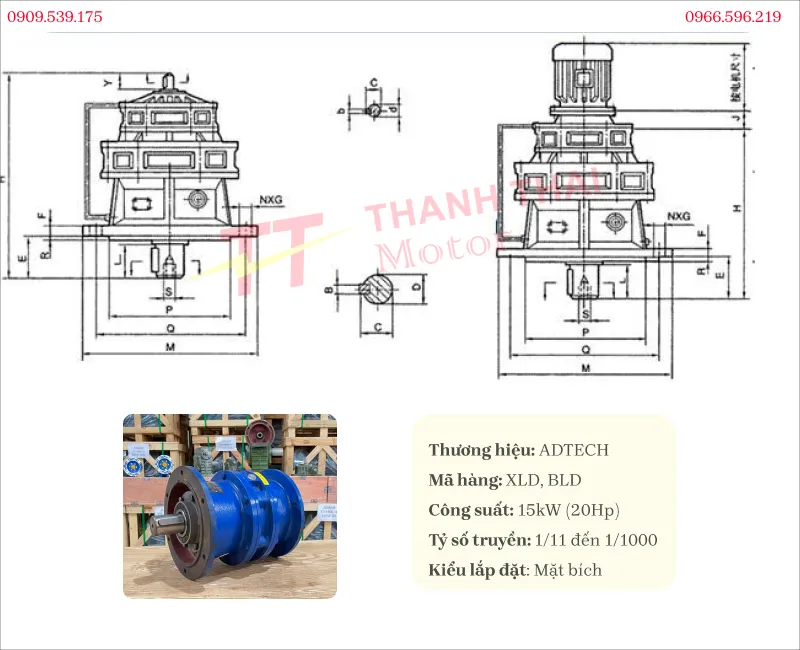

Flange-Mounted Heavy Duty Cycloidal Gear Motor 15kW 20Hp

Specially designed for high-intensity applications, the device features a sturdy structure and powerful transmission performance. Below are detailed technical specifications:

Technical Specifications:

Applications:

• Heavy Industrial Production: Used in automated conveyor systems, crushers, presses, or high-capacity material mixing lines.
• Aquaculture & Environment: Operates aeration systems in shrimp and fish ponds as well as chemical mixing equipment requiring strong and stable traction.
• Lifting & Mechanics: Applied to crane equipment and freight elevators in warehouses and mechanical workshops requiring durable transmission performance.

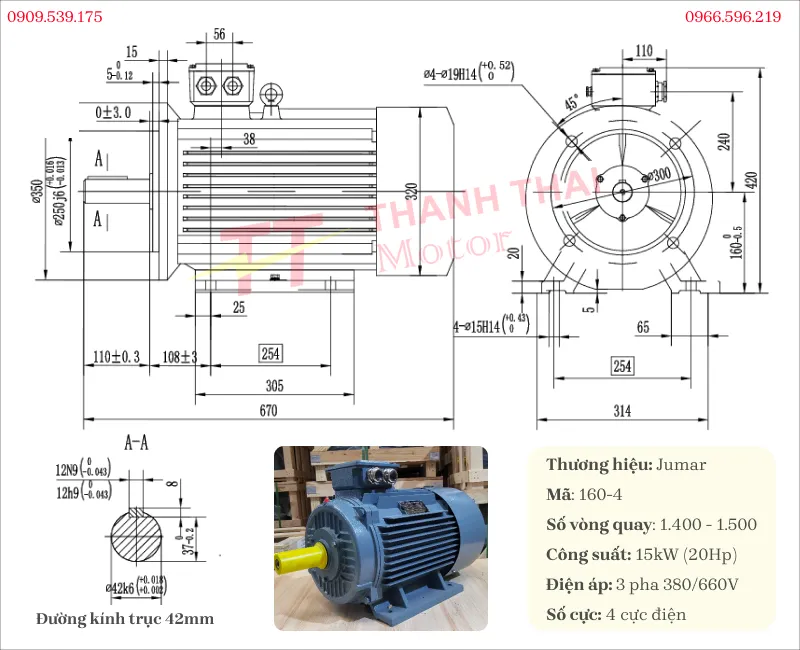

Technical Specifications of 3-Phase Electric Motor 15kW 20Hp 4-Pole

As a standard industrial motor widely applied in production systems, it delivers powerful and stable operating performance. Detailed product specifications:

Technical Specifications:

Guide on Installing Heavy Duty Cycloidal Gearbox to 3-Phase Electric Motor

Step 1: Prepare equipment and tools

• Check the cycloidal gearbox and 3-phase electric motor to ensure technical specifications (power, shaft diameter) are compatible with each other.
• Prepare the flange bolt set and specialized tightening tools.

Step 2: Fit the motor into the gearbox

• Align the electric motor shaft straight and fit it completely into the input shaft hole of the gearbox.
• Gently push the motor close to the gearbox so that the flanges of both parts fit tightly without gaps.

Step 3: Secure and tighten with bolts

• Insert the bolts into the hole positions on the flange and hand-tighten them to secure the initial position.
• Use a wrench to tighten the bolts in a crisscross opposing order, ensuring uniform pressure to help the unit operate stably without eccentricity.

The Heavy Duty Cycloidal Gear Motor 15kW 20Hp is an effective transmission solution for industrial systems requiring high torque, high load capacity, and continuous operation. Customers can refer to additional gear motor videos to better understand the structure, operating principle, and practical application capabilities of the product. In addition, Thanh Thai Motor’s comprehensive video library also provides much useful content on equipment installation and operation. Contact Hotline 0909.539.175 for prompt consultation and quotation.
