Heavy Duty Cycloidal Gear Motor 11kW 15Hp

The heavy duty cycloidal gear motor 11kW 15Hp is a large-capacity gear motor line, specialized for high-load industrial machinery systems. With a power of 11kW (equivalent to 15Hp), the motor provides powerful power transmission, high torque, and stable operation over long periods. This heavy duty gear motor is an ideal solution for harsh and continuous operating environments.

Overview of the heavy duty cycloidal gear motor 11kW 15Hp

Electric motor

• Material: The housing is cast from specialized alloyed cast iron, with surface ribs designed to increase rigidity and optimal heat dissipation, ensuring stable operation in heavy industrial environments.
• Characteristics: Integrated with class F heat-resistant copper winding insulation technology. The motor provides stable power, ensuring the ability to maintain continuous torque for systems requiring high starting loads.

Gearbox

• Function: Performs the reduction of rotational speed from the motor and amplifies the output traction force. This solution is optimal for equipment requiring maximum torque while installation space is limited.
• Characteristics: Uses a cycloidal disc transmission mechanism with multiple contact points, helping to evenly distribute stress on the surface, creating superior shock load and overload endurance compared to traditional gearboxes.

Structure of the heavy duty cycloidal gear motor 11kW 15Hp

The device is assembled from two main components consisting of a 3-phase electric motor and a cycloidal gearbox. Detailed structure is as follows:

3-phase electric motor 11kW 15Hp (Power generation part)

• Stator: Uses thick magnetic steel sheets, precisely stamped and securely fixed, helping to increase the efficiency of converting electrical energy into a magnetic field and minimizing heat generation.
• Rotor: Squirrel-cage structure with high dynamic balance, allowing the shaft to maintain stability and maximize vibration cancellation when reaching rated speed.

Cycloidal gearbox (Transmission part)

• Cycloidal disc: Machined from hardened alloy steel using modern technology, capable of withstanding extremely high compressive forces at planetary contact points.
• Eccentric shaft: High-precision machined component, responsible for converting concentric rotational movement from the motor into eccentric movement to drive the cycloidal disc.
• Power transmission pin set: Rollers wrapped in high friction-resistant material, supporting the cycloidal disc to roll smoothly inside the outer ring, helping to reduce noise and resist wear durably.
• Oil chamber: Sealed system with high-quality oil seals, maintaining a circulating oil-immersed environment, continuously lubricating all moving parts, ensuring the highest transmission efficiency.

Technical specifications of the heavy duty cycloidal gear motor 11kW 15Hp

Below is a summary of all detailed specifications including foot-mounted, flange-mounted types and the accompanying electric motor, helping customers easily choose the appropriate configuration:

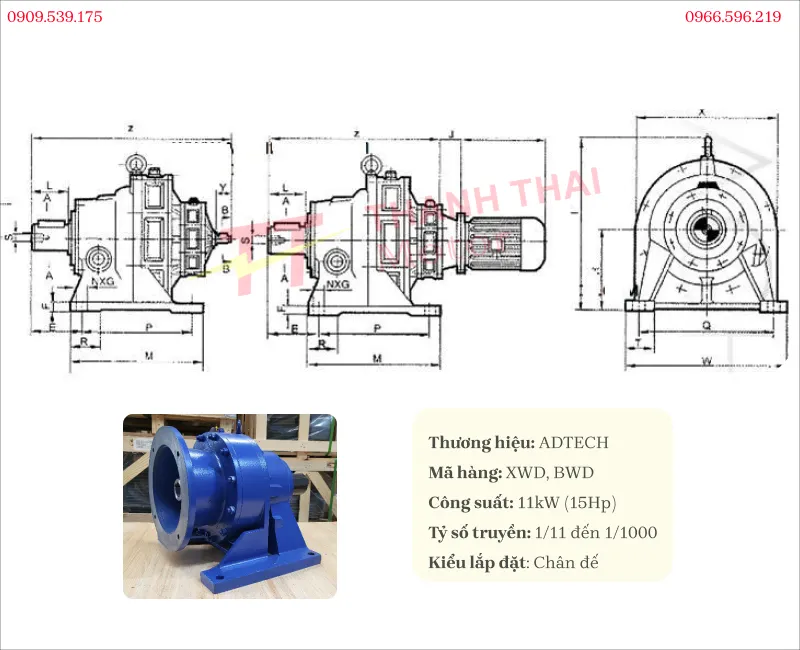

Foot-mounted heavy duty cycloidal gear motor 11kW 15Hp

This is a specialized transmission device for industrial systems demanding high load capacity, standing out with a sturdy structure, stable operation, and superior lifespan. Detailed product specifications:Specifications:

Code	XWD7
Input shaft	42mm
Output shaft	50mm
Gear ratio	1/11 to 1/1000
Flange diameter	350mm

Application:

• Material production & mining industry: Applied in heavy-load conveyor systems, stone crushers, wood panel presses, or continuously operating concrete and cement mixers.
• Processing & food industry: Integrated into large-capacity mixing systems (chemical, powder, cosmetic stirring) and packaging, agricultural – fishery processing lines.
• Mechanical manufacturing & lifting systems: Used for transporting and loading heavy goods in warehouses or pulling mechanisms requiring high torque and safety during sudden stops.

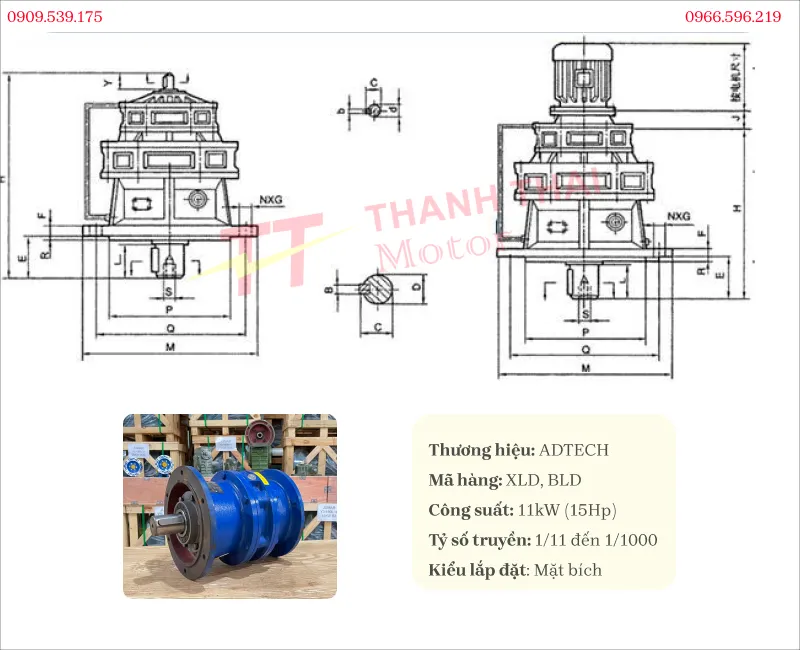

Flange-mounted heavy duty cycloidal gear motor 11kW 15Hp

The optimal transmission solution for vertically installed or directly connected systems, providing extremely high load capacity and durable operation in industrial environments. Detailed product specifications:Specifications:

Code	XLD7
Input shaft	42mm
Output shaft	50mm
Gear ratio	1/11 to 1/1000
Flange diameter	350mm

Application:

• Heavy industrial conveyor systems: Used in large material transportation lines, continuously heavy-loaded in steel production, cement, mineral mining, or brick manufacturing. The flange design helps the motor easily connect and saves installation space.
• Large-capacity mixing machines: Applied in food processing plants, chemicals, wastewater treatment, or building materials production. The motor provides strong traction and even mixing motion, withstanding large resistance forces from thick, sticky materials.
• Pressing, crushing and lifting machines: Popular in mechanical manufacturing, wood panel pressing, compressors. The high gear ratio of the cycloidal gearbox helps the machine minimize output rotational speed while maximizing traction (torque) to break or lift heavy objects.

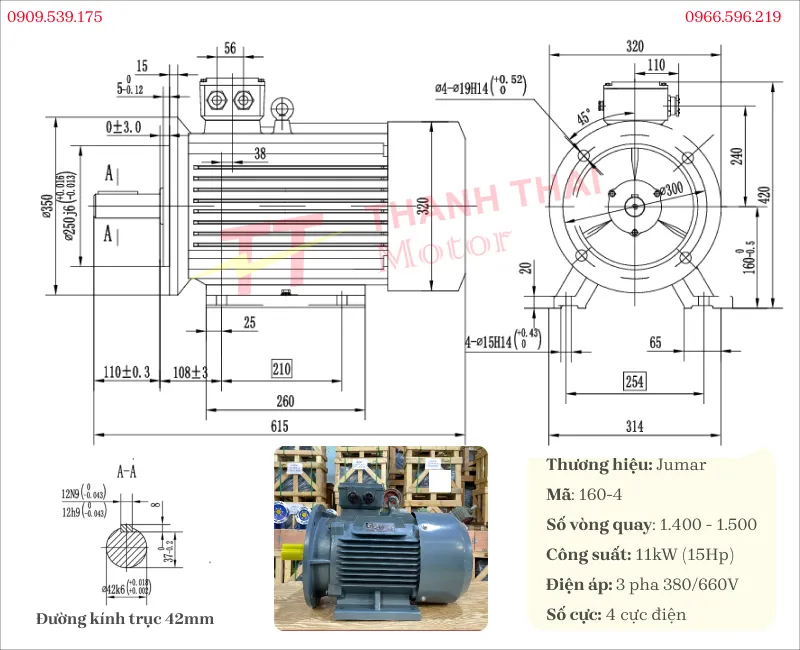

Technical specifications of 4-pole 3-phase electric motor 11kW 15Hp

The device possesses a sturdy design, durable operation, and perfectly meets current industrial transmission needs. Detailed technical specifications:Specifications:

Code	160M
Shaft diameter	42mm
Key	12mm
Flange diameter	350mm
Weight	110kg
Dimensions	615 x 315 x 410 mm
Mounting type	Foot-mounted (B3), Flange-mounted (B35, B5, B14)
Protection class	IP55
Insulation class	Class F

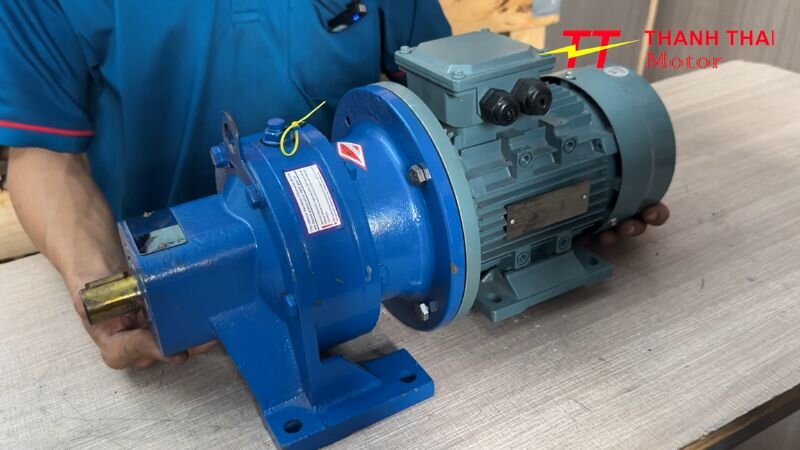

Instructions for installing heavy duty cycloidal gearbox onto 3-phase electric motor

Step 1: Prepare equipment and tools

• Equipment: Check compatibility between the cycloidal gearbox and the 3-phase electric motor.
• Tools: Prepare the included screws and wrench.

Step 2: Connect the motor to the gearbox

• Place the gearbox on a stable flat surface.
• Slowly insert the shaft of the electric motor into the coupling (input shaft) of the gearbox. Ensure the motor shaft goes straight into the center of the connection part on the gearbox to fit completely.

Step 3: Install fixing screws

• After the shaft is fitted, proceed to install the screws into the screw hole positions around the connecting flange between the motor and the gearbox.
• Use your hand to screw in the bolts first to position and keep the motor from shifting.

Step 4: Tighten screws with tools

• Use the wrench prepared in Step 1 to sequentially tighten the screws around the flange.
• This tightening helps ensure concentricity between the motor shaft and the gearbox, avoiding shaking or causing wear during later operation.

Important note: Before starting, make sure that both the motor and gearbox have been disconnected from the power supply and are in a resting state to ensure absolute safety.

The heavy duty cycloidal gear motor 11kW 15Hp is a suitable choice for industrial systems requiring high traction, heavy load capacity, and stable operation. To view more heavy duty gear motor videos and practical compilation videos, customers can refer to Thanh Thai Motor’s video library. Contact Hotline 0909.539.175 for technical consultation and quick quotation.
