3-Phase Gear Motor 0.8kW 1Hp

The 3-phase 0.8kW 1Hp gear motor is a gear motor product line widely used in many industrial sectors. With durable design and stable performance, this 1Hp Gear Motor is widely applied in industries such as milling, mist spraying, conveyor systems, etc.

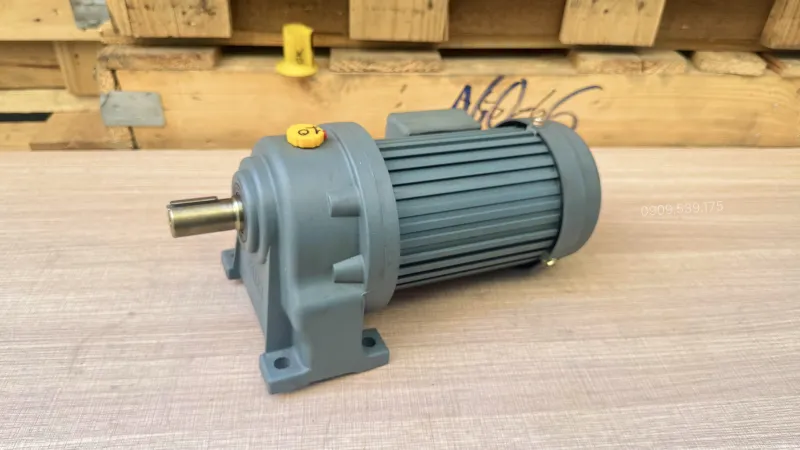

Overview of the 3-phase 0.8kW 1Hp gear motor

The 3-phase 0.8kW 1Hp gear motor is comprised of two main components: an electric motor (specifically a 3-phase electric motor) and a gearbox coupled together.

• 3-phase electric motor 0.8kW 1Hp
  • Function: Receives 3-phase electrical energy, then applies electromagnetic induction to generate continuous high-speed rotation at the main shaft.
  • Design: The motor housing is made of cast iron or aluminum to protect the motor from external impacts.
• Gearbox:
  • Function: Helps reduce motor speed and generates a specific torque force.
  • Design: The enclosure frame is thickly cast to absorb shock forces when carrying loads.

Detailed internal structure of the 3-phase motor

The 1 hp 3-phase gear motor consists of two main parts: the motor and the reduction head:

• Gearbox: Generates torque and transmission ratio through the combination of gears. Includes helical gears machined on multi-axis CNC machines. Surface high-frequency quenching cycle helps tooth surfaces resist sliding wear, ensuring perfect meshing capability even when running continuously 24/7.
• Electric motor:
  • Stator is wound with 100% copper wire, ensuring capacity. The copper wires are tightly wound and impregnated with Class F insulation, allowing the motor to withstand temperatures up to 155°C without burnout.
  • Rotor is heat-treated metal at high temperatures to increase motor lifespan. Each rotor blank must pass tests on a digital dynamic balancing machine to completely eliminate eccentric gravity, ensuring smooth shaft rotation without noise.
• Bearing system and oil seals: Arranged with a series of high-capacity radial load-bearing grease ball bearings. Dust seals are tightly inserted into gaps, keeping the internal transmission environment always clean.

Watch the detailed video of the 3-phase gear motor product

Classification of the 3-phase 0.8kW 1Hp gear motor

According to the installation type, the 3-phase gear motor is classified into the following types to flexibly meet all machinery mounting angles:

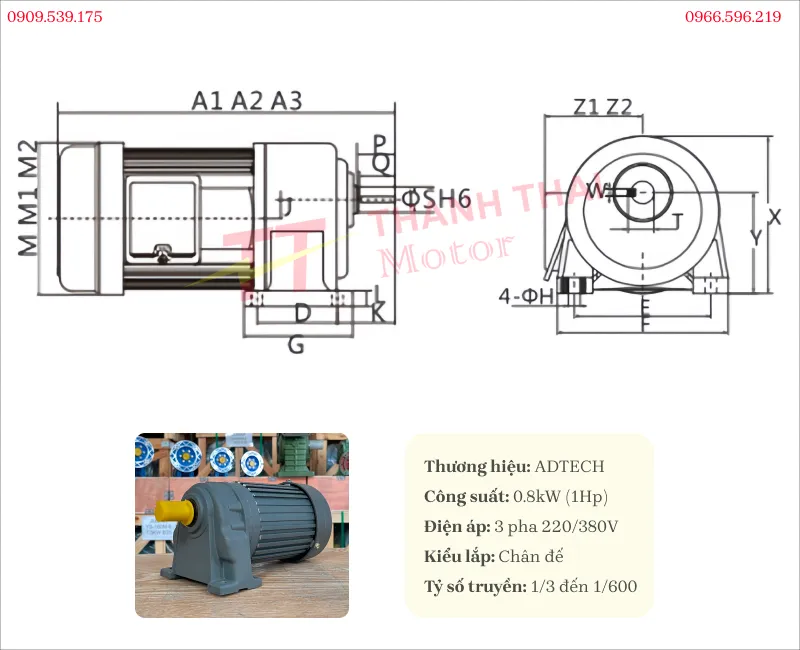

Foot-mounted 3-phase 0.8kW 1Hp gear motor

Specifications:

Applications:

• Livestock farming: Operates automatic feeding trough systems or cooling air blowers on farms.
• Warehousing and transportation industry: Assembles drives for roller conveyor systems and PVC conveyors for light goods handling in logistics warehouses.
• Agricultural industry: Directly drives belts for livestock grass cutters, feed pellet grinders, or household-scale animal feed pressing machines.
• Basic construction industry: Integrated into cable-pulling electric winch systems, material lifting pulleys, or small cranes with loads under 500kg.

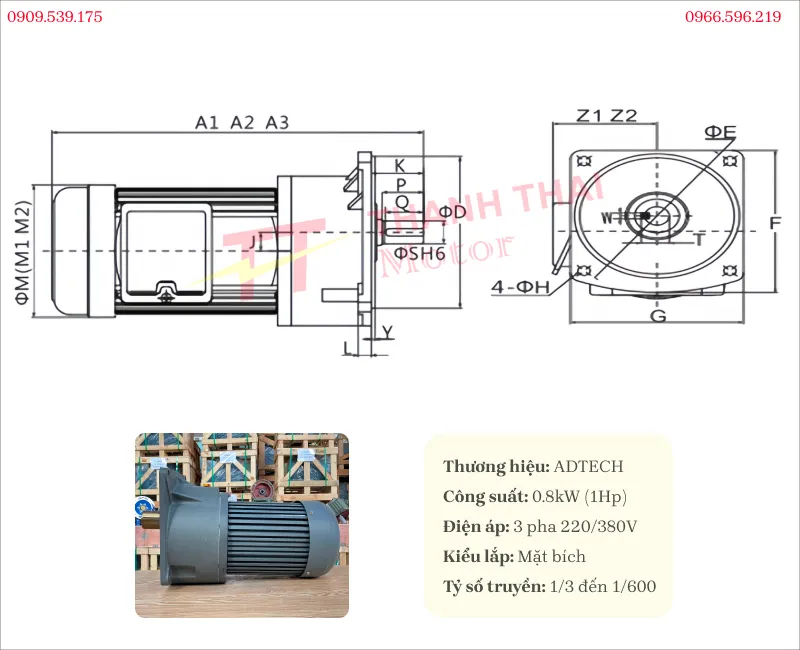

Flange-mounted 3-phase 0.8kW 1Hp gear motor

Specifications:

Applications:

• F&B industry – Food: Vertically mounted to rotate mixer tank shafts for pastry dough, stir syrup solutions, or rotate automatic soft drink filling turntables.
• Food processing & agricultural products: Operates material stirring shafts, flour mixers, juice extractors, or agricultural produce cleaning equipment.
• Aquatic and seafood industry: Connected to the vertical shaft of oxygen foaming floats and water paddle wheels to create circulating currents in industrial shrimp ponds.
• Automation processing industry: Operates the traction for vertical bucket elevators for material scooping, and food hoist elevator systems between restaurant floors.

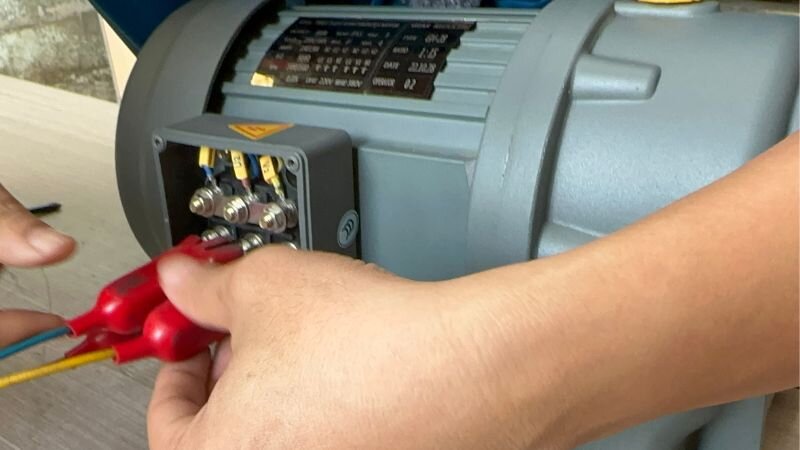

Guide to safely and technically standard wiring for 3-phase gear motors

The person performing the wiring must strictly adhere to the input power supply diagram to absolutely protect the magnetic coil. Below is the terminal box connection procedure:

• Stage 1: Opening the terminal box
  • Use a screwdriver to open the terminal box cover of the gear motor.
  • This action exposes the circuit board containing the electrical connection pins inside.
• Stage 2: Connecting 3-phase transmission cables
  • The operator needs to prepare 3 wires belonging to the 3-phase power supply.
  • Tightly fasten these 3 power wires to the 3 contact terminal pins labeled U1, V1, and W1 by the manufacturer.
• Stage 3: Reviewing burnout risks (Extremely important)
  • Absolutely do not connect power cables to the positions of pins U2, V2, and W2.
  • Incorrect connection to this pin system will generate a voltage level of 660V, directly causing the motor to burn out.
• Stage 4: Closing the circuit and starting
  • After ensuring the wiring is correct and safe, proceed to supply power to the motor equipment.

With efficient deceleration capabilities, high torque generation, and durable operation, the 3-Phase Gear Motor 0.8kW 1Hp is a suitable choice for various conveyor systems, mixers, grinders, lifting equipment, and small-to-medium-scale production lines.

To better understand the structure, operating principle, and similar product lines, customers can refer to the gear motor video, watch the general video summary, or receive direct support from Thành Thái Motor.
