3-Phase Gear Motor 0.4kW 0.5Hp

3-Phase Gear Motor 0.4kW 0.5Hp is a gear motor product line widely applied in many industries. With a durable design and stable performance, this 3 phase gear motor is commonly used in systems such as sugarcane juice machines, conveyors, milling machines, and various other mechanical equipment, helping to optimize operation and enhance machinery lifespan.

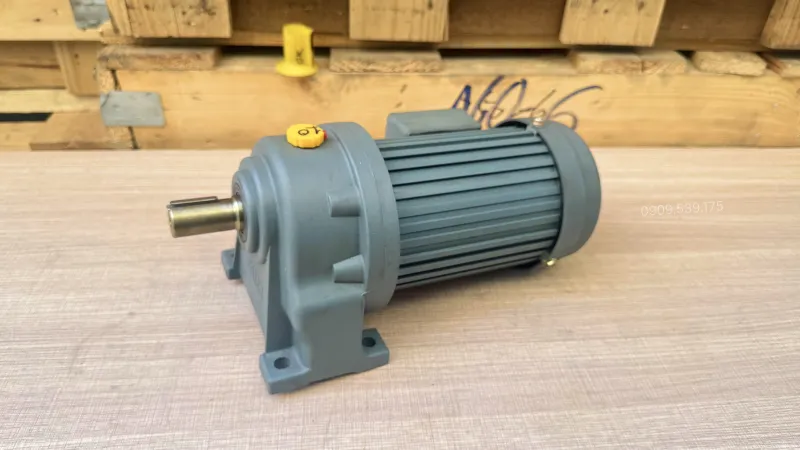

Overview of 3-Phase Gear Motor 0.4kW 0.5Hp

The 3-Phase Gear Motor 0.4kW 0.5Hp is a type of motor designed with an electric motor, specifically a 3-Phase Electric Motor combined with a gearbox:

• 3-phase half-horsepower electric motor:
  • Function: This electromagnetic unit is responsible for converting 3-phase AC power into fundamental rotational kinetic energy. It creates a strong rotating magnetic field to drive the rotor shaft at high and stable speeds.
  • Design: Sturdy aluminum motor housing, aimed at protecting internal components from external impacts.
• Gearbox:
  • Function: The gearbox attached to the motor to reduce motor speed and increase torque thanks to the gear system and gearbox shaft. Each gear ratio of the reducer is created depending on the gears of the gearbox.
  • Design: Thick cast enclosure frame to absorb vibrations.

Detailed Internal Structure

This half-horsepower 3 phase gear motor consists of 2 main parts: the electric motor and the gearbox:

• Electric motor:
  • Stator is wound with 100% copper wire, ensuring high performance. Class F insulation enamel layer coated on the copper winding helps the machine withstand high temperature thresholds.
  • Rotor is metal heat-treated at high temperatures to increase durability and motor lifespan, cast and pressed according to the sturdy alloy squirrel-cage standard
• Gearbox: Consists of large and small gears of different sizes, assembled together to generate gear ratio and torque.
• Output shaft: Possesses a diameter of 22mm, machined from solid specialized steel. The precisely deep-milled 7mm keyway serves to tightly engage the load pulley, preventing loose slip rotation.

Watch detailed video about 3 phase gear motor product

Classification of 3-Phase Gear Motor 0.4kW 0.5Hp

According to the mounting type, the 3-Phase Gear Motor 0.4kW 0.5Hp is divided into 2 standard frame formats to flexibly meet all machinery design drawings.

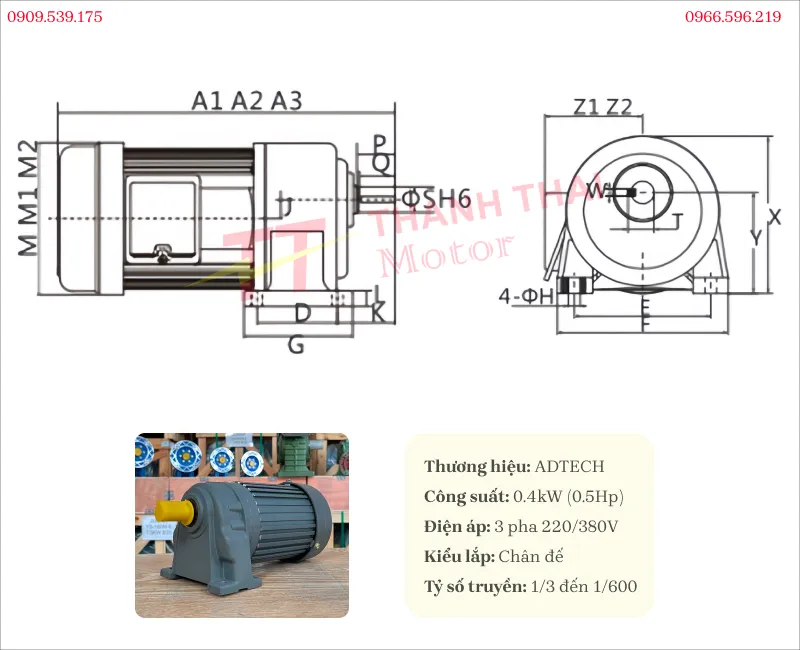

Foot-Mounted 3-Phase Gear Motor 0.4kW 0.5Hp

Specifications:

Applications:

• Food processing industry: Driving the transmission shaft for mini pork paste grinders, coconut milk press machines, household sugarcane juice extractors.
• Transportation and warehousing industry: Driving small conveyor systems, product sorting conveyor belts, or feeding screw conveyors.
• Livestock and agriculture industry: Smoothly driving circulating feed conveyor assemblies, rotating small-sized animal feed mixing bowls.
• Light automation industry: Operating roller conveyor chains for sorting electronic components, cargo hoisting systems under 300kg load capacity.

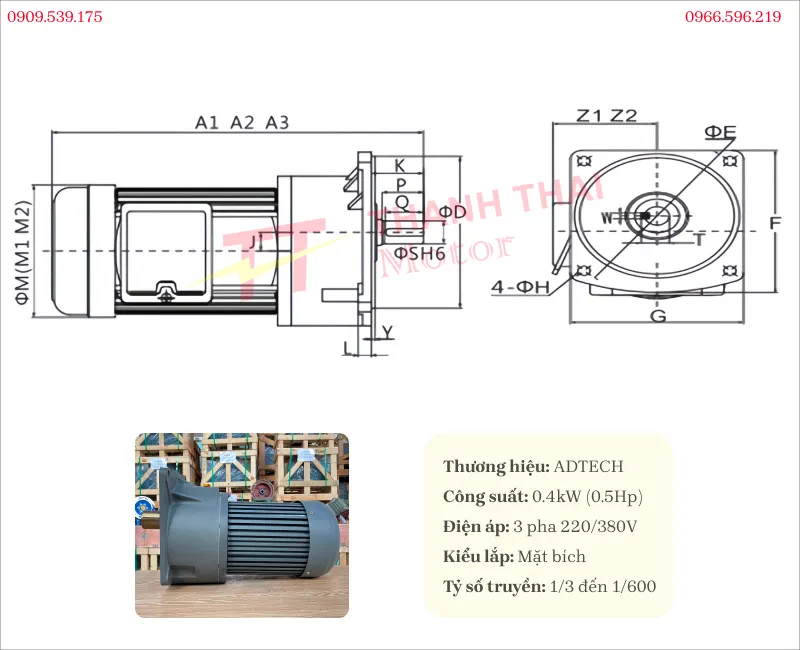

Flange-Mounted 3-Phase Gear Motor 0.4kW 0.5Hp

Specifications:

Applications:

• Manufacturing mechanics: Attached to transmission sprocket chains, small rolling presses, or integrated into light-load lifting components.
• Chemical cosmetics: Assembled suspended on the roof of soap mixing tanks, laboratory-scale solution fragrance stirring tanks.
• Aquaculture industry: Co-axially connected with oxygen aeration paddle wheel blades in seed shrimp breeding ponds.
• Environmental treatment industry: Mounted directly on mini bottom sludge scraper modules, automatic mesh debris skimming systems in local pump stations.

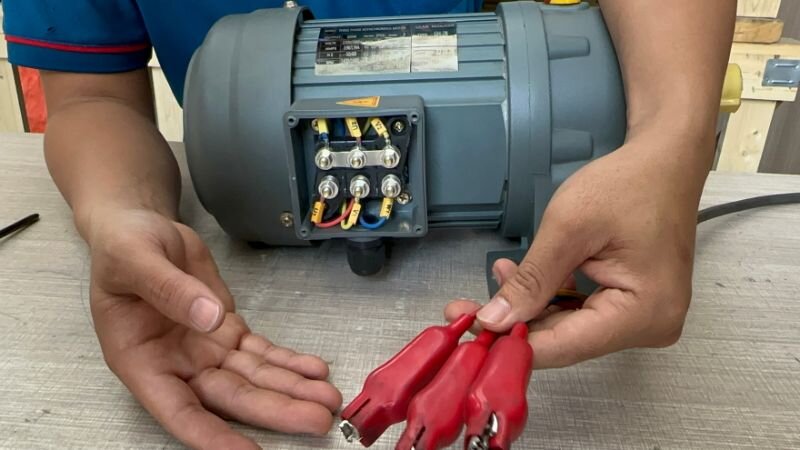

Safe and Easy Wiring Guide for 3 Phase Gear Motor

Setting up the power grid for gear motor equipment requires absolute precision. Below are the detailed operating steps for the assembler:

• Step 1: Open the terminal box, which is the connection space
  • Use a screwdriver to loosen nuts to remove the outer cover of the terminal box.
  • This operation helps technicians clearly observe the entire internal circuit pin system.
• Step 2: Allocate phase cables into the system
  • Prepare 3 transmission cable cores of the 3-phase power network (380V).
  • Proceed to screw and secure these 3 cable cores corresponding to the 3 terminal positions labeled U1, V1, and W1.
• Step 3: Identify and avoid incidents
  • To prevent severe short-circuit and burning incidents caused by voltage pushed up to 660V, technicians must absolutely not connect phase power cables to the set of 3 terminals U1, V2, and W2.
  • This is a common mistake that can completely destroy the motor core.
• Step 4: Activate current and acceptance check
  • After making sure the phase connections are safely tightened and technically correct, the user closes the circuit and supplies 380V power to the motor.
  • Observe the motor shaft to check the smoothness and rotational stability.

The 3-Phase Gear Motor 0.4kW 0.5Hp is suitable for small-sized conveyors, completely solving the problem of smooth operation coupled with impressive electricity bill saving capabilities. Thanks to its diverse gear ratio range and high torque generation capability, the product is suitable for conveyor systems, agitators, mixers, lifting systems, and many other automation applications.

If you are looking for a quality transmission solution, you can refer to more gear motor videos, watch compilation videos, or contact Thanh Thai Motor for consultation on choosing the right product for your actual needs.
