3-Phase Gear Motor 0.2kW 0.25Hp

The 3-phase gear motor 0.2kW 0.25Hp is one of the popular choices in various equipment such as sugarcane juice machines, meat paste grinders, and mini cargo winches. The gear motor is designed with an integrated motor body and gearbox head, ensuring high durability and stable operating performance. In particular, the 3-phase gear motor provides powerful operation, energy savings, and is suitable for systems requiring stable, continuous transmission over long periods.

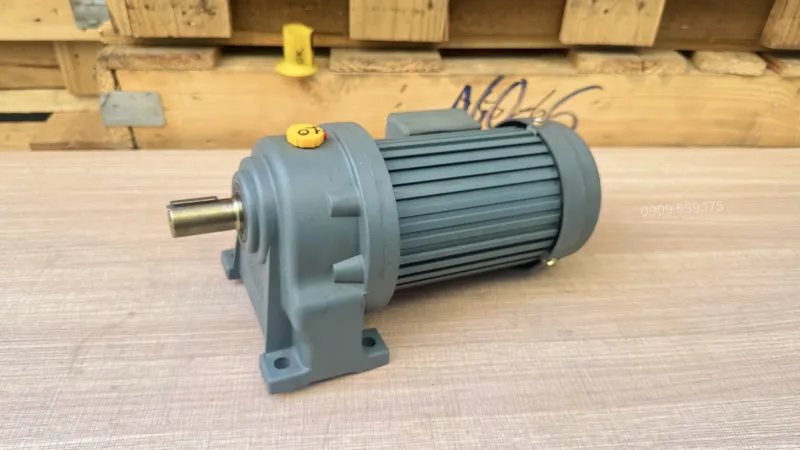

Overview of 3-Phase Gear Motor 0.2kW 0.25Hp

The 3-Phase Gear Motor 0.2kW 0.25Hp is designed with an electric motor body (specifically a 3-phase electric motor) and an integrated gearbox head, featuring the following structure:

• 3-phase motor 0.2kW:
  • Function: Converts electrical energy into mechanical energy to drive the gearbox.
  • Design: Die-cast aluminum motor housing helps dissipate heat quickly and reduces overall weight.
• Gearbox:
  • Function: Reduces motor speed and increases torque through a gear and shaft system, with each gear providing a different output speed.
  • Design: Sealed gearbox housing minimizes dust and maintains stable lubricating oil.

The combination of the 3-phase motor and the gearbox creates a complete transmission system that operates stably, durably, and saves long-term operating costs.

Detailed internal structure

The 3-Phase Gear Motor 0.2kW 0.25Hp belongs to the 3-phase gear motor category under 1.1kW, consisting of two main parts: the gearbox and the electric motor:

• Motor body:
  • Stator is wound with 100% copper wire, ensuring high performance.
  • Rotor is made of high-temperature heat-treated metal to increase durability and motor lifespan.
  • High-quality bearings help reduce friction and enhance operating lifespan.
  • Cooling fan at the back of the motor helps maintain a stable temperature during operation.
• Gearbox: Consists of large and small gears of various sizes, assembled according to specific gear ratios to effectively reduce speed and increase torque.

Watch the detailed video about the 3-phase gear motor product

Classification of 3-Phase Gear Motor 0.2kW 0.25Hp

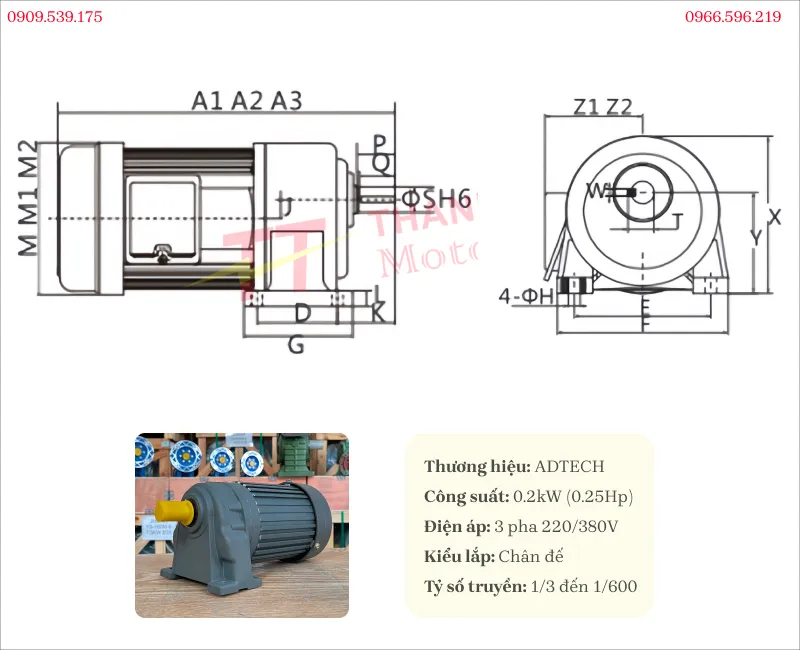

Foot-Mounted 3-Phase Gear Motor 0.2kW 0.25Hp

Specifications:

Applications:

• Food industry: Driving rollers for coconut milk extractors, mini meat/pork paste grinders, and bakery dough mixing bowls.
• Automated livestock farming: Driving feed conveyors for small-scale farms, rotating poultry incubator systems.
• Internal logistics: Running roller conveyors for sorting light postal packages, operating cargo pulling winches with loads under 100kg.
• Other practical applications: Used for rotating ovens, automated farming systems, or product packaging machines.

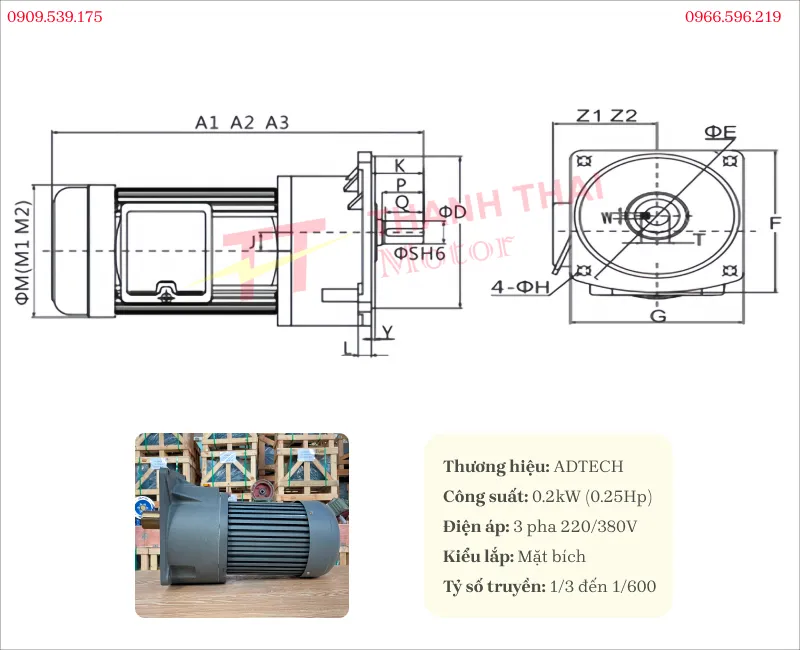

Flange-Mounted 3-Phase Gear Motor 0.2kW 0.25Hp

Specifications:

Applications:

• Environmental treatment: Directly mounted and suspended on the covers of chemical mixing tanks, settling agent dosing tanks in small wastewater treatment systems.
• Food processing: Operating dough mixers, meat slicers, packaging equipment, or agricultural product conveyor systems.
• Aquaculture industry: Co-axially connected to paddlewheel aerators and bottom oxygen aeration systems in shrimp breeding ponds.
• F&B and packaging industries: Operating the turntable of automatic liquid filling machines, controlling the bottle capping assembly on production lines.

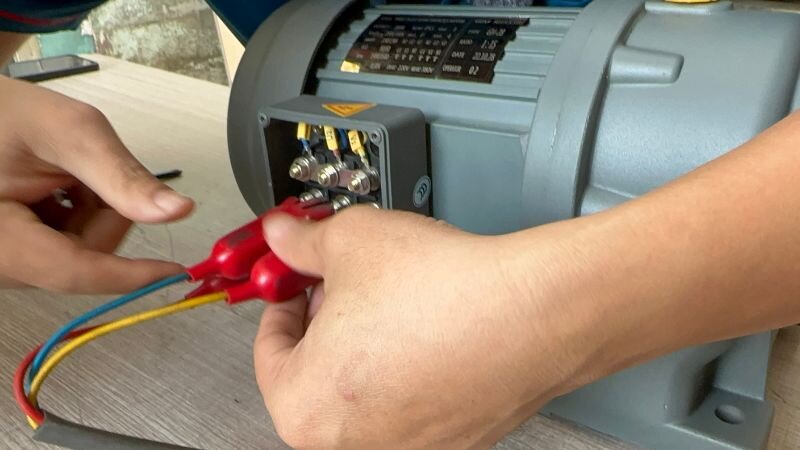

Standard wiring guide for 3-phase gear motors

Even with small power ratings, electricians must strictly adhere to the input voltage setup procedure to protect the magnetic coils. Below are the safest wiring steps:

• Step 1: Open the terminal box
  • Use a screwdriver to remove the screws securing the terminal box cover on the motor body.
  • Open the protective cover to fully expose the terminal board containing the internal power transmission pins.
• Step 2: Accurately connect the 3-phase power cables
  • Use 3 heavy-duty cables from the 3-phase 380V power grid.
  • Screw and tighten these 3 cables securely to the 3 contact terminal positions marked with U1, V1, and W1 symbols on the terminal board.
• Step 3: Remember the core safety principle (Explosion/burn prevention)
  • Technicians are strictly prohibited from connecting phase wires to the U1, V2, and W2 terminal group.
  • Incorrect wiring to these pins will cause the equipment to receive a voltage surge up to 660V, immediately causing the motor to burn out.
• Step 4: Completion and trial run
  • After thoroughly checking the contact positions, re-supply the 380V power source to start the motor.
  • Confirm the actual operating status of the device by observing the rotating shaft.

The 3-Phase Gear Motor 0.2kW 0.25Hp features a sturdy construction with a 100% copper wire motor, durable reduction gear system, and stable long-term operation. Thanks to its wide gear ratio range from 1/3 to 1/200 and various shaft size options, the product effectively meets low-speed and high-torque transmission requirements.

Customers can watch more gear motor videos, refer to compilation videos, or contact Thanh Thai Motor directly to receive consultation on selecting suitable products and get the latest quotation.

Warranty, Shipping, and Commitment Policies at Thanh Thai Motor

When purchasing gearmotors at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 Months

All gearmotor products at Thanh Thai Motor come with an official 24-month warranty. We are committed to clear after-sales service, with quick and transparent processing procedures – ensuring customer peace of mind during use.

Nationwide Delivery

No matter which province or city you are in, Thanh Thai Motor is always ready to support fast delivery, ensuring on-time delivery, careful packaging, and safe transportation. We supply a full range of 220V gearmotors, variable speed motors, etc., for the diverse needs of customers nationwide.

Products Meet European Quality Standards with German Technology

Our products are manufactured using modern German technology, meeting European standards. Models such as integrated gearmotors, variable speed motors, or 220V gearmotors all ensure stable operation and superior durability.

Competitive Pricing, Good Discounts for Dealers and Bulk Purchasers

We offer affordable gearmotors, suitable for projects with limited budgets. In addition, Thanh Thai Motor has special policies and offers for dealers and bulk purchasers.

Quality Commitment

All 220V gearmotors here are wound with pure copper wire. This ensures powerful, smooth operation and energy savings.

Full Certification Documents: CO, CQ,...

All products such as integrated gearmotors, conveyor motors, or speed reducers come with full Certificates of Origin (CO) and Quality (CQ), meeting stringent technical requirements in industry.
