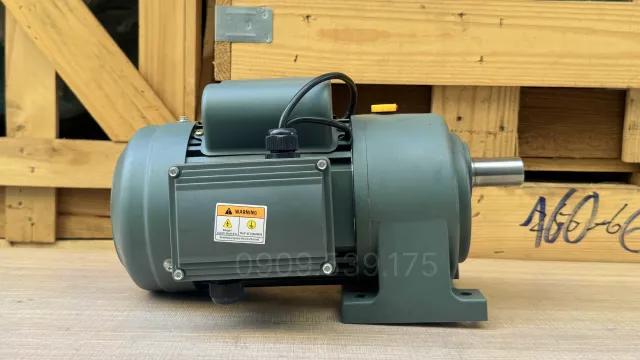

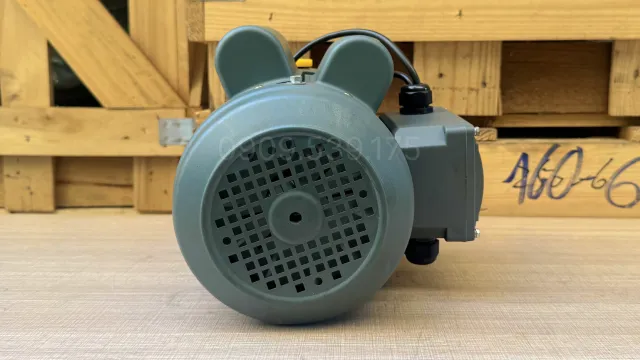

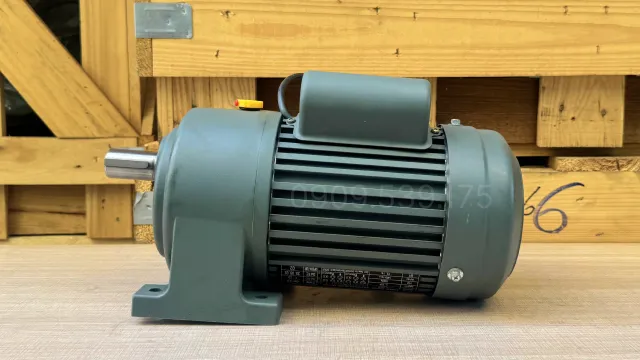

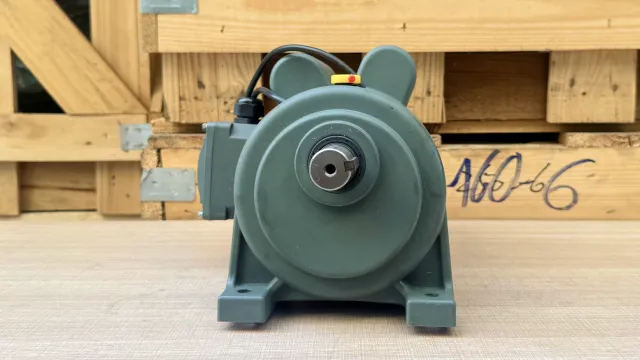

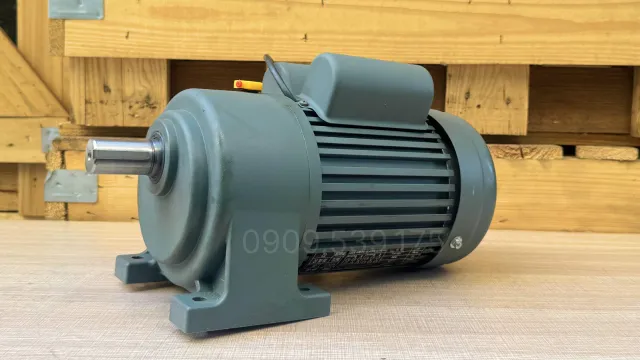

1-Phase Gear Motor 0.75kW 1Hp

The 1-Phase Gear Motor 0.75kW 1Hp (also known as 1-phase gear motor 0.75kW 1Hp) is the optimal choice for drive systems using household power supplies. With a robust design, stable operation, and powerful torque multiplication capabilities, this gear motor, more specifically this 1-phase gear motor, is well-suited for mechanical applications, agricultural processing, livestock farming, and medium-capacity automation equipment.

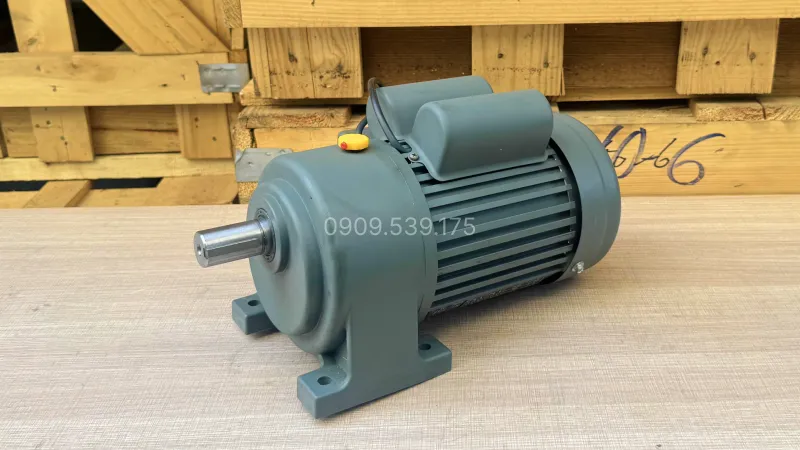

Overview of the 1-Phase Gear Motor 0.75kW 1Hp Design

The 1-Phase Gear Motor 0.75kW 1Hp consists of two main parts: the electric motor and the gearbox. This combination allows the device to generate stable rotational movement, reduce speed, and increase torque to meet various transmission requirements.

1-Phase Electric Motor 0.75kW 1Hp

• Body design: The motor body is manufactured from high-durability cast iron or aluminum alloy, capable of withstanding harsh working environments. Heat sink fins and slots are arranged reasonably to enhance heat dissipation, combined with a rear cooling fan to help the motor operate stably for a long time.
• Winding: The stator is wound with high-quality copper wire with efficient electrical conductivity, helping the motor operate powerfully, reducing overheating, and increasing equipment lifespan.
• Operating principle: The motor is responsible for generating rotational movement from a 1-phase power supply, then transmitting power to the gearbox to process speed and pulling force according to application requirements.

Gearbox

• Operating function: The gearbox helps reduce the rotational speed of the motor shaft to a level suitable for machinery while increasing torque to enhance load capacity and working efficiency.
• Internal structure: Inside the gearbox is a gear transmission manufactured with high precision, ensuring continuous and stable power transmission. The components are assembled in a sealed housing containing lubricating oil to reduce friction, limit noise, and extend the lifespan of the drive system.

Internal structure of 1-Phase Gear Motor 0.75kW 1Hp

The internal structure is optimally designed to ensure stable power transmission and enhance equipment durability.

Electric motor section

The electric motor section includes the main components directly involved in generating rotational movement.

• Stator: The stationary part of the motor, wound with high-quality copper wire to increase electrical conductivity, reduce energy loss, and maintain stable performance during use.
• Rotor: The rotating part located inside the stator, manufactured to be balanced and sturdy to create continuous rotation, ensuring efficient power transmission to the gearbox.
• Motor shaft: Directly connected to the gearbox, playing the role of transmitting torque from the motor to the gear system.

Gearbox section

The gearbox section assumes the function of adjusting speed and transmitting torque to the output.

• Gear transmission: Consists of multiple pairs of precision-machined gears working in mesh with each other to reduce rotational speed and increase load-bearing capacity.
• Output shaft: Receives force from the gear system and transmits it to machinery or operating equipment.
• Gearbox housing: Manufactured from high-hardness cast iron or alloy, helping protect internal components from dust, impacts, and environmental working conditions.
• Lubricating oil: Contained inside the gearbox to reduce friction between gears, limit wear and tear, and increase the lifespan of the drive system.

Watch detailed video about the 1-phase gear motor product:

Classification of 1-Phase Gear Motor 0.75kW 1Hp

Depending on the mounting type, the 1-phase gear motor is divided into various forms to suit each usage requirement.

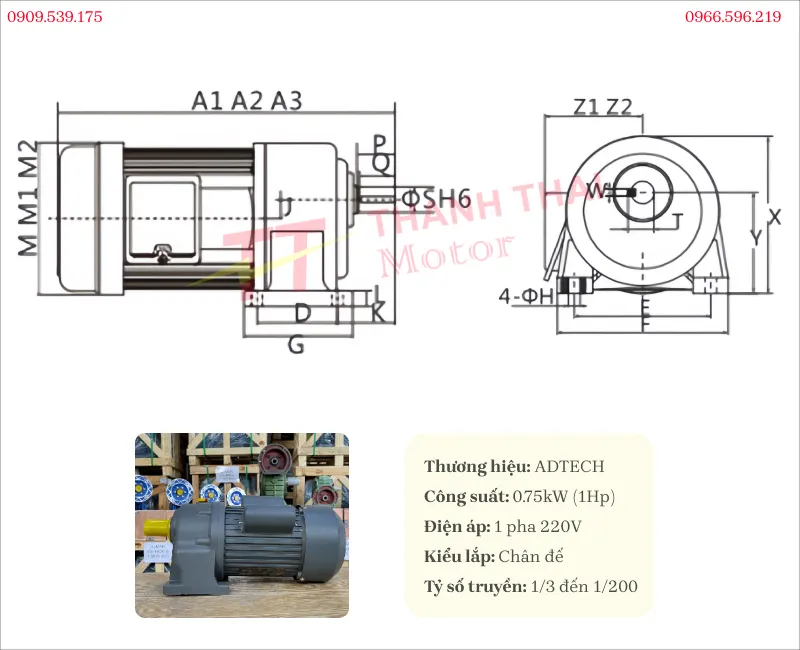

Foot-mounted 1-Phase Gear Motor 0.75kW 1Hp

The foot-mounted series is suitable for systems requiring fixed installation on a base or machine frame.

Technical specifications:

Applications:

• Goods transportation systems:Gear motors are widely applied in conveyor lines and industrial conveyors, supporting the smooth and efficient transport of products, components, and raw materials between production stages.
• Industrial mixers and agitators: The equipment is suitable for installation in solution agitators, powder mixers, animal feed mixers, or dosing systems requiring stable rotational speed and high torque.
• Winding, pulling, and lifting equipment: Used in cable winding/unwinding mechanisms, material pulling systems, industrial roller shutters, lifting tables, and medium-load material handling equipment.

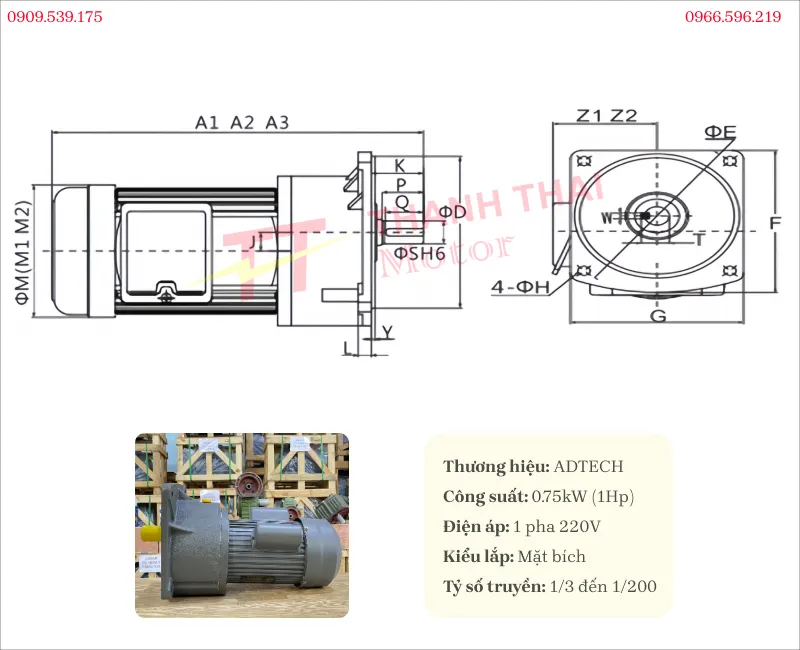

Flange-mounted 1-Phase Gear Motor 0.75kW 1Hp

The flange-mounted series is suitable for applications requiring direct installation into equipment or limited spaces.

Technical specifications:

Applications:

• Agricultural machinery: The 1-Phase Gear Motor 0.75kW 1Hp is also installed on agricultural processing machines, pellet presses, raw material blenders, and many other agricultural production equipment.
• Automated production lines: With stable and continuous operation capabilities, the motor is suitable for drive mechanisms in packaging systems, filling lines, product sorting, and factory automation equipment.

Guide to wiring 1-phase gear motor

Proper technical connection helps the 1-phase gear motor operate safely, achieve optimal performance, and extend equipment lifespan. Below are the basic steps when performing wiring for the 1-phase gear motor 1.1kW 1.5Hp.

Step 1: Check the power supply

Before proceeding with connection, it is necessary to confirm that the power supply used is 1-phase 220V electricity and cross-reference with the parameters recorded on the motor nameplate. This check helps select the correct wiring diagram and ensures the motor operates under suitable voltage conditions.

Step 2: Proceed with wire connection

Open the motor terminal box and accurately identify the wire ends according to the manufacturer’s markings. Connect the power supply to the specified wire ends while tightening the contact points to avoid overheating or loose wires during operation.

Step 3: Inspection and test run

After completing the wiring, it is necessary to recheck all joints, grounding wires, and electrical protection devices. Perform a no-load test run to observe the direction of rotation, stability, and promptly detect abnormal signs before putting the motor into official operation.

Through the wiring guide video for the 1-phase gear motor at Thanh Thai Motor, customers can easily grasp the installation process, correct technical connection methods, and important notes during use. In addition, customers can also refer to many other gear motor videos to learn in detail about the structure, operating principle, and practical application of each product line. Watch more through the summary videos at Thanh Thai Motor.

Warranty, Shipping, and Commitment Policies at Thanh Thai Motor

When purchasing gearmotors at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 Months

All gearmotor products at Thanh Thai Motor come with an official 24-month warranty. We are committed to clear after-sales service, with quick and transparent processing procedures – ensuring customer peace of mind during use.

Nationwide Delivery

No matter which province or city you are in, Thanh Thai Motor is always ready to support fast delivery, ensuring on-time delivery, careful packaging, and safe transportation. We supply a full range of 220V gearmotors, variable speed motors, etc., for the diverse needs of customers nationwide.

Products Meet European Quality Standards with German Technology

Our products are manufactured using modern German technology, meeting European standards. Models such as integrated gearmotors, variable speed motors, or 220V gearmotors all ensure stable operation and superior durability.

Competitive Pricing, Good Discounts for Dealers and Bulk Purchasers

We offer affordable gearmotors, suitable for projects with limited budgets. In addition, Thanh Thai Motor has special policies and offers for dealers and bulk purchasers.

Quality Commitment

All 220V gearmotors here are wound with pure copper wire. This ensures powerful, smooth operation and energy savings.

Full Certification Documents: CO, CQ,...

All products such as integrated gearmotors, conveyor motors, or speed reducers come with full Certificates of Origin (CO) and Quality (CQ), meeting stringent technical requirements in industry.
