Electromagnetic Brake 3kW 4Hp

The Electromagnetic Brake 3kW 4Hp is an electromagnetic braking device installed with an electric motor to brake the rotating shaft immediately when power is disconnected. The device helps hold the load in the correct position, reduces drive mechanism drift, and enhances safety for industrial systems using gear motors.

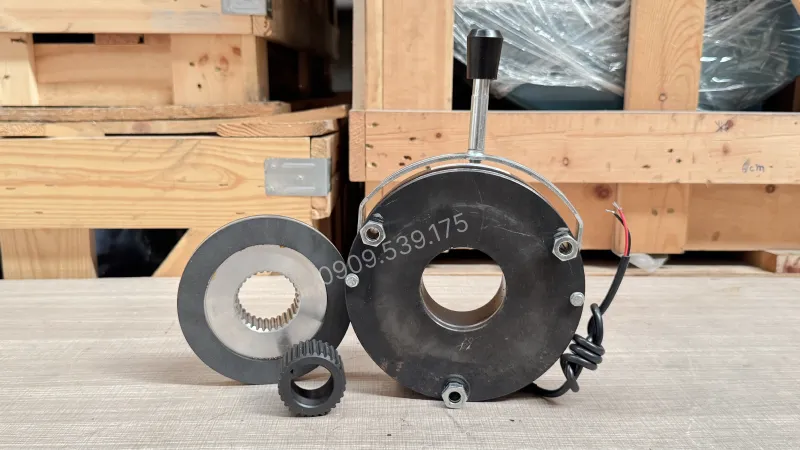

Design of the Electromagnetic Brake 3kW 4Hp

The electromagnetic brake features a compact and modern design, allowing for easy integration into various systems. Thanks to its high-quality material construction, the electromagnetic brake offers high durability and wear resistance, ensuring stable operation under harsh environmental conditions.

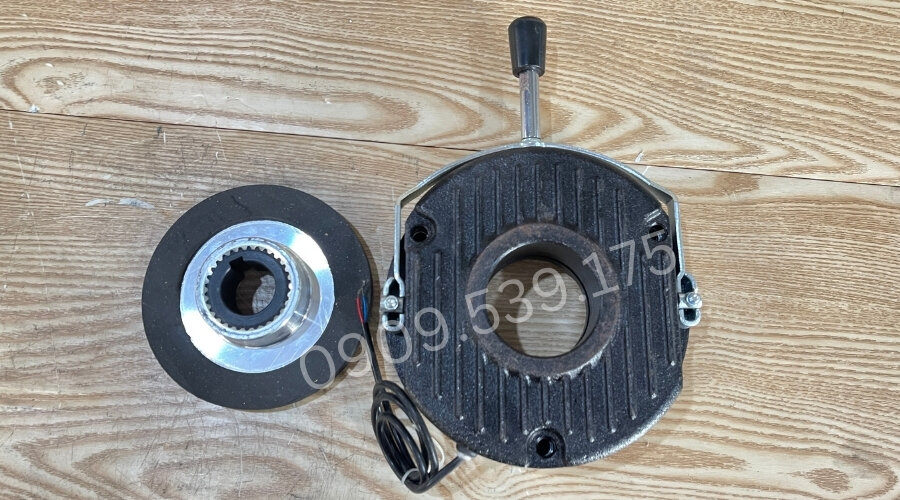

Structure of the Electromagnetic Brake 3kW 4Hp

The structure of the Electromagnetic Brake 3kW 4Hp consists of the following main components:

• Electromagnet: Made of a copper coil wound around an iron core, generating a strong magnetic field when current passes through, acting on the armature.
• Armature: Connected to the rotating parts of the motor, subjected to the magnetic force from the electromagnet, helping to slow down or stop the motor effectively.
• Control unit: Integrated to control temperature, protect the motor from overheating, and adjust current and braking force to meet requirements.

Specifications of the Electromagnetic Brake 3kW 4Hp

Technical specifications are the basis for selecting an electromagnetic brake that matches the size and capacity of the motor.

Technical Specifications

What products can the Electromagnetic Brake 3kW 4Hp be mounted with?

The electromagnetic brake is used for various motor lines with corresponding assembly standards and capacities.

• 3-phase electric motor: Compatible with B3, B5, B14, and B35 mounting types.
• 1-Phase Electric Motor: Can be installed on models with the same shaft and flange dimensions.
• Gear Motor: Compatible with NMRV 90, NMRV 110 gearbox lines and models with the same mounting standards.
• WPO, WPDO Worm Gear Motor: Installed for drive assemblies using 3kW motors.
• Helical Gear Motor: Applied to coaxial, parallel shaft, or helical gearbox lines.

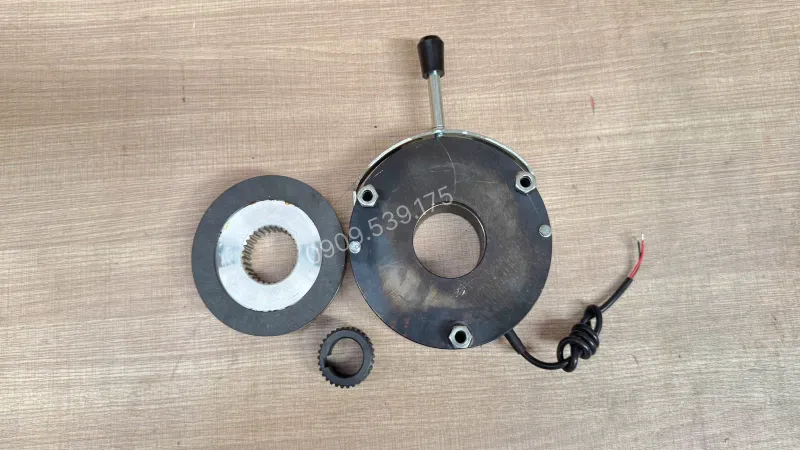

Common applications of the Electromagnetic Brake 3kW 4Hp

The Electromagnetic Brake 3kW 4Hp has many applications in industrial and civil fields, including:

• Helps control the operating speed of conveyors, ensuring safety for people and goods in case of incidents, stopping the motor quickly and effectively.
• Applied in crane equipment, helping to control lifting and lowering speeds precisely and safely.
• Used in packaging and labeling production lines to ensure stable and efficient operation.

To fully reference all electromagnetic brake lines by capacity, you can watch the summary video to compare sizes, mounting types, and applications of each model. Additionally, the electromagnetic brake video will help you better understand the structure, operating principle, installation method, and notes when selecting and using the product in practice.
