Electromagnetic Brake 2.2kW 3Hp

Electromagnetic Brake 2.2kW 3HP is an electromagnetic braking device installed directly onto the electric motor to support rapid rotation stopping, load holding, and safety assurance for drive systems. The device is commonly used in hoisting machinery, conveyors, processing machines, and equipment requiring precise control of motor stopping.

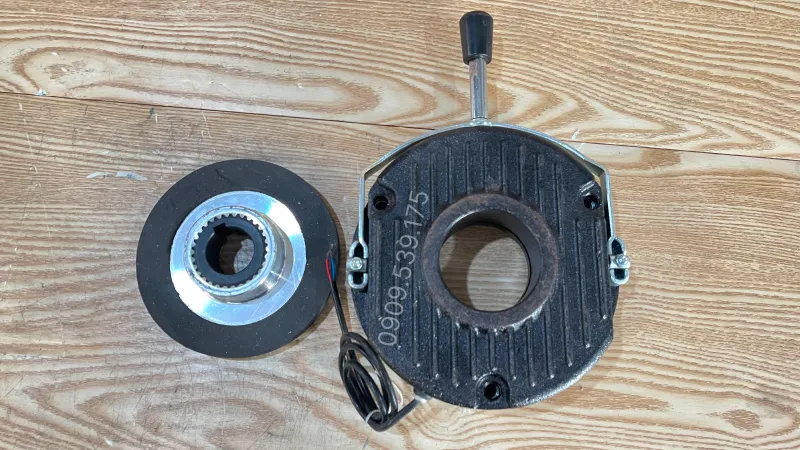

What is the design of the Electromagnetic Brake 2.2kW 3HP?

The electromagnetic brake is manufactured from high-quality materials, capable of withstanding harsh environmental conditions, minimizing wear and tear, and helping the equipment operate efficiently for a long time. With a compact and modern design, the Electromagnetic Brake 2.2kW 3HP is easily integrated into various machinery systems while saving installation space.

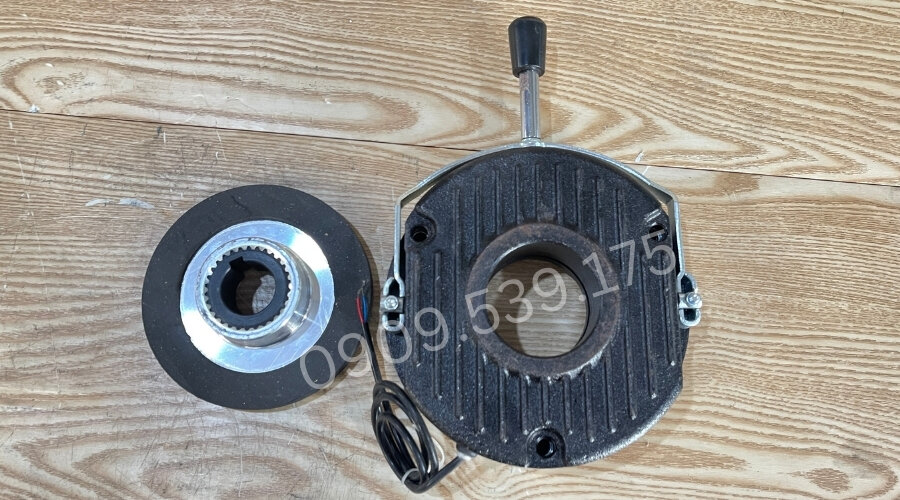

Structure of Electromagnetic Brake 2.2kW 3HP

The structure of the Electromagnetic Brake 2.2kW 3HP consists of three main components:

• Electromagnet: Made of a copper coil wound around an iron core, this electromagnet generates a strong magnetic field when current passes through, acting on the armature.
• Armature: The component connected directly to the rotating parts of the motor. The armature experiences the magnetic attraction from the electromagnet, making the deceleration and stopping process of the motor fast and efficient.
• Control unit: Integrates a control circuit to monitor temperature, adjust current, and brake force to ensure the motor operates stably and efficiently.

Technical Specifications of Electromagnetic Brake 2.2kW 3HP

The parameters below help select the appropriate electromagnetic brake to match the motor’s power and mounting dimensions.

Technical Specifications

What products can the Electromagnetic Brake 2.2kW 3HP be installed with?

The electromagnetic brake is used for various motor lines and drive assemblies with the same installation standards.

• 3-phase electric motor with 2.2kW 3HP power: Compatible with foot-mounted (B3), flange-mounted (B5, B14), and foot-flange mounted (B35) types.
• 1-Phase Electric Motor with 2.2kW 3HP power: Installed with models having the same shaft diameter and flange dimensions.
• Gear motor with 2.2kW 3HP power: Can be combined with gearbox lines specifically NMRV gearbox size 90, size 110, and models with matching assembly standards.
• WPO, WPDO gear motor: Suitable for drive assemblies using 2.2kW motors.
• Helical gear motor: Applicable to coaxial, helical, and parallel shaft gearbox lines.

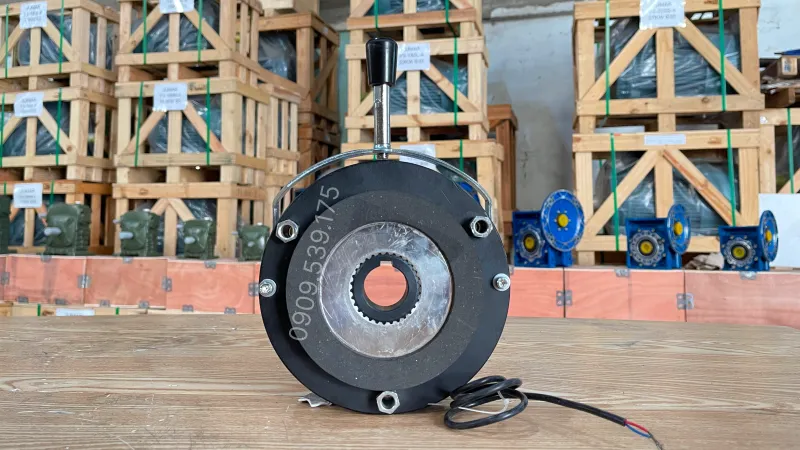

Common Applications of Electromagnetic Brake 2.2kW 3HP

The Electromagnetic Brake 2.2kW 3HP is widely used in industrial and civil systems:

• Helps control the cargo transportation speed of conveyor belt systems, ensuring safety for users and goods, especially when incidents occur, helping to stop the motor quickly and efficiently.
• The electromagnetic brake helps precisely control cargo lifting and lowering speed, ensuring lifting equipment and overhead cranes operate stably and efficiently.
• The Electromagnetic Brake 2.2kW 3HP is also very useful in production, packaging, and labeling lines, helping control operating speed and minimize errors.

To explore more models by power capacity and installation standards, you can watch the summary video. Additionally, the electromagnetic brake video will help you learn about the structure, operating principle, installation instructions, and important notes when selecting products suitable for each drive system.
