Explosion-proof Motor 0.75kW 1Hp

Explosion-proof Motor 0.75kW 1Hp plays an intermediate role in converting electrical energy into mechanical energy. This electric motor is widely used due to its high safety and minimized risks. Let’s explore the explosion-proof motor in this article!

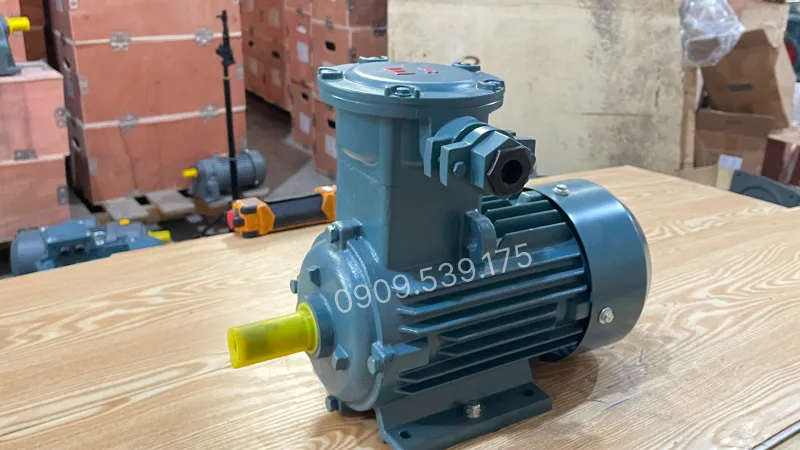

Overview Design of Explosion-proof Motor 0.75kW 1Hp

Explosion-proof Motor 0.75kW 1Hp belongs to the group of explosion-proof motors under 3.7kW, designed with a durable and sturdy cast iron outer layer. With an improved thick motor housing and larger internal wiring, the motor offers enhanced safety, good impact resistance, and high-temperature tolerance. In particular, Explosion-proof Motor 0.75kW 1Hp also has the ability to prevent explosions in the event of an electrical failure.

Internal Structure of Explosion-proof Motor 0.75kW 1Hp

The internal components of the device are manufactured according to explosion-proof safety standards to minimize risks during continuous operation.

• Stator: The magnetic core is made of technical steel sheets to help reduce power loss. The internal copper winding features Class F insulation, maintaining stable operation as temperature rises.
• Rotor: The squirrel-cage rotor is made of solid steel alloy. This component is dynamically balanced on a computer to reduce physical centrifugal friction and prevent electric sparks during rotation.
• Bearings: The motor shaft uses industrial bearings integrated with dust covers and high-temperature resistant grease, helping the rotating shaft maintain long-term stability.
• Cooling system: The cooling fan attached to the shaft end uses anti-static plastic material, preventing electrical discharge when the fan operates in a dusty environment.

What Types of Explosion-proof Motor 0.75kW 1Hp Are Available?

Explosion-proof Motor 0.75kW 1Hp has four standard rotation speeds, meeting the basic drive gear ratios of machinery systems. Detailed technical specifications are listed right below.

Explosion-proof Motor 0.75kW 1Hp 2-pole (2,800 – 3,000 RPM)

This high-speed device type is suitable for mechanisms requiring the circulation of liquids or exhaust gases in confined spaces.

Technical specifications:

Model	80M
Shaft diameter	19mm
Keyway	6mm
Flange diameter	200mm
Weight	19kg
Dimensions	295mm * 175mm * 220mm
Mounting type	Foot mount (B3), Flange mount (B35, B5, B14)
Protection class	IP55
Insulation class	Class F

Practical applications:

• Small capacity centrifugal pumps for chemical circulation in low-capacity storage tanks.
• Local ventilation fans installed in chemical laboratory fume hoods.
• Mini air blowers for local microbial aeration systems.

Explosion-proof Motor 0.75kW 1Hp 4-pole (1,400 – 1,500 RPM)

Standard speed device providing a balance between load traction force and drive speed.

Technical specifications:

Model	80M
Shaft diameter	19mm
Keyway	6mm
Flange diameter	200mm
Weight	19kg
Dimensions	295mm * 175mm * 220mm
Mounting type	Foot mount (B3), Flange mount (B35, B5, B14)
Protection class	IP55
Insulation class	Class F

Applications:

• Conveyor drives for transporting light components in solvent mixing areas.
• Providing traction force for mini air compressor stations serving handheld pneumatic tools.
• Operating liquid raw material mixers in small reaction tanks

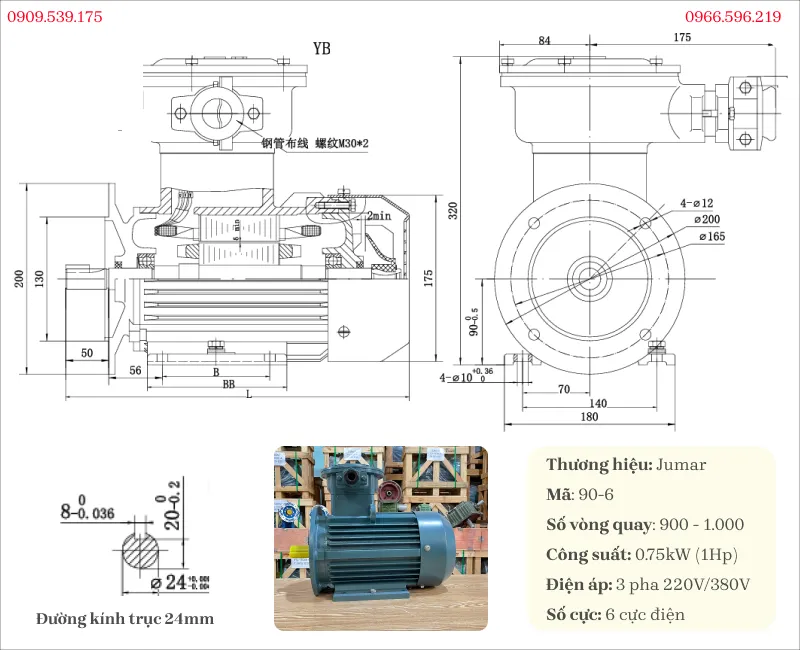

Explosion-proof Motor 0.75kW 1Hp 6-pole (900 – 1,000 RPM)

Low rotation speed device, generating high static traction force to meet loads requiring firmness and solidity.

Technical specifications:

Model	90S
Shaft diameter	24mm
Keyway	8mm
Flange diameter	200mm
Weight	19kg
Dimensions	320mm * 195mm * 250mm
Mounting type	Foot mount (B3), Flange mount (B35, B5, B14)
Protection class	IP55
Insulation class	Class F

Practical applications:

• Light material crushers in areas sensitive to electrostatic dust.
• Screw conveyor systems supplying fine powder materials to dosing tanks.
• Chemical mixers requiring steady and continuous agitation force.

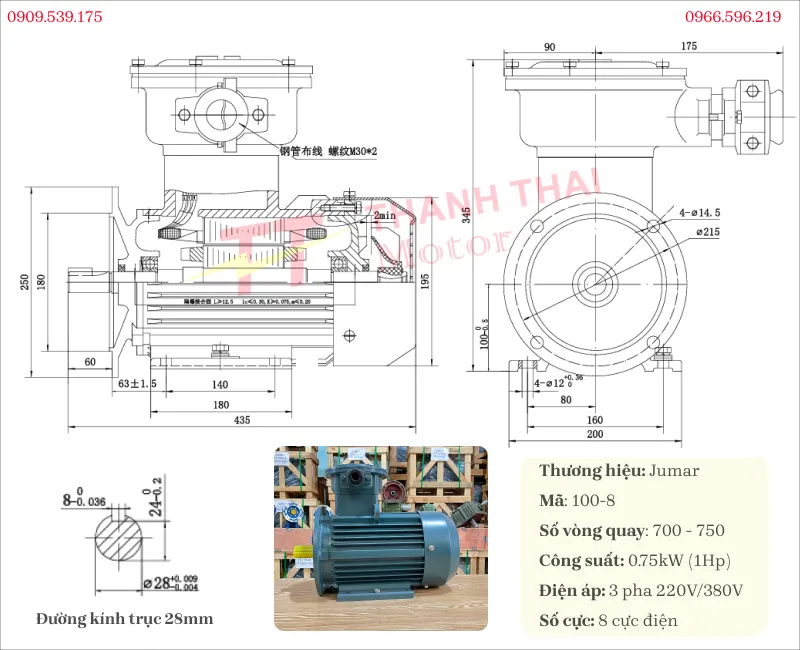

Explosion-proof Motor 0.75kW 1Hp 8-pole (700 – 750 RPM)

The version with the slowest rotation speed, providing the highest torque for specific movement mechanisms.

Technical specifications:

Model	100L
Shaft diameter	28mm
Keyway	8mm
Flange diameter	200mm
Weight	19kg
Dimensions	385mm * 215mm * 270mm
Mounting type	Foot mount (B3), Flange mount (B35, B5, B14)
Protection class	IP55
Insulation class	Class F

Practical applications:

• Light-load lifting mechanisms requiring slow and precise movement speed.
• Product positioning turntables in mini electrostatic painting lines.
• Screw-type feeding mechanisms in low-heat drying systems.

What Gearbox Does Explosion-proof Motor 0.75kW 1Hp Combine With?

To change the traction force, technicians need to assemble the 0.75kW motor with compatible mechanical gearbox drive mechanisms.

• Helical gearbox: Oil-immersed R17 and R27 inline series are used to drive small conveyors.
• Worm gearbox: Hollow-shaft NMRV size 40 or size 50 codes combined with the motor serve light lifting mechanisms.
• Drive coupling: Use heavy-duty rubber couplings or metal couplings with rubber pads to minimize the risk of spark generation due to friction.

Wiring Guide for Explosion-proof Motor

To ensure electrical safety and technical standards, you need to follow these 5 steps sequentially:

Step 1: Cut off power and inspect the equipment

It is mandatory to pull the circuit breaker to completely disconnect the grid power. Preview the electric motor video and carefully read the specifications printed on the motor housing to know the standard voltage level, thereby preparing the type of wire with a suitable cross-section.

Step 2: Remove the terminal box cover

Use a wrench to unscrew the bolts to lift the protective cover (identified by the “EX” symbol) off the machine body. The opening process must be careful not to damage or displace the explosion-proof rubber gasket at the box edge.

Step 3: Locate terminal studs

Observe inside the terminal box to accurately locate the 3 copper studs engraved with the letters U, V, and W. Compare with the diagram to check whether the copper bars are installed in a star or delta configuration to match the existing power grid.

Step 4: Connect power cable and grounding

Crimp cable lugs onto the power cable and fasten them directly to the U, V, and W studs. The strictest requirement in this step is to tighten the screws firmly to thoroughly prevent the risk of sparking. Next, connect an additional cable to the grounding stud position.

Step 5: Close the protective box tightly

Place the cover tightly against the rubber gasket edge, then evenly tighten the bolts at all corners. If you need to refer to the wiring diagrams of other industrial machinery types, look for compilation videos from Thanh Thai Motor.

Warranty, shipping and commitment policy at Thanh Thai Motor

Warranty up to 24 months

All electric motor products distributed by Thanh Thai Motor are covered by a genuine warranty for up to 24 months. Customers who purchase electric motors can completely rest assured with a transparent, fast, and professional after-sales policy.

Nationwide Shipping

Thanh Thai Motor supports nationwide shipping for all electric motors sold, ensuring safe and on-time delivery to every province across the country. Whether you are in the North, Central, or South, we are ready to serve you.

European Standard Quality – German Technology

Thanh Thai Motor sells electric motors manufactured with German technology, meeting European quality standards, ensuring durability, high efficiency, and stable operation for a long period – suitable for the strict requirements of industrial electric motors.

Competitive Prices – Attractive Offers for Dealers and Wholesale Customers

We commit to reasonable motor prices, offering the best electric motor products with high discount policies for bulk purchasers and distribution units. The more you buy – the better the profit.

Quality Commitment – Powerful Operation, Power Saving

Thanh Thai Motor sells electric motors wound with 100% copper wire, helping the machine run powerfully, consume less electricity, operate smoothly, and effectively reduce vibration – extending equipment lifespan. When purchasing an electric motor, prioritizing products with 100% copper core will be a wise decision, bringing long-term value.

At Thanh Thai Motor, we provide a full range of products, with various phases and capacities, such as:

• 220V electric motors (or 220V 1-Phase electric motors) are 1-Phase electric motors commonly chosen for many household appliances and light industrial equipment, offering convenience and efficiency.
• 380V electric motors are 3-Phase electric motors using three-phase power, commonly used in heavy industrial applications.

Full CO, CQ Certification Documents

Thanh Thai Motor provides the best quality electric motors. Each imported electric motor product from Thanh Thai Motor comes with a Certificate of Origin (CO) and a Certificate of Quality (CQ), meeting the requirements for large projects, constructions, and strict technical documentation.

Contact for Purchase

Do you need to buy an electric motor or seek advice on choosing an affordable electric motor that suits your needs? Contact Thanh Thai Motor immediately using the methods below:

• WhatsApp: +84966596219
• Email: codienthanhthai@gmail.com

With a specialized design for hazardous working environments, Explosion-proof Motor 0.75kW 1Hp is the ideal choice to ensure safety, efficiency, and operational durability. Not only outstanding in explosion-proof capability, the product also easily combines with various transmission devices, suitable for production lines with high technical requirements. Contact Thanh Thai Motor immediately for detailed consultation and a quick quote.
