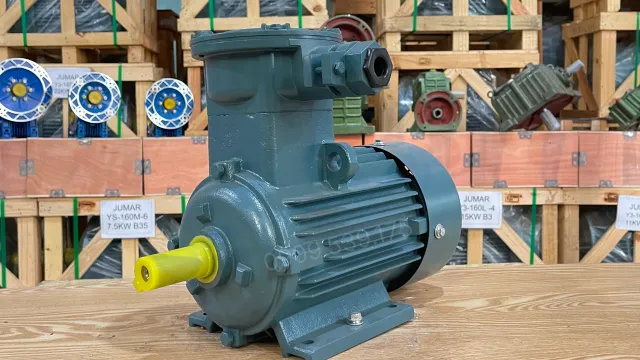

Explosion-proof Motor 1.1kW 1.5Hp

The Explosion-proof Motor 1.1kW 1.5Hp plays the role of converting electrical energy into mechanical energy, with high safety assurance in environments requiring explosion protection. Widely applied in many industries, this motor is a reliable choice. Let’s explore more about the explosion-proof motor product (explosion-proof motor / explosion-proof motor) in the article below!

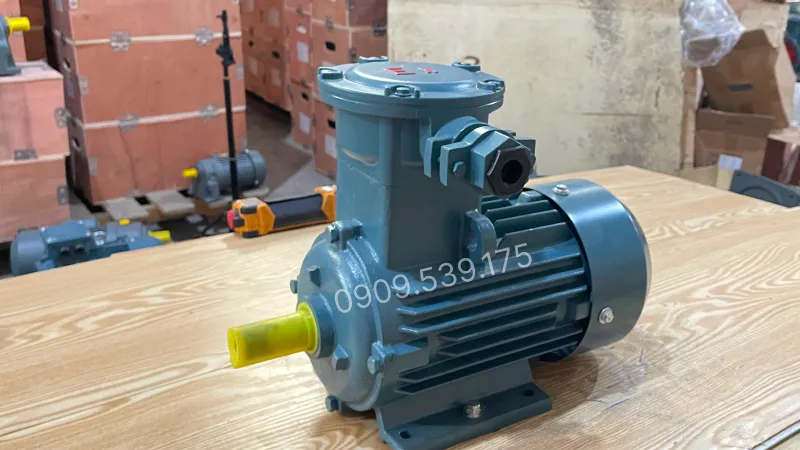

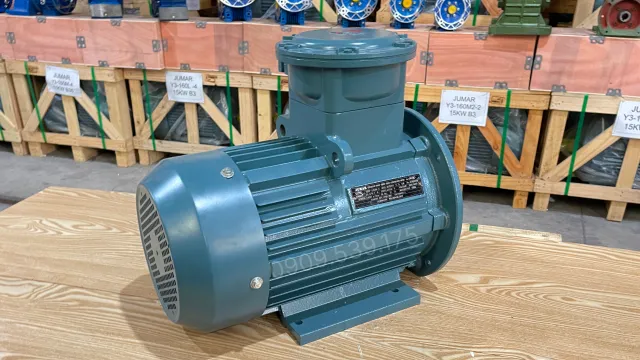

Overview design of the Explosion-proof Motor 1.1kW 1.5HP

The Explosion-proof Motor 1.1kW 1.5Hp belongs to the product group of explosion-proof motors under 3.7kW, featuring an improved design with a thick, durable cast iron housing that protects the motor from environmental impacts and provides good impact resistance.

The internal wiring material of the electric motor is optimized with a large size, helping to increase high-temperature resistance.

In particular, the Explosion-proof Motor 1.1kW 1.5Hp has effective explosion-proof capabilities, ensuring safety in the event of electrical short circuits, bringing reliability in high-safety industrial applications.

Internal structure of the Explosion-proof Motor 1.1kW 1.5Hp

Every operating detail inside the equipment must pass a series of explosion-safety tests before leaving the factory to eliminate all potential risks.

• Stator: Stationary magnetic field block shaped from technical steel sheets to eliminate electrical energy losses. The tightly wound copper coil inside features Class F heat-resistant insulation, maintaining absolute safety when the device operates continuously for many hours.
• Rotor: Squirrel-cage rotating block made from solid steel alloy. This component is intricately computer-finetuned for dynamic balancing to eliminate physical friction phenomena generating electrical sparks during rapid rotation.
• Bearing: Industrial bearings accompanied by multi-layer dust-proof seal systems and specialized lubricating grease, helping to maintain smooth movement and preventing excessive heat generation for the shaft.
• Cooling system: The fan assembly mounted at the shaft end uses non-electrostatic synthetic plastic material, thereby completely eliminating the risk of electrostatic discharge when the blades cut through the airflow.

What types of explosion-proof electric motors 1.1kW 1.5Hp are available?

The 1.1kW 1.5Hp explosion-proof machine line offers four distinct rotational speed versions, helping designers easily compatibility with countless mechanical drive systems. Specific parameters are detailed below.

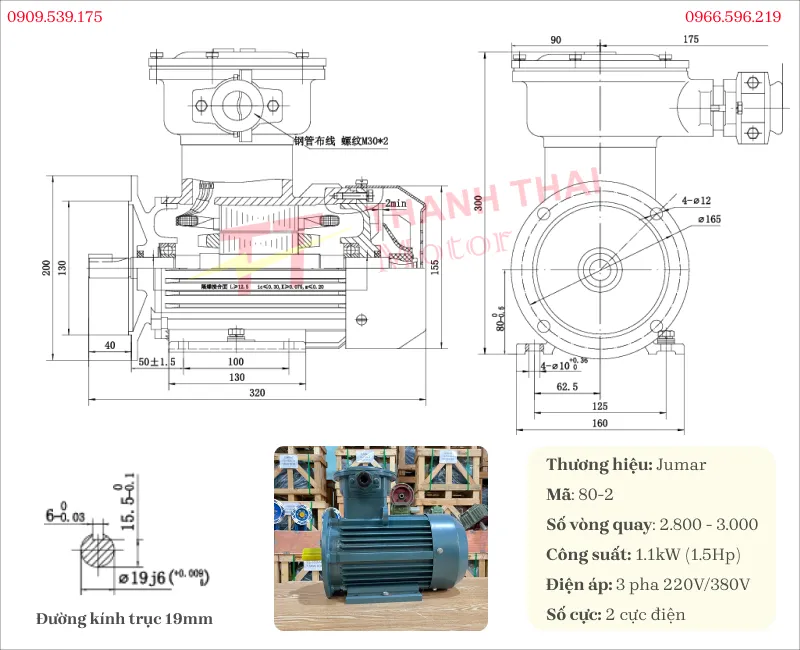

Explosion-proof motor 1.1kW 1.5Hp 2-pole (2,800 – 3,000 RPM)

This is a version that delivers extremely fast rotational speed, excellently solving problems requiring the transfer of large volumes of liquid or gas in an instant.

Technical specifications:

Model	80M
Shaft diameter	19mm
Key	6mm
Flange diameter	200mm
Weight	19kg
Dimensions	295mm * 175mm * 220mm
Mounting type	Foot-mounted (B3), Flange-mounted (B35, B5, B14)
Protection class	IP55
Insulation class	Class F

Practical applications:

• Small capacity centrifugal pumps serving solvent circulation systems in cosmetics workshops.
• High-speed smoke extraction fans installed in mini-scale industrial drying cabinets.
• Air blowers supplying oxygen for microbial tanks in narrow wastewater treatment stations.

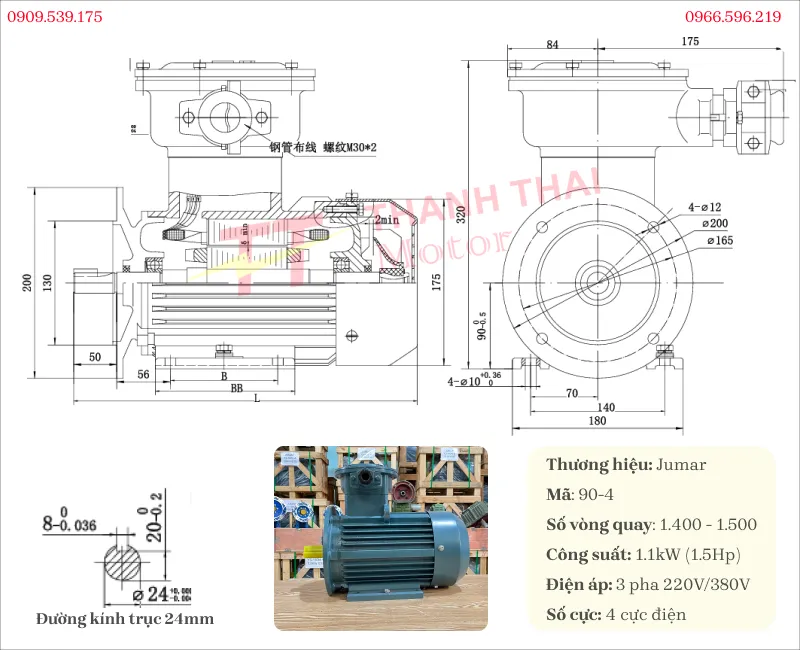

Explosion-proof motor 1.1kW 1.5Hp 4-pole (1,400 – 1,500 RPM)

Possessing a standard rotational pace, this version establishes an excellent balance between torque and durability over time.

Technical specifications:

Model	90S
Shaft diameter	24mm
Key	8mm
Flange diameter	200mm
Weight	19kg
Dimensions	320mm * 195mm * 250mm
Mounting type	Foot-mounted (B3), Flange-mounted (B35, B5, B14)
Protection class	IP55
Insulation class	Class F

Practical applications:

• Pulling conveyor belts transporting electronic components in sensitive factory environments.
• Driving mini air compressor stations deep underground in coal mining tunnels.
• Operating liquid raw material agitators in blending laboratories.

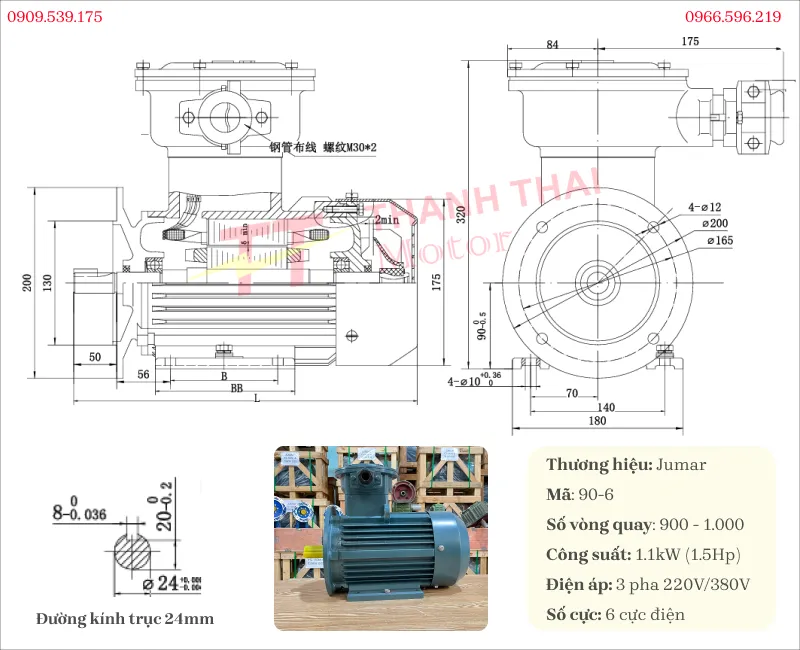

Explosion-proof motor 1.1kW 1.5Hp 6-pole (900 – 1,000 RPM)

By reducing the RPM, the machine generates very strong torque to effortlessly overcome the inertia of heavy loads.

Technical specifications:

Model	90L
Shaft diameter	24mm
Key	8mm
Flange diameter	200mm
Weight	19kg
Dimensions	345mm * 195mm * 250mm
Mounting type	Foot-mounted (B3), Flange-mounted (B35, B5, B14)
Protection class	IP55
Insulation class	Class F

Practical applications:

• Plastic scrap granulators in areas prone to flammable static dust.
• Screw conveyor systems pushing powder raw materials into small-capacity storage tanks.
• Concentrated chemical mixers requiring strong agitation force and continuous operation.

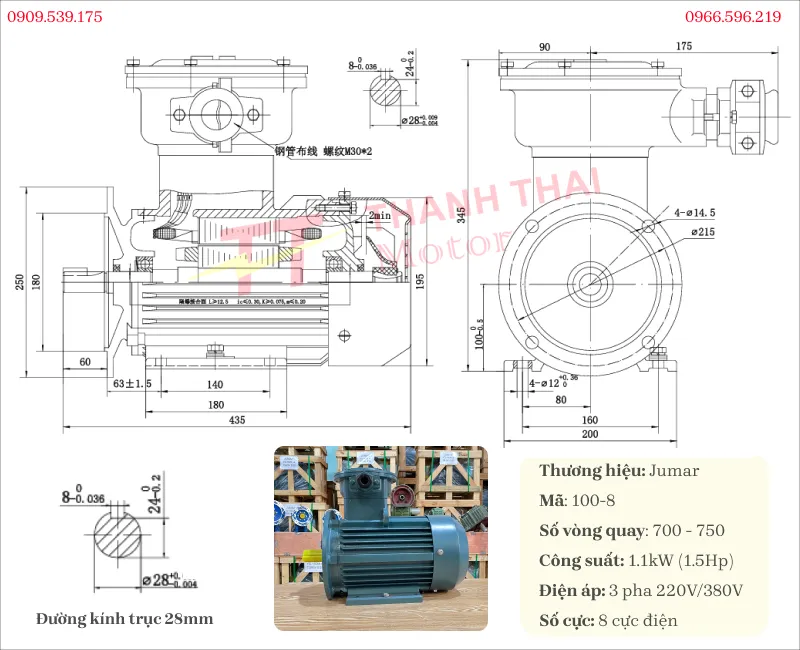

Explosion-proof motor 1.1kW 1.5Hp 8-pole (700 – 750 RPM)

This version has the lowest rotational speed, providing high starting torque for slow-moving mechanisms.

Technical specifications:

Model	100L
Shaft diameter	28mm
Key	8mm
Flange diameter	200mm
Weight	19kg
Dimensions	385mm * 215mm * 270mm
Mounting type	Foot-mounted (B3), Flange-mounted (B35, B5, B14)
Protection class	IP55
Insulation class	Class F

Practical applications:

• Cargo lifting hoists requiring slow moving speeds.
• Product turntables in electrostatic painting booths.
• Feeding mechanisms in small-scale incinerator systems.

What gearboxes does the explosion-proof motor 1.1kW 1.5Hp combine with?

To adjust the pulling force, operators need to couple the 1.1kW motor with suitable gearboxes.

• Helical gearbox: R27, R37 or K37 oil-immersed series are used to drive conveyors.
• Worm gearbox: WPA, WPS models size 60 or 70 combined with the motor to serve lifting mechanisms.
• Drive coupling: Use plum flexible couplings or hydraulic couplings to minimize the risk of ignition caused by metal friction.

Wiring guide for explosion-proof motors

Follow these 5 steps for safe and standard wiring:

Step 1: Cut off power and inspect parameters

Completely cut off the mains power. Read the label on the machine housing and refer to the electric motor video beforehand to understand the rated voltage, thereby choosing the appropriate cable type.

Step 2: Open the terminal box cover

Use tools to loosen the screws and take out the cover with the “EX” mark. Handle with care, absolutely avoiding tearing the rubber gasket edge at the box rim.

Step 3: Locate the copper terminals

Look inside the box, correctly locate the 3 terminals U, V, W. Check whether the copper strips are connected in delta or star configuration to see if they match the supplied power grid.

Step 4: Secure wires and ground connection

Crimp the cable lugs and connect them to the U, V, W terminals. It is mandatory to tighten the nuts firmly to prevent the risk of sparking. Next, connect an additional grounding cable to the specified terminal.

Step 5: Seal the protective cover tightly

Reinstall the cover, press it tightly against the rubber gasket edge, and tighten the bolts evenly at all corners. If you need to learn about the circuit diagrams of other equipment lines, check out the compilation videos on the Thanh Thai Motor channel.

Warranty, shipping and commitment policy at Thanh Thai Motor

Warranty up to 24 months

All electric motor products distributed by Thanh Thai Motor are covered by a genuine warranty for up to 24 months. Customers who purchase electric motors can completely rest assured with a transparent, fast, and professional after-sales policy.

Nationwide Shipping

Thanh Thai Motor supports nationwide shipping for all electric motors sold, ensuring safe and on-time delivery to every province across the country. Whether you are in the North, Central, or South, we are ready to serve you.

European Standard Quality – German Technology

Thanh Thai Motor sells electric motors manufactured with German technology, meeting European quality standards, ensuring durability, high efficiency, and stable operation for a long period – suitable for the strict requirements of industrial electric motors.

Competitive Prices – Attractive Offers for Dealers and Wholesale Customers

We commit to reasonable motor prices, offering the best electric motor products with high discount policies for bulk purchasers and distribution units. The more you buy – the better the profit.

Quality Commitment – Powerful Operation, Power Saving

Thanh Thai Motor sells electric motors wound with 100% copper wire, helping the machine run powerfully, consume less electricity, operate smoothly, and effectively reduce vibration – extending equipment lifespan. When purchasing an electric motor, prioritizing products with 100% copper core will be a wise decision, bringing long-term value.

At Thanh Thai Motor, we provide a full range of products, with various phases and capacities, such as:

• 220V electric motors (or 220V 1-Phase electric motors) are 1-Phase electric motors commonly chosen for many household appliances and light industrial equipment, offering convenience and efficiency.
• 380V electric motors are 3-Phase electric motors using three-phase power, commonly used in heavy industrial applications.

Full CO, CQ Certification Documents

Thanh Thai Motor provides the best quality electric motors. Each imported electric motor product from Thanh Thai Motor comes with a Certificate of Origin (CO) and a Certificate of Quality (CQ), meeting the requirements for large projects, constructions, and strict technical documentation.

Contact for Purchase

Do you need to buy an electric motor or seek advice on choosing an affordable electric motor that suits your needs? Contact Thanh Thai Motor immediately using the methods below:

• WhatsApp: +84966596219
• Email: codienthanhthai@gmail.com

The Explosion-proof Motor 1.1kW 1.5Hp is a perfect solution for systems requiring both power and safety factors in explosive environments. With the ability to easily combine with gearboxes, this product delivers exceptional stability, safety, and efficiency during operation. Contact Thanh Thai Motor immediately for the fastest consultation!
