Brake Motor 0.55kW 0.75Hp

The Brake Motor 0.55kW 0.75Hp is an electric motor product with a capacity of 0.55kW equivalent to 0.75 horsepower, equipped with an additional electromagnetic brake at the rear for complete stops when required. The product belongs to the electric motor segment under 3.7kW and is commonly applied in various mechanical manufacturing industries such as material hoists, overhead cranes, conveyor belts, etc.

What is the design of the Brake Motor 0.55kW 0.75Hp?

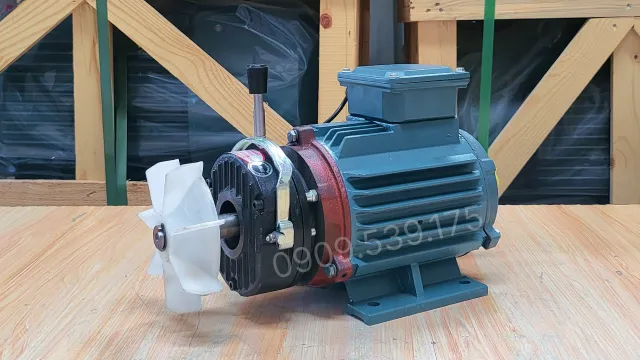

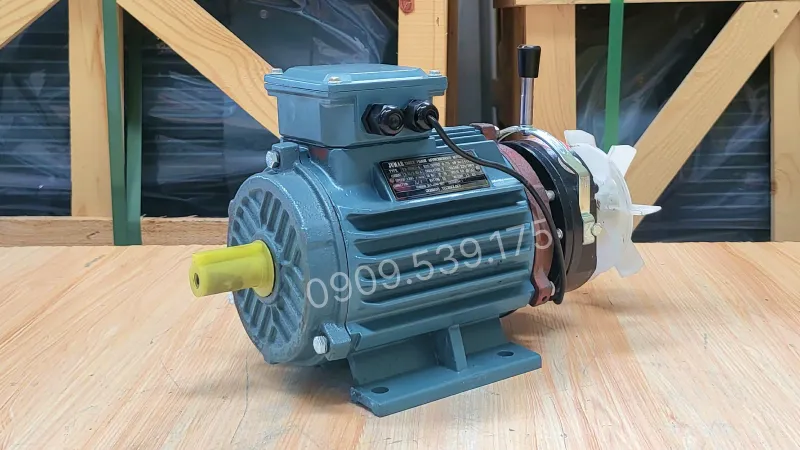

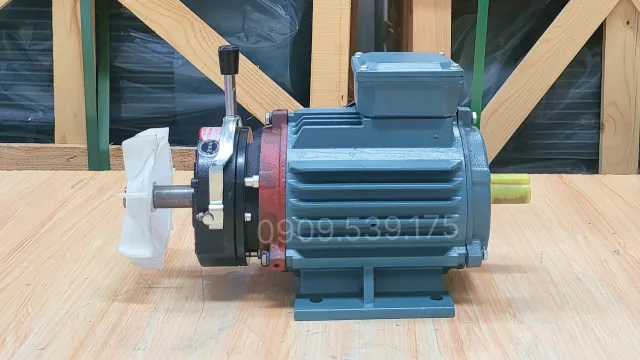

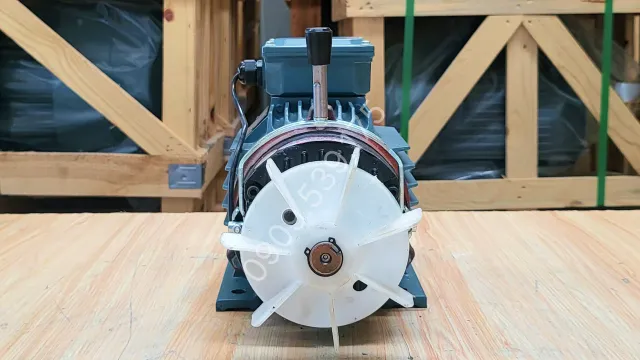

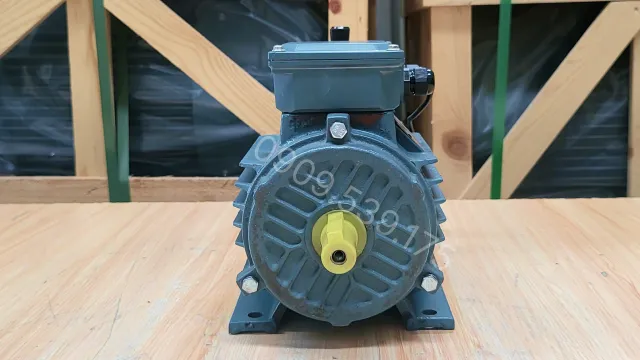

The brake motor features an exterior aluminum housing coated with blue electrostatic paint, providing corrosion resistance and protection against external environmental factors. At the rear of the electric motor, there is a cooling fan to keep the motor cool during operation, protected by an external fan cover.

In particular, the motor is equipped with an electromagnetic brake, helping it come to a complete stop to ensure safety during machinery operation and for the operators.

Structure of the Brake Motor 0.55kW 0.75Hp

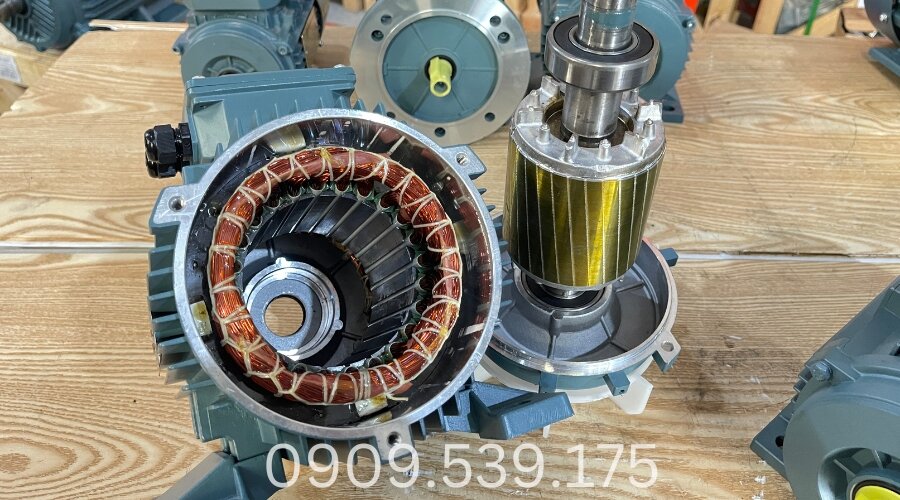

The structure of the device includes a standard electric motor and an electromagnetic braking mechanism.

• Stator: Steel core stamped from electrical steel sheets to reduce power loss, containing pure copper windings coated with Class F heat-resistant insulating varnish to prevent short circuits.
• Rotor: High-strength cast steel squirrel-cage shaft, thoroughly dynamically balanced to minimize centrifugal force and vibration during rotation.
• Electromagnetic Brake: Braking module fixed at the shaft end, containing an electromagnetic coil, heat-resistant friction disc, and compression spring, responsible for locking the rotating shaft immediately upon power disconnection.
• Rectifier Diode: Electronic device that converts alternating current (AC) to direct current (DC) to supply stable power to the brake assembly.
• Bearing: Centering ball bearing capable of withstanding radial loads, featuring double-sided dust seals and specialized industrial lubricating grease.
• Cooling Fan: Synthetic plastic centrifugal fan mounted behind the brake cover, pushing airflow along the heat-dissipating ribs of the body.

What are the types of Brake Motor 0.55kW 0.75Hp?

The Brake Motor 0.55kW 0.75Hp comes in four speed ranges to meet various transmission requirements. Detailed specifications are as follows.

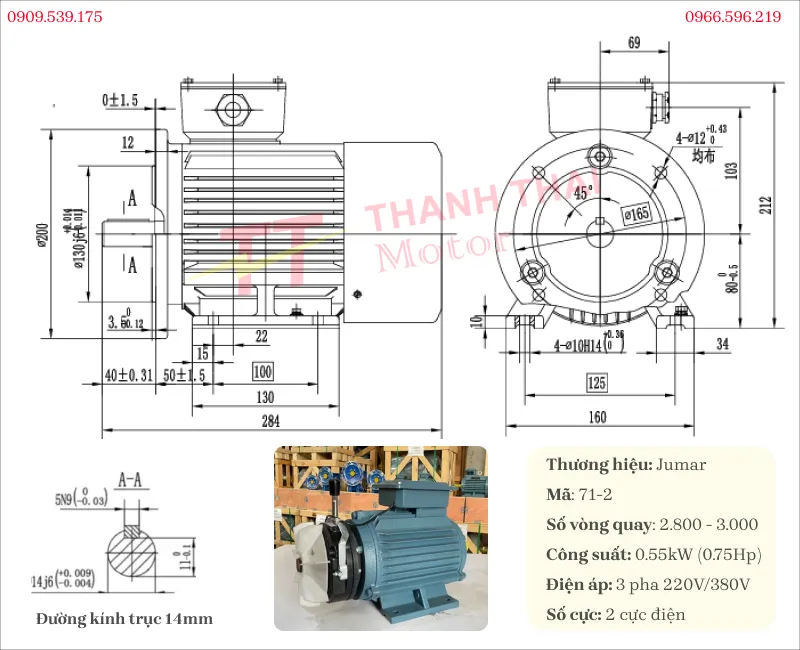

Brake Motor 0.55kW 0.75Hp 2-pole (2,800 – 3,000 rpm)

The device features high rotational speed, used for mechanisms requiring rapid shaft stopping at high RPMs.

Technical Specifications:

Code	71M
Shaft Diameter	14mm
Keyway	7mm
Flange Diameter	110mm
Dimensions	247mm * 133mm * 198mm
Mounting Type	Foot mount (B3), Flange mount (B35, B5, B14)
Protection Class	IP55
Insulation Class	Class F

Practical Applications:

• Small-scale wood cutting machine systems requiring immediate cutting shaft braking to ensure safety for technicians.
• High-speed automatic blank pushing mechanisms in mechanical workshops to position materials precisely at pre-programmed coordinates.
• Edge-cutting spindle shafts requiring brake stopping at the end of the cycle to prevent tearing the edges of processed products.
• Low-power centrifugal exhaust fans requiring a shaft-locking feature upon power outage to prevent external airflow from back-spinning the blades.

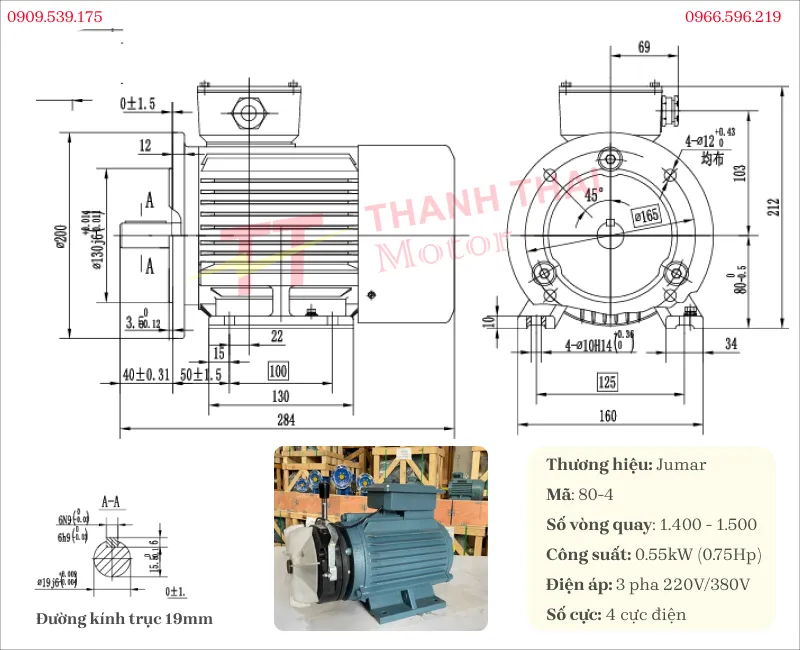

Brake Motor 0.55kW 0.75Hp 4-pole (1,400 – 1,500 rpm)

The device features a standard speed, providing stable pulling force and braking capability for medium and light loads.

Technical Specifications:

Code	80M
Shaft Diameter	19mm
Keyway	10
Flange Diameter	130mm
Dimensions	290mm * 157mm * 214mm
Mounting Type	Foot mount (B3), Flange mount (B35, B5, B14)
Protection Class	IP55
Insulation Class	Class F

Practical Applications:

• Electronic component conveyor systems requiring precise stopping at optical inspection stations.
• Food hoists lifting between floors in processing workshops needing a shaft-locking mechanism to prevent the elevator car from drifting when stopped.
• Rotary shafts of automatic quantitative packaging machines requiring decisive motion interruption according to the weight or volume set on the central controller.
• Drive mechanisms for paint or chemical mixers requiring fast shaft stopping to add auxiliary additives according to the time cycle.

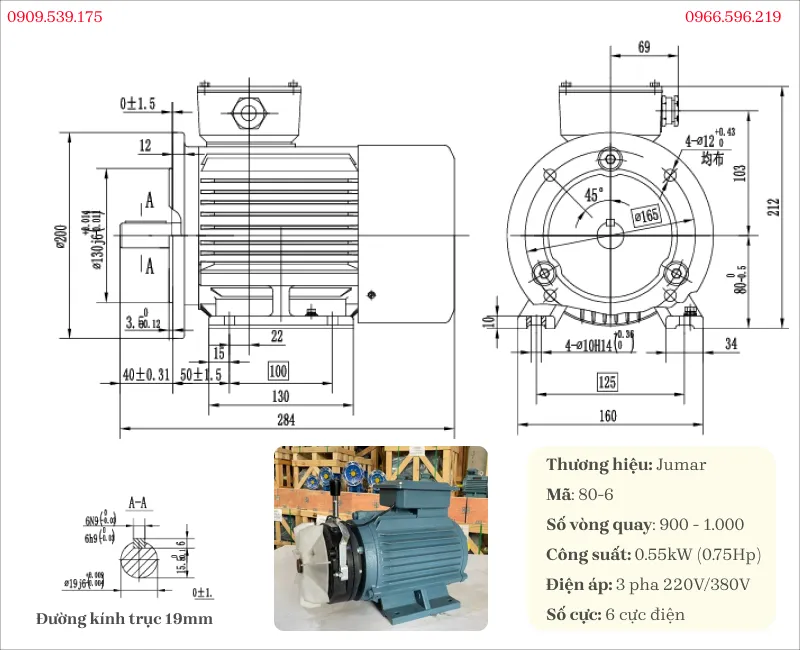

Brake Motor 0.55kW 0.75Hp 6-pole (900 – 1,000 rpm)

The device reduces rotational speed to increase torque, used for braking larger loads.

Technical Specifications:

Code	80M
Shaft Diameter	19mm
Keyway	10
Flange Diameter	130mm
Dimensions	340mm * 175mm * 230mm
Mounting Type	Foot mount (B3), Flange mount (B35, B5, B14)
Protection Class	IP55
Insulation Class	Class F

Practical Applications:

• Cable winding shafts of lightweight equipment lifting winches in warehouses requiring safe holding brakes while suspended loads are high.
• Sloping conveyor systems transporting building materials or agricultural products requiring reverse-drift brake-locking features when power is suddenly lost.
• Bucket elevator drive mechanisms lifting loads to storage bins in small material mixing stations, requiring precise stopping at the discharge gate.
• Slurry fertilizer mixing machines requiring high torque at slow speeds and immediate stopping when opening the mixing tank lid to ensure operational safety.

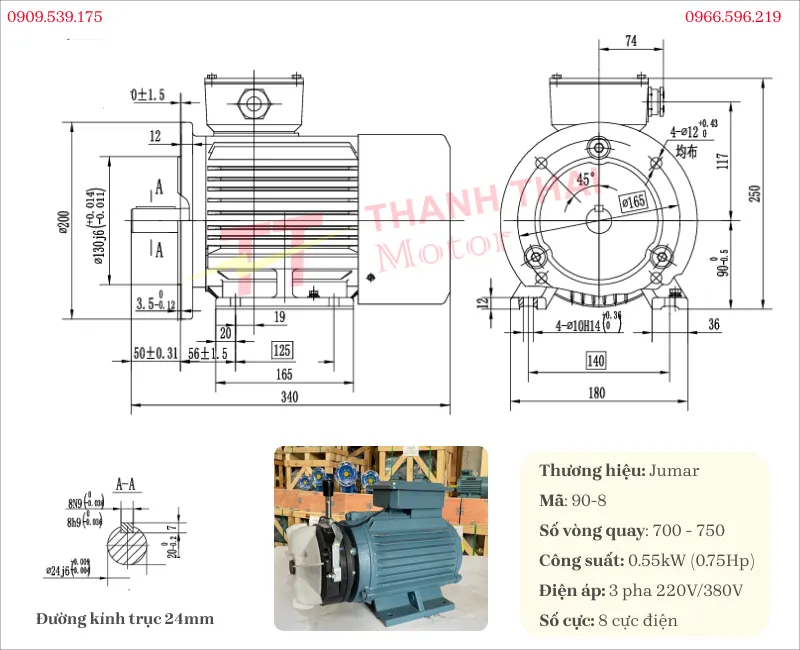

Brake Motor 0.55kW 0.75Hp 8-pole (700 – 750 rpm)

The device features the slowest rotational speed, generating high starting pulling force and a safe shaft-locking mechanism.

Technical Specifications:

Code	90L
Shaft Diameter	24mm
Keyway	8
Flange Diameter	130mm
Dimensions	340mm * 175mm * 230mm
Mounting Type	Foot mount (B3), Flange mount (B35, B5, B14)
Protection Class	IP55
Insulation Class	Class F

Practical Applications:

• Gantry crane side beam travel motors in workshops requiring extremely slow speeds and precise cargo release positioning.
• Rotary tables fixing components for automatic robotic welding requiring high rotational angle accuracy and no displacement while the welding arm is operating.
• Operating platform lifting mechanisms for workers in mechanical equipment assembly workshops requiring a sturdy brake lock to ensure absolute occupational safety.
• Rotary kilns for drying agricultural products or powder materials requiring a slow, steady rotation speed and position-holding brakes when cleaning the drying drum.

Which gearboxes can the Brake Motor 0.55kW 0.75Hp be combined with?

To change speed and pulling force, users can couple the 0.55kW motor with suitable mechanical gearboxes.

• Helical Gearbox: R17 or R27 oil-immersed inline shaft series used for lightweight conveyor systems.
• Aluminum Worm Gearbox: NMRV codes size 30 or 40 used for basic lifting equipment.
• Drive Coupling: Use flange couplings or rubber-buffer couplings to reduce recoil shock when the brake operates.

Wiring Guide for the Brake Motor

A 3-phase motor with an electromagnetic brake uses an electromagnetic braking mechanism to hold the shaft when stopped. When wiring, follow the manufacturer’s diagram precisely to avoid incorrect connections between the motor and the brake circuit.

Step 1: Check Specifications

Check the parameters on the motor nameplate, including voltage, power, and rated current. For a motor with an electromagnetic brake, it is also necessary to check the brake coil voltage to select the appropriate power supply. You can watch the electric motor video directly to understand how to read nameplate parameters.

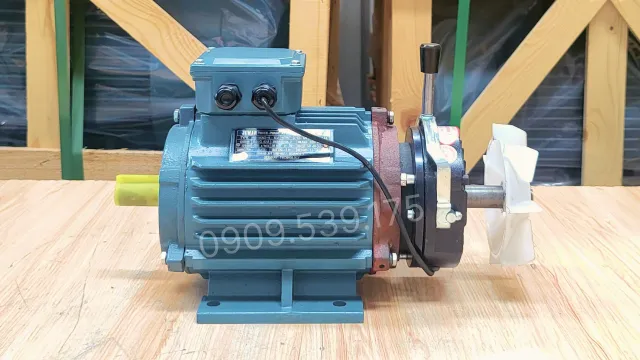

Step 2: Open the Terminal Box

Remove the terminal box cover to observe the internal wiring. This area typically contains the stator wires, power supply terminals, and the rectifier unit of the electromagnetic brake system.

Step 3: Identify Wires

Based on the wiring diagram included with the motor, identify the U, V, W terminals and those related to the brake circuit. Do not wire without correctly identifying the function of each terminal.

Step 4: Connect the Power Supply

Connect the power wires to terminals U, V, W according to the diagram. After wiring, recheck the tightening points and contacts to prevent looseness or poor contact.

Step 5: Test Operation

Supply power and verify that the motor runs and the electromagnetic brake operates correctly. If the brake does not release or the motor runs unstably, check the wiring and power supply again.

In addition to wiring, you can visit Thành Thái Motor‘s video compilation section. This page contains numerous videos categorized by topics such as testing, repairing, and operating electric motors, rather than standalone wiring tutorials.
