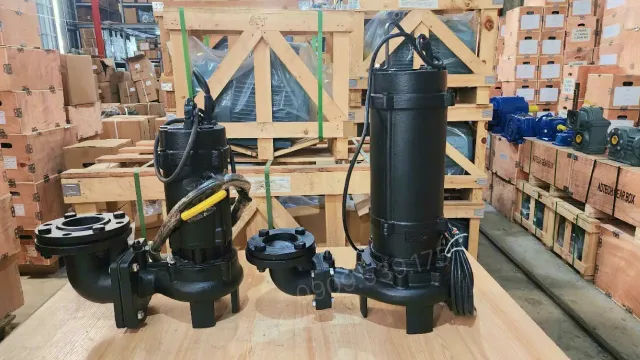

Submersible Pump 7.5kW 10HP

The Submersible Pump 7.5kW 10HP is a water pump product used for complete submersion in liquids without affecting the internal components of the machine.

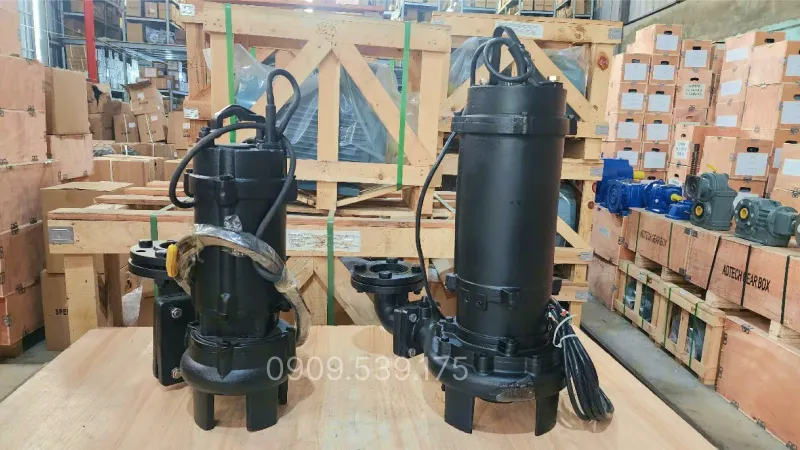

External design of the Submersible Pump 7.5kW 10HP

The submersible pump belongs to the 3-phase water pump type with a structure where the pump head is connected to the body. This body is an electric motor, specifically a 3-phase electric motor. In addition, because it is used in a water environment, the machine has high water resistance.

Structure of the Submersible Pump 7.5kW 10HP

• Electric motor: This is a 3-phase 5.5kW 7.5Hp electric motor, which is the component that generates energy to carry out the water pumping process.
• Pump shaft: Designed with a quality stainless steel shaft with low friction to help reduce friction force during operation, minimize damage caused by shaft wear, ensure smooth operation, and provide long product lifespan.
• Pump casing: Made from durable materials such as cast iron, aluminum, and stainless steel, the casing structure depends on usage needs. In addition, the surface is coated with an electrostatic paint layer to minimize damage and rusting when operating in humid environments.
• Impeller: When combined with other parts of the pump body, the impeller creates the rotating part – the rotor, which is the component that regulates the pumping capacity of the pump.

Specifications of the Submersible Pump 7.5kW 10HP

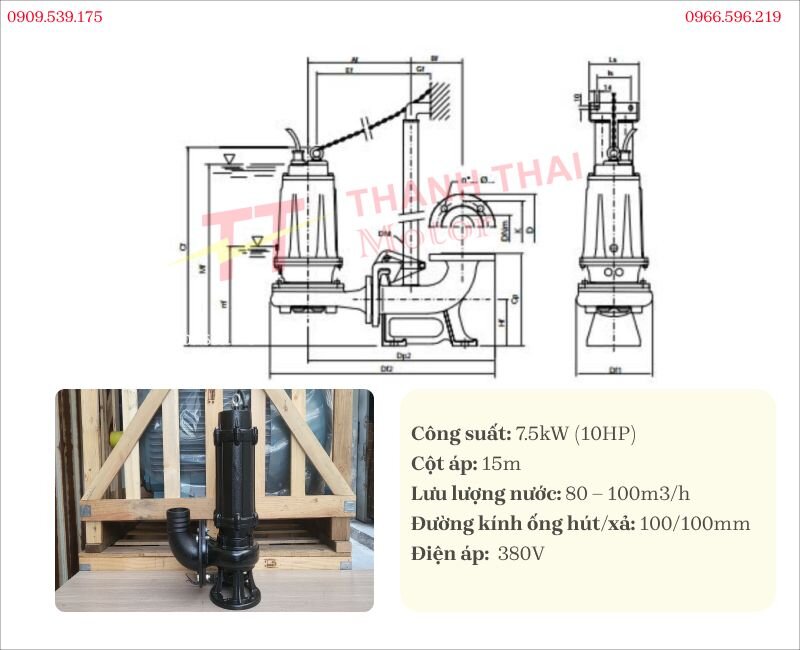

Below are the specifications and drawing of the Submersible Pump 7.5kW 10HP:

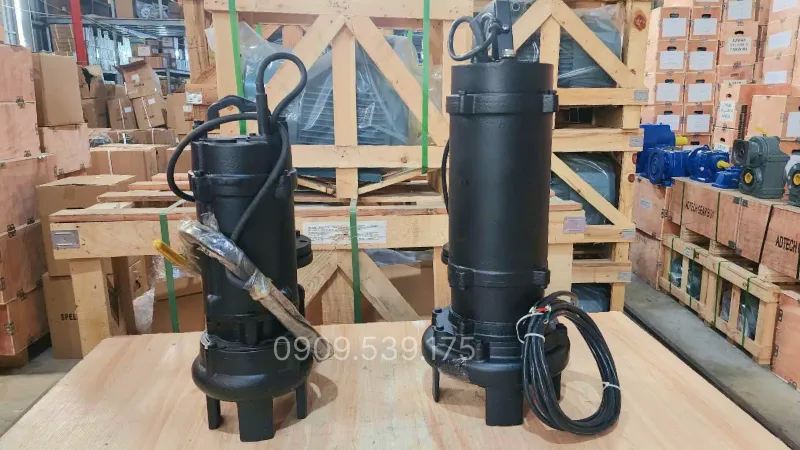

Applications of the Submersible Pump 7.5kW 10HP

Possessing many outstanding features as well as the ability to be completely submerged in liquids, the Submersible Pump 7.5kW 10HP is widely applied in operations:

• Used in pumping and suction of wastewater, liquids, or acidic liquids in industrial environments.
• Pumping and extracting water in dyke systems, rivers and lakes, flood prevention, and medium-scale salinity intrusion prevention.
• Drawing water from deep areas, deep wells, and water sources containing soil, rocks, and impurities.

Decoding the specifications on the submersible pump nameplate

Below are the meanings of parameters that often appear on the submersible pump nameplate:

• MODEL: Product code, helps to accurately identify the machine series and look up specifications.
• 3~ / 380V: 3-phase 380V working voltage, commonly used in factories, construction sites, and water treatment systems.
• 50 Hz: Operating frequency of the motor, compatible with the power grid standard in Vietnam.
• Discharge (80 mm or 100 mm): Discharge port diameter of the pump, determining the size of the connected pipeline.
• Head (H): Working head, indicating the ability to push water up to a height or create pressure in the pipeline.
• Capacity (Q): Pumping flow rate, indicating the amount of water the pump can deliver per unit of time (m³/h or m³/min).
• RPM: Rotational speed of the motor, directly affecting the flow rate and head of the pump.
• IP68: Complete dust and water protection rating, allowing the motor to operate continuously in flooded environments.
• Insulation Class F: Insulation class F, helping the motor withstand heat well and increasing durability during continuous operation.

In addition to water pump videos introducing submersible pumps, Thành Thái Motor also shares many useful videos on how to read parameters on pump nameplates, installation instructions, electrical wiring, maintenance, troubleshooting common errors, and experience in choosing submersible pumps according to flow rate, head, and purpose of use. Refer to Thành Thái Motor’s comprehensive video library to choose the right water pump solution, helping the system operate stably, save electricity, and achieve high efficiency.

Warranty, Shipping, and Commitment Policy when purchasing water pumps at Thanh Thai Motor

Up to 24-month warranty for water pumps

All water pump lines supplied by Thanh Thai Motor come with an official warranty of up to 24 months. We are committed to providing fast, transparent, and professional warranty support – ensuring complete peace of mind for customers during use.

Nationwide Delivery – Fast and Secure

We offer nationwide delivery, ensuring that pumps are carefully transported and delivered on schedule to customers in all provinces and cities across the country. From Hanoi, Da Nang to Ho Chi Minh City or industrial zones – Thanh Thai Motor is always ready to serve.

Advanced Technology – European Standard

All water pump lines at Thanh Thai Motor are manufactured with German technology, meeting European standards, ensuring high durability, stable operation, power saving, and suitability for many demanding environments such as construction sites, agriculture, manufacturing plants, etc.

Competitive Prices – Attractive Offers for Dealers, Wholesale Customers

We offer reasonable and the most competitive prices in the market. We also have a high discount policy for bulk purchasers, project customers, and long-term distribution partners.

Quality Commitment – Powerful Pump, Energy Saving

All pumps are constructed with 100% copper windings, ensuring powerful operation – low power consumption – minimal vibration – less heating, smooth and durable performance over time. Thanh Thai Motor only sells genuine products – we say no to counterfeit and low-quality goods.

Full CO, CQ Certificates

Each product comes with a Certificate of Origin (CO) and a Certificate of Quality (CQ) – fully meeting the requirements for construction projects, acceptance documents, and engineering projects.
