Submersible pump 4kW 5.5Hp

The Submersible Pump 4kW 5.5HP is designed to solve water pumping problems in deep water areas where the machine needs to be submerged in water. This water pump (water pump motor) series is completely immersed in the liquid area to be pumped without affecting its operating capability.

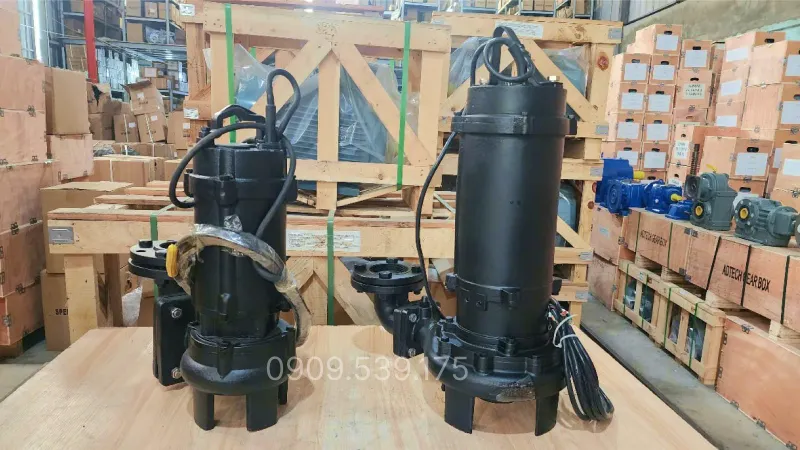

External Design of the Submersible Pump 4kW 5.5HP

As a 3-phase water pump (3-phase water pump motor) series, this submersible pump (submersible water pump) features a machine body consisting of an electric motor connected directly to the pump head. With a structure ranging from the outer casing to internal components that are waterproof, the product can operate well even when used entirely in a liquid environment.

Structure of the Submersible Pump 4kW 5.5HP

• Electric motor: The part that generates a stable suction force for pumping water is the 3-phase electric motor, more specifically the 3-phase 4.0kW 5.5HP electric motor.
• Pump shaft: Made of stainless steel with low friction, minimizing damage caused by long-term friction during operation and reducing wear on the pump shaft over extended use. In addition, this design helps the machine operate smoothly with low noise.
• Pump casing: Made of cast iron, aluminum, and stainless steel depending on the design type, the casing is coated with a high-quality electrostatic paint layer to help the product resist rust even when used for a long time in a submerged environment and prevent damage to internal components.
• Impeller: The impeller along with other components creates the rotating part – rotor of the water pump, which regulates the pumping operation.

Technical Specifications of the Submersible Pump 4kW 5.5HP

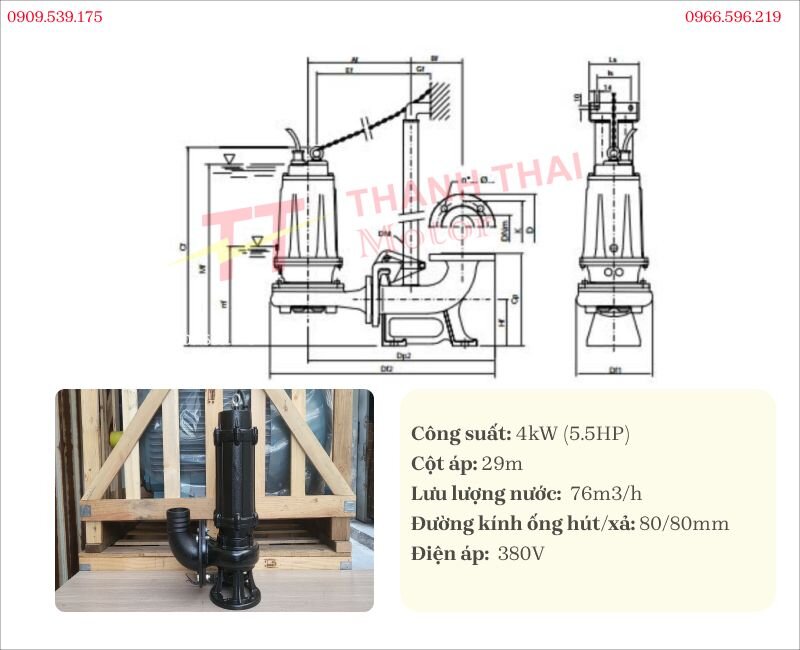

Below are the specifications and drawings of the Submersible Pump 4kW 5.5HP:

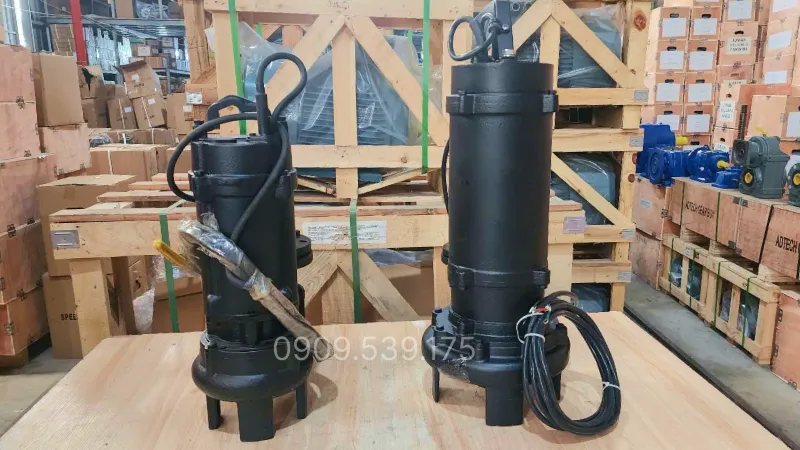

Applications of the Submersible Pump 4kW 5.5HP

Possessing numerous features and the ability to operate in liquid environments, the Submersible Pump 4kW 5.5HP is applied in the following activities:

• Application in pumping water, chemicals, and industrial liquids.
• Drainage pumping in dike systems, dams, flood control, and saltwater intrusion prevention systems.
• Water supply from deep wells and water sources requiring submerged pumps.

Decoding the Parameters on the Submersible Pump Nameplate

The parameters on the nameplate of the submersible pump provide important information to help users select and operate the equipment correctly:

• MODEL: The model code of the pump, used to distinguish each product line and look up technical specifications.
• 380V: 3-phase 380V operating power supply, ensuring the motor operates stably and achieves high efficiency.
• 50 Hz: Standard working frequency, compatible with electrical systems.
• Head (H): Head parameter, indicating the ability to push water to a height or create pressure in the pipeline.
• Capacity (Q): Pumping capacity, showing the amount of water the pump can deliver per unit of time.
• Current (A): Rated current of the motor, serving as the basis for selecting appropriate cables, circuit breakers, and protection devices.
• IP68: Complete dust and waterproof protection standard, helping the machine operate safely when working underwater.
• Insulation Class F: Insulation class F, increasing the heat resistance of the winding and enhancing the durability of the motor.

In addition to water pump videos introducing submersible pumps, Thanh Thai Motor also shares many thematic videos on how to determine flow rate and head, guidelines for safe electrical connection, pre-operational inspection, as well as experience in choosing the right submersible pump for each project. Through the comprehensive video library, users can easily grasp practical knowledge to efficiently utilize the equipment, ensure stable operation, and extend the pump’s lifespan.

Warranty, Shipping, and Commitment Policy when purchasing water pumps at Thanh Thai Motor

Up to 24-month warranty for water pumps

All water pump lines supplied by Thanh Thai Motor come with an official warranty of up to 24 months. We are committed to providing fast, transparent, and professional warranty support – ensuring complete peace of mind for customers during use.

Nationwide Delivery – Fast and Secure

We offer nationwide delivery, ensuring that pumps are carefully transported and delivered on schedule to customers in all provinces and cities across the country. From Hanoi, Da Nang to Ho Chi Minh City or industrial zones – Thanh Thai Motor is always ready to serve.

Advanced Technology – European Standard

All water pump lines at Thanh Thai Motor are manufactured with German technology, meeting European standards, ensuring high durability, stable operation, power saving, and suitability for many demanding environments such as construction sites, agriculture, manufacturing plants, etc.

Competitive Prices – Attractive Offers for Dealers, Wholesale Customers

We offer reasonable and the most competitive prices in the market. We also have a high discount policy for bulk purchasers, project customers, and long-term distribution partners.

Quality Commitment – Powerful Pump, Energy Saving

All pumps are constructed with 100% copper windings, ensuring powerful operation – low power consumption – minimal vibration – less heating, smooth and durable performance over time. Thanh Thai Motor only sells genuine products – we say no to counterfeit and low-quality goods.

Full CO, CQ Certificates

Each product comes with a Certificate of Origin (CO) and a Certificate of Quality (CQ) – fully meeting the requirements for construction projects, acceptance documents, and engineering projects.
