Borehole Pump 5.5kW 7.5Hp

The Borehole Pump 5.5kW 7.5Hp is a borehole water pump widely used in industry and agriculture, such as chemical pumping and mining. With powerful operating capacity and continuous operation capability, this borehole pump is suitable to meet various usage needs.

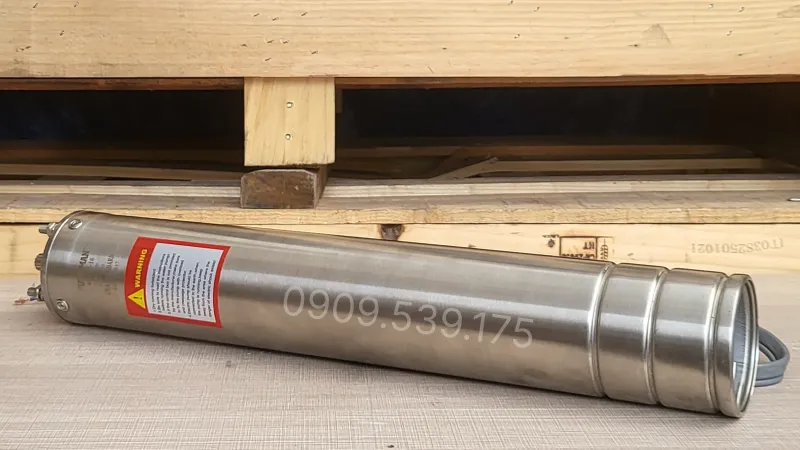

General Design of Borehole Pump 5.5kW 7.5Hp

The Borehole Pump 5.5kW 7.5Hp features a compact design, allowing for easy installation, relocation, and operation. The water pump can still operate stably and efficiently in deep groundwater environments due to its submersible design capability. The unit features a multi-stage design, helping the product efficiently push water upward when used in harsh liquid environments.

Structure of Borehole Pump 5.5kW 7.5Hp

The Borehole Pump 5.5kW 7.5Hp is a 3-phase water pump with key structural components including:

• Electric motor: A 3-phase electric motor, specifically a 3-phase 5.5kW 7.5Hp electric motor, is an essential component that generates energy for the pump to operate.
• Impeller: Used to pump water in, capable of withstanding high water pressure.
• Pump casing: Made from corrosion-resistant materials to ensure long-term durability and quality when used in deep water, groundwater, and chemical liquid environments.
• Discharge pipe: A water conveyance system connected to the discharge pipe so that water can easily exit outward.

Technical Specifications of Borehole Pump 5.5kW 7.5Hp

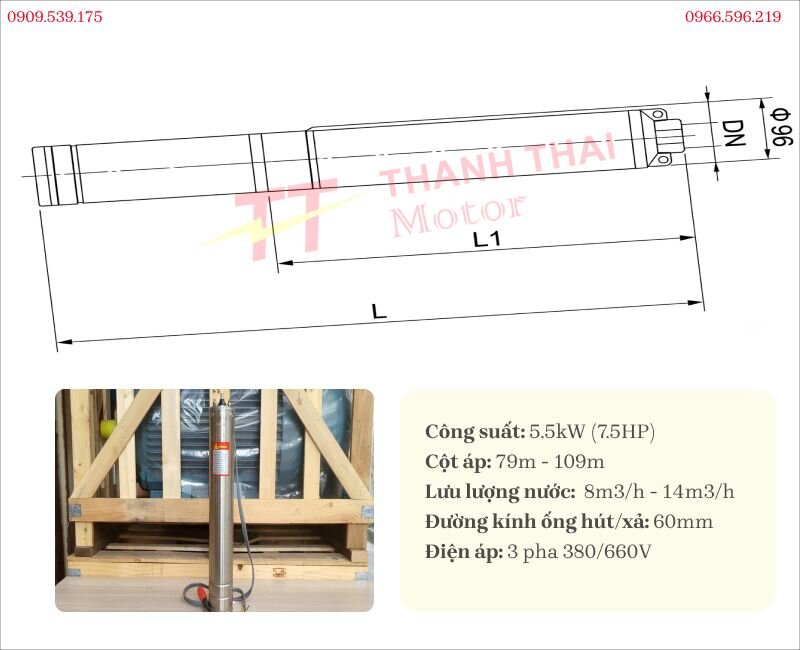

Below are the technical specifications and drawings of the borehole pump:

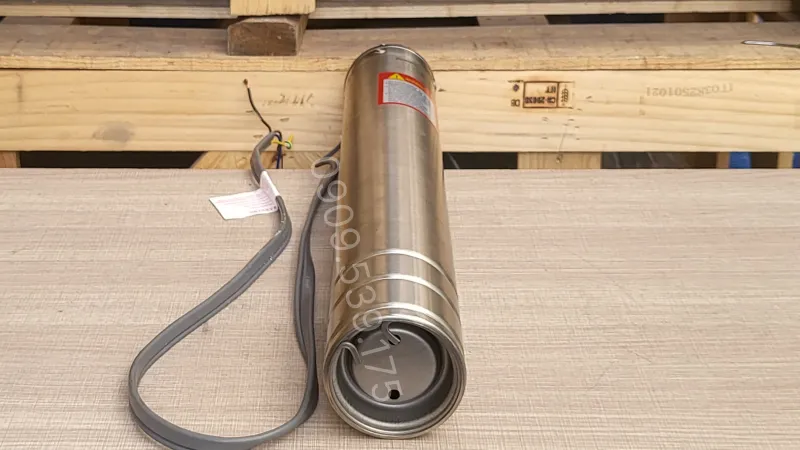

Applications of Borehole Pump 5.5kW 7.5Hp

The Borehole Pump 5.5kW 7.5Hp is a 3-phase electric motor pump line with an optimized design, applied in uses such as:

• Used for mining pumping, mineral extraction, and wastewater treatment.
• High-pressure water pumping for fire protection water supply systems, and water pumping for large cultivation areas.
• Used to transport water, industrial chemicals, and liquids for manufacturing industries.

Decoding the Specifications on the Nameplate of the Borehole Pump

Below is the meaning of common specifications on the borehole pump nameplate:

• Type:Rated power of the motor.
• 50Hz (Frequency): The motor operates at a frequency of 50Hz, compatible with the power grid system in Vietnam.
• 380V (Voltage): Rated voltage is 380V, using a 3-phase power supply.
• 12.5A (Rated Current): The current consumed when the machine operates at rated power is approximately 12.5A.
• 2850 rpm (Rotational Speed): The rotational speed of the motor reaches approximately 2850 rpm, helping the pump operate efficiently.
• Insulation Class F: Insulation class F allows the motor to withstand temperatures up to 155°C, increasing durability during use.
• IP68 (Protection Class): The motor is completely dustproof and capable of long-term water immersion, suitable for borehole pumps.
• IEC 34-1: The motor is manufactured according to international IEC standards for rotating electrical machines, ensuring quality and reliability.

Alongside water pump videos introducing the borehole pump, Thanh Thai Motor also provides numerous tutorial videos on the structure, operating principles, installation, and maintenance of the borehole pump. Check out the comprehensive video collection to easily select the right product suitable for well depth, water supply demand, and actual operating conditions.

Warranty, Shipping, and Commitment Policy when purchasing water pumps at Thanh Thai Motor

Up to 24-month warranty for water pumps

All water pump lines supplied by Thanh Thai Motor come with an official warranty of up to 24 months. We are committed to providing fast, transparent, and professional warranty support – ensuring complete peace of mind for customers during use.

Nationwide Delivery – Fast and Secure

We offer nationwide delivery, ensuring that pumps are carefully transported and delivered on schedule to customers in all provinces and cities across the country. From Hanoi, Da Nang to Ho Chi Minh City or industrial zones – Thanh Thai Motor is always ready to serve.

Advanced Technology – European Standard

All water pump lines at Thanh Thai Motor are manufactured with German technology, meeting European standards, ensuring high durability, stable operation, power saving, and suitability for many demanding environments such as construction sites, agriculture, manufacturing plants, etc.

Competitive Prices – Attractive Offers for Dealers, Wholesale Customers

We offer reasonable and the most competitive prices in the market. We also have a high discount policy for bulk purchasers, project customers, and long-term distribution partners.

Quality Commitment – Powerful Pump, Energy Saving

All pumps are constructed with 100% copper windings, ensuring powerful operation – low power consumption – minimal vibration – less heating, smooth and durable performance over time. Thanh Thai Motor only sells genuine products – we say no to counterfeit and low-quality goods.

Full CO, CQ Certificates

Each product comes with a Certificate of Origin (CO) and a Certificate of Quality (CQ) – fully meeting the requirements for construction projects, acceptance documents, and engineering projects.
