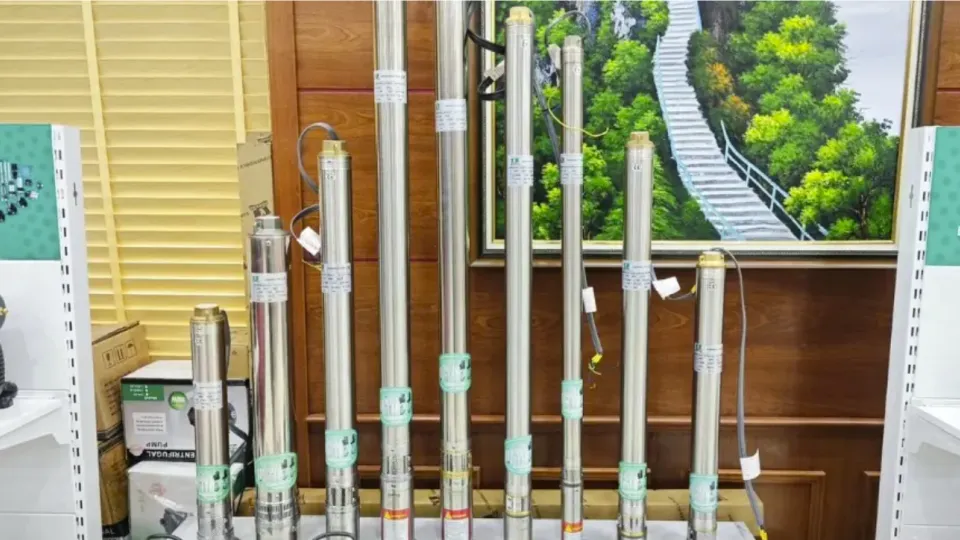

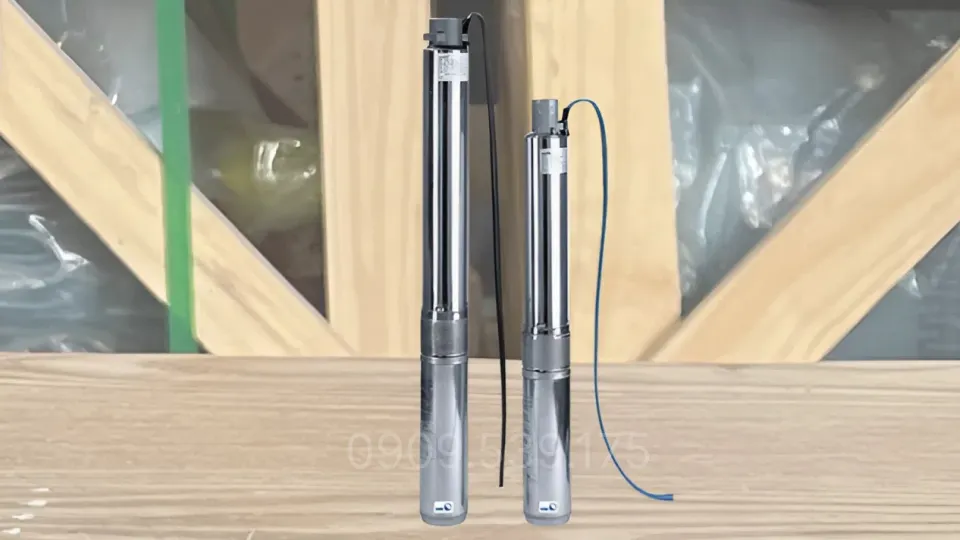

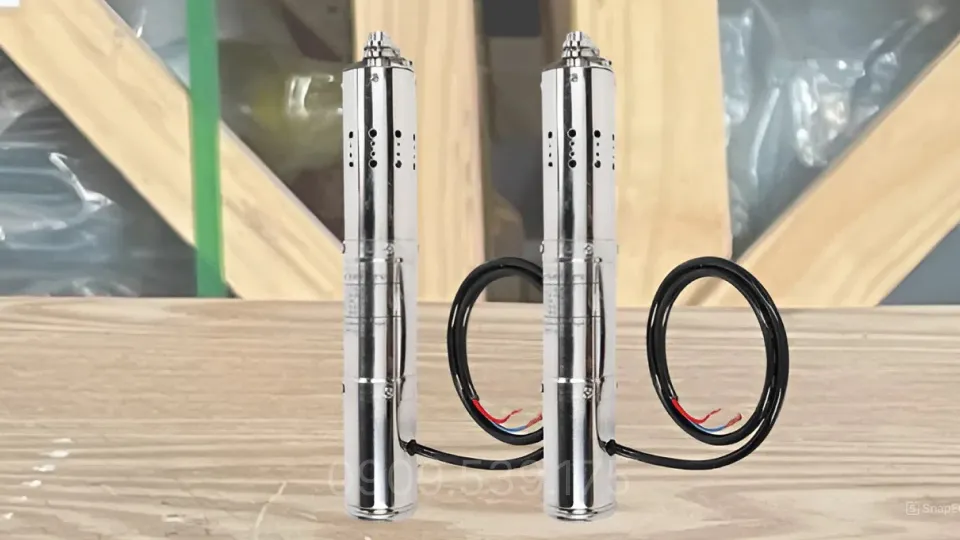

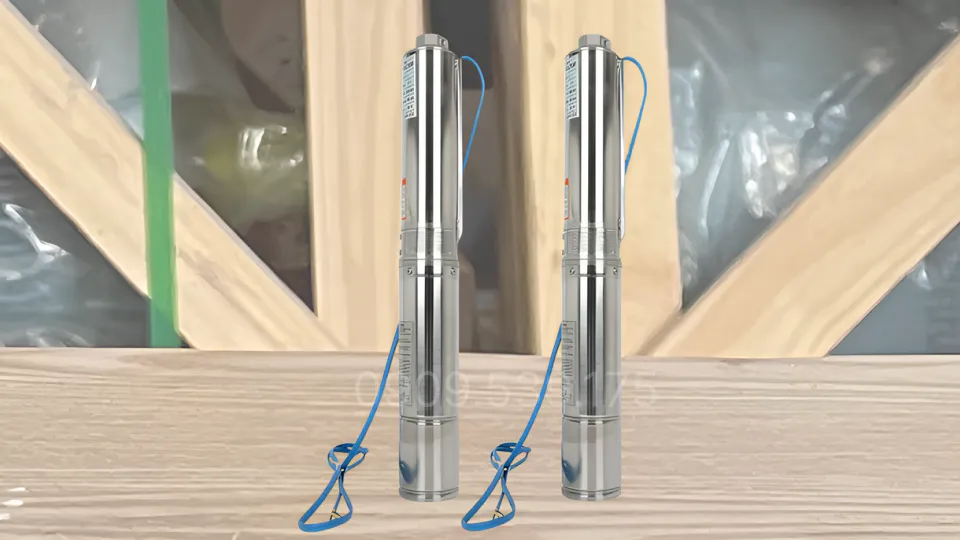

Borehole Pump 3.7kW 5Hp

The Borehole Pump 3.7kW 5Hp is frequently used in industrial sectors. This water pump assists in pumping chemicals, dilute acid liquids, etc. With powerful operating capacity and continuous operation capability, this borehole pump model is highly trusted and favored.

Overall design of the Borehole Pump 3.7kW 5Hp

Designed with a streamlined shape, the borehole pump can be easily installed, transported, and operated. When used in deep groundwater areas, the machine can still operate stably and efficiently due to its submersible design. The multi-stage impeller design helps the product effectively push water high up when operating in deep wells.

Structure of the Borehole Pump 3.7kW 5Hp

The Borehole Pump 3.7kW 5Hp is a 1-phase or 3-phase water pump structured with the following main components:

• Electric motor: Being a 3-phase electric motor or 1-phase electric motor, specifically a 3-phase 3.7kW 5.5Hp electric motor (or 3-phase 4.0kW 5.5Hp electric motor) or 1-phase 3.7kW 5Hp electric motor, it is the most important component of the water pump providing energy for operation.
• Impeller: Made from highly wear-resistant materials, ensuring pump lifespan and enhancing pumping efficiency.
• Pump casing: Made from corrosion-resistant materials to ensure long-term durability and quality when used in groundwater environments.
• Discharge pipe: The water conduction system connected to the discharge pipe for water to be easily discharged outward.

Specifications of the Borehole Pump 3.7kW 5Hp

Below are the specifications and drawings of the Borehole Pump 3.7kW 5Hp:

Applications of the Borehole Pump 3.7kW 5Hp

The Borehole Pump 3.7kW 5Hp is widely applied in industrial and residential sectors, including:

• Used for pumping domestic and production water at high locations and underground water veins.
• Used for pumping acids and dilute chemicals.
• Effectively pumping hazardous substances such as paint water, color dyes, etc.

Decoding the parameters on the Borehole Pump nameplate

Below are the meanings of common parameters on the borehole pump nameplate:

• 50Hz (Frequency): The machine operates at a frequency of 50Hz, suitable for 3-phase electrical systems in Vietnam.
• 380V (Voltage): The rated working voltage is 380V.
• 8.5A (Rated current): The current consumption when the motor operates at rated power is approximately 8.5A.
• 2850 rpm (Rotational speed): The motor rotates at a speed of about 2850 rpm, meeting stable water pumping demands.
• Insulation Class F (Insulation class): Insulation class F allows the motor to withstand temperatures up to 155°C, enhancing winding lifespan.
• IP68 (Protection class): The motor features complete dust resistance and continuous operation in submerged environments, suitable for deep boreholes.
• IEC 34-1: The motor is manufactured according to IEC standards for rotating electrical machines, ensuring quality and safe operation.

In addition to the water pump videos introducing borehole pumps, Thanh Thai Motor also shares many videos on how to select pumps according to head, flow rate, installation instructions, and practical operating experiences. Follow the comprehensive video library to get more useful information, helping you choose the right borehole pump model for each application need.

Warranty, Shipping, and Commitment Policy when purchasing water pumps at Thanh Thai Motor

Up to 24-month warranty for water pumps

All water pump lines supplied by Thanh Thai Motor come with an official warranty of up to 24 months. We are committed to providing fast, transparent, and professional warranty support – ensuring complete peace of mind for customers during use.

Nationwide Delivery – Fast and Secure

We offer nationwide delivery, ensuring that pumps are carefully transported and delivered on schedule to customers in all provinces and cities across the country. From Hanoi, Da Nang to Ho Chi Minh City or industrial zones – Thanh Thai Motor is always ready to serve.

Advanced Technology – European Standard

All water pump lines at Thanh Thai Motor are manufactured with German technology, meeting European standards, ensuring high durability, stable operation, power saving, and suitability for many demanding environments such as construction sites, agriculture, manufacturing plants, etc.

Competitive Prices – Attractive Offers for Dealers, Wholesale Customers

We offer reasonable and the most competitive prices in the market. We also have a high discount policy for bulk purchasers, project customers, and long-term distribution partners.

Quality Commitment – Powerful Pump, Energy Saving

All pumps are constructed with 100% copper windings, ensuring powerful operation – low power consumption – minimal vibration – less heating, smooth and durable performance over time. Thanh Thai Motor only sells genuine products – we say no to counterfeit and low-quality goods.

Full CO, CQ Certificates

Each product comes with a Certificate of Origin (CO) and a Certificate of Quality (CQ) – fully meeting the requirements for construction projects, acceptance documents, and engineering projects.
