3-Phase Water Pump 30kW 40Hp

The 3-Phase Water Pump 30kW 40Hp is a centrifugal water pump used in factories, enterprises, and for agricultural irrigation. Water pumps (water pump motors) are widely favored due to their high applicability. Below, Thanh Thai Motor will share detailed information about this product line.

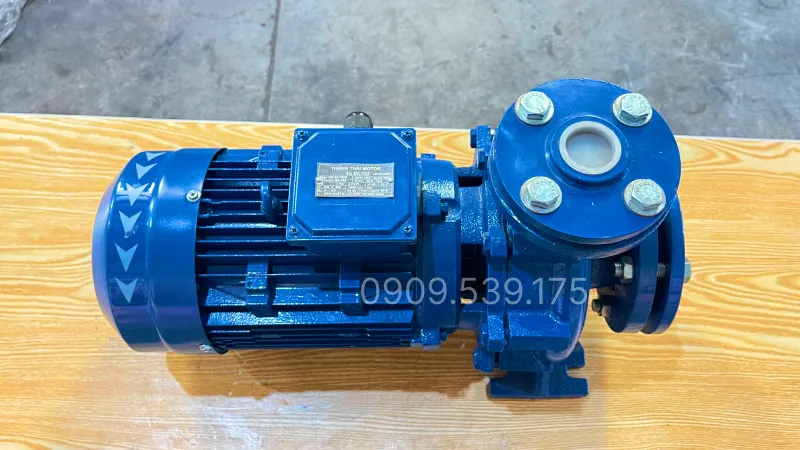

General Design of the 3-Phase Water Pump 30kW 40Hp

A 3-phase water pump (3-phase water pump motor) consists of 2 parts: the pump head and the body, which is an electric motor, specifically a 3-phase electric motor:

• The 3-phase 30kW 40Hp electric motor (3-phase 30kW 40Hp electric motor) is made of aluminum or cast iron, depending on customer requirements.
• The pump head is the most important part of the pump, responsible for drawing water from wells/ponds/lakes and pushing it upward.

Structure of the 3-Phase Water Pump 30kW 40Hp

Pump Head Structure (Water Pumping Part)

The pump head is the part that comes into direct contact with and pushes the liquid, consisting of core components:

• Pump Casing: Usually made of monolithic cast iron or stainless steel. The pump casing withstands high pressure and shapes the inlet/outlet water paths.
• Impeller: The component that creates centrifugal force to push water, typically made of brass, 304 stainless steel, or cast iron. Common designs include closed impellers (for clean water) or open impellers (for wastewater, liquids with debris).
• Pump Shaft: Horizontal shaft made of high-strength steel or stainless steel, transmitting rotational motion from the motor to the impeller.
• Mechanical Seal: Seals the gap between the pump shaft and the pump chamber, preventing water from leaking into the motor.
• Flow Guide: Helps convert the kinetic energy of the water flow into pressure energy to push water high or far.

Electric Motor Structure

The 30kW (40Hp) motor uses a 3-phase 380V power supply, comprising the main components:

• Stator: The stationary part consisting of copper windings wound on a high-temperature resistant electrical steel core (usually class F).
• Rotor: The rotating part containing aluminum or copper bars, operating on the principle of electromagnetic induction when a 3-phase current passes through the Stator.
• Motor Casing: Cast iron casing with cooling fins to help the machine operate continuously without overheating.
• Cooling Fan & Terminal Box: The fan located at the rear of the motor helps blow air to cool the motor body. The terminal box contains copper terminals for connecting the 3-phase power supply.

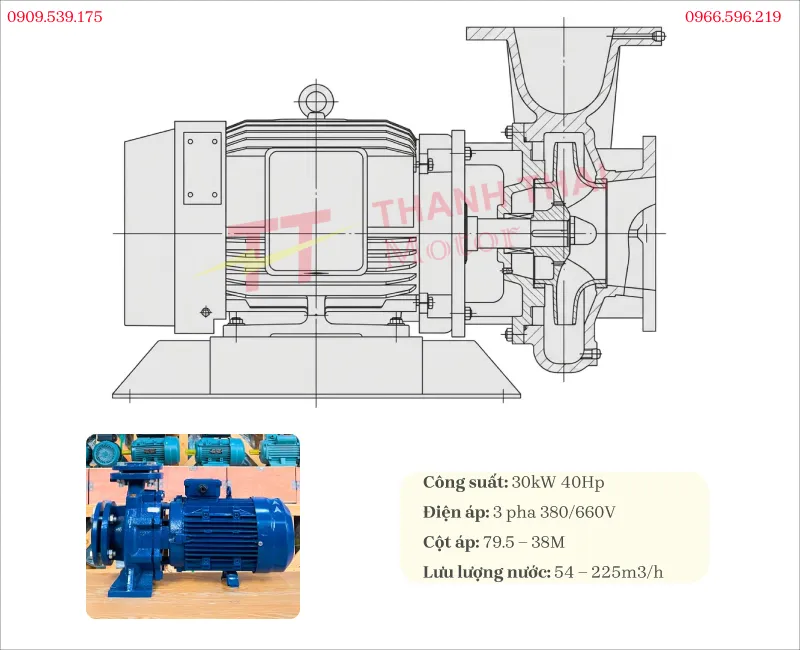

Technical Specifications of the 3-Phase Water Pump 30kW 40Hp

The 3-Phase Water Pump 30kW 40Hp is designed to meet the demand for large flow water pumping and continuous operation in industrial, agricultural, and water supply and drainage systems. Below are the main technical specifications of the product.

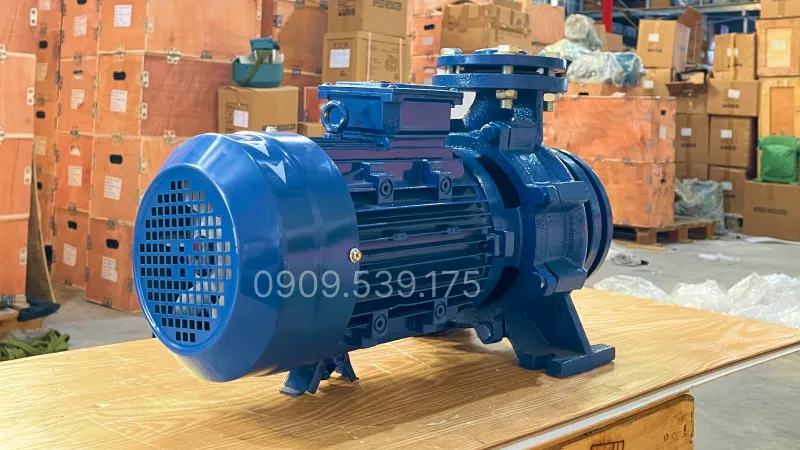

Applications of the 3-Phase Water Pump 30kW 40Hp

Some common applications of the 3-Phase Water Pump 30kW 40Hp:

• With large capacity, it helps pump water for irrigating industrial crop gardens: rubber, coffee, pepper, etc., effectively.
• The pump can lift water to high storage tanks and reservoirs to serve the living needs of residential areas, construction projects, and factories.
• Provide large water flow for industrial factories.

The 3-Phase Water Pump 30kW 40Hp is a suitable solution for systems requiring large water flow, stable operation, and continuous work in many fields. You can watch the water pump video made by Thanh Thai Motor to refer to the actual images and operating capabilities. At the same time, the video compilation category also introduces many pump models with different power levels, making product selection easier.

Warranty, Shipping, and Commitment Policy when purchasing water pumps at Thanh Thai Motor

Up to 24-month warranty for water pumps

All water pump lines supplied by Thanh Thai Motor come with an official warranty of up to 24 months. We are committed to providing fast, transparent, and professional warranty support – ensuring complete peace of mind for customers during use.

Nationwide Delivery – Fast and Secure

We offer nationwide delivery, ensuring that pumps are carefully transported and delivered on schedule to customers in all provinces and cities across the country. From Hanoi, Da Nang to Ho Chi Minh City or industrial zones – Thanh Thai Motor is always ready to serve.

Advanced Technology – European Standard

All water pump lines at Thanh Thai Motor are manufactured with German technology, meeting European standards, ensuring high durability, stable operation, power saving, and suitability for many demanding environments such as construction sites, agriculture, manufacturing plants, etc.

Competitive Prices – Attractive Offers for Dealers, Wholesale Customers

We offer reasonable and the most competitive prices in the market. We also have a high discount policy for bulk purchasers, project customers, and long-term distribution partners.

Quality Commitment – Powerful Pump, Energy Saving

All pumps are constructed with 100% copper windings, ensuring powerful operation – low power consumption – minimal vibration – less heating, smooth and durable performance over time. Thanh Thai Motor only sells genuine products – we say no to counterfeit and low-quality goods.

Full CO, CQ Certificates

Each product comes with a Certificate of Origin (CO) and a Certificate of Quality (CQ) – fully meeting the requirements for construction projects, acceptance documents, and engineering projects.
