3-Phase Water Pump 22kW 30HP

The 3-phase 22kW 30Hp water pump is a centrifugal water pump line commonly used in agricultural irrigation and widely utilized in factories and enterprises for pumping water up to storage tanks. Thanh Thai Motor will share more detailed information about this product with you.

Overall design of the 3-Phase Water Pump 22kW 30HP

This water pump belongs to the 3-phase water pump category consisting of two main parts: the pump head and the pump body, which is an electric motor, specifically a 3-phase electric motor.

• The pump head is responsible for drawing water from wells, ponds, lakes, and discharging it upward; it is an indispensable component of the water pump.
• The 3-phase 22kW 30Hp electric motor is the component that supplies operating power for the pump. The pump body can be made of aluminum or cast iron, depending on the customer’s requirements and operating conditions.

Structure of the 3-Phase Water Pump 22kW 30HP

Motor (3-Phase Motor)

• Motor housing: Typically made of cast iron or high-heat-dissipation aluminum alloy to protect internal components.
• Stator (Stationary part): Consists of 100% pure copper wire windings wrapped around an electrical steel core, drawing 3-phase power to create a rotating magnetic field.
• Rotor (Moving part): Steel core with squirrel-cage conductors, rotating within the Stator’s magnetic field to generate mechanical force.
• Pump/motor shaft: Made of stainless steel, transmitting motion from the rotor to the impeller.
• Terminal box: Where the 3-phase power supply (380V/660V) is connected.
• Cooling fan & cover: Cools the motor during continuous long-term operation.

Pump head (Water pumping section)

• Impeller: Typically an open or closed impeller made of cast iron, bronze, or stainless steel, specially designed to draw and push water.
• Pump casing (Pump body): The water chamber, cast from heavy-duty cast iron or stainless steel, featuring large suction/discharge ports.
• Mechanical Seal: Made of carbon or ceramic, preventing water from leaking into the motor interior.
• Bearings: Help the shaft rotate smoothly, reduce friction, and withstand heavy loads.

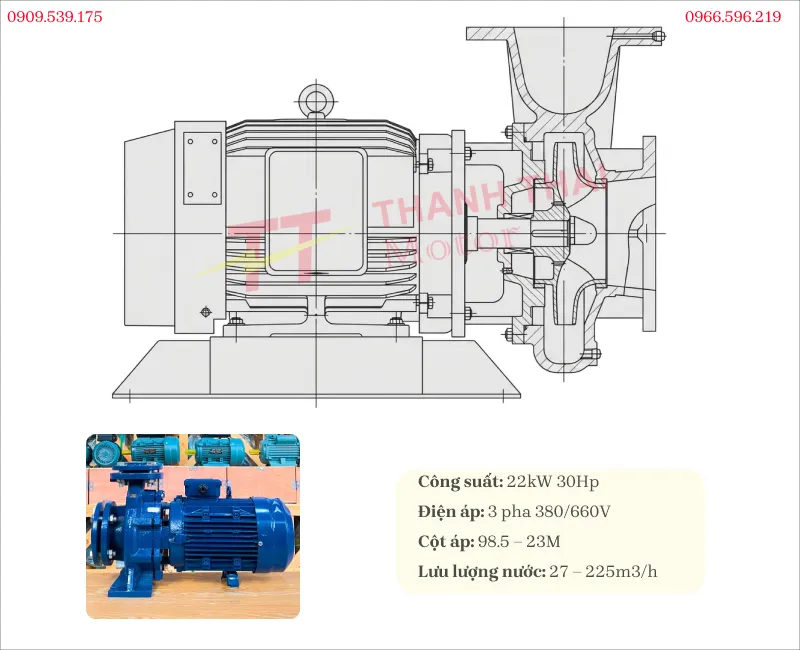

Specifications of the 3-Phase Water Pump 22kW 30HP

The 3-phase 22kW 30Hp water pump is suitable for large-capacity water pumping systems, meeting various flow rates and head requirements. Below are the basic technical specifications of the product.

Applications of the 3-Phase Water Pump 22kW 30HP

The 3-phase 22kW 30Hp water pump is widely used in all industrial and agricultural fields such:

• Irrigation for crop orchards such as: coffee, pepper, etc.
• Pumping water up to elevated tanks and reservoirs to serve the domestic needs of residential areas, construction projects, etc.
• Supplying large volumes of water for industrial factories.

The 3-phase 22kW 30Hp water pump effectively meets large-flow water pumping needs in agriculture, industry, and drainage systems. If you want to see actual images and operational performance, you can refer to the water pump video shared by Thanh Thai Motor. In addition, the video compilation category updates many pump models with various capacities for you to easily compare and choose.

Warranty, Shipping, and Commitment Policy when purchasing water pumps at Thanh Thai Motor

Up to 24-month warranty for water pumps

All water pump lines supplied by Thanh Thai Motor come with an official warranty of up to 24 months. We are committed to providing fast, transparent, and professional warranty support – ensuring complete peace of mind for customers during use.

Nationwide Delivery – Fast and Secure

We offer nationwide delivery, ensuring that pumps are carefully transported and delivered on schedule to customers in all provinces and cities across the country. From Hanoi, Da Nang to Ho Chi Minh City or industrial zones – Thanh Thai Motor is always ready to serve.

Advanced Technology – European Standard

All water pump lines at Thanh Thai Motor are manufactured with German technology, meeting European standards, ensuring high durability, stable operation, power saving, and suitability for many demanding environments such as construction sites, agriculture, manufacturing plants, etc.

Competitive Prices – Attractive Offers for Dealers, Wholesale Customers

We offer reasonable and the most competitive prices in the market. We also have a high discount policy for bulk purchasers, project customers, and long-term distribution partners.

Quality Commitment – Powerful Pump, Energy Saving

All pumps are constructed with 100% copper windings, ensuring powerful operation – low power consumption – minimal vibration – less heating, smooth and durable performance over time. Thanh Thai Motor only sells genuine products – we say no to counterfeit and low-quality goods.

Full CO, CQ Certificates

Each product comes with a Certificate of Origin (CO) and a Certificate of Quality (CQ) – fully meeting the requirements for construction projects, acceptance documents, and engineering projects.
