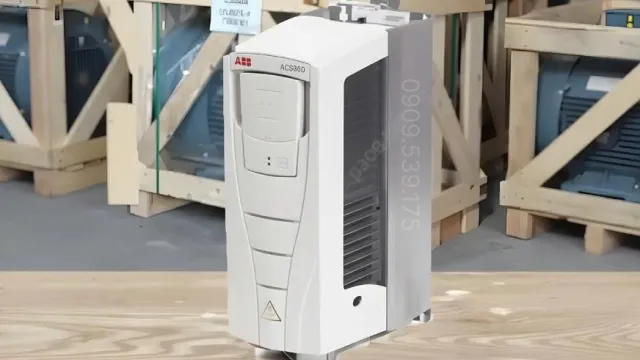

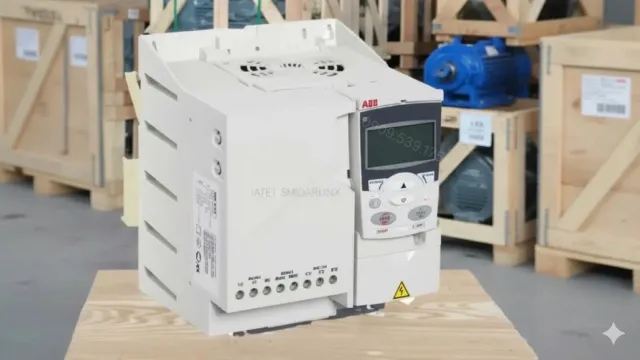

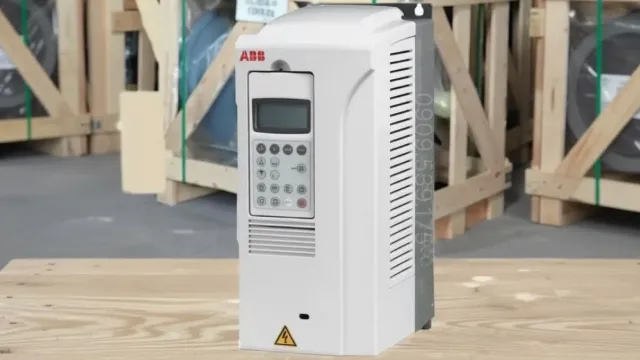

ABB Variable Frequency Drive 37kW

A Variable Frequency Drive (inverter) is a control device designed to enhance the operating efficiency of electric motors in industrial manufacturing environments. This ABB Variable Frequency Drive allows flexible adjustment of the motor’s rotational speed, torque, and rotation direction, thereby helping to save electricity, increase machinery lifespan, and optimize operational processes. With the ability to well-meet systems ranging from medium to large scale, the ABB Variable Frequency Drive over 10kW is a reliable choice for many current industries. Let’s join Thanh Thai Motor to learn more details about the outstanding features and practical applications of this variable frequency drive series!

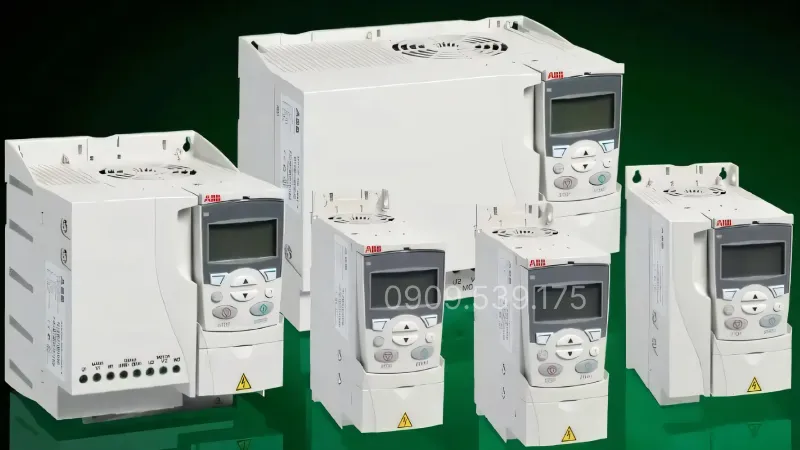

Overview Design of ABB Variable Frequency Drive 37kW

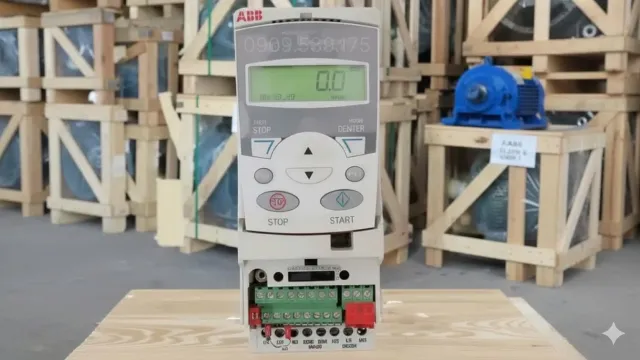

ABB Variable Frequency Drive 37kW is designed with a sturdy structure, modern industrial styling, and stable operation capability in harsh environments. The outer casing is usually made of heat-resistant, impact-resistant material, meeting or exceeding standards, helping to protect internal components from dust and moisture. The intuitive user interface features an LED or LCD display, accompanied by easy-to-operate control keys.

In addition, the device also supports expansion and flexible connection with automation systems through communication ports such as Modbus, Profibus, EtherNet/IP, suitable for various industrial applications.

Internal Structure of ABB Variable Frequency Drive 37kW

The internal structure of the variable frequency drive over 10kW includes the following main components:

• Rectifier: Converts input alternating current (AC) power into direct current (DC), ensuring a stable energy supply for the entire system.
• DC Link: Consists of capacitors and inductors, functioning to store and smooth the DC voltage before feeding it into the inverter, helping to reduce noise and increase system stability.
• Inverter: Transforms DC voltage into AC voltage with adjustable frequency and voltage, aiming to precisely control the motor’s speed and torque.
• Control Unit: Processes control signals, programs, monitors, and adjusts the operation of the variable frequency drive according to specific application requirements.
• Cooling System: Includes cooling fans and heat sinks to help maintain a stable operating temperature, ensuring performance and lifespan for the device.

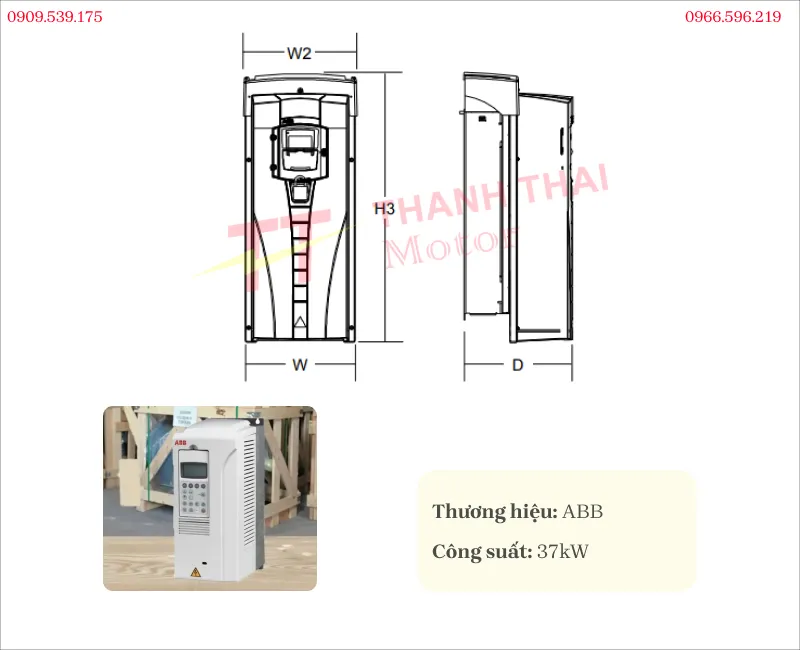

Specifications of ABB Variable Frequency Drive 37kW

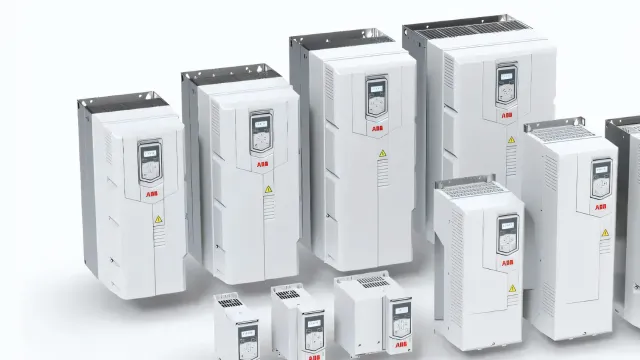

ABB Variable Frequency Drive 37kW is divided into various series to meet diverse usage needs in industrial sectors. Specifically:

• ABB ACS150 Variable Frequency Drive: A basic drive series, suitable for small-scale applications such as pump control, fans, and simple systems. The advantages are compact design, easy installation, and operation.
• ABB ACS580 Variable Frequency Drive: A multi-purpose drive with flexible control capabilities, designed for more complex processes such as HVAC systems, conveyors, mixers… This series supports communication integration and efficient energy saving.
• ABB ACS880 Variable Frequency Drive: A premium series, specialized for heavy industries requiring high precision and performance such as metallurgy, oil and gas, paper production, or complex automation lines. Integrates advanced vector control technology and numerous comprehensive protection functions.

Below are specifications and some popular variable frequency drive series:

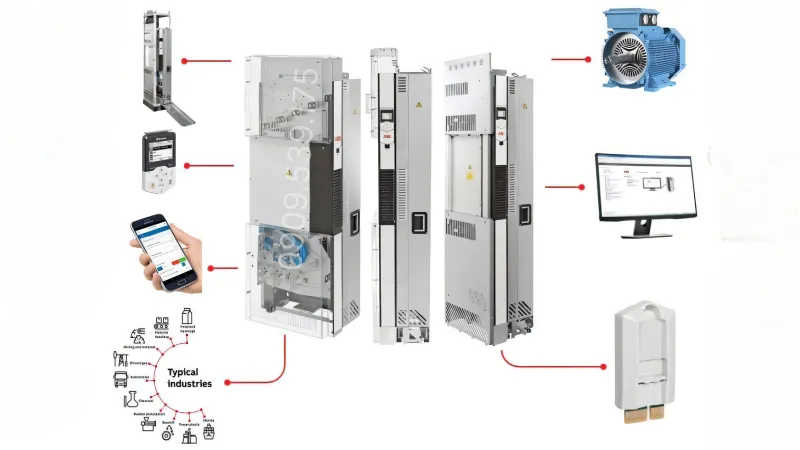

Popular Applications of ABB Variable Frequency Drive 37kW

ABB Variable Frequency Drive 37kW is commonly used in large industrial systems, including:

• Industrial pump systems: Helps adjust water flow and pressure according to demand, saving electricity efficiently.
• Ventilation fans, industrial fans: Optimizes rotational speed at each specific time, reducing noise and enhancing cooling capacity.
• Conveyors in production lines: Controls operating speed flexibly, helping smooth operation and extending equipment lifespan.
• Air compressors: Stabilizes output compressed air pressure, reduces power consumption, and enhances system performance.
• Other automation applications: Applied to mixers, crushers, rolling mills… in heavy and light industries, supporting precise control and operational cost savings.

What Equipment Can ABB Variable Frequency Drive 37kW Be Combined With?

ABB Variable Frequency Drive 37kW easily integrates perfectly with high-capacity industrial equipment to form a synchronous automation system:

• Combined with industrial electric motors:
  • 3-phase electric motor with 37kW power: Ensures optimal operating performance, saves electricity thanks to the advanced vector control algorithm of the variable frequency drive.
  • Brake Motor: Suitable for lifting applications or conveyors that require precise and instantaneous stopping, ABB variable frequency drive supports safe and smooth brake control.
  • Explosion-proof motor: Combines perfectly in special environments such as chemical plants, petroleum warehouses, ensuring strict requirements on explosion safety.
• Combined with pump and fan systems:
  • Industrial booster pump & Centrifugal pump: The variable frequency drive helps maintain stable pressure, prevents overload during startup, and extends the lifespan of the impeller.
  • Centrifugal fan & High-capacity ventilation fan: Optimizes air flow in cooling towers, large-scale workshops, minimizing noise and operating costs.

User Guide for ABB Variable Frequency Drive 37kW: Installation and Electrical Wiring

Below is the detailed installation and wiring guide for the 37kW variable frequency drive

• Mechanical installation
  • Inspection: Ensure the voltage and power of the variable frequency drive are compatible with the power grid and motor.
  • Location: Install in a dry place, away from sunlight, high humidity, and dust.
  • Heat dissipation: Maintain at least 200mm of clearance above and below the device for ventilation.
• Electrical wiring
  • Power wiring: Connect input power (L1, L2, L3) and motor output (U, V, W) securely.
  • Grounding: Mandatory connection of grounding wire for the drive enclosure and motor frame to ensure safety.
  • Signal: Route control cables separately, away from power cables to prevent interference.

ABB Variable Frequency Drive 37kW can be combined with high-capacity equipment such as industrial pumps, high-capacity fans, centrifugal fans, compressed air systems, as well as various machinery in production lines such as crushers, agitators, blenders… helping to ensure stable and efficient operation.

Thanh Thai Motor has built a repository of variable frequency drive videos and summary videos to help customers easily observe actual products, learn configurations, and choose the right variable frequency drive series according to their usage needs.

Purchasing Policy and Commitment at Thanh Thai Motor

Extended 24-Month Warranty

All VFDs (VFD cabinets or VFD units) supplied by Thanh Thai Motor are from renowned Chinese VFD manufacturers and come with an official warranty of up to 24 months. We are committed to providing absolute peace of mind with transparent, fast, and dedicated after-sales service.

Nationwide Door-to-Door Delivery

No matter where you are in Vietnam, we ensure that products are delivered to you quickly, safely, and on time, without geographical limitations.

European Standard Quality, German Technology

Thanh Thai Motor's 1-phase 220V VFDs or 3-phase 220V/380V VFDs are manufactured using advanced German technology and strictly meet European quality standards. This ensures the equipment has superior durability and stable operation over a long period, suitable for industrial VFD products.

Competitive Pricing, Discounts for Partners and Bulk Orders

We always offer reasonable VFD prices for 1-phase or 3-phase VFDs, along with many attractive discount policies exclusively for dealers and bulk buyers with the most affordable VFD prices. The more you buy, the higher the discount, helping to optimize your profit.

Complete, Transparent Documentation (CO, CQ)

Each VFD is provided with a full Certificate of Origin (CO) and Certificate of Quality (CQ). These documents are clear proof of origin and quality, providing absolute confidence to customers when purchasing VFDs for projects requiring technical documentation.

Are you looking for the most suitable motor VFD for your system? Do not hesitate to contact Thanh Thai Motor immediately through the following channels:
