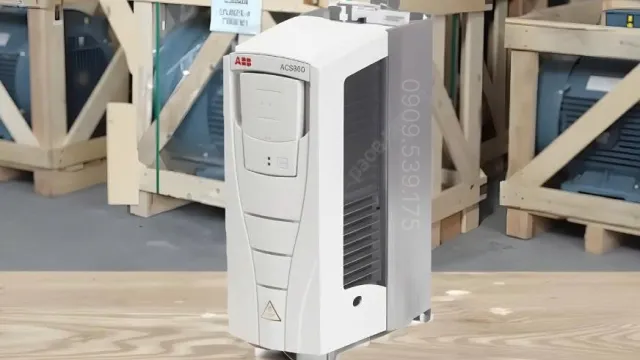

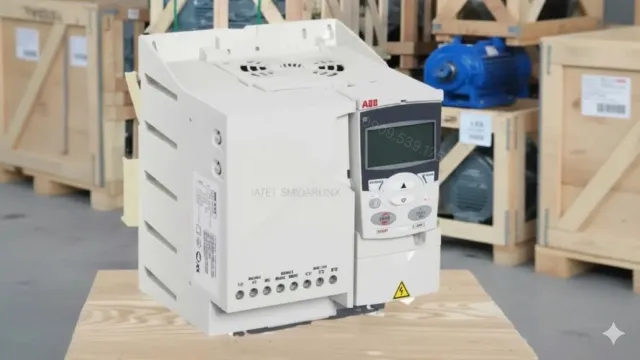

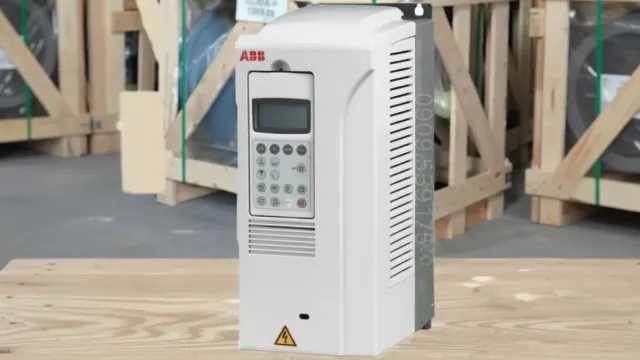

ABB Variable Frequency Drive 30kW

A variable frequency drive (inverter) is a modern motor control device designed to enhance operating efficiency for systems using high-power electric motors. This ABB variable frequency drive series allows precise control of speed, torque, and rotation direction of the motor. With stable performance and high adaptability in industrial environments, the ABB Variable Frequency Drive 30kW is an ideal choice for medium and large-scale factories and production workshops. Let’s explore more deeply about the prominent features and practical applications of this product line with Thanh Thai Motor!

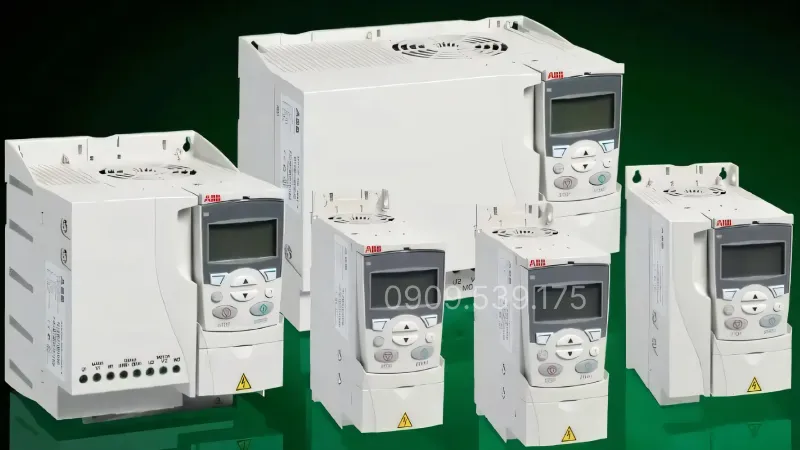

General Design of the ABB Variable Frequency Drive 30kW

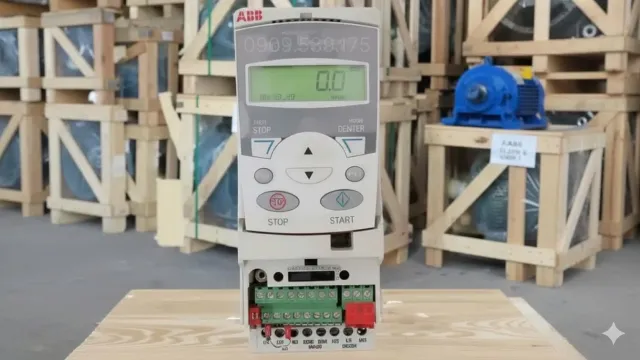

ABB variable frequency drives above 10kW are designed with a compact yet sturdy appearance, suitable for installation in electrical panels or wall mounting in industrial environments. The casing is made of heat-resistant and impact-resistant material, ensuring durable operation in harsh conditions. The front panel integrates an LCD or LED control screen along with intuitive operation buttons, helping users easily set up and monitor operating status.

In addition, the variable frequency drive is also equipped with a cooling system using a fan or heat dissipation slots, helping to maintain a stable temperature when the device operates at high capacity. Input/output connection ports are arranged reasonably, convenient for wiring with the motor and external control systems.

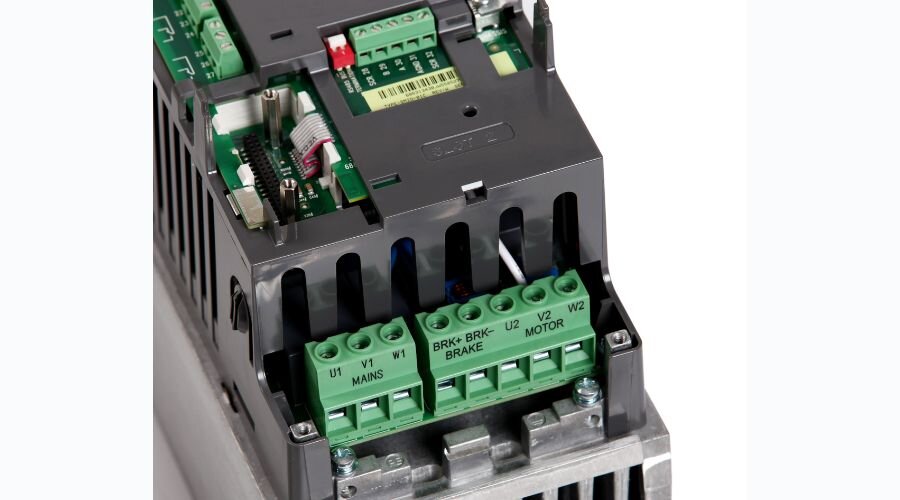

Internal Structure of the ABB Variable Frequency Drive 30kW

Variable frequency drives above 10kW are designed with a modern component system, ensuring stable operation and optimal performance. The main structure includes:

• Rectifier block: Responsible for converting alternating current (AC) from the power supply into direct current (DC) to supply the intermediate control circuit.
• Inverter block: Converts DC source into AC current with variable frequency and voltage, allowing flexible control of motor speed and torque.
• Central processing and control unit: Integrates an intelligent microcontroller to monitor, process signals, and accurately adjust operating parameters, while supporting extended programming functions.

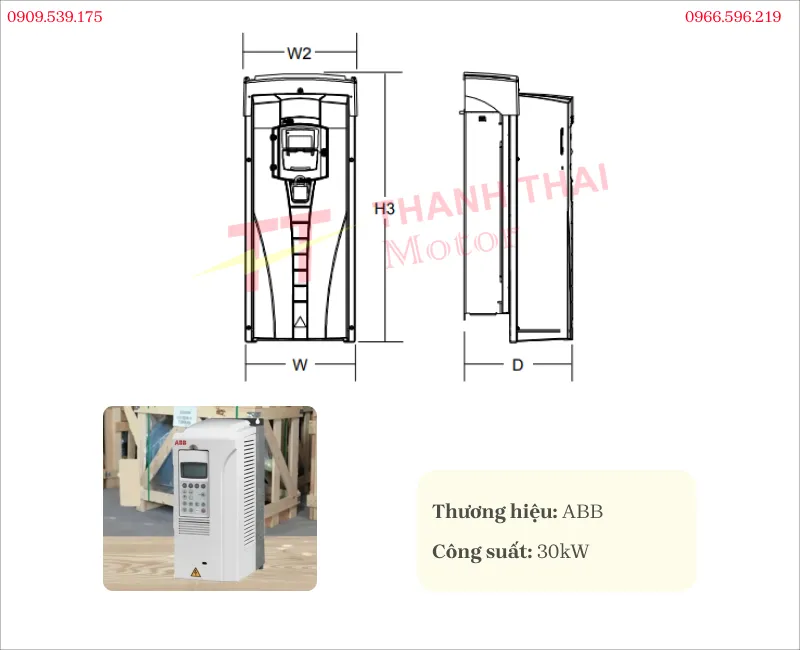

Technical Specifications of ABB Variable Frequency Drive 30kW

The ABB Variable Frequency Drive 30kW belongs to the high-power control equipment group and is developed in many product lines to serve diverse application needs in industry. Below are the technical specifications and some popular variable frequency drive series: ABB ACS150, ABB ACS580, …

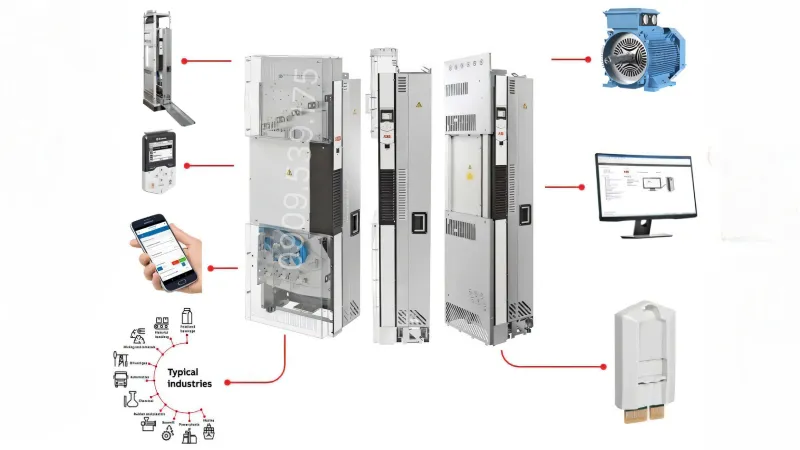

Common Applications of ABB Variable Frequency Drive 30kW

The ABB Variable Frequency Drive 30kW is widely used in many industrial fields thanks to its powerful, accurate motor control and energy-saving capabilities. Some typical applications include:

• Industrial pump systems: The variable frequency drive helps adjust flow rate and pressure according to actual demand, reducing power waste and extending pump life.
• Industrial fans and ventilation systems: Optimizes fan rotation speed, reduces noise and power consumption, suitable for workshops, basements, and gas treatment plants.
• Air compressors: Stabilizes compressed air pressure according to the applied load, reduces sudden start/stop cycles, and protects equipment.
• Conveyors and production lines: Adjusts movement speed for each stage, increasing production efficiency and reducing mechanical wear.
• Lifting equipment and material processing machines: Applied in overhead cranes, elevators, crushers, mixers… ensuring safe and precise operation.

What Equipment Can ABB Variable Frequency Drive 30kW Be Combined With?

The ABB Variable Frequency Drive 30kW can be perfectly combined with many high-power industrial equipment, creating a synchronous and energy-saving operating system:

• Combined with 3-phase electric motors:
  • 3-phase electric motor with 30kW power: Optimal compatibility, allowing flexible speed control and soft starting, helping to protect the motor from power shocks.
  • Brake Motor: Ideal for lifting systems, cranes, or conveyors that require precise stopping, ensuring absolute safety during operation.
  • Explosion-proof motor: A safe solution for specific environments such as oil refineries, chemical workshops, where strict explosion-proof standards are required.
• Combined with industrial pump and fan systems:
  • Centrifugal pump & Booster pump: Helps optimize flow rate and maintain stable pressure according to actual load, minimizing vibration and mechanical wear.
  • Centrifugal fan & High-power ventilation fan: Optimizes air exchange efficiency in workshop ventilation systems and cooling towers, while significantly reducing noise and power consumption.

User Guide and Maintenance for ABB Variable Frequency Drive 30kW

Below is the guide for the 30kW variable frequency drive:

• Technical wiring
  • Power wiring: Connect the grid power source to terminals L1, L2, L3 and motor output to terminals U, V, W. Connections must be tightly secured to prevent arcing.
  • Control wiring: For Analog signal cables (4-20mA, 0-10V) or communication cables, protective conduits must be used and separated from power cables to minimize signal interference.
• Operation and Periodic Maintenance
  • Monitoring: Regularly monitor operating parameters (Current A, Frequency Hz) via the display screen to detect abnormalities early.
  • Cleaning: Periodically clean the cooling fan and air filter with compressed air or a dry cloth (every 3-6 months depending on the environment).
  • Periodic inspection: Re-tighten all screws at electrical contact points and check the temperature inside the electrical panel during hot seasons or when the factory runs at peak load.

If you want a visual evaluation before investing, explore the variable frequency drive video and summary video to view the appearance, technical specifications, and outstanding features of each product.
