WPDX 70 Worm Gearbox

The WPDX 70 Worm Gearbox is a product line designed with perpendicular input and output shafts, providing smooth, stable transmission and effectively increasing torque for the motor. With a sturdy design directly mounted to a 3-phase electric motor, durable cast iron housing, and adaptability to various working environments, let’s explore the detailed structure of this gearbox and its applications in conveyor systems, industrial machinery, and automated production equipment with Thanh Thai Motor.

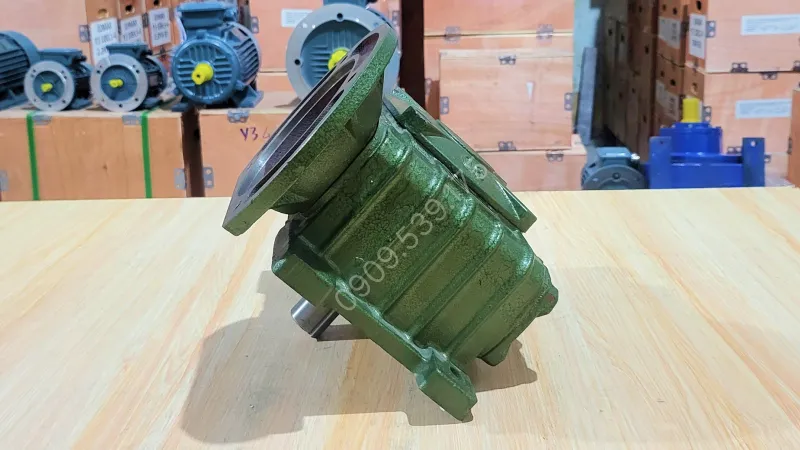

General design of the WPDX 70 Worm Gearbox

The WPDX 70 gearbox belongs to the worm gearbox series, featuring perpendicular input and output shafts to help optimize transmission efficiency in limited spaces. The housing is made of solid cast iron, offering good load-bearing capacity, high heat dissipation, and vibration resistance.

The worm gear unit combines directly with an electric motor to form a complete gear motor, providing high efficiency in drive systems that require reduced rotational speed and increased torque.

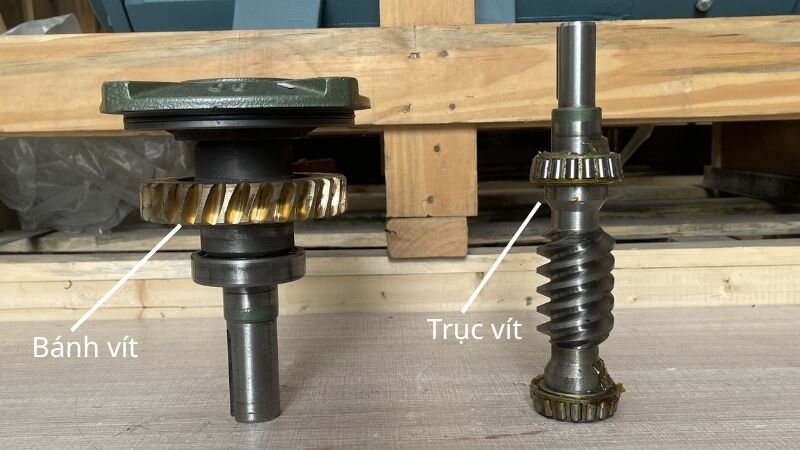

Internal structure of the WPDX worm gearbox

• Worm shaft: Manufactured from high-strength alloy steel, heat-treated for wear resistance, ensuring superior durability in harsh working environments.
• Worm gear: Made of bronze alloy, featuring low friction, helping convert torque stably and increase service life.
• Transmission mechanism: The worm shaft and worm gear mesh perfectly, forming a drive system that effectively reduces rotational speed and increases output pulling force.
• Bearings, oil seals: High quality, oil leak-resistant, with good heat and friction resistance.
• Oil filler and breather holes: Smart design for easy maintenance and long-term stable operation.

Technical specifications of the WPDX 70 Worm Gearbox

To ensure accurate motor selection and system design, please compare with the specifications of the WPDX 70 worm gearbox below:

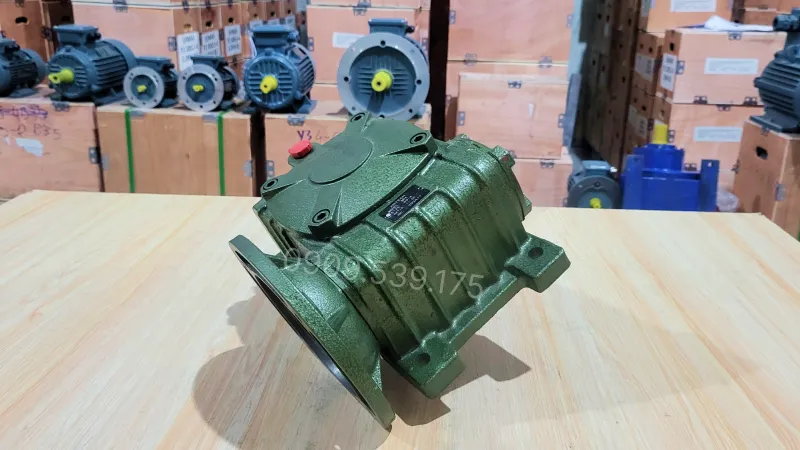

Applications of the WPDX 70 Worm Gearbox

With good load-bearing capacity and smooth operation, the WPDX 70 is suitable for application in many industries:

• The WPDX 70 gearbox is widely applied in:
• Manufacturing industry: Steel rolling mills, winding machines, hydraulic presses.
• Conveyor systems, assembly lines in factories and warehouses.
• Food processing industry: Agitators, mixers, packaging machines.
• Automation equipment: CNC machines, textile machines, printing machines.
• Water treatment and environmental sector: Large-capacity industrial blowers.
• Other fields: Industrial rolling doors, cranes, lifting machines.

Guide on how to add oil to the worm gearbox

Below is the easiest-to-remember and easiest-to-perform gearbox oil filling and changing procedure:

• Step 1 – Disconnect power and drain old oil: Completely disconnect the power source to ensure safety. Place a catch tray under the equipment base, open the drain plug at the bottom of the gearbox to completely remove all old oil and metal debris. After draining thoroughly, tighten the drain plug securely. (Note: Skip the draining step when adding oil to a new gearbox).
• Step 2 – Proceed to add new oil: Remove the oil filler plug (breather plug) located at the highest position on top of the gearbox. Place a funnel into the hole mouth and slowly pour specialized gear lubricating oil inside.
• Step 3 – Adjust the level via the oil sight glass: While pouring oil, pay attention to observe the sight glass on the side of the gearbox. Stop filling as soon as the oil level reaches the exact middle position of the glass.

The WPDX 70 worm gearbox line with a solid cast iron housing not only withstands heavy loads but also has very good natural heat dissipation capacity, protecting internal parts such as bearings and oil seals from the intrusion of dust and environmental agents.

If you are comparing product lines, do not miss the gearbox video and the comprehensive video to have more basis for product selection.

Warranty, Shipping, and Commitment Policy at Thanh Thai Motor

When purchasing gearboxes at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 months

Gearbox products at Thanh Thai Motor are covered by a genuine warranty for up to 24 months. Customers can be completely confident in using them with a clear, transparent, and prompt after-sales policy.

Nationwide Delivery

We support fast delivery to all provinces and cities nationwide. Wherever you are, products are guaranteed to arrive on time and safely.

Products meeting European quality standards with German technology

Gearboxes at Thanh Thai Motor are manufactured using advanced German technology, meeting European quality standards. Ensuring high durability and stable operation for extended periods.

Competitive prices, good discounts for dealers and bulk customers

Reasonable prices, many attractive offers for wholesale buyers and distribution agents. The more you buy, the higher the discount – optimizing profits for customers.

Full certification documents: CO, CQ,...

Each product comes with full Certificate of Origin (CO) and Certificate of Quality (CQ). This provides assurance for customers when using them in projects or constructions requiring technical documentation.
