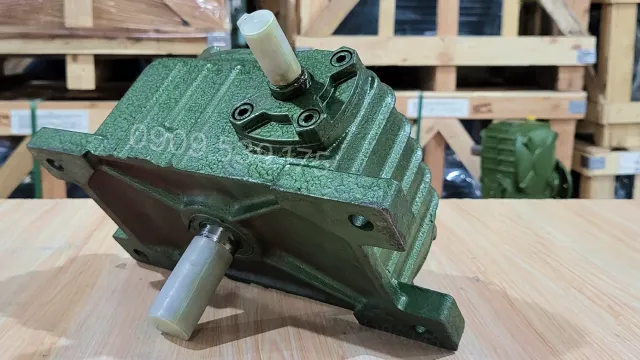

WPO 80 Worm Gearbox

The WPO 80 worm gearbox is a type of gearbox that uses a worm and worm wheel transmission system to reduce rotational speed and increase torque. The device features perpendicularly arranged input and output shafts, and is used in mechanical drive systems requiring low output speeds.

Overview design of the WPO 80 worm gearbox

The WPO 80 gearbox is built with a cast iron housing. The transmission is enclosed inside the housing, and the mating surfaces are machined to standard dimensions. The input shaft connects to the motor via a coupling or pulley, while the output shaft is arranged perpendicularly to transmit motion to the working mechanism. The housing is equipped with an oil filler plug, an oil sight glass, and an oil drain plug.

Detailed structure of the WPO 80 worm gearbox

The WPO 80 worm gearbox consists of drive assemblies and assembled components inside the housing. The parts are arranged according to the structure of a worm and worm wheel transmission.

• Worm shaft: Machined from alloy steel, with the surface treated to increase wear resistance during transmission.
• Worm wheel: Cast from bronze alloy, meshing with the worm shaft to create the gear ratio and transmit torque to the output shaft.
• Output shaft: Solid shaft type with a keyway, used for installing couplings, pulleys, or sprockets.
• Key: Standard-machined, maintaining the connection between the output shaft and transmission components.

Technical specifications of the WPO 80 worm gearbox

The technical specifications below are used to select the installation dimensions and gear ratio suitable for the system.

Applications of the WPO 80 worm gearbox

The WPO 80 worm gearbox is widely applied in many fields, from industrial production to household appliances:

• Construction industry: Commonly used in overhead cranes, crushers, and concrete mixers, helping to optimize the production process.
• Food industry: The WPO 80 is applied in conveyors and production lines for textile and printing machinery, ensuring efficiency and food safety.
• Household appliances: Appearing in products such as car washers and watering machines, bringing convenience to consumers.
• Manufacturing industry: Playing an important role in machinery such as glass cutting machines, CNC machines, and lathes, supporting accurate and efficient production processes.

Guide to distinguishing the input and output shafts of a gearbox

To correctly identify the input and output shafts of a gearbox, follow these steps:

Step 1: Identify the end connected to the motor

Observe the location with the flange or motor mounting hole. The shaft at this end is the input shaft, used to receive motion from the motor.

Step 2: Identify the drive end

Check the remaining shaft end of the gearbox. This is the output shaft, responsible for transmitting speed and torque to the working equipment.

Step 3: Check the external structure

Observe details such as the base, stiffening ribs, oil filling holes, oil drain holes, and connecting bolts to determine the mounting style and condition of the gearbox.

Step 4: Compare assembly parameters

Check the shaft diameter, flange dimensions, and bolt fastening positions to ensure compatibility with the motor and transmission equipment.

Step 5: Confirmation before installation

Recheck the positions of the input shaft, output shaft, and technical specifications of the gearbox before putting it into assembly and operation.

In addition to this article, you can refer to the gearbox video to learn about the structure, operating principle, and installation instructions for each product line. At the same time, compilation videos on the Thanh Thai Motor channel will provide additional content related to motors, gearboxes, and practical drive applications.

Warranty, Shipping, and Commitment Policy at Thanh Thai Motor

When purchasing gearboxes at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 months

Gearbox products at Thanh Thai Motor are covered by a genuine warranty for up to 24 months. Customers can be completely confident in using them with a clear, transparent, and prompt after-sales policy.

Nationwide Delivery

We support fast delivery to all provinces and cities nationwide. Wherever you are, products are guaranteed to arrive on time and safely.

Products meeting European quality standards with German technology

Gearboxes at Thanh Thai Motor are manufactured using advanced German technology, meeting European quality standards. Ensuring high durability and stable operation for extended periods.

Competitive prices, good discounts for dealers and bulk customers

Reasonable prices, many attractive offers for wholesale buyers and distribution agents. The more you buy, the higher the discount – optimizing profits for customers.

Full certification documents: CO, CQ,...

Each product comes with full Certificate of Origin (CO) and Certificate of Quality (CQ). This provides assurance for customers when using them in projects or constructions requiring technical documentation.

Contact for Purchase

Do you need advice on choosing the right gearbox for your needs? Contact Thanh Thai Motor immediately using the methods below:

• WhatsApp: +84966596219
• Email: codienthanhthai@gmail.com

The WPO 80 worm gearbox is an ideal choice for systems requiring stable drive, power saving, and easy operation. The product harmoniously combines performance and cost, and can be easily integrated with many popular electric motor types. Contact Thanh Thai Motor today for the best advice and support!
