WPDS 155 Worm Gearbox

The WPDS 155 Worm Gearbox is a heavy-duty gearbox featuring a right-angle input and output shaft design, specialized for drive systems requiring high torque and stable operation with a robust structure directly coupled to a 3-phase electric motor. Join Thanh Thai Motor in exploring the detailed product structure and applications across various heavy industries such as conveyors, rolling mills, presses, and more.

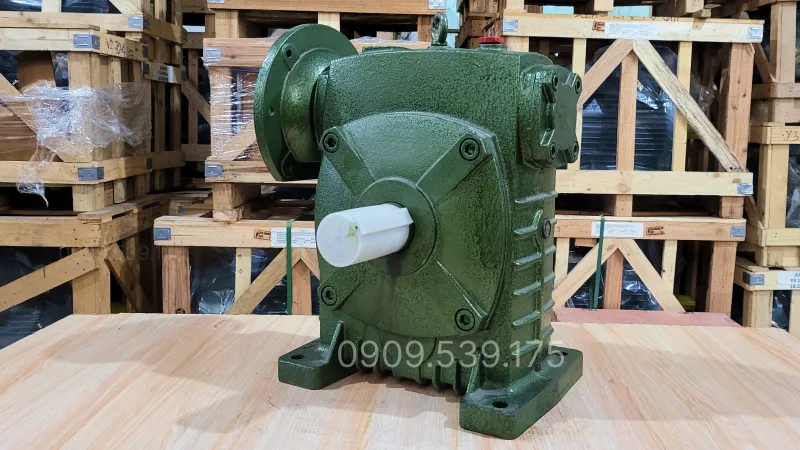

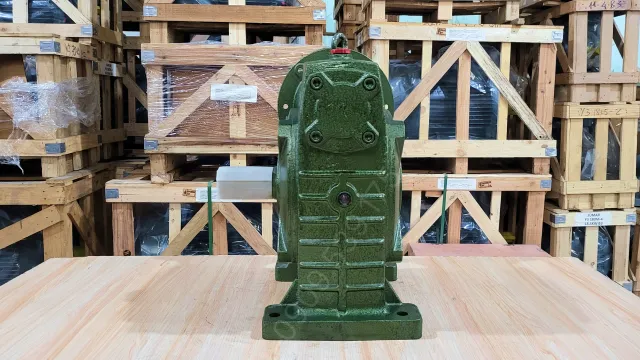

Overview design of the WPDS 155 Worm Gearbox

The worm gearbox is designed as a worm and worm gear unit featuring a durable structure and high precision in every mechanical detail. The housing is cast from solid load-bearing iron and meticulously machined to ensure tightness and vibration resistance during operation.

The gearbox is directly combined with an electric motor to form a gear motor, helping to optimize transmission efficiency and reduce power loss during operation.

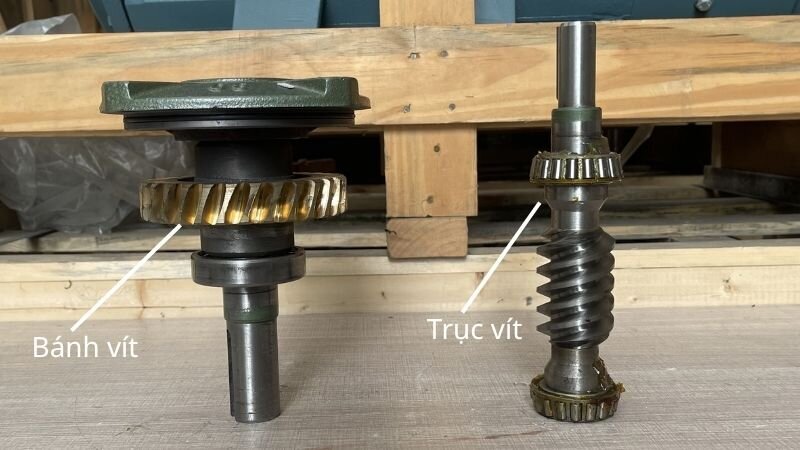

Internal structure of the WPDS 155 Worm Gearbox

The WPDS 155 Worm Gearbox consists of 3 main components:

• Worm shaft: Made of hardened alloy steel, rust-resistant, with high precision, ensuring stable power transmission.
• Worm gear: Made of pure bronze, helping to reduce friction and increase transmission efficiency.
• Housing: Solid cast iron, providing good load capacity and vibration resistance.

The meshing mechanism between the worm shaft and worm gear generates high torque, helping the unit reduce speed effectively, operate smoothly, and generate low noise. All components are lubricated with specialized oil to increase durability and reduce wear.

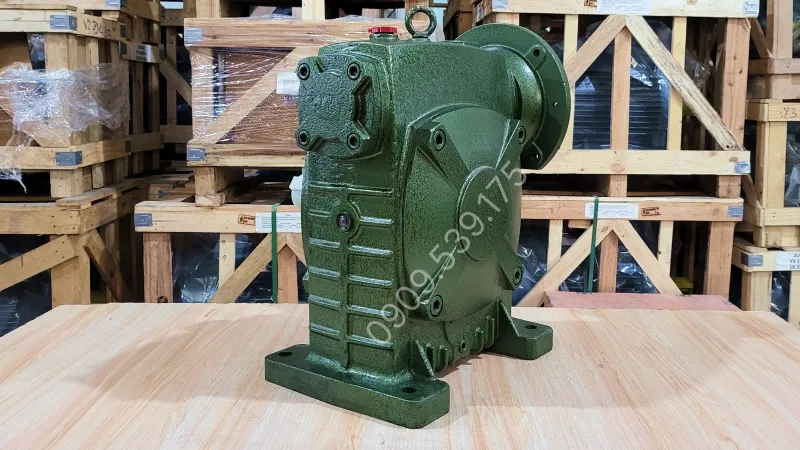

Functions and applications of the WPDS 155 Worm Gearbox

The product is widely applied in various fields:

• Industrial conveyor systems, heavy material handling conveyors.
• Presses, steel rolling machines, coilers in the metallurgical industry.
• Lifting equipment such as heavy-duty winches, overhead cranes, and factory travel mechanisms.
• Automated production lines, agricultural and food processing.
• Systems requiring speed reduction while maintaining high pulling force and continuous operation.

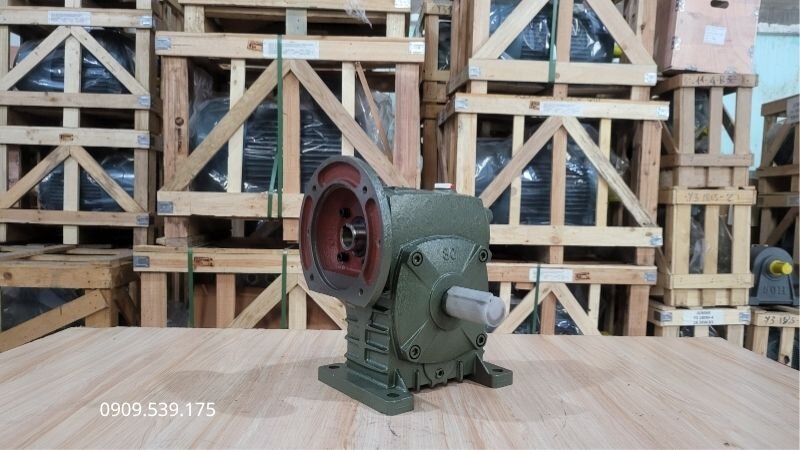

Guide to adding oil to the worm gearbox

Proper oil refilling ensures the worm gearbox operates smoothly, reduces wear on transmission parts, and maintains long-term working performance.

• Step 1: Completely turn off the power supply before performing any operations. If the gearbox has been used, open the drain plug to completely remove the old oil, then tighten the drain plug securely. For a new gearbox, you can proceed to add oil immediately.
• Step 2: Open the oil filler plug and slowly pour lubricating oil into the gearbox. Monitor the oil sight glass, and stop when the oil level reaches about the middle of the glass to avoid overfilling.
• Step 3: Tightly close the oil filler plug, check the assembly positions, and clean up any spilled oil on the equipment surface before putting the gearbox into operation.

Through the instructional gearbox video from Thanh Thai Motor, you can easily perform the steps for oil refilling, installation, and technical inspection of the equipment. Watch the comprehensive video to understand the usage process and gain useful experience in operating and maintaining the gearbox.

Warranty, Shipping, and Commitment Policy at Thanh Thai Motor

When purchasing gearboxes at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 months

Gearbox products at Thanh Thai Motor are covered by a genuine warranty for up to 24 months. Customers can be completely confident in using them with a clear, transparent, and prompt after-sales policy.

Nationwide Delivery

We support fast delivery to all provinces and cities nationwide. Wherever you are, products are guaranteed to arrive on time and safely.

Products meeting European quality standards with German technology

Gearboxes at Thanh Thai Motor are manufactured using advanced German technology, meeting European quality standards. Ensuring high durability and stable operation for extended periods.

Competitive prices, good discounts for dealers and bulk customers

Reasonable prices, many attractive offers for wholesale buyers and distribution agents. The more you buy, the higher the discount – optimizing profits for customers.

Full certification documents: CO, CQ,...

Each product comes with full Certificate of Origin (CO) and Certificate of Quality (CQ). This provides assurance for customers when using them in projects or constructions requiring technical documentation.
