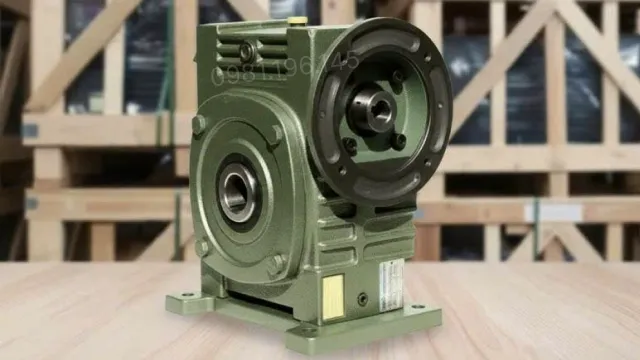

Worm Gearbox WPDKS 135

Worm Gearbox WPDKS 135 is a large-sized gearbox line, with a sturdy yet compact design, helping to optimize installation space. The product is made of high-strength cast iron combined with a high-quality bronze worm wheel, providing stable, smooth transmission and long service life. WPDKS 135 is suitable for use in heavy industrial systems, large conveyors, mixers, packaging machines, and automation lines.

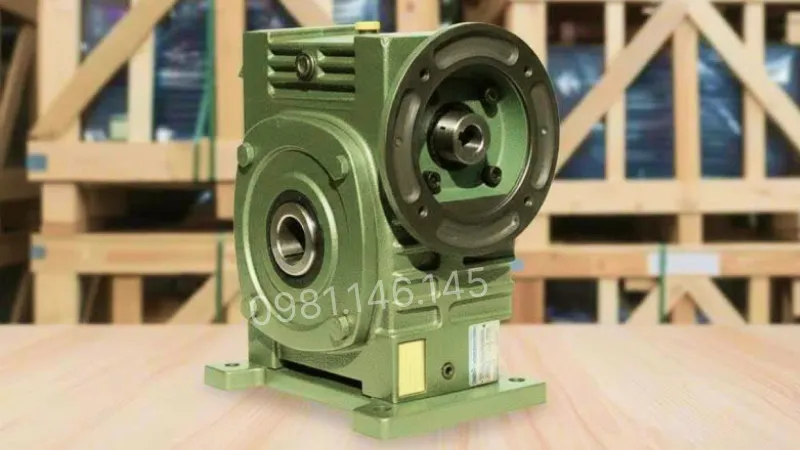

External Design of Worm Gearbox WPDKS 135

As a gearbox line with detailed design as follows:

• The housing is made of monolithic cast iron, smoothly machined, and coated with anti-rust powder coating, ensuring durable operation in harsh industrial environments.
• Sturdy design, vertical or horizontal layout, easily integrated into large machinery systems.
• Hollow output shaft design, convenient for direct connection with electric motors or transmission devices, ensuring high concentricity, stable power transmission, and smooth operation.
• The robust design allows WPDKS 135 to work continuously under heavy loads while maintaining high efficiency.

Structure of Worm Gearbox WPDKS 135

The 1-stage gearbox coupled with an electric motor creates a new product called a gear motor with powerful functionality, high lifespan, and a compact device that does not take up much space, including:

• Housing: Monolithic cast iron, excellent load-bearing capacity, protecting all internal components, anti-rust powder-coated surface, long lifespan.
• Worm shaft: Hardened alloy steel, precise helical threads, smooth power transmission, reduced friction and energy loss.
• Worm wheel: Durable bronze alloy, self-lubricating, minimizing wear, enhancing operational lifespan.
• Bearings: Arranged at both ends of the shaft, reducing vibration and increasing stability during continuous operation.
• Caps and oil seals: Preventing oil leakage, protecting internal mechanisms from dust and environmental factors.

Technical Specifications of Worm Gearbox WPDKS 135

Below are the technical specifications of the worm gearbox, including dimensions, input shaft diameter, output shaft diameter, keyway, and transmission ratio range to support proper selection and installation.

Applications of Worm Gearbox WPDKS 135

The worm gearbox is suitable for systems requiring stable transmission, heavy load capacity, and flexible speed variation:

• Heavy industrial conveyors, large material transfer belts.
• Industrial mixers, agitators, crushers, and dryers.
• Packaging machines, filling machines, labeling machines in automated lines.
• Lifting mechanisms, turntables, industrial robots.
• Large machine tools, material handling systems, and heavy agricultural equipment.
