Worm Gearbox WPDA 60

The WPDA 60 worm gearbox is a mechanical device widely used to reduce rotational speed and increase torque in industrial machinery systems. The right-angle design of the input and output shafts provides high flexibility, making it easy to install in various restricted spaces. Thanks to its durable operation, stable performance, and low maintenance cost, the product is a reliable choice for many manufacturing industries.

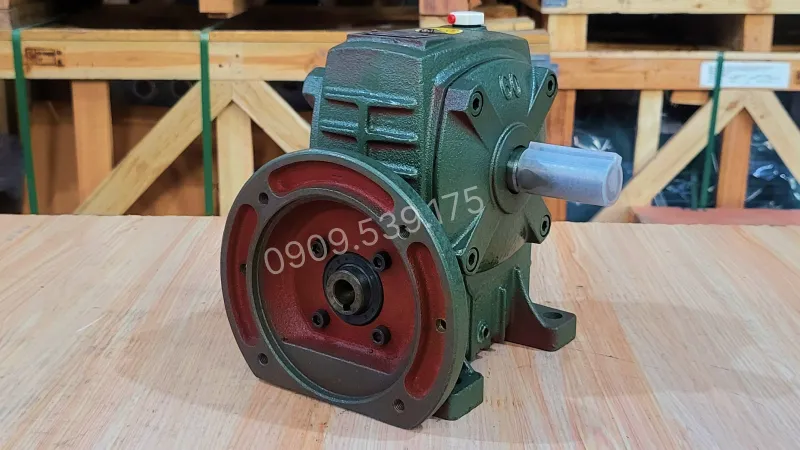

Overview Design of WPDA 60 Worm Gearbox

The gearbox features a solid one-piece heavy-duty cast iron housing, ensuring high durability, good impact resistance, and safe operation in harsh environmental conditions. The right-angle input-output shaft structure not only helps optimize space arrangement but also improves transmission efficiency.

All internal components are precision-machined from specialized materials such as stainless steel and copper alloy, offering high wear and corrosion resistance. The exterior powder coating helps the device resist the effects of moisture, chemicals, and dirt, extending its service life.

The worm gearbox can be flexibly combined with an electric motor via a coupling or pulley, creating a powerful and energy-efficient gear motor.

Structure of WPDA 60 Worm Gearbox

• Worm Shaft: Made of ultra-durable alloy steel, rust-resistant and capable of maintaining hardness over a long period.
• Worm Gear: Manufactured from high-quality copper alloy, helping to reduce friction, increase power transmission efficiency, and limit wear.
• Transmission System: The precise meshing structure between the worm shaft and worm gear generates large torque, maintaining the rotational speed according to technical requirements.
• Bearings and Oil Seals: The bearing and dust-oil seal system ensures tightness and smooth operation.

Technical Specifications of WPDA 60 Gearbox

The WPDA 60 gearbox possesses a durable design and solid construction; below are its specifications and drawings:

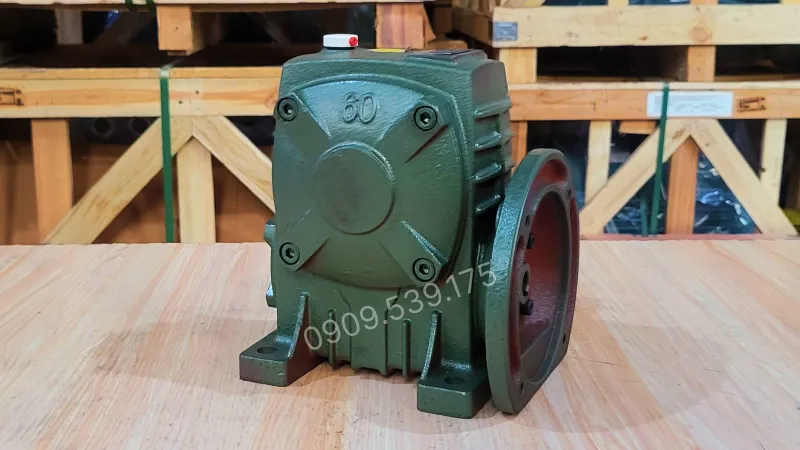

Common Applications of WPDA 60 Worm Gearbox

• Industrial lifting equipment: Installed in winches, bolts, and cranes to stably lift and lower heavy objects.
• Construction industry: Incorporated in material handling machinery such as concrete mixers and mortar mixers.
• Production lines: Used in packaging machines, printers, and textile machines for precise speed control and energy saving.
• Agricultural machinery: Contributing to efficient power transmission for tractors, cultivators, and combine harvesters.
• Transportation and marine vehicles: Installed in ship, boat, and specialized truck transmission systems.

How to Add Oil to the Worm Gearbox

To ensure efficient operation and extend the service life of the gearbox, oil must be added correctly:

• Step 1: If the gearbox has been used, disconnect the power supply, open the drain plug to drain all old oil, and then tighten it securely. For a new gearbox, oil can be added directly.
• Step 2: Open the oil filler plug, pour oil slowly, and observe the oil sight glass. When the oil level is in the middle of the glass, stop pouring.
• Step 3: Closely tighten the oil filler plug, check for leaks, and clean any oil adhered to the surface of the gearbox.

The WPDA worm gearbox is manufactured with a sturdy cast iron housing, working stably and suitable for various transmission equipment. The instructional gearbox video from Thanh Thai Motor will help you clearly understand how to use, install, and maintain the product. Don’t forget to follow additional tutorial videos to update your knowledge about gearboxes.

Warranty, Shipping, and Commitment Policy at Thanh Thai Motor

When purchasing gearboxes at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 months

Gearbox products at Thanh Thai Motor are covered by a genuine warranty for up to 24 months. Customers can be completely confident in using them with a clear, transparent, and prompt after-sales policy.

Nationwide Delivery

We support fast delivery to all provinces and cities nationwide. Wherever you are, products are guaranteed to arrive on time and safely.

Products meeting European quality standards with German technology

Gearboxes at Thanh Thai Motor are manufactured using advanced German technology, meeting European quality standards. Ensuring high durability and stable operation for extended periods.

Competitive prices, good discounts for dealers and bulk customers

Reasonable prices, many attractive offers for wholesale buyers and distribution agents. The more you buy, the higher the discount – optimizing profits for customers.

Full certification documents: CO, CQ,...

Each product comes with full Certificate of Origin (CO) and Certificate of Quality (CQ). This provides assurance for customers when using them in projects or constructions requiring technical documentation.
