WPS 80 Worm Gearbox

The WPS 80 worm gearbox is an optimal transmission choice with a right-angle input and output shaft design, suitable for various types of equipment in the industrial sector. The product is favored for its high durability, stable and smooth operation, and is currently a popular choice for many businesses in Vietnam. With the ability to meet requirements for precision, cost-effectiveness, and long-term durability, this gearbox helps enhance efficiency and productivity for manufacturing machinery systems.

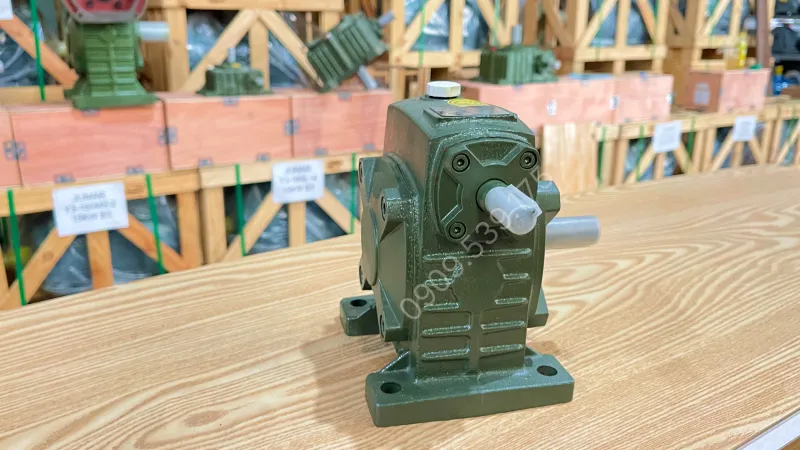

Overview design of the WPS 80 worm gearbox

The worm gearbox is robustly designed with a solid structure, and the housing is cast from high-load-bearing cast iron, which increases load capacity and protects internal components from external environmental impacts. With the input and output shafts arranged perpendicularly, the product can be easily installed in confined spaces.

Inside, the mechanical parts are made from quality wear-resistant materials, ensuring stable operating performance and extending the equipment’s lifespan. The surface of the gearbox is coated with anti-oxidation powder coating, helping protect the equipment from harmful factors such as moisture and corrosive chemicals. When combined with an electric motor, the gearbox forms a powerful gear motor system to optimize transmission efficiency.

Internal structure of the WPS 80 worm gearbox

Inside the WPS 80 worm gearbox, the transmission system is meticulously designed, including a stainless steel worm shaft combined with a copper alloy worm wheel, along with precisely meshed gears to generate strong torque and effective speed reduction.

• Worm shaft: Crafted from high-quality stainless steel, the worm shaft possesses superior mechanical durability and effective corrosion resistance, helping maintain stable and long-term operation.
• Worm wheel: Made of sturdy copper alloy, the worm wheel minimizes friction during operation, thereby enhancing transmission efficiency and extending equipment lifespan.
• Transmission mechanism: The precise meshing between the worm shaft and worm wheel creates strong torque, effectively reducing rotational speed to meet stringent technical requirements.
• Superior performance: Thanks to this special design, the WPS 80 gearbox operates smoothly, stably, and achieves high efficiency in various industrial applications.

Technical specifications of the WPS 80 gear motor

The table below provides the technical specifications of the WPS 80 gear motor, including size, input shaft diameter, output shaft diameter, and overall product dimensions.

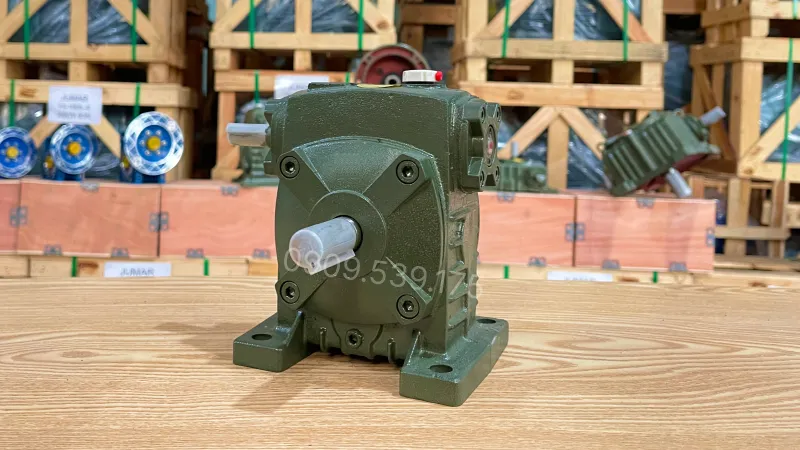

Applications of the WPS 80 worm gearbox

The WPS 80 worm gearbox is an efficient transmission device capable of reducing motor rotational speed and increasing torque, helping optimize working performance in industrial machinery systems.

• Industrial conveyors: The WPS 80 gearbox is widely used in conveyor systems, helping adjust speed and enhance material transport efficiency.
• Automated production lines: This product is an ideal choice for production lines requiring precision and continuous working capacity.
• Construction machinery: The WPS 80 gearbox is commonly used in excavators and equipment requiring powerful transmission.
• Agricultural machinery: In plows and harvesters, the gearbox helps transmit power accurately and efficiently, reducing speed and increasing pulling force when necessary.
• Mechanical equipment: The WPS 80 gearbox is also applied in industrial mechanical systems requiring low rotational speed and high torque, helping save energy and improve operational efficiency.

Guide to adding oil for the WPS worm gearbox

• Determine position: Find the breather plug (or oil filling plug) located on the top surface of the gearbox.
• Drain old oil (if replacing): Remove the drain plug at the bottom to drain all old oil, then tighten the drain plug securely.
• Add oil: Remove the top oil filling plug. Use a funnel to slowly pour gear oil (such as industrial series with viscosity ISO VG 320 or 460).
• Check oil level: Observe the oil sight glass (transparent circular glass on the housing). Stop when the oil level is right in the center of the glass.
• Completion: Install and tighten the oil filling plug. Ensure no dirt enters inside

The WPS 80 worm gearbox well meets the transmission needs in machinery systems requiring speed reduction and increased pulling force. To better understand the product, customers can watch more gearbox videos produced by Thanh Thai Motor. In addition, the comprehensive video library also contains much content on the structure, application, and operation of other transmission devices.
