K-Series Helical Bevel Gearbox 4.0kW 5.5Hp

The K-Series Helical Bevel Gearbox 4.0kW 5.5Hp is the optimal choice for industrial applications requiring high load capacity and durable operating performance. The product features a sturdy structure, helping to reduce speed effectively, provide stable power transmission, and comprehensively protect the motor. Designed to adapt to harsh working environments, this gearbox is ideal for systems such as conveyors, overhead cranes, and various other industrial machinery, contributing to enhanced production efficiency and extended equipment lifespan.

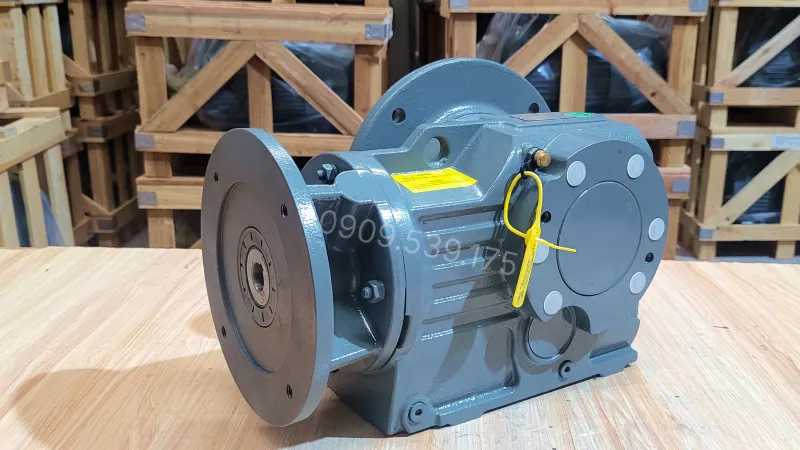

Overview design of the K-Series Helical Bevel Gearbox 4.0kW 5.5Hp

The K-Series Helical Bevel Gearbox features an exterior coated with anti-rust electrostatic paint, enhancing aesthetics and product durability. The motor housing is made of rigid cast iron, providing optimal protection for internal components, especially the motor shaft. With strong impact resistance and immunity to rust and environmental corrosion, this product is highly appreciated by customers for its practicality, superior durability, and ability to maintain stable performance over a long period.

Additionally, when combined with an electric motor, the gearbox forms a complete gear motor system, delivering powerful and stable power transmission. This combination brings high efficiency in industrial applications such as conveyors, lifting machinery, or heavy production lines, helping to optimize operations and save energy.

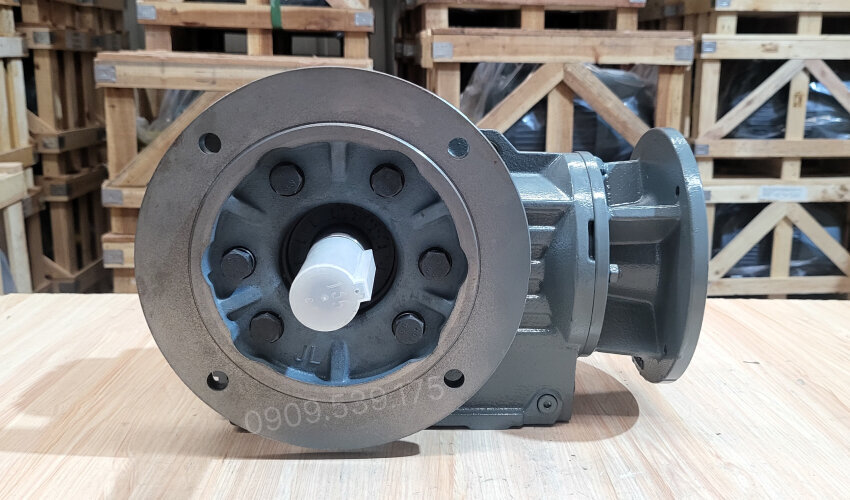

Detailed structure of the K-Series Helical Bevel Gearbox 4.0kW 5.5Hp

The K-Series Helical Bevel Gearbox consists of two main components: the motor shaft and helical gears:

• Motor shaft: The motor shaft of this gearbox is typically larger than those of light and medium-duty gearboxes. This enhances load-bearing capacity and durability for the equipment in heavy-duty industrial applications.
• Helical gear: Also known as bevel gears, helical gears increase the contact area between the gears. As a result, the load-bearing capacity of the K-Series Helical Bevel Gearbox is enhanced, ensuring stable operating performance.

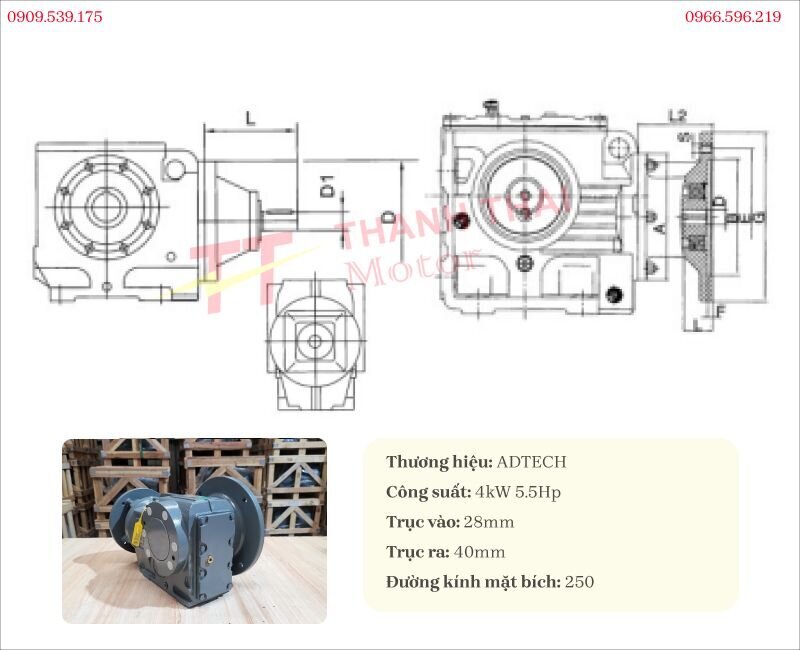

Specifications of the K-Series Helical Bevel Gearbox 4.0kW 5.5Hp

The specifications below help select and install the K-Series Helical Bevel Gearbox

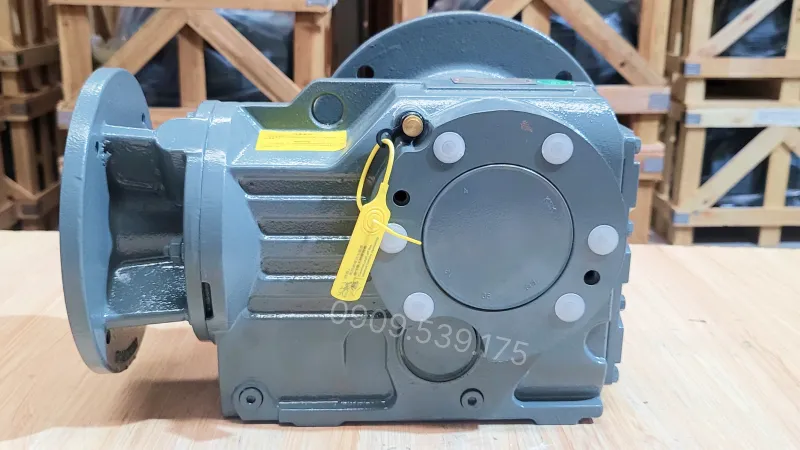

Applications of the K-Series Helical Bevel Gearbox 4.0kW 5.5Hp

• Used in conveyor systems, material handling, and machinery.
• Used in cranes and lifting equipment, especially in large parking lots such as airports, supermarkets, and apartment buildings, helping to lift and move heavy objects safely.
• Applied in heavy load transportation equipment such as concrete, steel, and other building materials in large construction projects, ensuring efficient and safe transport.
• Supported in automated production lines, helping to improve speed and accuracy during production.

What products can the K-Series Helical Bevel Gearbox 4.0kW 5.5Hp be combined with?

The heavy-duty gearbox is combined with a 3-phase electric motor to form a powerful heavy-duty gear motor, meeting the needs of high-load industrial applications. More specifically, when the K-Series Helical Bevel Gearbox 4.0kW 5.5Hp is combined with a 3-phase electric motor of the same 4.0kW 5.5Hp power, it creates a complete K-Series Helical Bevel Gear Motor 4kW 5.5Hp, suitable for industrial production lines and machinery requiring high performance and heavy load capacity.

Guide to adding oil for the K-Series Helical Bevel Gearbox 4.0kW 5.5Hp

To ensure that the K-Series Helical Bevel Gearbox 4.0kW 5.5Hp operates efficiently, follow the oil filling procedure below:

• Step 1: Disconnect the power supply and prepare the correct type of lubricating oil.
• Step 2: Remove the drain plug to remove old oil (if the gearbox has been operated), then reinstall the drain plug.
• Step 3: Open the oil filler cap and slowly add new oil into the gearbox.
• Step 4: Check the oil level sight glass, fill until the oil reaches the specified mark.
• Step 5: Tighten the oil filler cap, wipe the surface clean, and run a test to check lubrication performance.

Through the gearbox video from Thanh Thai Motor, you will know how to identify the oil filling, draining, and sight glass locations on the K-Series Helical Bevel Gearbox 4.0kW 5.5Hp, while also learning how to inspect and perform periodic maintenance for long-lasting gearbox operation. Watch more through the video collection at Thanh Thai Motor.

Warranty, Shipping, and Commitment Policy at Thanh Thai Motor

When purchasing gearboxes at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 months

Gearbox products at Thanh Thai Motor are covered by a genuine warranty for up to 24 months. Customers can be completely confident in using them with a clear, transparent, and prompt after-sales policy.

Nationwide Delivery

We support fast delivery to all provinces and cities nationwide. Wherever you are, products are guaranteed to arrive on time and safely.

Products meeting European quality standards with German technology

Gearboxes at Thanh Thai Motor are manufactured using advanced German technology, meeting European quality standards. Ensuring high durability and stable operation for extended periods.

Competitive prices, good discounts for dealers and bulk customers

Reasonable prices, many attractive offers for wholesale buyers and distribution agents. The more you buy, the higher the discount – optimizing profits for customers.

Full certification documents: CO, CQ,...

Each product comes with full Certificate of Origin (CO) and Certificate of Quality (CQ). This provides assurance for customers when using them in projects or constructions requiring technical documentation.
