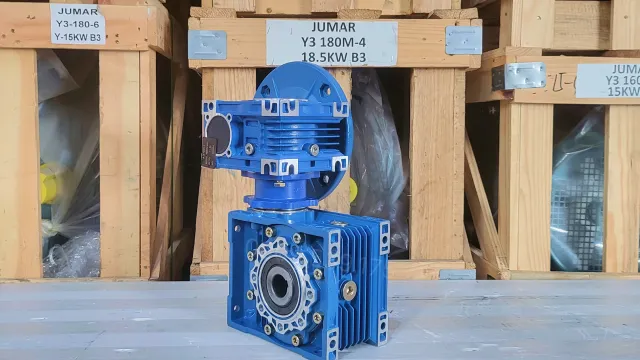

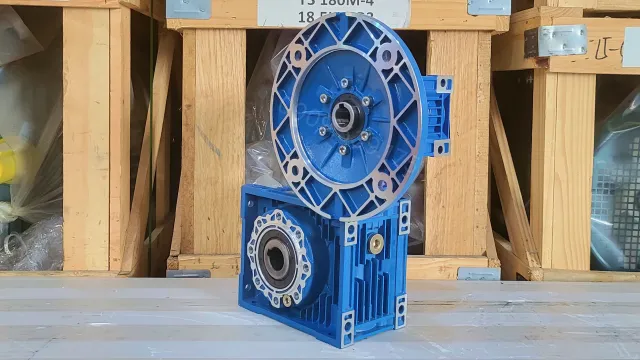

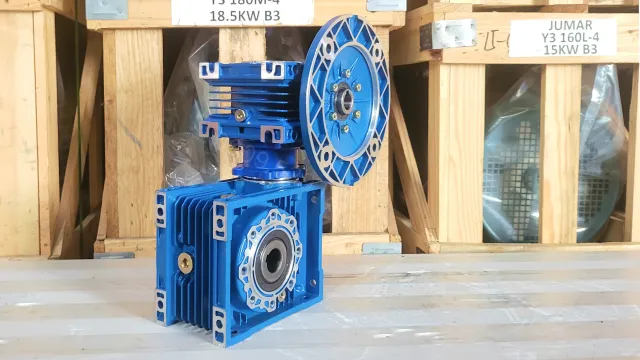

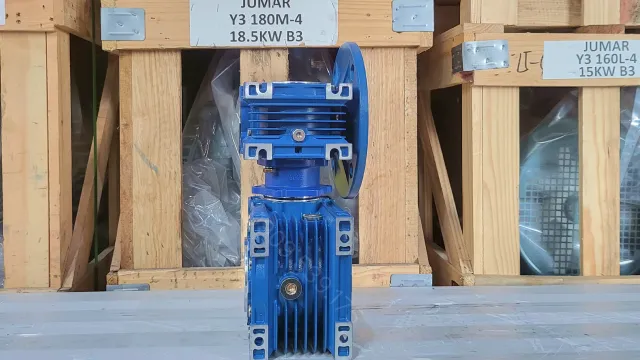

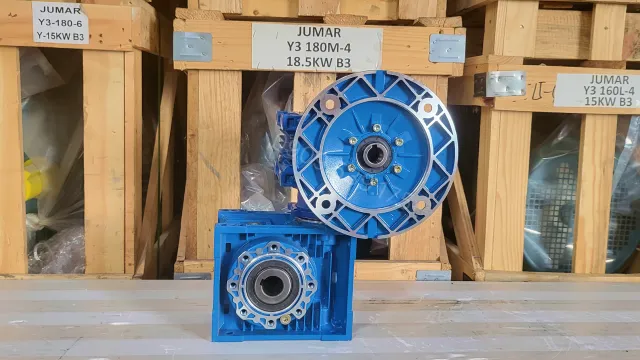

2-Stage NMRV Gearbox 50 – 90

The 2-Stage NMRV Gearbox 50 – 90 is a gearbox designed to achieve a high gear ratio and large torque. This 2-Stage Gearbox features a cast aluminum alloy (or cast iron depending on the type) housing with a compact structure to help save installation space.

The equipment operates smoothly with low noise, stable transmission capability, and good load-bearing capacity in industrial environments. Highly suitable for applications such as conveyors, packaging machines, and automation systems requiring low output speed but strong torque.

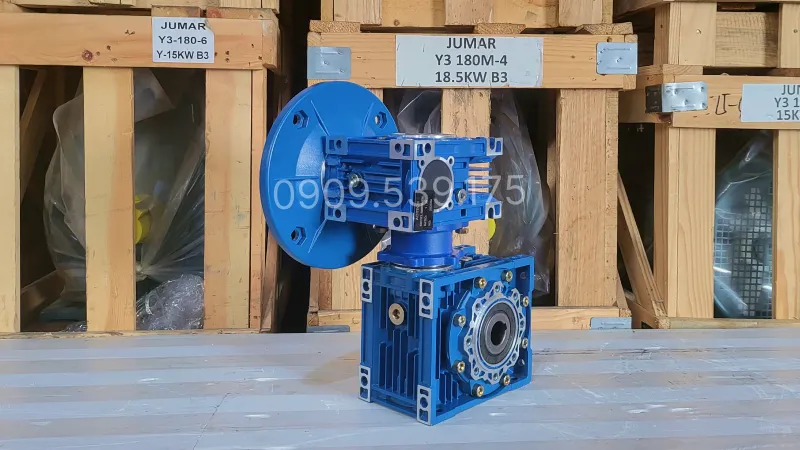

General design of the 2-Stage NMRV Gearbox 50 – 90

The 2-Stage NMRV Gearbox features a compact and easy-to-install design, suitable for various industrial spaces. With its solid cast aluminum alloy housing that is both lightweight and durable, it provides fast heat dissipation, corrosion resistance, and good impact resistance, ensuring continuous operation without performance reduction.

The internal worm and worm gear assembly is precisely machined to ensure smooth contact, reduced friction, and lower noise, helping the equipment operate smoothly and extending its lifespan.

Structure of the 2-Stage NMRV Gearbox 50 – 90

Each component in the gearbox is manufactured with high precision, contributing to enhanced transmission efficiency and durability of the equipment.

• Worm shaft: Hardened alloy steel, smooth surface, reduces friction and increases durability.
• Worm gear: Copper or brass alloy, smooth transmission, wear-resistant and high load capacity.
• Housing: Solid cast aluminum, lightweight, corrosion-resistant, good heat dissipation.
• Intermediate coupling: Connects the two reduction stages, ensuring stable torque and reducing vibration.
• Input shaft: Connects directly to the electric motor to form a gear motor, installed via a flange or flexible coupling.
• Output shaft: High-strength steel, solid or hollow type, easily connected to conveyors, mixers, screw conveyors, or lifting mechanisms.

Technical specifications of the 2-Stage NMRV Gearbox 50 – 90

The technical specifications below serve as the basis for selecting a gearbox suitable for motors and transmission equipment.

Technical specifications of the NMRV 50 gearbox

NMRV 50 is the first transmission stage, receiving power from the motor and performing initial deceleration.

Technical specifications

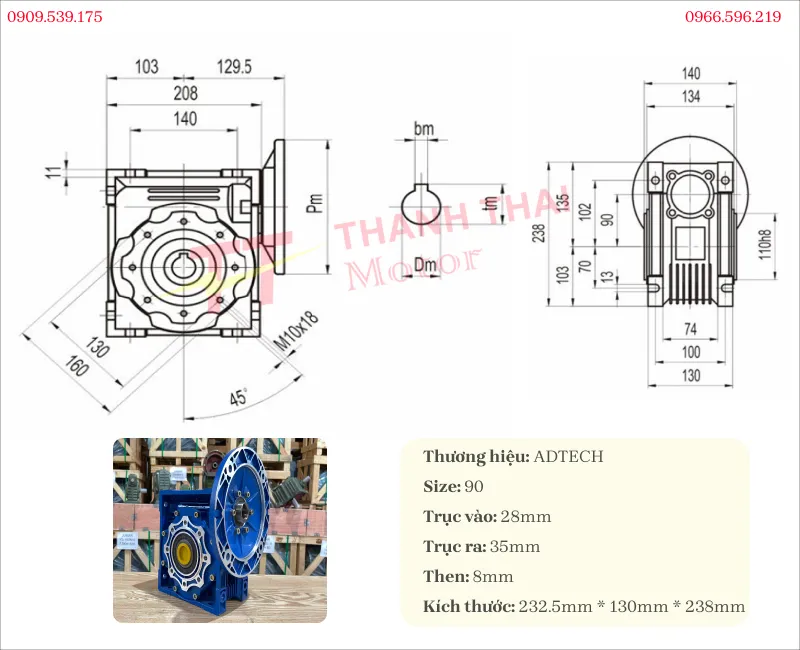

Technical specifications of the NMRV 90 gearbox

NMRV 90 is the second transmission stage, continuing deceleration and transmitting torque to the output shaft.

Technical specifications

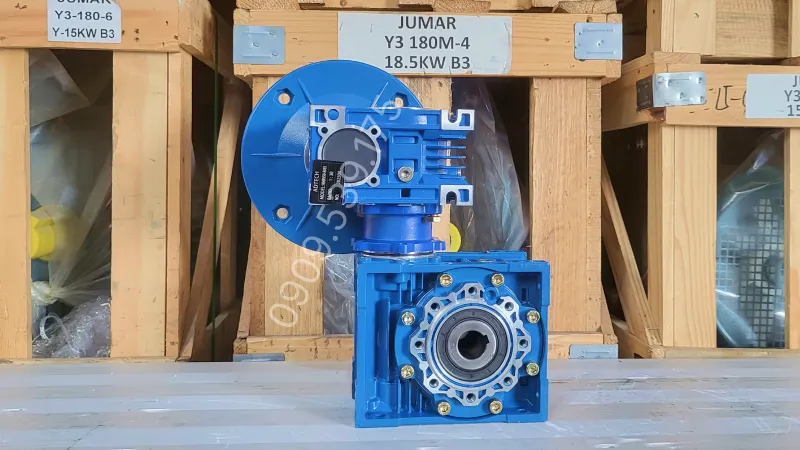

Practical applications of the 2-Stage NMRV Gearbox 50 – 90

The 2-Stage NMRV Gearbox 50 – 90 is widely used in various industries:

• Conveyors, conveyor belts, packaging lines, and goods transportation.
• Agitators, mixers, crushers in the food, chemical, and building materials industries.
• Fabric rolling machines, textile machines, CNC machines, and mechanical manufacturing equipment.
• Lifting equipment, screw conveyors, presses, and transmission mechanisms requiring strong pulling force and slow rotation speed.

Installation guide for the 2-Stage NMRV gearbox

To install the 2-Stage NMRV gearbox correctly according to technical standards, follow these steps:

Step 1: Pre-installation inspection

Check the model, gear ratio, mounting type, flange, input shaft, and bolt holes of the gearbox. Compare with the motor specifications to ensure compatibility for assembly.

Step 2: Connecting the gearbox to the motor

Insert the motor shaft into the shaft hole of the gearbox, align the flange so that the two contact surfaces meet evenly. Then tighten the bolts in sequence to secure the assembly.

Step 3: Checking connection points

Check the tightness of the bolts, the concentricity between the motor shaft and the input shaft of the gearbox, and ensure that the mating surfaces are not misaligned or open.

Step 4: Test running the equipment

Operate the motor in no-load mode for a short time, monitor vibration and noise, and check connection points to ensure the system operates normally.

Besides this article, you can refer to the summary video on the Thanh Thai Motor channel to follow practical installation instructions. At the same time, the gearbox video will provide additional content on the structure, assembly process, and inspection of various gearboxes before putting them into use.

Warranty, Shipping, and Commitment Policy at Thanh Thai Motor

When purchasing gearboxes at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 months

Gearbox products at Thanh Thai Motor are covered by a genuine warranty for up to 24 months. Customers can be completely confident in using them with a clear, transparent, and prompt after-sales policy.

Nationwide Delivery

We support fast delivery to all provinces and cities nationwide. Wherever you are, products are guaranteed to arrive on time and safely.

Products meeting European quality standards with German technology

Gearboxes at Thanh Thai Motor are manufactured using advanced German technology, meeting European quality standards. Ensuring high durability and stable operation for extended periods.

Competitive prices, good discounts for dealers and bulk customers

Reasonable prices, many attractive offers for wholesale buyers and distribution agents. The more you buy, the higher the discount – optimizing profits for customers.

Full certification documents: CO, CQ,...

Each product comes with full Certificate of Origin (CO) and Certificate of Quality (CQ). This provides assurance for customers when using them in projects or constructions requiring technical documentation.

Contact for Purchase

Do you need advice on choosing the right gearbox for your needs? Contact Thanh Thai Motor immediately using the methods below:

• WhatsApp: +84966596219
• Email: codienthanhthai@gmail.com
