WPX 135 Gear Motor 4kW 5.5Hp

The WPX 135 Gear Motor 4kW 5.5Hp is a gear motor combined from an electric motor-specifically a 3-phase electric motor-and a gearbox, namely a worm gearbox. This worm gear motor helps reduce the rotational speed of the motor while increasing pulling force and enhancing operational productivity.

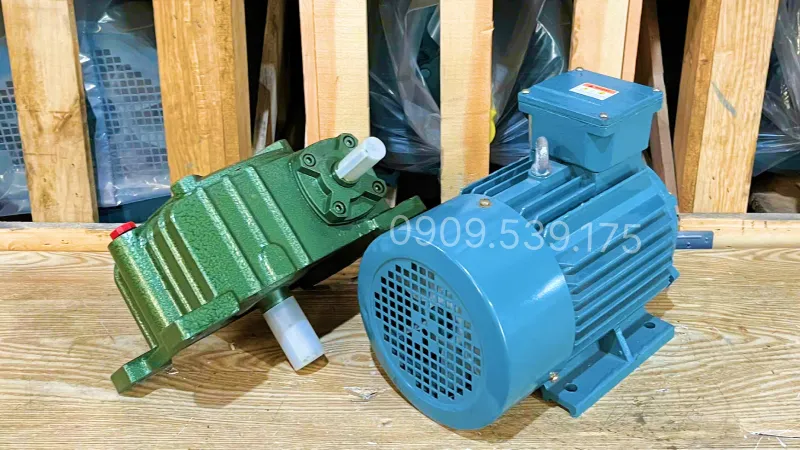

General design of the WPX 135 Gear Motor 4kW 5.5Hp

The exterior structure of the WPX 135 Gear Motor 4kW 5.5Hp is made of cast iron or aluminum housing, coated with electrostatic paint to increase aesthetics and prevent scratches during operation.

The rotating shaft of the device is machined from refined steel at high temperatures, with a smooth polished surface, high heat resistance, and heavy load capacity, delivering stable and smooth power transmission.

Detailed structure of the gear motor

The 3-phase electric motor consists of basic components such as:

• Electric motor: An important component that generates energy for the device to operate, consisting of:
  • Stator – Stationary part: Wound from 100% pure copper wires; when current passes through the wires, it creates a stable rotating magnetic field.
  • Rotor – Rotating part: A steel block assembled from thin laminated steel sheets, rotating thanks to the rotating magnetic field and directly transmitting drive to the motor shaft.

• WPX 135 Worm Gearbox:
  • Worm shaft: Made from refined steel at high temperatures, capable of withstanding heavy loads and high temperatures.
  • Worm wheel: The internal worm wheel system is designed to mesh smoothly, minimizing noise during operation.

Specifications of the WPX 135 Gear Motor 4kW 5.5Hp

Evaluating the suitability of the WPX 135 5.5Hp gear motor for production lines requires high mechanical precision. Please refer to the standard technical measurement data table provided by the manufacturer below.

Specifications of the 3-phase electric motor 4kW 5.5Hp

The selection of switching devices and power supplies depends entirely on the specifications of the 3-phase electric motor 4kW 5.5Hp integrated into the gear motor unit.

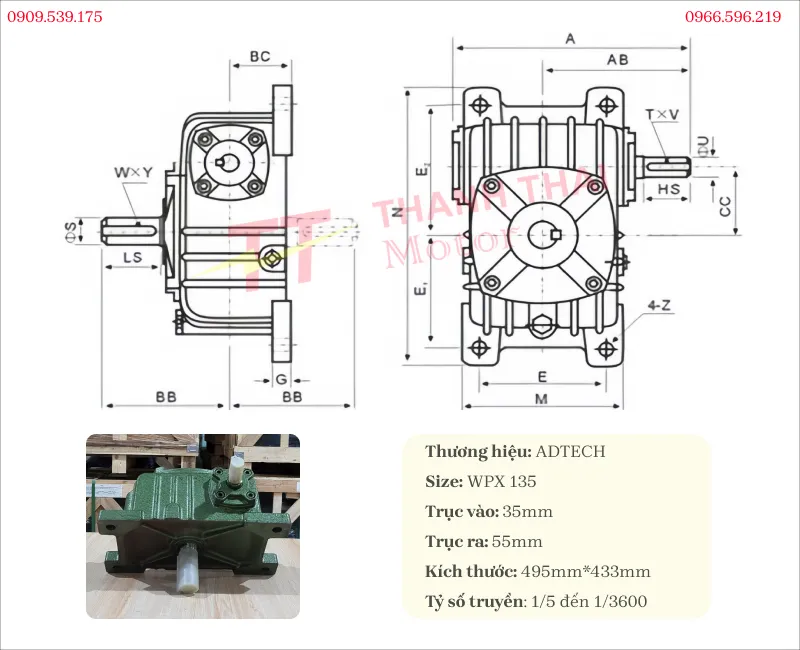

Specifications of the WPX 135 gearbox

The load-bearing capacity and torque amplification are clearly demonstrated through the specifications of the WPX 135 gearbox that constitutes the 5.5Hp gear motor system.

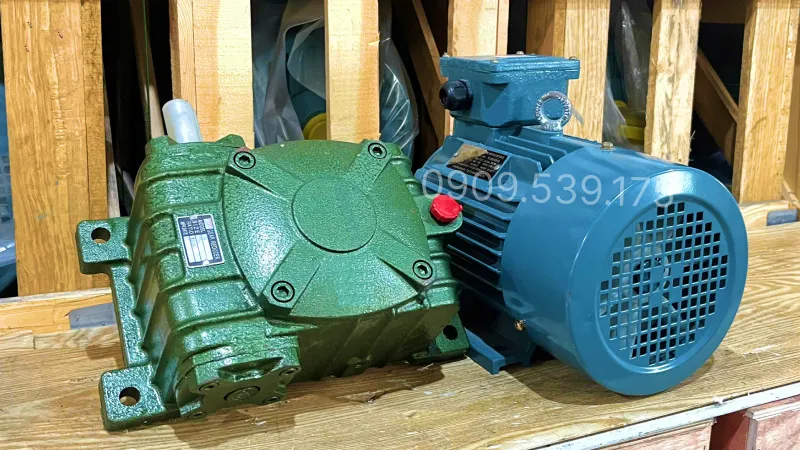

Common applications of the WPX gear motor

As a reducer belonging to the gear motor segment above 3.7kW, it is widely used in applications such:

• Transporting goods and products using lifting equipment and overhead cranes.
• Various types of presses, crushers, and material mixers in the food industry.
• Traction and cargo hoisting equipment.
• Adjustment in water pump and air blower systems.

Featuring a synchronized structure consisting of a size 135 hollow shaft gearbox and a 5.5Hp electric motor, the WPX 135 Gear Motor 4kW 5.5Hp excellently meets heavy-duty requirements, helping fine-tune rotational speeds and increase torque for conveyor systems, mixers, and hoists. CNC-machined precision mechanical components help reduce friction, minimize noise, and save operating power.

Customers can learn more about the installation diagrams through comprehensive videos with technical instructions or refer to the series of in-depth gear motor videos on the website of Thanh Thai Motor.

Warranty, Shipping, and Commitment Policies at Thanh Thai Motor

When purchasing gearmotors at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 Months

All gearmotor products at Thanh Thai Motor come with an official 24-month warranty. We are committed to clear after-sales service, with quick and transparent processing procedures – ensuring customer peace of mind during use.

Nationwide Delivery

No matter which province or city you are in, Thanh Thai Motor is always ready to support fast delivery, ensuring on-time delivery, careful packaging, and safe transportation. We supply a full range of 220V gearmotors, variable speed motors, etc., for the diverse needs of customers nationwide.

Products Meet European Quality Standards with German Technology

Our products are manufactured using modern German technology, meeting European standards. Models such as integrated gearmotors, variable speed motors, or 220V gearmotors all ensure stable operation and superior durability.

Competitive Pricing, Good Discounts for Dealers and Bulk Purchasers

We offer affordable gearmotors, suitable for projects with limited budgets. In addition, Thanh Thai Motor has special policies and offers for dealers and bulk purchasers.

Quality Commitment

All 220V gearmotors here are wound with pure copper wire. This ensures powerful, smooth operation and energy savings.

Full Certification Documents: CO, CQ,...

All products such as integrated gearmotors, conveyor motors, or speed reducers come with full Certificates of Origin (CO) and Quality (CQ), meeting stringent technical requirements in industry.
