WPO 135 Gear Motor 4kW 5.5Hp

The WPO 135 Gear Motor 4kW 5.5Hp is a gear motor line formed by combining an electric motor – a 3-phase electric motor and a gearbox – a worm gearbox, creating a sturdy, powerful, and stable drive system.

Manufactured on advanced technological lines, the worm gear motor helps optimize working performance, reduce vibration, and extend machinery lifespan. This equipment is suitable for conveyor systems, mixers, crushers, presses, packaging machines, and various equipment in mechanical engineering, food processing, building materials, and automation industries.

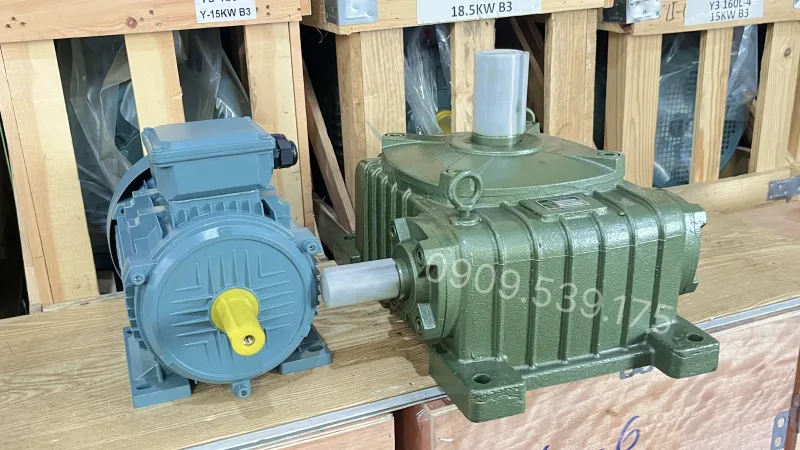

Overview design of the WPO 135 Gear Motor 4kW 5.5Hp

The WPO 135 Gear Motor 4kW 5.5Hp features an outer casing cast from high-rigidity solid cast iron, helping the device withstand heavy loads and minimize vibration during operation. The entire surface is coated with anti-rust electrostatic paint, ensuring the motor operates durably even in humid or dusty environments.

The WPO 135 worm gearbox features a worm wheel precision-machined with high meshing accuracy, ensuring smooth transmission, low noise, and reduced wear. Inside the housing, special lubricating oil helps reduce friction and increase operating efficiency.

Detailed structure of the gear motor

This WPO 135 Gear Motor 4kW 5.5Hp belongs to the gear motor line above 3.7kW, consisting of the following main components:

• Electric motor: Being a 3-phase electric motor 4.0kW 5.5Hp:
  • Stator: The stationary part of the motor, responsible for creating a magnetic field to help the motor operate efficiently. Pure copper windings help save electricity, operate stably, and last longer.
  • Rotor: The rotating part made of high-engineering steel, transmitting powerful torque to the output shaft.
  • Cooling fan: Equipped at the rear of the motor to help cool down quickly, ensuring the motor does not overheat during operation.

• WPO 135 worm gearbox:
  • Worm shaft: Made of alloy steel, hardened, with good wear resistance.
  • Worm wheel: Made of bronze alloy, meshes smoothly, reducing operating noise.
  • Lubricating oil system and oil seals: Help reduce friction, prevent oil leakage, and extend the lifespan of the entire gearbox.

Technical specifications of the WPO 135 4kW 5.5Hp gear motor

The WPO 135 gear motor assembly with 5.5Hp (4kW) power is an optimal technological solution widely applied in mechanical manufacturing and industrial production. Understanding the structure and assembly specifications of this drive system will help businesses operate equipment safely and avoid mechanical shaft wear incidents.

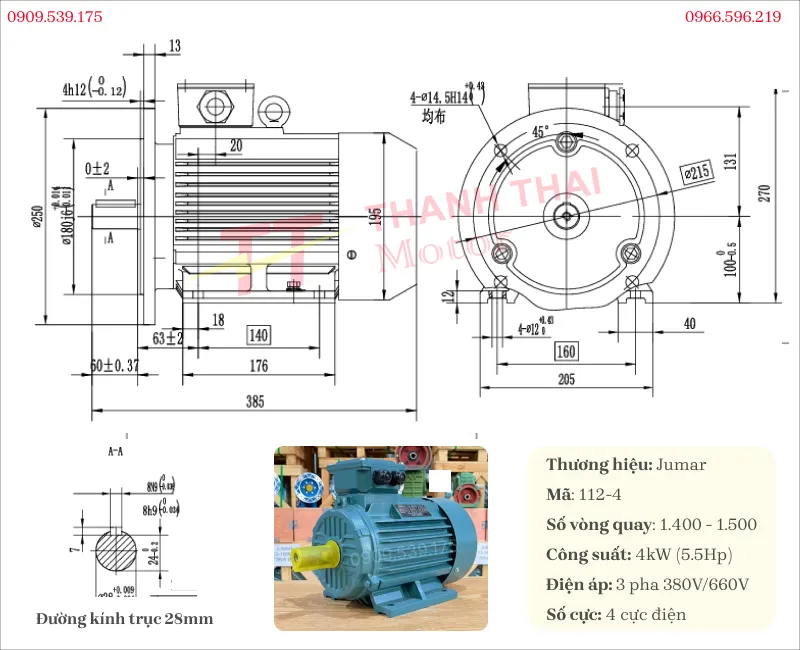

Technical specifications of the 3-phase electric motor 4kW 5.5Hp

The 3-phase electric motor with 4kW (5.5Hp) power features a pure copper winding structure and Class F insulation, ensuring high power generation efficiency and excellent heat dissipation. Customers can refer to detailed voltage indices through the content and technical drawing below.

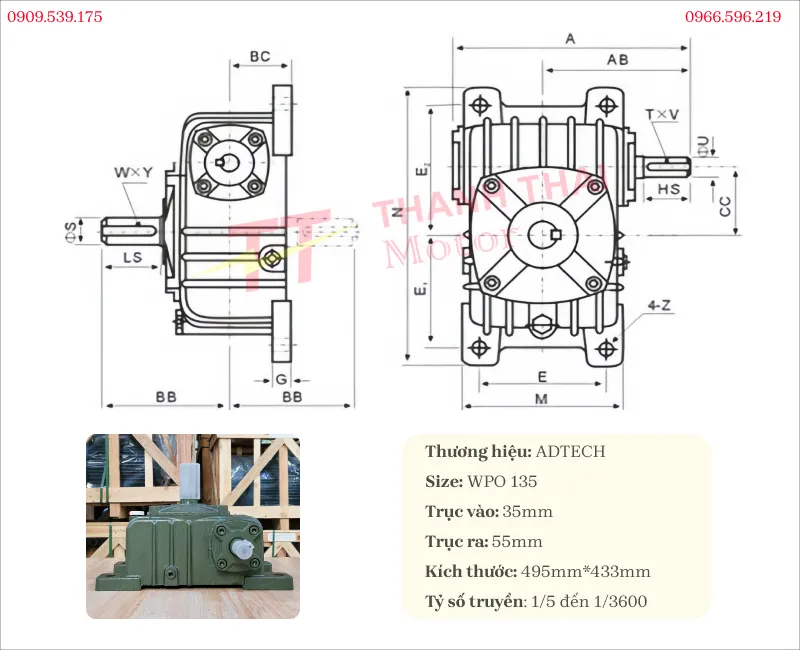

Technical specifications of the WPO 135 gearbox

The WPO size 135 gearbox is a top-output shaft speed reducer mechanism responsible for adjusting rotational speed and optimizing pulling force at the output shaft.

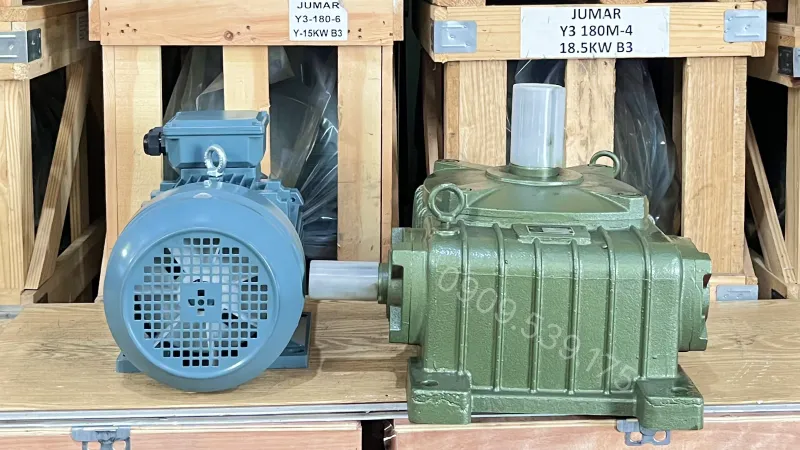

Practical applications of the WPO 135 4kW 5.5Hp gear motor

This 3-phase gear motor is commonly applied in various fields:

• Conveyor lines, goods conveyors, and lifting machines in factories.
• Mixers, agitators, and crushers in material and food production.
• Presses, rolling machines, and drawing machines in the mechanical manufacturing industry.
• Packaging machines, automatic rotary tables, and industrial robot systems in automation lines.

The WPO 135 Gear Motor 4kW 5.5Hp is a suitable choice for drive systems requiring stable, durable operation and high performance. This article has summarized important information regarding the structure, technical specifications, and practical applications of the product, helping users easily choose equipment that meets their usage requirements.

To learn more through visual images, please refer to the gear motor video to observe the actual operation process and explore the summary video to update with more product lines and commonly used drive solutions.
