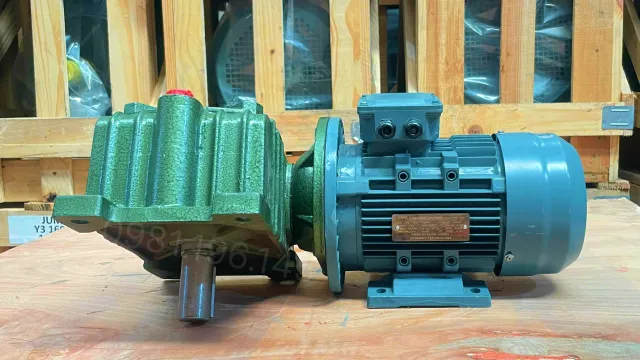

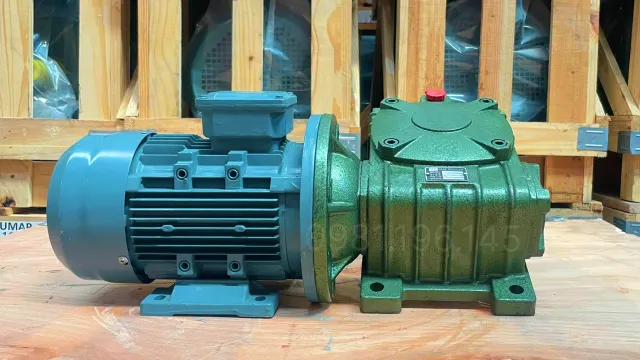

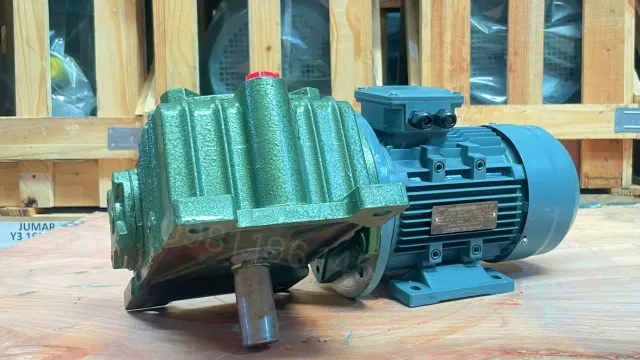

WPDX 120 Gear Motor 4kW 5.5Hp

WPDX 120 Gear Motor 4kW 5.5Hp is formed by combining an electric motor and a gearbox, and these two devices are assembled together via a sturdy flange. This structure helps the gear motor transmit smoothly, limiting vibration and noise during operation.

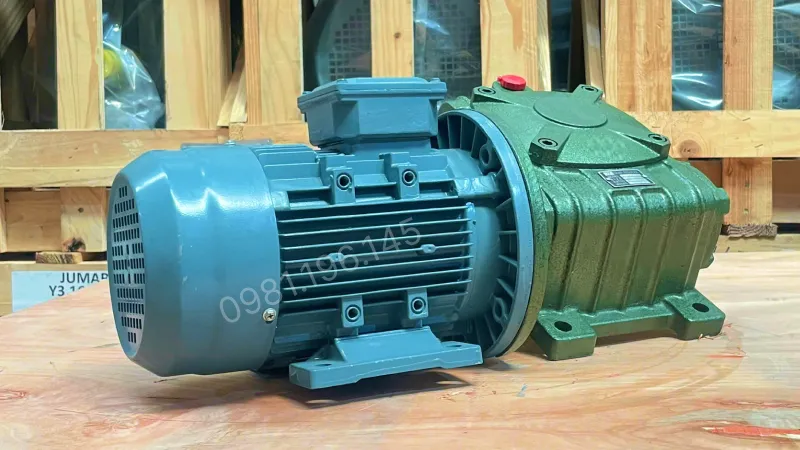

General design of the WPDX 120 Gear Motor 4kW 5.5Hp

The worm gear motor is manufactured from high-grade materials, ensuring durability, load capacity, and stable long-term operation. The gearbox used is a worm gearbox installed with a 3-phase electric motor.

The outer casing of the device is made of sturdy aluminum alloy or cast iron, coated with electrostatic paint to prevent rust and increase service life. Internal components are manufactured using advanced technology, ensuring high transmission accuracy.

Detailed structure of the gear motor

Belonging to the gear motor line above 3.7kW, the device consists of two main parts:

• Electric motor: This is the power supply part for the entire system. A 3-phase electric motor 4.0kW 5.5Hp can be used depending on technical requirements.
  • Motor housing: The outer protective layer, made of high-load-bearing material with high-grade electrostatic paint, helps prevent oxidation and minimizes environmental impacts.
  • Stator (Stationary part): Wound with pure copper wire, helping the device operate stably, dissipate heat quickly, and save energy.
  • Rotor (Rotating part): The main moving part, made of high-tech steel, ensuring stable and durable transmission.

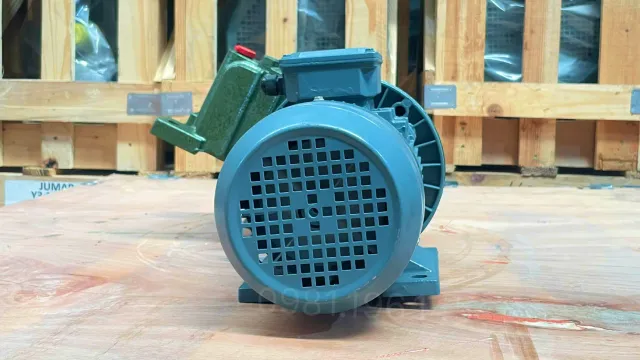

  • Cooling fan: Helps the motor maintain a stable temperature, avoiding overload during continuous operation.

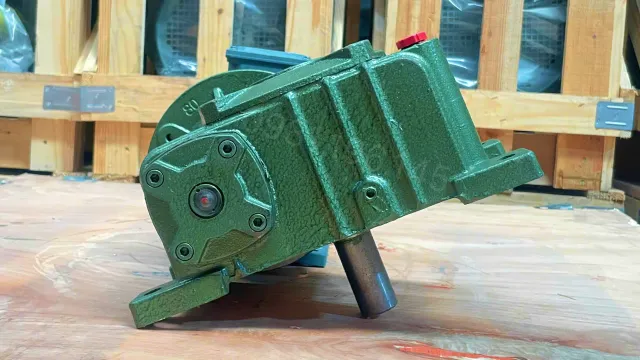

• WPDX 120 worm gearbox:
  • Worm shaft: An important component made of hardened steel, capable of high load capacity and smooth operation.
  • Worm gear: Made of high-quality copper alloy, transmitting motion smoothly and reducing friction effectively.
  • Lubricating oil and oil seal: Help internal gearbox parts operate smoothly, avoid wear, and the seal prevents oil leakage.

Specifications of the WPDX 120 4kW 5.5Hp motor

Looking up the detailed parameter table of the WPDX 120 gear motor series with 4kW capacity helps users optimize the transmission performance of the production line.

Specifications of the 3-phase electric motor 4kW 5.5Hp

With a sturdy housing structure of 400mm x 240mm x 300mm, this 5.5Hp electric motor line ensures superior anti-vibration capability when running under heavy loads. The IP55 dust and water resistance protection class along with the durable Class F insulation layer below help protect the winding safely and optimize the operating process at the factory.

Specifications of the WPDX 120 gearbox

Below are the detailed parameters of the WPDX size 120 gearbox

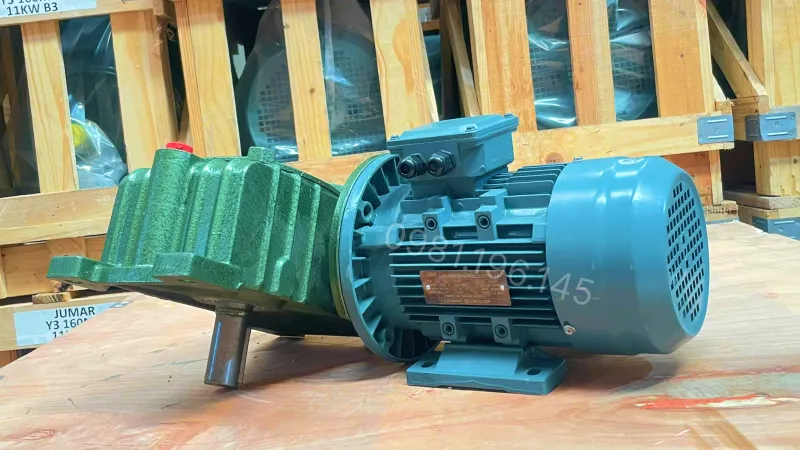

Practical applications of the WPDX 120 Gear Motor 4kW 5.5Hp

This 3 phase gear motor line is commonly used in many industrial fields such as:

• Conveyor systems and belts for transporting goods in factories and export processing zones.
• Mixers, crushers, and agitators in the food, chemical, and building materials industries.
• Production, filling, and packaging lines in the processing industry.
• Lifting equipment, industrial rolling doors, cargo winches, mechanical or agricultural machines requiring high torque.

How to install the WPDX gearbox with an electric motor simply and easily

The connection operation process is carried out extremely quickly and technically standard in just 3 steps:

• Step 1 – Ensure that the shaft diameter of the electric motor and the input shaft hole of the WPDX gearbox are completely equal.
• Step 2 – Assembly: Slowly insert the flange and shaft of the electric motor to fit into the hole of the gearbox.
• Step 3 – Securing: Use bolts and screws to tighten through the holes on the flange to ensure the machine assembly is firmly linked.

The WPDX 120 Gear Motor 4kW 5.5Hp strongly supports the continuous load-pulling cycle of export processing zone conveyors, building material crushers, or heavy-duty cargo winches. Thanh Thai Motor is proud to distribute genuine product lines with optimal power generation efficiency and long component lifespan.

To help engineers truly evaluate the mechanical drawings and durable cast iron housing structure, we warmly invite you to watch the video summarizing industrial machine lines or visit the in-depth gear motor video series on the website.
