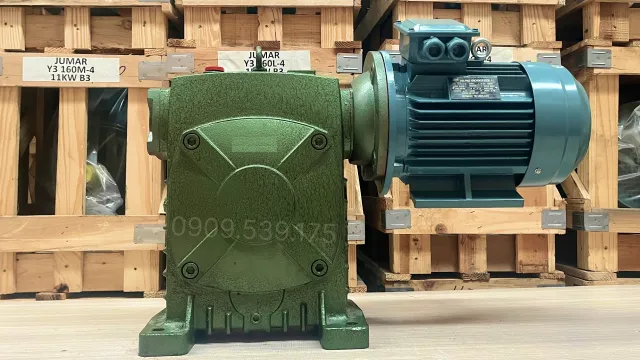

WPDS 135 Gear Motor 3kW 4Hp

The WPDS 135 Gear Motor 3kW 4Hp is designed to operate stably under harsh working conditions, heavy loads, and high intensity, making it suitable for industries requiring precision and long-term durability.

It is a gear motor line installed between the electric motor and the gearbox.

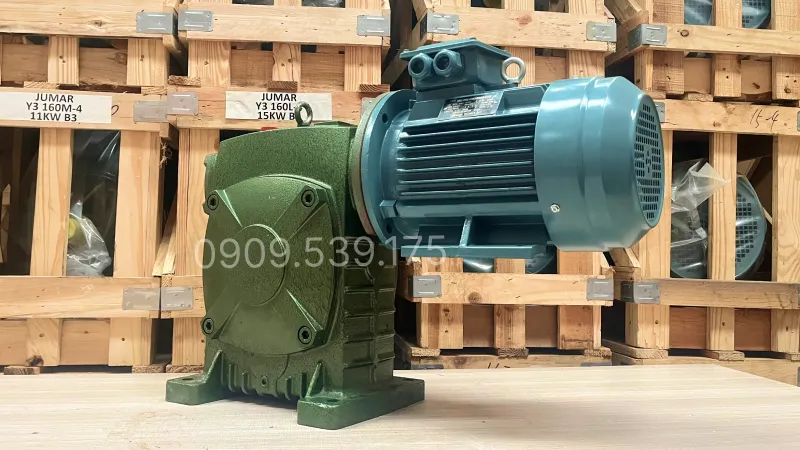

Design overview of WPDS 135 Gear Motor 3kW 4Hp

The worm gear motor features powerful operation and a sturdy structure, suitable for systems requiring high torque and diverse transmission ratios.

The housing is made of solid cast iron or high-grade aluminum alloy, providing vibration resistance, good load-bearing capacity, and an anti-corrosion electrostatic paint coating to protect the equipment in high-humidity environments.

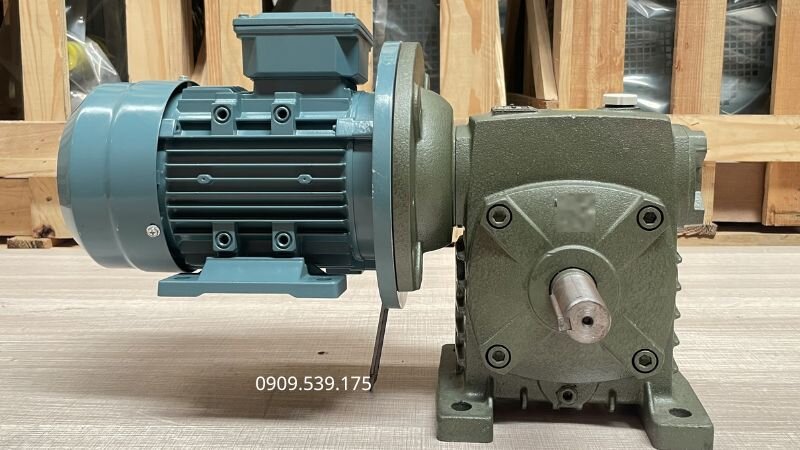

Structure of WPDS 135 gear motor 3kW 4Hp

It is a 1-phase gear motor or 3-phase gear motor configured by assembling a 1-phase electric motor or 3-phase electric motor with a WPDS worm gearbox.

More specifically, it is a line of gear motors ranging from 1.1kW to 3.7kW.

• 3.0kW 4Hp 1-phase electric motor or 3kW 4Hp 3-phase electric motor:
  • Stator uses 100% pure copper, helping to optimize electrical conductivity efficiency and enhance durability.
  • Rotor is made of steel, ensuring uniform, stable rotation and the ability to withstand high temperatures in harsh working environments.
  • Cooling fan mounted at the rear of the motor, ensuring efficient heat dissipation, helping the motor operate continuously without overheating.
• WPDS 135 gearbox:
  • Worm shaft: Made of steel, helping the equipment operate more smoothly and quietly during operation.
  • Gear: The internal part of the gearbox made of sturdy steel sheets, thereby creating various transmission ratios.

Specifications of WPDS 135 gear motor 3kW 4Hp

Below is the specification table and drawing of the WPDS 135 gear motor 3kW 4Hp

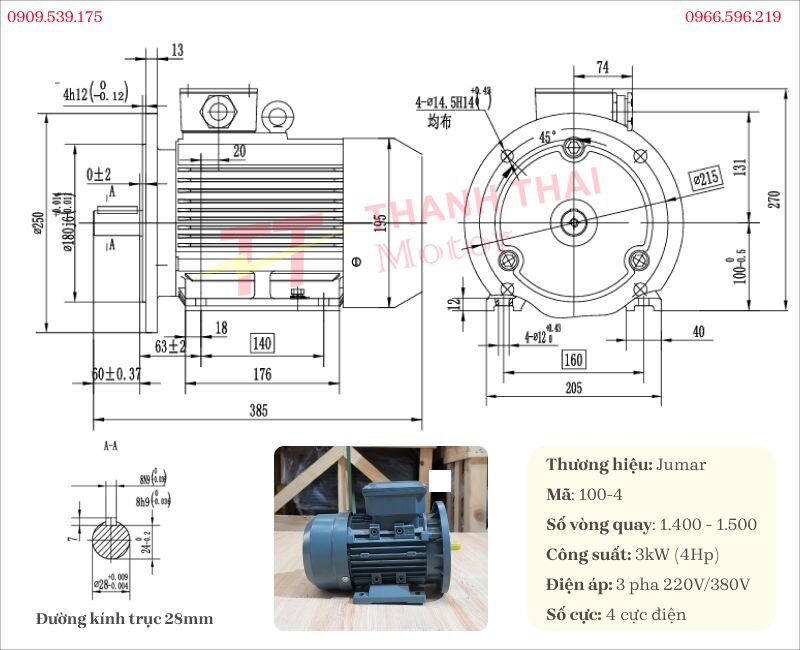

Specifications of 3-phase 3kW 4Hp electric motor

The 3-phase 3kW 4Hp electric motor specifications and drawing are as follows

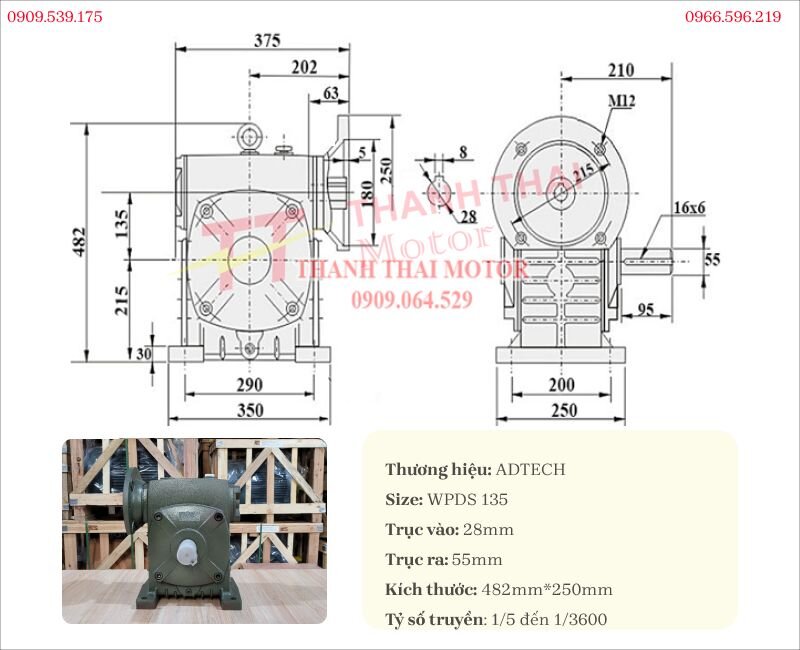

Specifications of WPDS 135 gearbox

Specification table and drawing of WPDS 135 gearbox

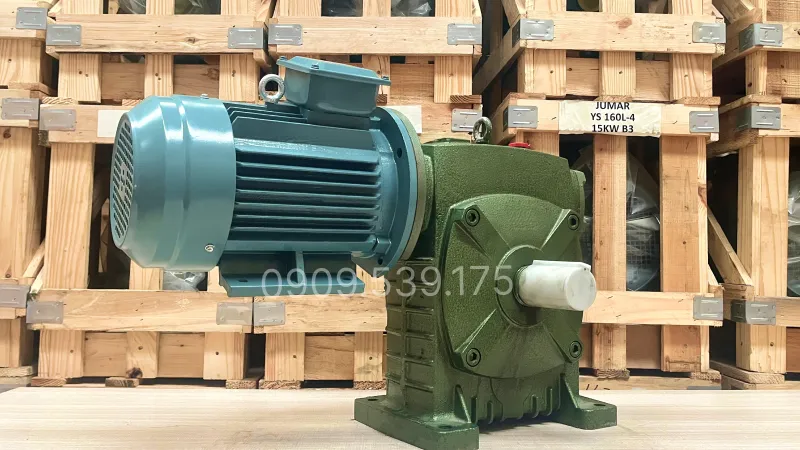

Common applications of WPDS 135 Gear Motor 3kW 4Hp

With stable transmission capacity and powerful performance, the WPDS 135 Gear Motor 3kW 4Hp is suitable for various industrial systems, including:

• Medium and large-capacity presses, crushers, and mixers in building materials, food processing, plastics, and chemical industries.
• Heavy-duty conveyors, continuous drives in mineral mining, cement production, and metallurgy lines.
• Automation, sorting, and industrial packaging systems requiring high precision, stable speed, and uninterrupted operation.

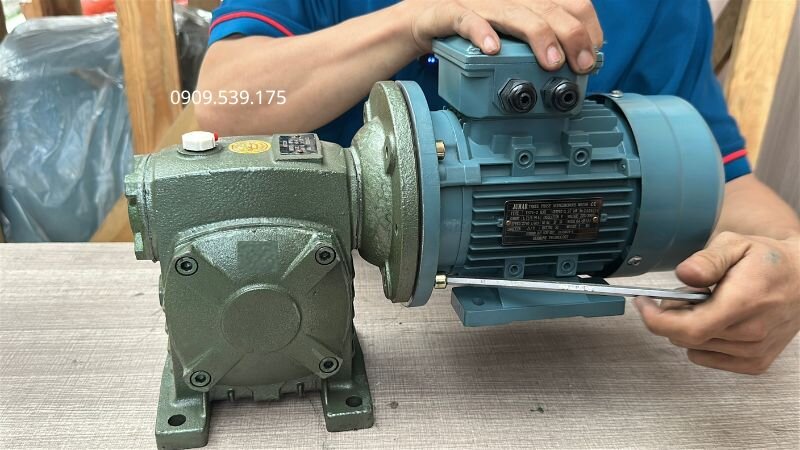

Installation guide for electric motor with WPDS gearbox

For the WPDS gear motor unit to operate stably and durably during use, assembly must be performed correctly from the beginning, especially in alignment and connection between components.

• Step 1: Place the electric motor and WPDS gearbox in the correct installation position. Carefully check details such as mating surfaces, drive shaft, keyway, and bolt tightening points to ensure no deviation or damage before installation.
• Step 2: Proceed to couple the motor shaft with the gearbox input, paying attention to concentric alignment. After components fit together, tighten the fixing bolts and recheck the shaft rotation to ensure smooth system operation.

The gear motor installation guide video of Thanh Thai Motor helps viewers easily observe practical implementation steps. The content is presented simply, focusing on core operations such as alignment and assembly, suitable for technicians and those learning about the equipment. Viewers can refer to other compilation videos to better understand how to use and install gear motors in practice.
