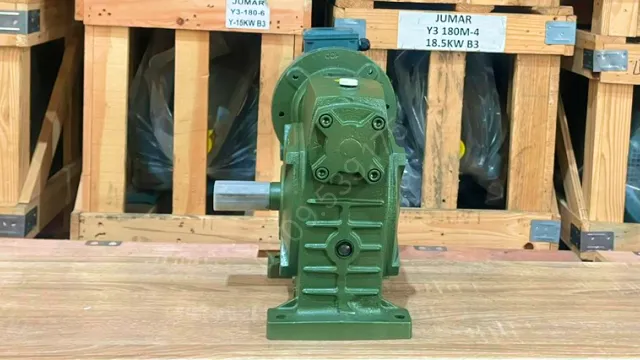

WPDS 120 Gear Motor 2.2kW 3Hp

The WPDS 120 Gear Motor 2.2kW 3Hp is a device specifically designed for machinery systems requiring heavy loads, stable operation, and durability in high-intensity industrial environments. Products distributed by Thanh Thai Motor ensure technical standards.

The gear motor is synchronously assembled between the electric motor and the gearbox.

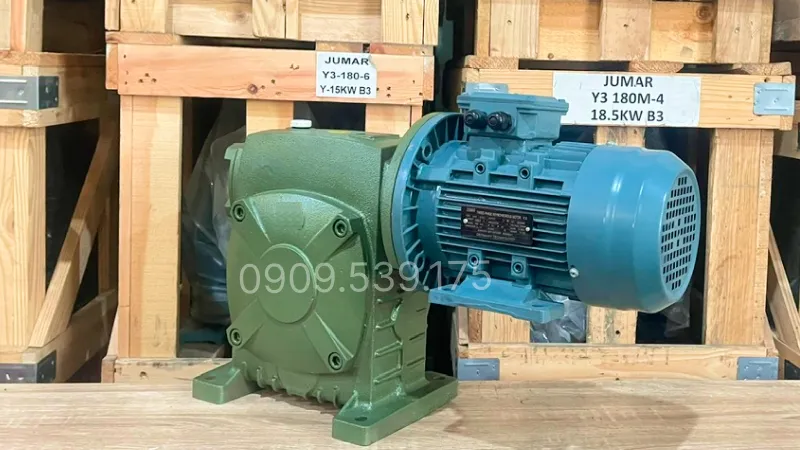

Design overview of the WPDS 120 Gear Motor 2.2kW 3Hp

Worm gear motor is a line of gear motors ranging from 1.1kW to 3.7kW.

With an outer housing made of gray cast iron or die-cast aluminum alloy, precision-machined, and coated with electrostatic paint to increase wear resistance, rust prevention, and protection from the impacts of the working environment.

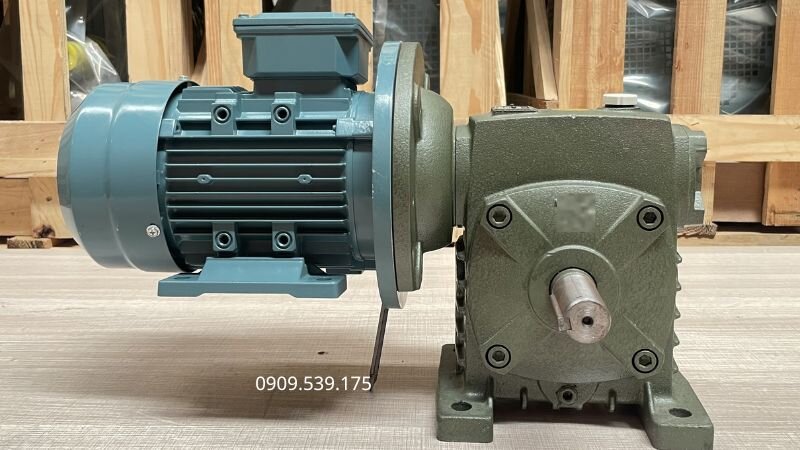

Structure of the WPDS 120 Gear Motor 2.2kW 3Hp

Simply put, the WPDS 120 Gear Motor 2.2kW 3Hp is a 1 phase gear motor or 3 phase gear motor built by combining a 1-Phase Electric Motor or 3-Phase Electric Motor with a worm gearbox

• WPDS 120 Gearbox:
  • The worm gear is machined from high-strength alloy steel with high accuracy, helping to stabilize transmission and maintain a long service life.
• 1-phase electric motor 2.2kW 3Hp or 3-phase electric motor 2.2kW 3Hp:

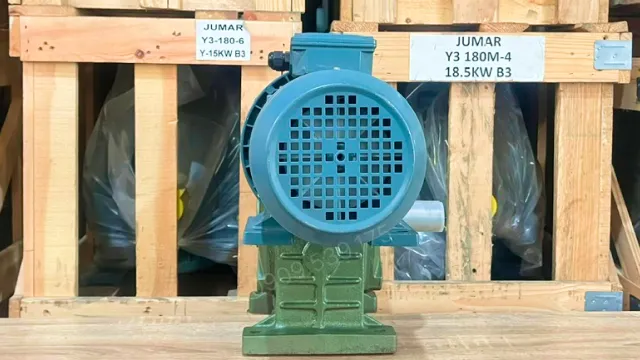

  • The cooling fan is integrated at the rear of the motor, ensuring continuous heat dissipation performance for the motor during prolonged operation.
  • The stator uses pure copper wire, ensuring good electrical conductivity, increasing operating efficiency, and saving energy.
  • The rotor is made of specialized technical steel sheets, rolling-processed to optimize rotational movement and increase heat resistance.

Specifications of the WPDS 120 Gear Motor 2.2kW 3Hp

Below is the specification table and drawing of the WPDS 120 Gear Motor 2.2kW 3Hp

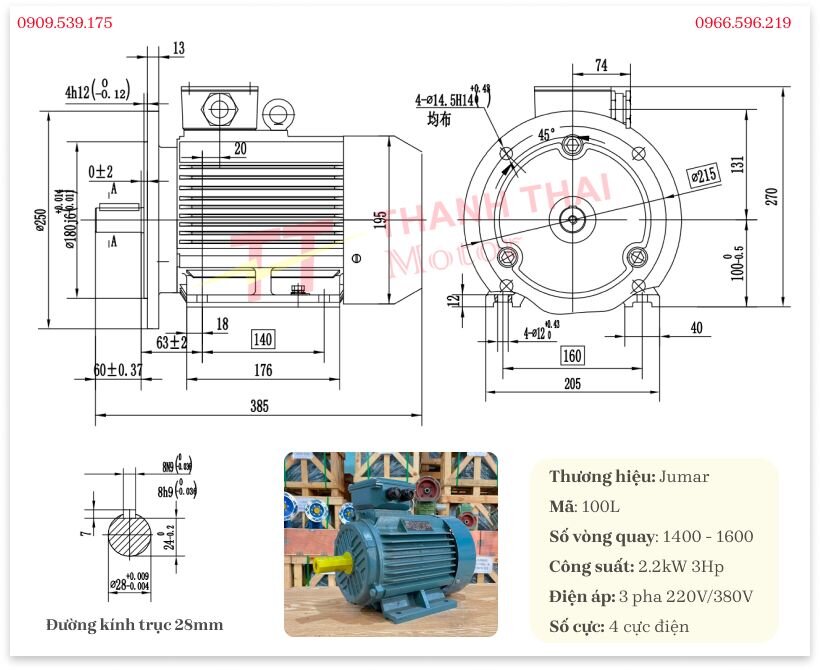

Specifications of 3-phase electric motor 2.2kW 3Hp

The 3-phase electric motor 2.2kW 3Hp drawing and technical specifications are as follows

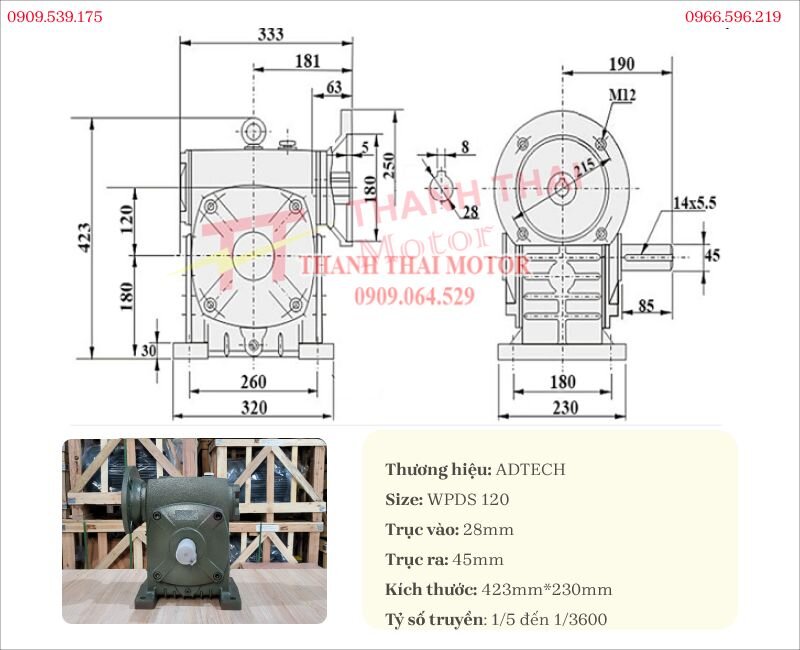

Specifications of the WPDS 120 gearbox

Specification table and drawing of the WPDS 120 gearbox

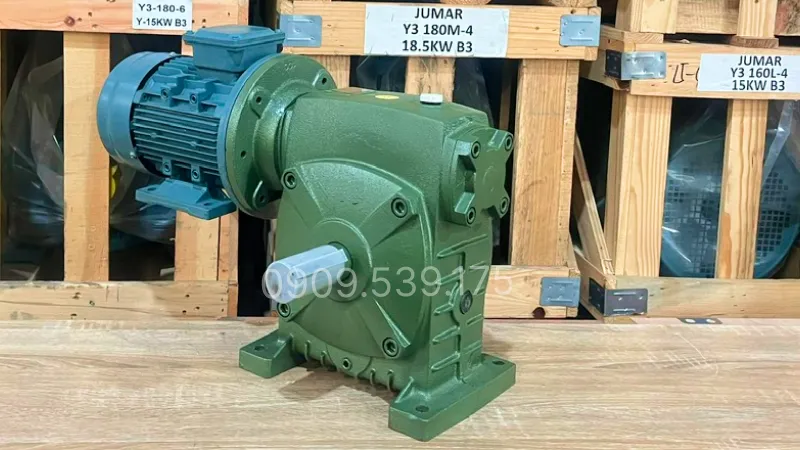

Common applications of the WPDS 120 Gear Motor 2.2kW 3Hp

With high power and superior durability, the WPDS 120 Gear Motor 2.2kW 3Hp is commonly used in the following applications:

• Long conveyors, slow speeds, requiring high traction force in mineral mining and coal mining workshops.
• Industrial processing machinery such as material crushers, concrete mixers, brick pressing machines, plastic molding machines, food and chemical production.
• Packaging lines where stable and continuous transmission is required.

Guide to installing the electric motor with the WPDS gearbox

For the WPDS gear motor to run stably and minimize damage, it must be installed correctly from the beginning, especially the connection between the motor and the gearbox.

• Step 1: Place the electric motor and the WPDS gearbox in the correct installation position. Check details such as shafts, mating faces, keys, and bolts to ensure they are not warped, misaligned, or damaged.
• Step 2: Install the motor shaft into the gearbox input. Align it centrally, then tighten the fixing bolts. Manually rotate the shaft to check for jamming, heaviness, or vibration.

The Thanh Thai Motor installation guide video for the WPDS gear motor helps viewers easily understand the practical installation process. The content focuses on main steps such as positioning, alignment, and tightening. Suitable for technicians and beginners learning about the WPDS gear motor. Users can also refer to other compiled videos to learn more about installation methods and practical equipment usage.
