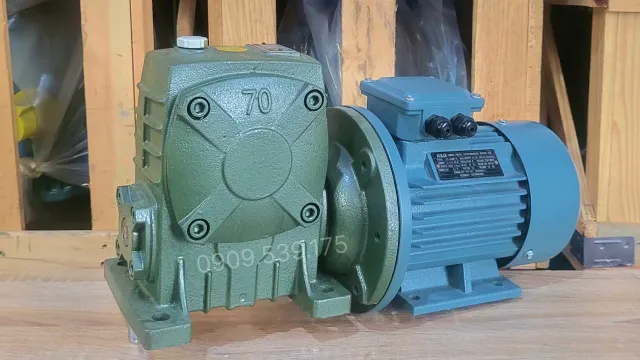

WPDA 70 Gear Motor 0.55kW 0.75Hp

The WPDA 70 Gear Motor 0.55kW 0.75Hp is a perfect combination of an electric motor and a gearbox, helping to effectively reduce rotational speed while increasing torque.

The worm gearbox can be installed with a 1-Phase Electric Motor or a 3-Phase Electric Motor, suitable for various production models from small workshops to large-scale industrial lines.

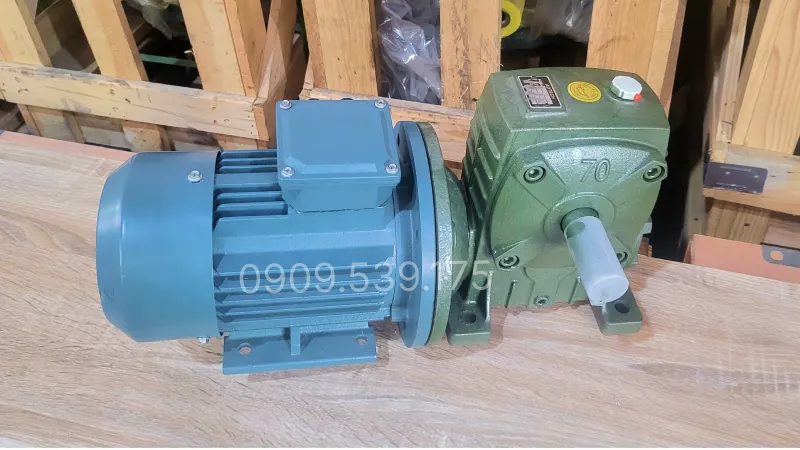

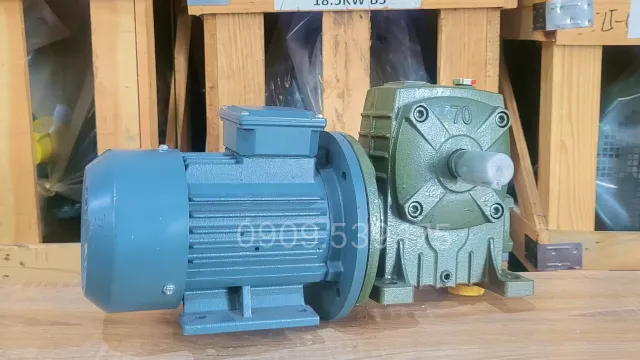

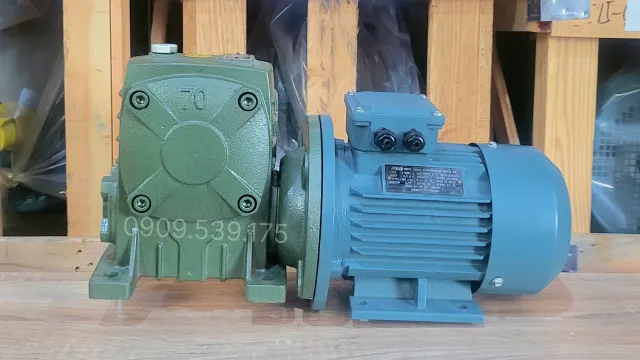

Overview of the WPDA 70 gear motor 0.55kW 0.75Hp

The gear motor features a compact, sturdy design and is easy to install, making it suitable for limited working spaces. The outer casing is monolithically cast from aluminum alloy or cast iron and coated with an anti-rust electrostatic paint, helping the motor stay durable even when working in humid or dusty environments.

The motor core is wound with pure copper wire, providing good electrical conductivity, reducing energy loss, and ensuring stable operation. The motor shaft is made of high-strength solid steel, helping to transmit torque accurately, reducing vibration and noise during operation. The motor and gearbox are directly connected via a flange, making the machine structure sturdy, smooth, and quieter in operation.

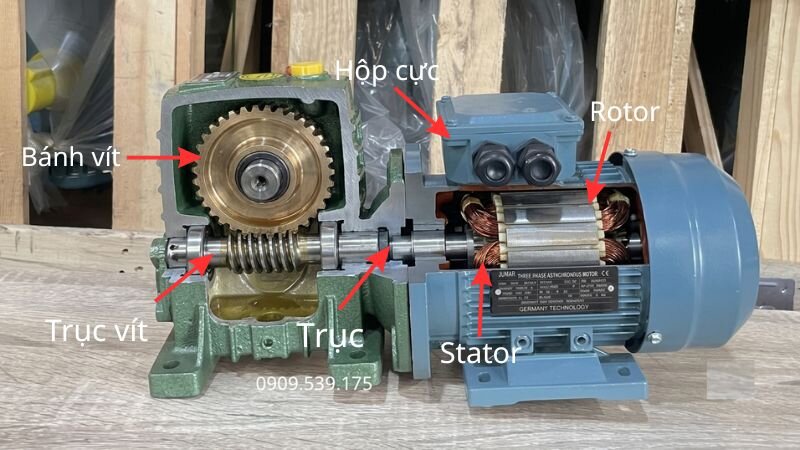

Detailed structure of the WPDA 70 gear motor 0.55kW 0.75Hp

Belonging to the gear motor group under 1.1kW, the worm gear motor series consists of the following main components:

• 1-Phase Electric Motor 0.55kW 0.75Hp or 3-Phase Electric Motor 0.55kW 0.75Hp:
  • Motor housing: Made of high-grade aluminum or cast iron, coated with electrostatic paint to prevent corrosion and extend service life.
  • Stator – Stationary part: Wound with pure copper wire, creating a strong magnetic field to help the motor operate efficiently with low heat generation and reduced power loss.
  • Rotor – Rotating part: Made of stacked technical steel sheets, helping to transmit torque accurately and stably.

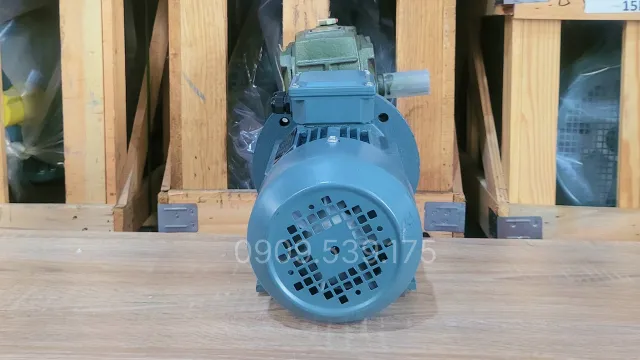

  • Cooling fan: Located at the rear of the motor, supporting rapid cooling to help the motor maintain high performance during continuous operation and prevent overheating.
• WPDA 70 Worm Gearbox:

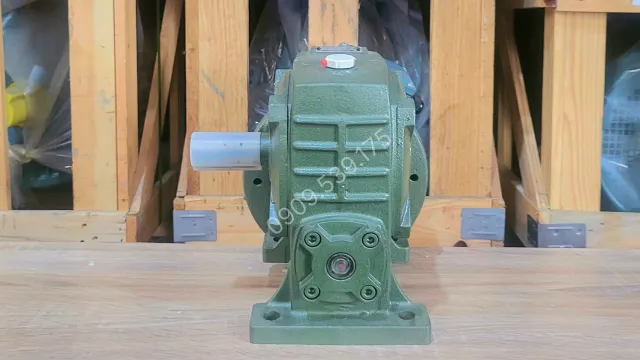

  • Gearbox housing: The outer layer is cast from monolithic cast iron, coated with durable blue-gray paint to minimize scratches and housing damage.
  • Worm shaft: Machined from hardened alloy steel, offering high load capacity and low wear.
  • Worm gear: Made of high-grade bronze, meshing precisely to reduce noise and increase equipment lifespan.
  • Lubricating oil and oil seal: Lubricating oil is pre-filled inside for smooth and seamless transmission. Oil seals are equipped to prevent oil leakage outside the gearbox, which could dirty and damage the housing.

Specifications of the WPDA 70 gear motor 0.55kW 0.75Hp

Below is the specification table and drawing of the WPDA 70 gear motor 0.55kW 0.75Hp

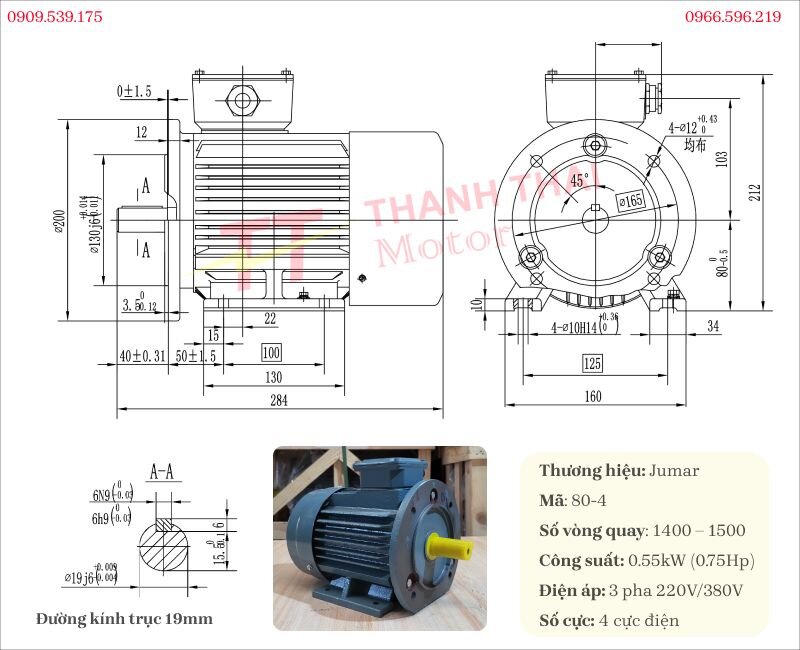

Specifications of the 3-phase electric motor 0.55kW 0.75Hp

The 3-Phase Electric Motor 0.55kW 0.75Hp features a sturdy design and specifications as follows

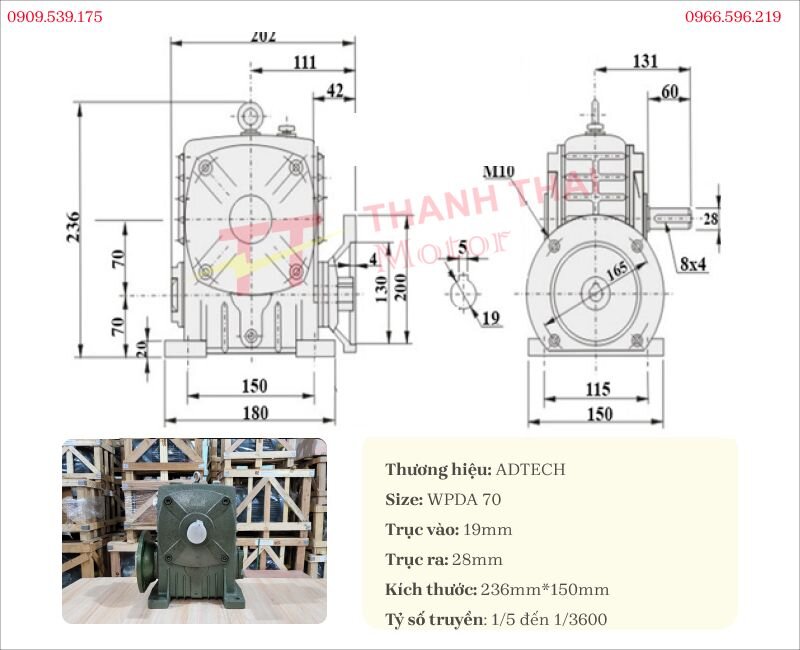

Specifications of the WPDA 70 gearbox

The WPDA 70 gearbox features a durable design and solid construction; below are the specifications and drawing

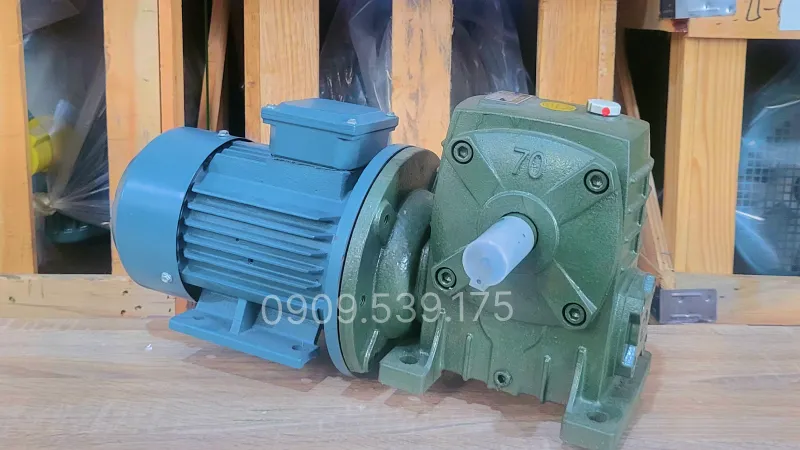

Practical applications of the WPDA 70 gear motor 0.55kW 0.75Hp

Belonging to this 1 phase gear motor or 3 phase gear motor line, it is applied in various fields and activities such:

• Conveyors and conveyor belts in manufacturing plants, food processing, and component production, used to transport equipment and goods.
• Mixers, agitators, and raw material grinders used in the food, pharmaceutical, and chemical industries.
• Packaging, filling, and labeling machine systems in automated production lines.
• Lifting equipment, mini winches, automatic doors, industrial lifting tables, or small presses.

Instructions for assembling the electric motor to the WPDA gearbox

For the WPDA gear motor assembly to operate stably and achieve good transmission efficiency, the installation procedure must be followed correctly as follows:

• Step 1: Prepare the electric motor, WPDA gearbox, and necessary connection accessories. Check the compatibility between components, mating surfaces, and shaft conditions to ensure they meet assembly requirements.
• Step 2: Align the motor shaft coaxially with the gearbox input shaft, then secure it with flanges and bolts. Recheck all connections to ensure tight tightening and smooth rotation before operation.

The gear motor installation guide video provides realistic footage of each stage, from equipment preparation and alignment to completing the transmission assembly. The content helps viewers easily grasp proper assembly techniques, minimize construction errors, and ensure the system operates durably and stably. Users can watch more technical compilation videos at Thành Thái Motor to explore various practical application solutions.
