Product Introduction
The WPA 80 Gear Motor 1.1kW 1.5Hp operates stably, saves energy, and offers high durability. The product combines an electric motor with a WPA worm gearbox, making it suitable for various industrial machinery systems.
Clear after-sales commitment, fast and transparent processing procedure – giving customers peace of mind during use.

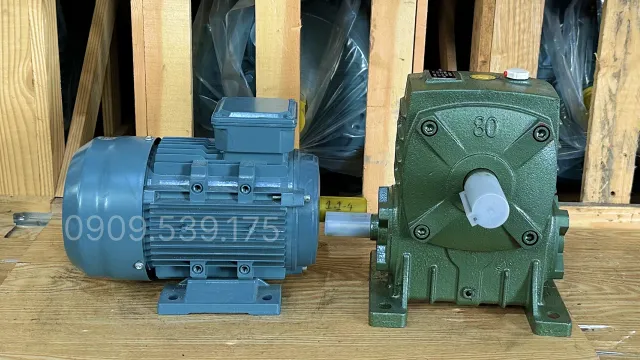

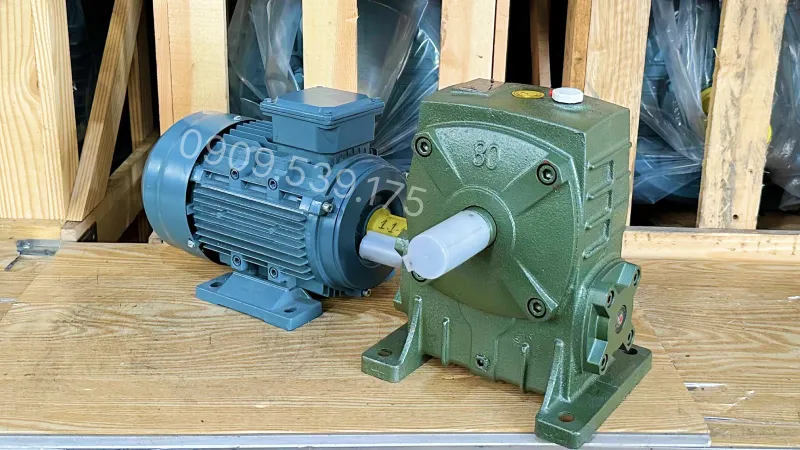

The WPA 80 Gear Motor 1.1kW 1.5Hp is a gear motor combined from an electric motor and a gearbox. It is a device that effectively controls the rotational speed of the output shaft while maintaining strong traction, featuring a compact design and easy installation.

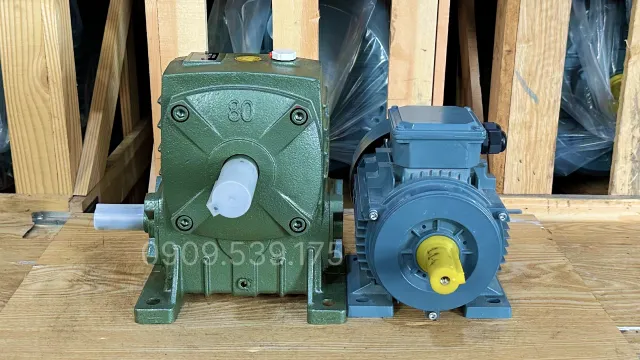

The worm gear motor features a housing made of solid cast iron, ensuring superior load-bearing capacity and corrosion resistance. The electrostatic powder coating not only enhances aesthetics but also helps the device adapt to working environments with high temperatures, dust, or high humidity.
It features a unique design combining a worm gearbox with a 1-phase electric motor or a 3-phase electric motor.
The WPA 80 gear motor has a detailed structure comprising an electric motor and a WPA gearbox.
It is a WPA 80 worm gearbox assembled with a 1-phase electric motor 1.1kW 1.5Hp or a 3-phase electric motor 1.1kW 1.5Hp via a pulley and a coupling.
The WPA 80 1.1kW (1.5Hp) gear motor is a transmission device consisting of a 3-phase 1.1kW electric motor combined with a WPA 80 gearbox, suitable for light-load machinery systems requiring a compact design, stable operation, and energy saving.

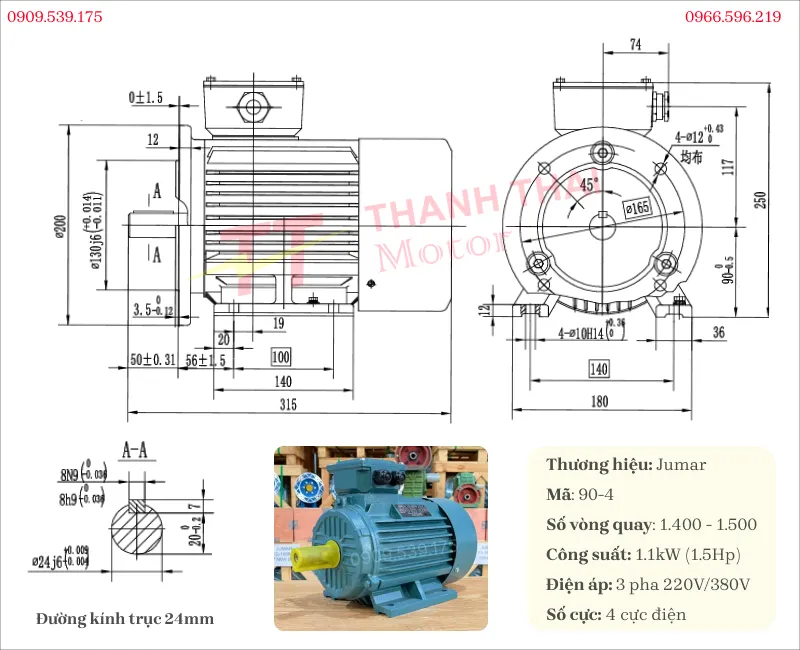

The 3-phase electric motor 1.1kW 1.5Hp is optimized for flexible installation, compact size, and stable operating performance.
| Model | 90S |
| Shaft diameter | 24mm |
| Keyway | 8mm |
| Flange diameter | 200mm |
| Weight | 19kg |
| Dimensions | 320mm * 195mm * 250mm |
| Mounting type | Foot mount (B3) |
| Protection class | IP55 |
| Insulation class | Class F |

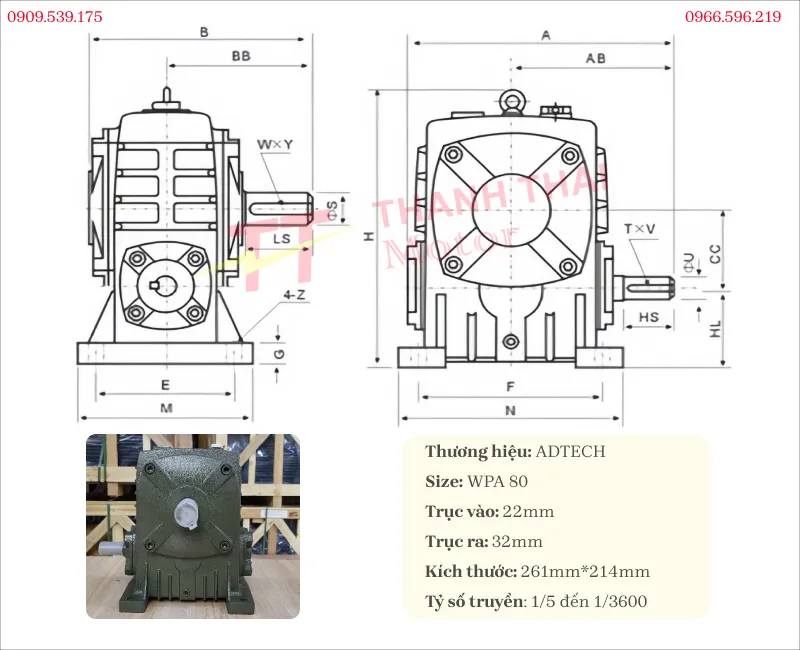

The WPA 80 gearbox is the most compact model in the WPA series, suitable for low-power applications and limited installation space.
| Size | 80 |
| Input shaft diameter | 22mm |
| Output shaft diameter | 32mm |
| Dimensions | 261mm*214mm |

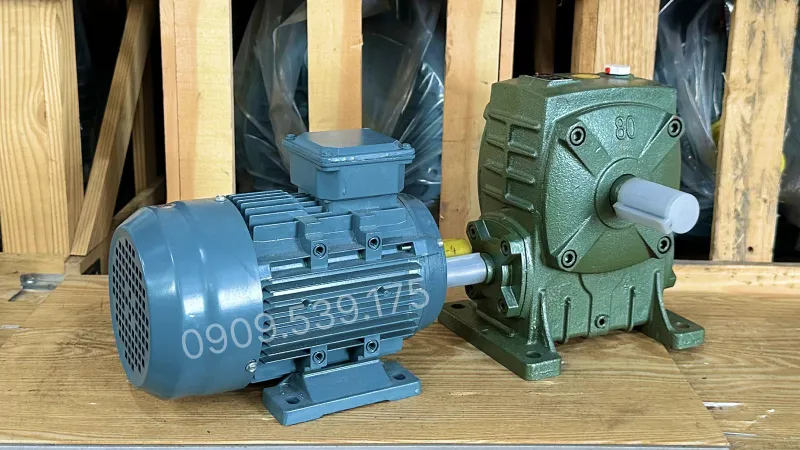

As a gear motor line under 1.1kW, the WPA 80 1.1kW 1.5Hp worm gear motor is commonly used in:
Customers can refer to practical content through the gear motor video system provided by Thanh Thai Motor, helping to visually observe the working capacity, stability, and transmission performance of each product line under various operating conditions. Along with that, the comprehensive video library provides many useful in-depth materials, supporting customers in selecting the right power, guiding technical-standard installation, and sharing usage experiences to optimize efficiency and extend equipment lifespan.
When purchasing gearmotors at Thanh Thai Motor, you will receive benefits such as: Warranty up to 24 Months All gearmotor products at Thanh Thai Motor come with an official 24-month warranty. We are committed to clear after-sales service, with quick and transparent processing procedures – ensuring customer peace of mind during use. Nationwide Delivery No matter which province or city you are in, Thanh Thai Motor is always ready to support fast delivery, ensuring on-time delivery, careful packaging, and safe transportation. We supply a full range of 220V gearmotors, variable speed motors, etc., for the diverse needs of customers nationwide. Products Meet European Quality Standards with German Technology Our products are manufactured using modern German technology, meeting European standards. Models such as integrated gearmotors, variable speed motors, or 220V gearmotors all ensure stable operation and superior durability. Competitive Pricing, Good Discounts for Dealers and Bulk Purchasers We offer affordable gearmotors, suitable for projects with limited budgets. In addition, Thanh Thai Motor has special policies and offers for dealers and bulk purchasers. Quality Commitment All 220V gearmotors here are wound with pure copper wire. This ensures powerful, smooth operation and energy savings. Full Certification Documents: CO, CQ,... All products such as integrated gearmotors, conveyor motors, or speed reducers come with full Certificates of Origin (CO) and Quality (CQ), meeting stringent technical requirements in industry. Need advice on choosing the right gearmotor for your needs? Contact Thanh Thai Motor immediately using the methods below:Warranty, Shipping, and Commitment Policies at Thanh Thai Motor
Contact Us
| Product Type | WPA Gear Motor |
| Rated Power | 1.1kW 1.5Hp |
| Power Range | 0.18 KW – 315 KW |
| Frequency | 50Hz |
| Voltage | 220V, 220/380V |
| Material | Aluminum and Cast Iron Housings |

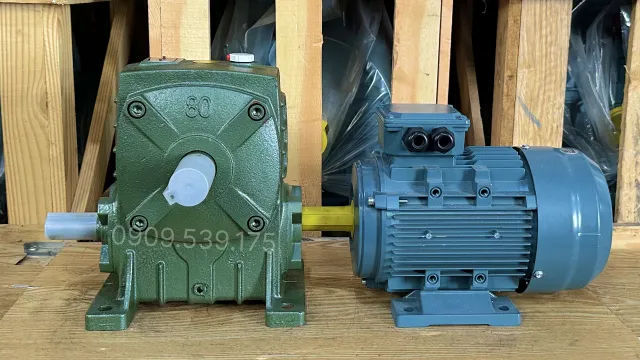

| Place of Manufacture | German technology manufactured and assembled in China |
| Brand | JUMAR, ADTECH |
| Warranty Period | Up to 24 months |
| Shaft Diameter | 24mm |
| Keyway | 8mm |
| Speed | 1,400 – 1,500 RPM |
| Input Shaft Diameter | 22mm |
| Output Shaft Diameter | 32mm |
| Gear Ratios | 1/10 – 1/60 |
