WPA 135 Gear Motor 4kW 5.5Hp

With a unique space-saving design, the WPA 135 Gear Motor 4kW 5.5Hp is the most optimal choice in the current market, widely used by customers. It is a combination of a gear motor formed by an electric motor and a gearbox.

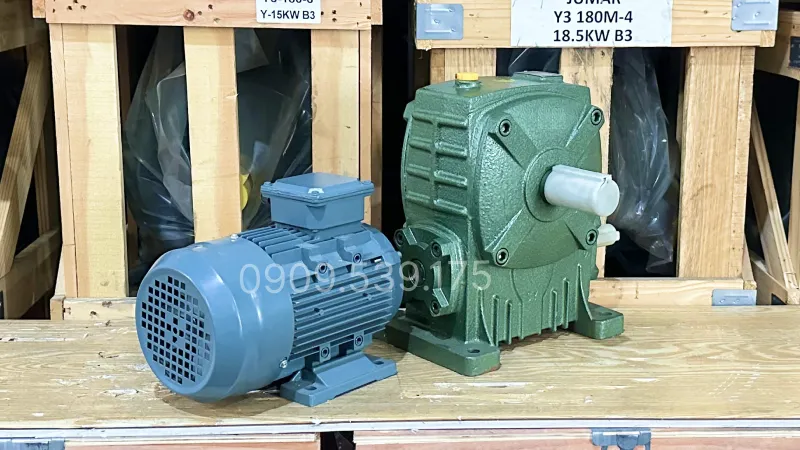

Design Overview of WPA 135 Gear Motor 4kW 5.5Hp

The worm gear motor features a solid cast-iron exterior design with high rigidity, capable of withstanding impacts and high pressure during operation.

It is a worm gearbox coupled with a 3-phase electric motor.

Detailed Structure of WPA 135 Gear Motor 4kW 5.5Hp

The WPA 135 Gear Motor 4kW 5.5Hp combines an electric motor installed with a WPA gearbox.

It consists of a WPA 135 worm gearbox coupled with a 3-phase electric motor 4.0kW 5.5Hp via a pulley and coupling.

• Electric motor 4kW 5.5Hp:
  • Stator: The stationary part, made of 100% pure copper, sturdy and durable, helping the equipment operate more smoothly.
  • Rotor: The rotating part located inside the motor, made of thin rolled steel sheets to prevent rust.

• WPA 135 Gearbox:
  • Worm wheel: Cast from high-quality bronze alloy, featuring high mechanical durability, excellent wear resistance, and long-lasting smooth operation.
  • Worm shaft: Machined from stainless steel, precise in every detail, excellent load-bearing capacity, minimizing vibration and working noise.

Specifications of WPA 135 Gear Motor 4kW 5.5Hp

The WPA 135 Gear Motor 4kW (5.5Hp) is a transmission device combining a 3-phase electric motor with a capacity of 4kW and a WPA 135 gearbox, suitable for medium-load applications requiring high durability and stable operation in industrial environments.

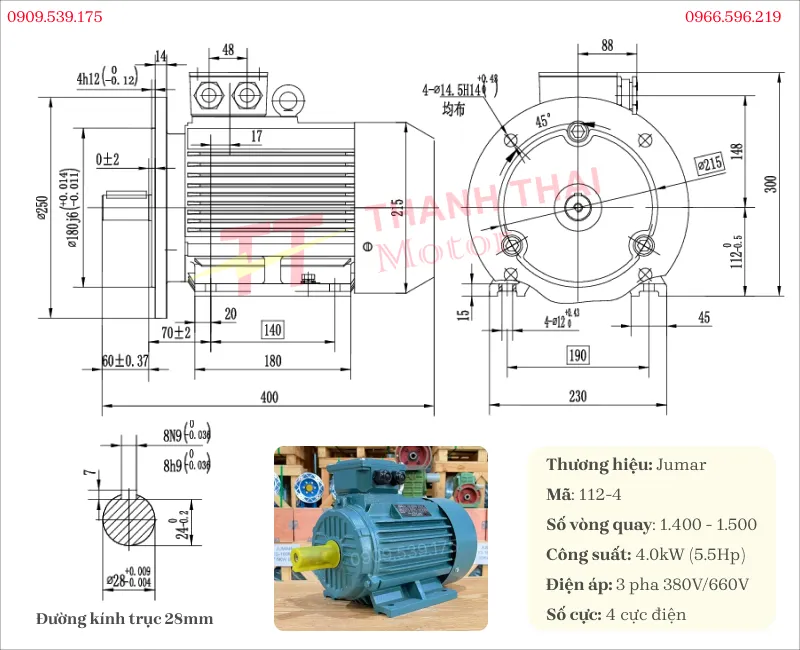

3-Phase Electric Motor 4kW 5.5Hp Specifications

The 3-phase electric motor 4kW 5.5Hp features a compact design, easy installation, and ensures stable working performance over a long period.

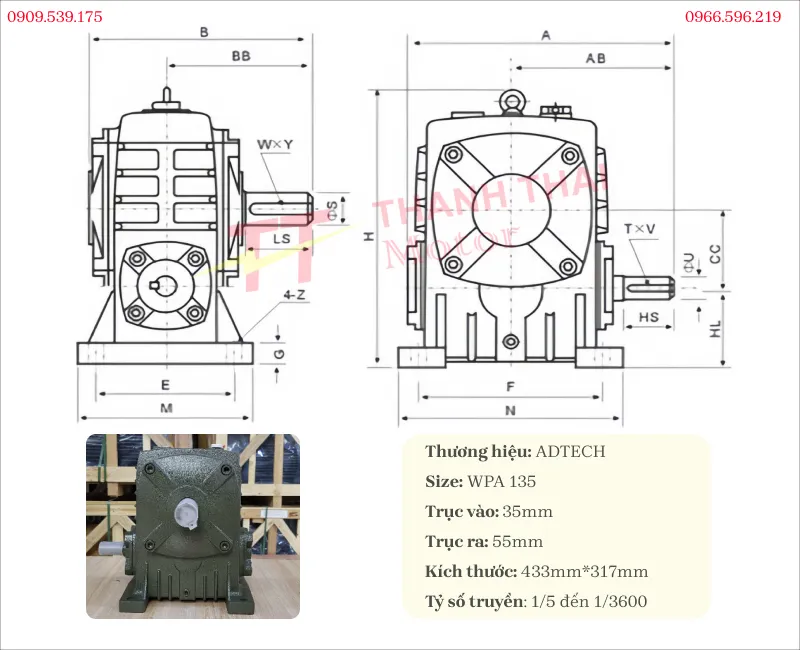

WPA 135 Gearbox Specifications

The WPA 135 gearbox features a compact design and stable power transmission capability, making it suitable for combination with a 4kW motor in various machinery systems.

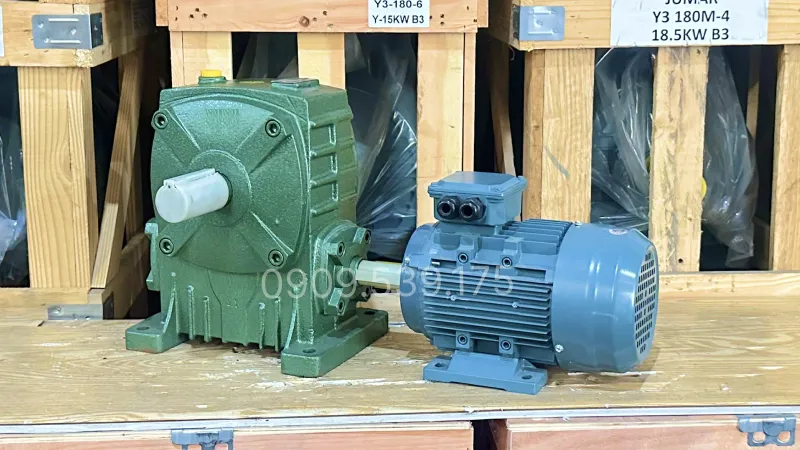

Common Applications of WPA 135 Gear Motor 4kW 5.5Hp

The WPA 135 Gear Motor 4kW 5.5Hp is a gear motor above 3.7kW used in industrial sectors and plants requiring high-power, heavy-load drive systems as follows:

• Large-scale industrial mixers used in building material production and food processing.
• Steel rolling mills, mini stone crushers requiring high and stable power transmission.
• High-capacity automation equipment in packaging lines, lifting machinery, and consumer mechanical manufacturing equipment.

To better understand the structural characteristics and operation process of the product, customers can refer to the gear motor video library directly produced by Thanh Thai Motor. In addition, the comprehensive video section also updates many useful contents related to installation instructions, technical inspections, and selecting suitable equipment for each practical application.

The WPA 135 Gear Motor 4kW 5.5Hp features a compact design, stable transmission capability, and well meets working requirements in industrial environments. The product is suitable for many systems requiring speed reduction and increased output torque. For detailed consultation on technical specifications or to receive preferential quotations, please contact Thanh Thai Motor via Hotline 0909.539.175 for prompt assistance.
