NMRV 50-63 2-Stage Gear Motor

The NMRV 50-63 2-stage gear motor is a gear motor combined from an electric motor, specifically a 3-phase electric motor, with a gearbox, specifically a 2-stage gearbox. This is an ideal choice for businesses looking for energy-efficient, long-term stable, and low-maintenance drive solutions.

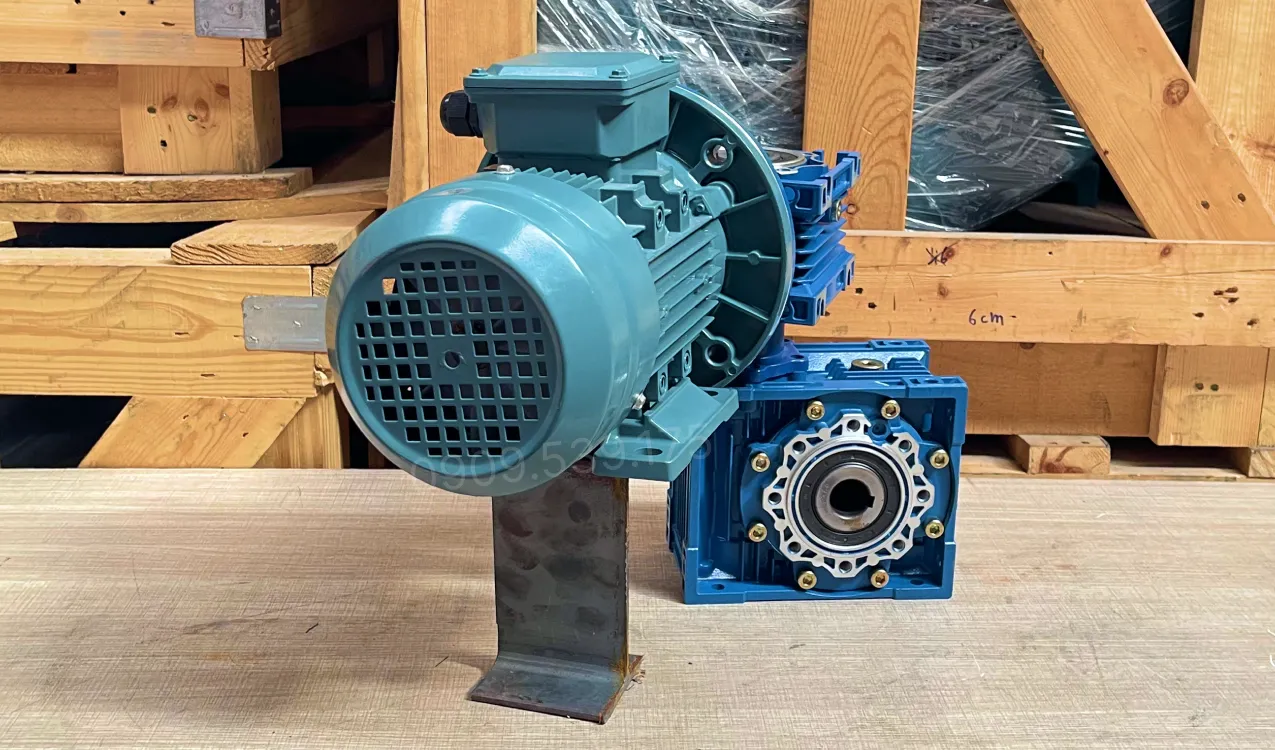

Overview of the NMRV 50-63 2-Stage Gear Motor

Electric Motor Unit

• Material: Ribbed extruded aluminum housing for optimal heat dissipation; electrical terminal box with heat-resistant rubber gasket meeting IP55 standards.
• Characteristics: Low power, stable starting torque, low no-load current. Smooth operation and low heat generation help protect the primary oil seal.

2-Stage Gearbox (NMRV 50 + NMRV 63)

• Mechanism: Connecting the primary stage 50 unit in series to the secondary stage 63 unit. Redirects the axis perpendicularly by 90 degrees, reducing speed hierarchically for ultra-slow output speeds (below 1 rpm).
• Characteristics: Monolithic die-cast aluminum body makes the structure super compact and lightweight, easy for multi-directional suspension installation. High static self-locking coefficient, preventing free load drift.

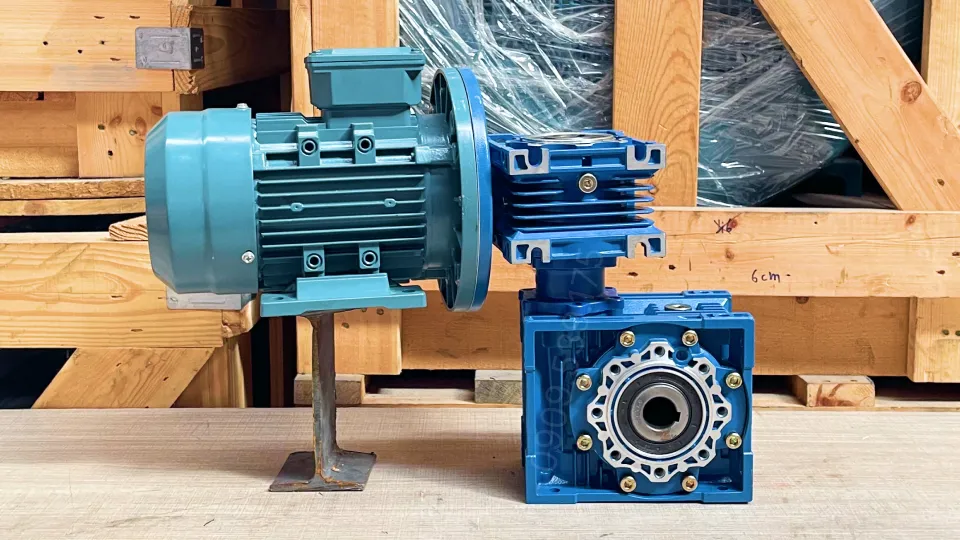

Structure of the NMRV 50-63 2-Stage Gear Motor

The NMRV 50-63 gear motor is assembled from a 3-phase electric motor 0.37kW 0.5Hp combined with a 2-stage NMRV gearbox, manufactured from precision engineering details, providing high durability and operating performance. It includes the following details:

Electric Motor Structure

• The outer shell is made of sturdy, durable, rust-resistant cast iron or aluminum.
• Stator: The inner part of the motor, made of pure copper wire.
• Rotor: Made of technical thin-rolled steel laminations, located inside the motor.

Gearbox Structure:

• Stage 1 is the NMRV 50 gearbox designed with a sturdy, modern shape, suitable for continuous industrial working environments.
• Stage 2 is the NMRV 63 gearbox featuring an outer casing made of solid cast iron or aluminum.

Technical Specifications of the NMRV 50-63 2-Stage Gear Motor

The NMRV 50-63 2-stage gear motor is a drive assembly consisting of a 3-phase electric motor combined with two series-connected NMRV gearboxes. This configuration helps expand the transmission ratio range, creates low output speed, and significantly improves torque, well meeting the requirements for stable operation in many mechanical systems.

Technical Specifications of the 3-Phase Electric Motor 0.37kW 0.5Hp

The 3-phase electric motor 0.37kW 0.5Hp is chosen for small-power drive systems thanks to its durable operation and power-saving capability. The standard flange design makes the assembly process with the gearbox fast and accurate.

Technical Specifications of the NMRV 50 Gearbox

NMRV 50 is the first component in the two-stage reduction assembly, responsible for receiving movement from the motor and performing preliminary speed reduction before transmitting power to the next stage.

Technical Specifications of the NMRV 63 Gearbox

Positioned second in the transmission chain, the NMRV 63 gearbox helps complete the speed reduction process and increase output pulling force, contributing to enhanced working efficiency of the entire system.

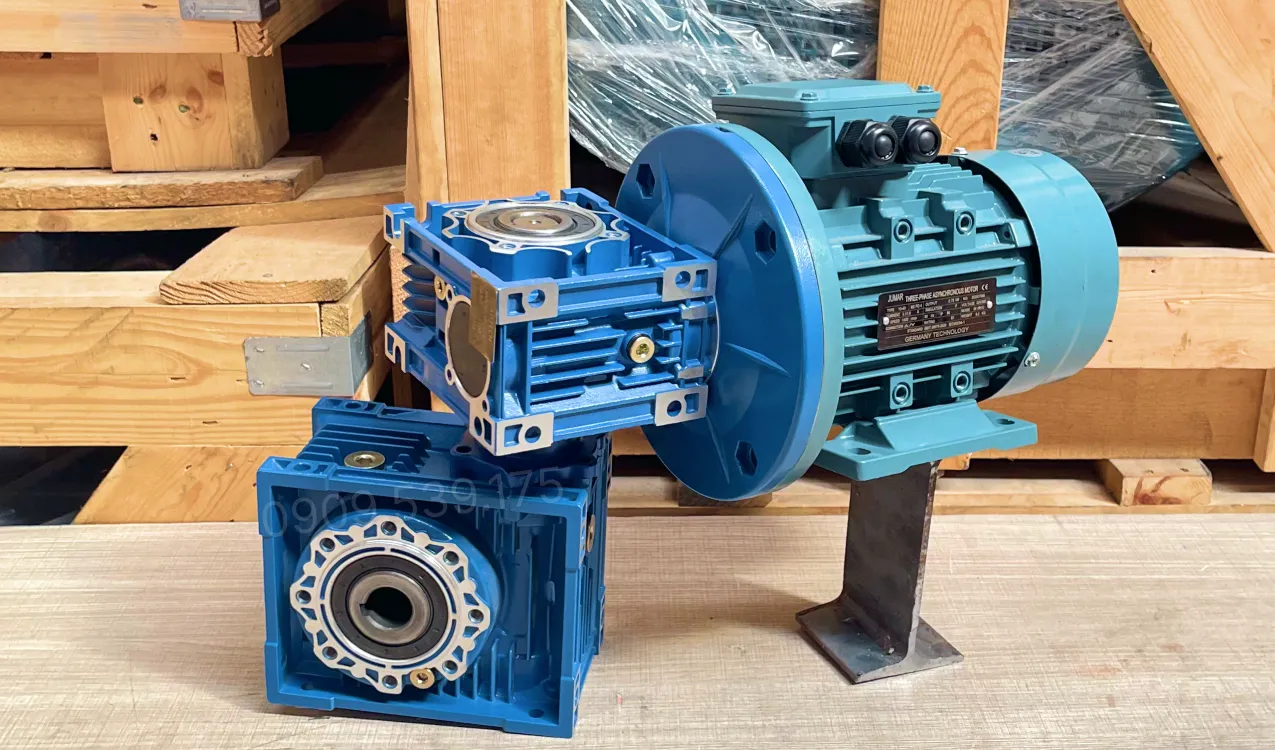

Applications of the NMRV 50-63 2-Stage Gear Motor

The NMRV 50-63 gear motor is widely used in many production fields thanks to its deep speed reduction and powerful force transmission capabilities:

• Industrial conveyors, packaging conveyors, and goods sorting conveyors.
• Agitators, mixers, and grinders in the food, material, and agricultural product industries.
• Winding-pulling systems such as film winders, paper winders, and wire winders.
• Fabric cutting machines, wood processing equipment, and metal processing machines.
• Automation lines requiring slow, precise, and stable operation.

Guide to Installing an Electric Motor with 2 NMRV Gearboxes

• Step 1: Bolt securely to firmly fix the electric motor to the body of the first gearbox.
• Step 2: Install the intermediate coupling shaft into the output shaft hole of that first gearbox.
• Step 3: Connect the second gearbox by fitting its input shaft part into the intermediate coupling shaft body.
• Step 4: Tighten the screws securely to fasten the two gearboxes together into a single unit.

Note: To keep the shaft straight and prevent misalignment, clean the joint area and tighten the screws alternately in a circular pattern.

With a compact design, large torque generation capability, and stable operation, the NMRV 50-63 2-stage gear motor is a suitable solution for various drive systems requiring low speed and high precision. The product not only helps improve production efficiency but also contributes to saving operating costs thanks to its high durability and ability to work continuously for long periods.

To learn more about the product, customers can watch additional gear motor videos produced by Thành Thái Motor, recording the actual structure, dimensions, and operating process of various motor lines. In addition, the compiled video section continuously updates new gear motor models, industrial gearboxes, and modern drive solutions, helping customers easily reference and select suitable equipment.
