Gear Motor 3-Stage (2 UDL 0.37kW and 1 WPDX 60)

The 3-Stage Gear Motor (2 UDL 0.37kW And 1 WPDX 60) is a gear motor assembled from an electric motor, specifically a 3-phase electric motor combined with a gearbox, specifically a 3-stage gearbox. The equipment is suitable for production lines requiring continuous speed control while maintaining high stability and durability.

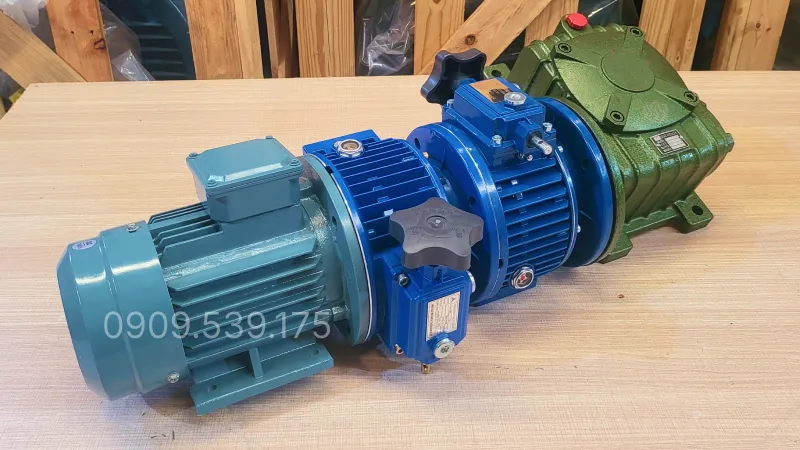

Design Overview of the 3-Stage Gear Motor (2 UDL 0.37kW And 1 WPDX 60)

The 3-Stage Gear Motor (2 UDL 0.37kW And 1 WPDX 60) features an entire housing made of quality alloy, offering fast heat dissipation, corrosion resistance, and the ability to withstand industrial environmental impacts.

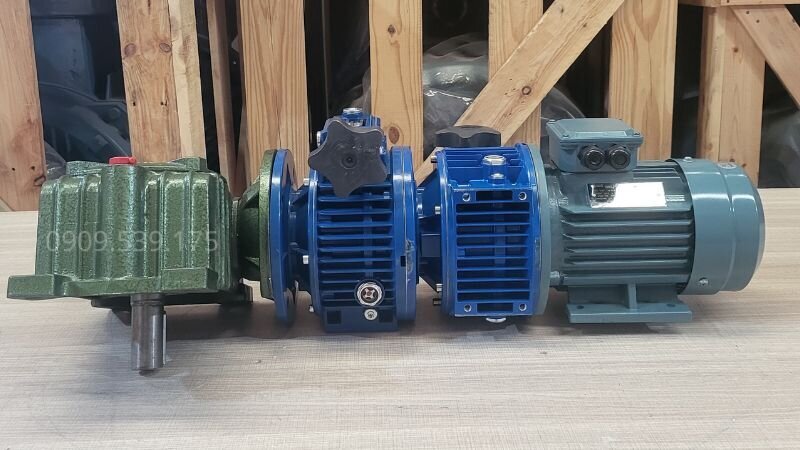

Detailed Structure of the 3-Stage Gear Motor (2 UDL 0.37kW And 1 WPDX 60)

The 3-Stage Gear Motor (2 UDL 0.37kW And 1 WPDX 60) is a gear motor under 1.1kW assembled from a 3-phase 0.37kW 0.5Hp electric motor and a 3-stage gearbox (2 UDL 0.37kW and 1 WPDX 60). Its detailed structure is as follows:

Electric Motor Structure:

• Stator: Composed of electrical steel core combined with pure copper windings, providing strong magnetic field generation and stable operation.
• Rotor: Uses tightly pressed silicon steel laminations to generate good torque and maintain smooth motion.
• Bearings: Limit friction when the shaft rotates, supporting stable operation and extending motor lifespan.

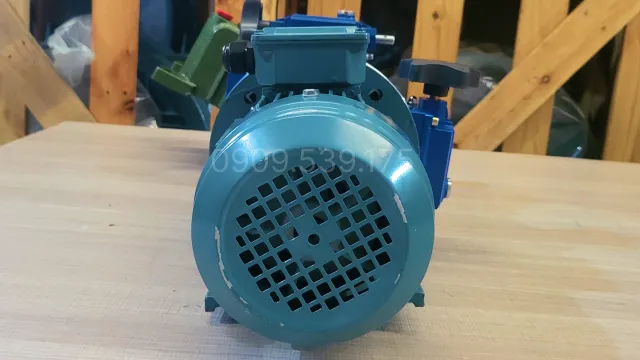

• Cooling fan: Creates a continuous cooling airflow, keeping the motor at an optimal temperature during continuous operation.

Gearbox Structure:

• Stage 1 is a mechanical speed variator (UDL): Specifically, the 0.37kW 0.5Hp mechanical speed variator: Consisting of friction disc – cone disc assemblies, input-output shafts, and an adjustment knob, allowing stepless speed changes before entering the gearbox.

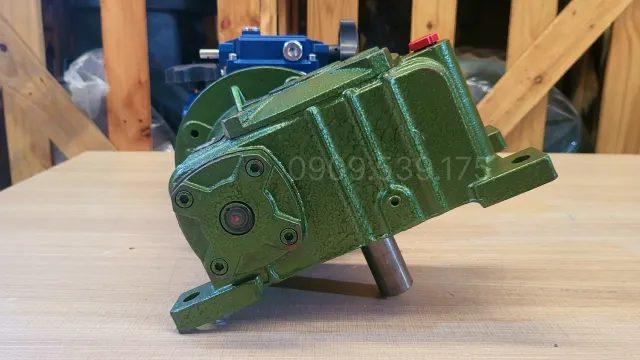

• Stage 2 is a 2-stage gearbox: Specifically, the UDL 0.37kW – WPDX 60 2-stage gearbox consisting of a hardened steel worm shaft and a bronze worm gear, creating a large transmission ratio and high torque, ensuring smooth operation.
• 0.37kW drive motor: A 3-phase motor with a copper winding stator and dynamically balanced rotor, providing stable traction for the entire 2-stage system.
• Housing, bearings, and lubrication system: Sturdy cast iron/aluminum housing, load-bearing bearings, and lubricating gear oil help reduce friction, dissipate heat, and increase durability.

Technical Specifications of the 3-Stage Gear Motor (2 UDL 0.37kW And 1 WPDX 60)

Below are the technical specifications and drawings of the 3-stage motor

Technical Specifications of the 3-Phase 0.37kW 0.5Hp Electric Motor

The 3-phase 0.37kW electric motor plays the role of generating the driving force for the entire system

Technical Specifications of the UDL 0.37kW 0.5Hp Mechanical Speed Variator

Below is the basic technical information of the mechanical speed variator

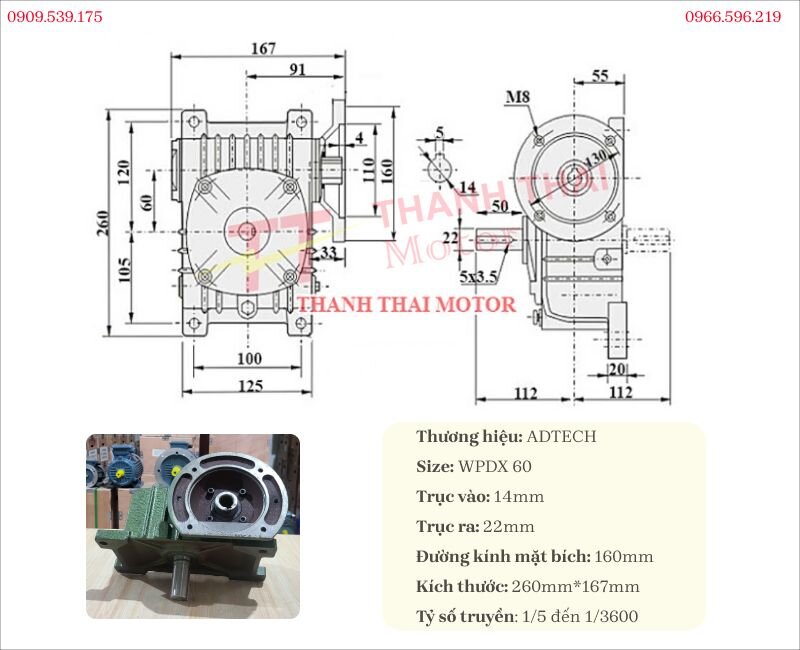

Technical Specifications of the WPDX 60 Worm Gearbox

Below are the technical specifications of the WPDX gearbox

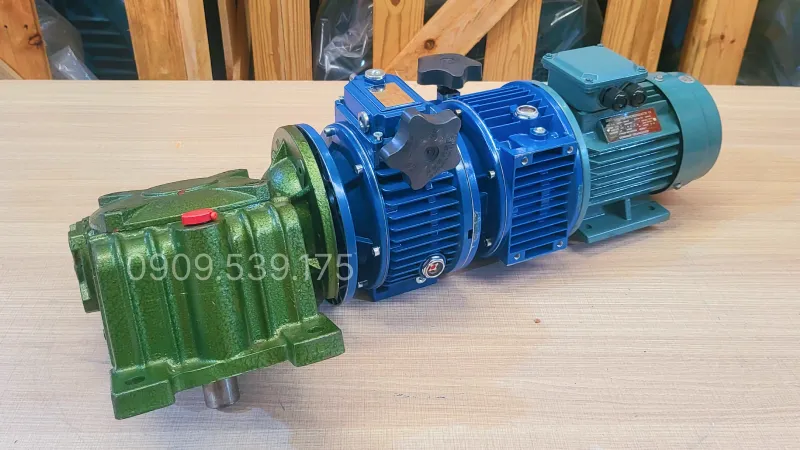

Applications of the 3-Stage Gear Motor (2 UDL 0.37kW And 1 WPDX 60)

The 3-Stage Gear Motor (2 UDL 0.37kW And 1 WPDX 60) includes the following applications:

• Industrial conveyor belts requiring speed changes according to each production stage.
• Agitators and mixers requiring stable torque and flexible speeds.
• Material winding and pulling systems in the paper, packaging, and plastics industries.
• Food processing lines requiring regular and stable operation.
• Sorting machines and automatic packaging machines.
• Light-load lifting equipment in light industries.
• Automation systems requiring 24/7 operation with high precision.

Assembly Guide for the 3-Stage Gear Motor (2 UDL 0.37kW And 1 WPDX 60)

To complete the 3-stage gear motor consisting of two UDL 0.37kW mechanical speed variators and one WPDX 60 gearbox, proper assembly sequence must be followed to ensure the required transmission ratio and stable system operation.

• Step 1: Check the condition of the two UDL 0.37kW mechanical speed variators and the WPDX 60 gearbox. Accurately identify the input and output positions of each device before proceeding with connection.
• Step 2: Proceed to connect the first UDL mechanical speed variator with the second UDL mechanical speed variator. Align the shafts concentrically, then securely fix them with bolts and appropriate connection accessories.
• Step 3: Install the WPDX 60 gearbox onto the output of the mechanical speed variator assembly. Check the fit between transmission details and tighten fixing points to ensure working stability.
• Step 4: Attach the electric motor to the input of the system, check the entire transmission assembly, shaft concentricity, and connection sturdiness before test running.

Thanh Thai Motor’s gear motor video details the assembly, connection, and testing process of the actual drive assembly. The content helps viewers easily recognize the installation position of each component, understand the principle of combining multiple gear reduction stages, and effectively apply it in systems requiring a wide speed range and high torque. Check out more aggregated videos at Thanh Thai Motor to explore various gear motor and gearbox solutions for industrial applications.

Warranty Policy and Shipping Commitment at Thanh Thai Motor

• Motor warranty up to 24 months: Each line of 220V gear motor (220V gear motor) or 380V gear motor is covered by a long-term 24-month warranty.
• Fast Shipping: Nationwide delivery, ensuring that gearboxes coupled with motors and foot-mounted gear motor, flange-mounted gear motor lines are securely packaged for maximum protection during transport.
• Quality Gear Motor – Advanced Technology: 220V or 380V gear motor products are manufactured according to German technology and European quality standards.
• Competitive Prices – Attractive Discounts for Bulk Orders: Thanh Thai Motor specializes in trading gear motors directly from manufacturers, providing gear motors at the lowest prices on the market.
• Transparent Trading – Full CO and CQ Provided: Each product comes with a Certificate of Origin (CO) and a Certificate of Quality (CQ).
