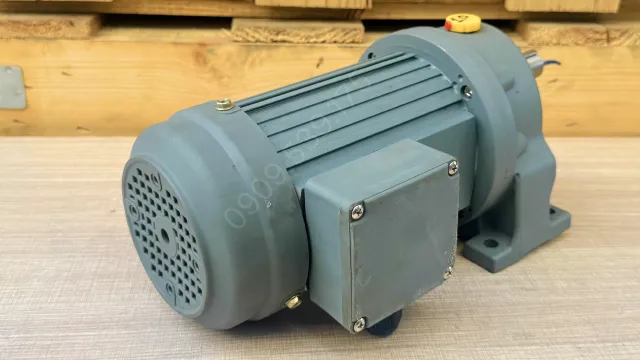

3-Phase Gear Motor 3.7kW 5Hp

The 3-Phase Gear Motor 3.7kW 5Hp, a type of gear motor also known as a geared motor, is an important drive device widely used in industry thanks to its stable performance and long service life. In particular, the 3-phase gear motor is commonly applied in equipment such as grinders and goods transport conveyor belts, helping to improve operational efficiency and optimize power consumption.

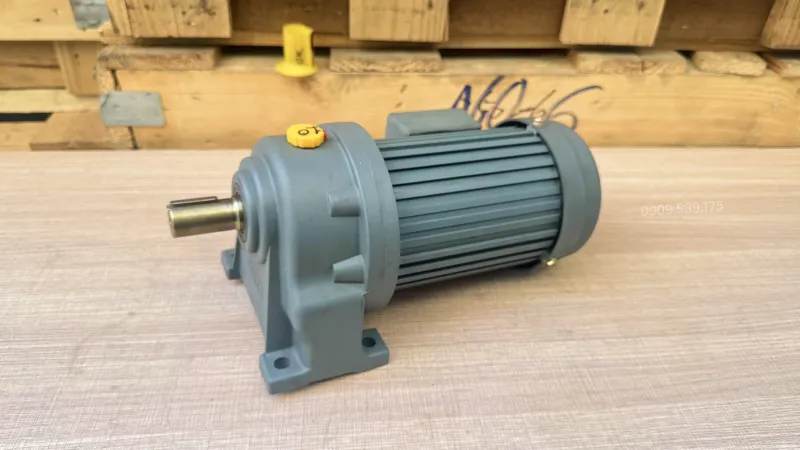

Overview of the 3-Phase Gear Motor 3.7kW 5Hp

The 3-phase 3.7kW 5Hp gear motor is optimally designed in terms of geometry to deliver the highest synchronization during assembly, comprising a 3-phase electric motor body and a gearbox head combined to create a complete product:

• 3-phase 5 HP electric motor:
  • Function: Receives 3-phase AC power and applies the principle of electromagnetic induction to convert it into basic rotational motion at the central shaft with rated RPM speed.
  • Design: The outer housing is integrally cast from ultra-hard cast iron, combined with parallel heat dissipation rib arrays to help convection airflow cool quickly.
• Gearbox:
  • Function: Receives high rotational speed from the motor, and through the gear ratio range of the gears, slows down the output speed while multiplying the pulling force many times.
  • Design: The gearbox housing features thick cast iron walls to eliminate vibrations under heavy loads.

Detailed Internal Structure

The 3-phase 3.7kW 5Hp gear motor belongs to the 3-phase gear motor series ranging from 1.1kW to 3.7kW, primarily structured from two components: the gearbox and the electric motor, specifically a 3-phase electric motor. Including:

• Gearbox: Consists of various gears assembled according to a specific gear ratio to increase torque and reduce motor speed.
• 3-phase 3.7kW 5Hp electric motor:
  • Stator is wound with 100% copper wire to ensure full capacity. Copper windings coated with Class F insulation enamel enable the device to resist temperatures up to 155 degrees Celsius during continuous operation.
  • Metal rotor heat-treated at high temperatures to increase durability. The rotor core must undergo dynamic balancing on electronic measuring machines to completely eliminate jitter caused by centrifugal force, ensuring absolute concentric running.
• Bearing and oil seal assembly: Composed of high-intensity radial load-bearing bearings. Accompanied by high-temperature resistant dust and oil seals.

Watch detailed video about the 3-phase gear motor product

Classification of the 3-Phase Gear Motor 3.7kW 5Hp

According to mounting types, the 3-phase 3.7kW 5Hp gear motor is divided into the following 2 types:

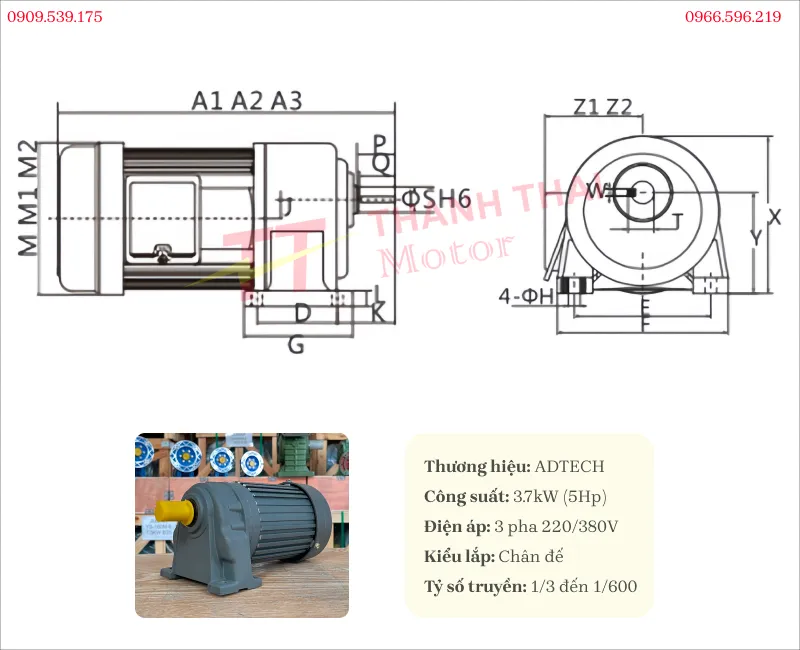

Foot-Mounted 3-Phase Gear Motor 3.7kW 5Hp

Specifications:

Applications:

• Logistics and packaging industry: Assembled for parcel sorting conveyor lines, feeding roller conveyor systems in carton packaging manufacturing plants.
• Agricultural and livestock industry: Provides pulling power to rotate pellet feed mixing tanks, medium-capacity livestock and poultry feed grinders.
• Mechanical processing industry: Applied as a general goods lifting winch motor, designing pulley systems for opening and closing industrial warehouse doors.

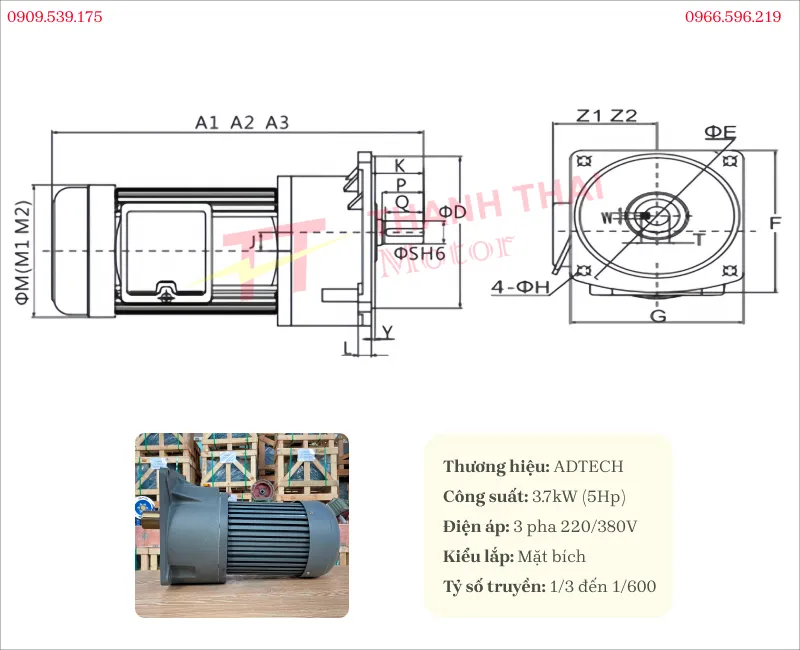

Flange-Mounted 3-Phase Gear Motor 3.7kW 5Hp

Specifications:

Applications:

• Biochemical technology industry: Directly mounted on top of probiotic fermentation tanks, liquid chemical solvent stirring mixer systems.
• Environmental and water treatment industry: Operates and controls the bottom sludge scraper shaft assembly at centralized industrial sedimentation manholes, rotating the aerator shaft to foam water.
• F&B (Food & Beverage) industry: Directly drives rotary filling table lines, vertical industrial dough mixer machines.
• Agriculture & Livestock: Operates grain mixing systems, pellet feed presses, and material screw conveyors.

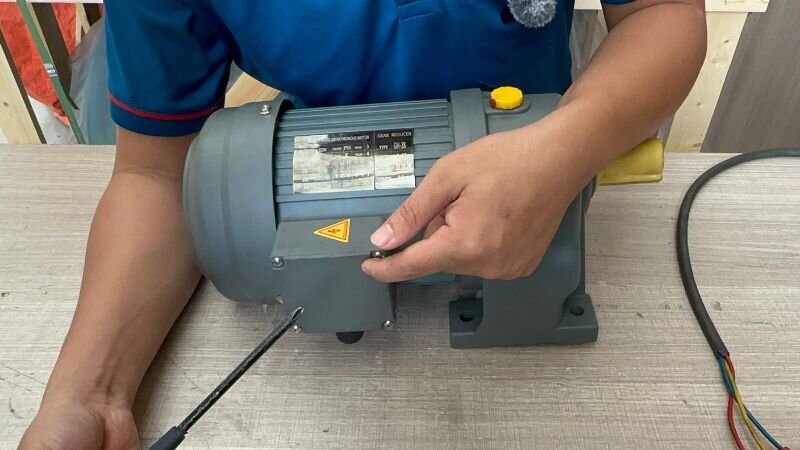

Wiring Guide for 3-Phase 5 HP Gear Motor

To put a gear motor device into actual operation lines, technicians must strictly follow the electrical circuit processing steps below to ensure performance and prevent explosion or burnout incidents.

• Determine the power and voltage of the device: 3-phase gear motor line, using 380V power grid.
• Remove the protective layer: Use a specialized screwdriver to unscrew and open the terminal box cover of the gear motor, thereby accessing the internal electrical terminal connection system.
• Connect transmission cables: Use 3 phase wires from the mains power supply and fasten them directly to the 3 contact posts printed with symbols U1, V1, and W1 by the manufacturer.
• Principles to avoid: Absolutely do not connect phase power wires to terminal positions U1, V2, and W2. Incorrect configuration connection will push the voltage up to 660V, causing the motor to burn out immediately.
• Run-in and acceptance: After completing the cable connection screw fastening, the installer proceeds to supply power to the circuit to evaluate the motor’s operation capability.

The 3-Phase Gear Motor 3.7kW 5Hp is a transmission drive device chosen by many businesses thanks to its effective speed reduction, high torque, stable operation, and durable service life. With various gear ratio options, foot-mounted or flange-mounted designs, this motor line well meets application demands in conveyors, agitators, and mixers.

To learn more about similar product lines, customers can refer to gear motor videos or follow summary videos from Thanh Thai Motor to gain a more intuitive and comprehensive view of current industrial drive solutions.
