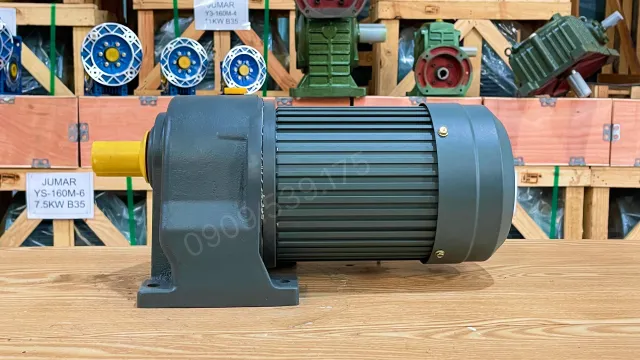

3-Phase Gear Motor 1.5kW 2Hp

The 3-Phase Gear Motor 1.5kW 2Hp belongs to the gear motor product line, widely used in various industries thanks to its durable design and stable performance. In particular, 3-phase gear motors are widely applied in equipment such as Vietnamese sausage meat grinders, sugarcane juicers, and mini cargo winches, helping to optimize operations and ensure equipment lifespan.

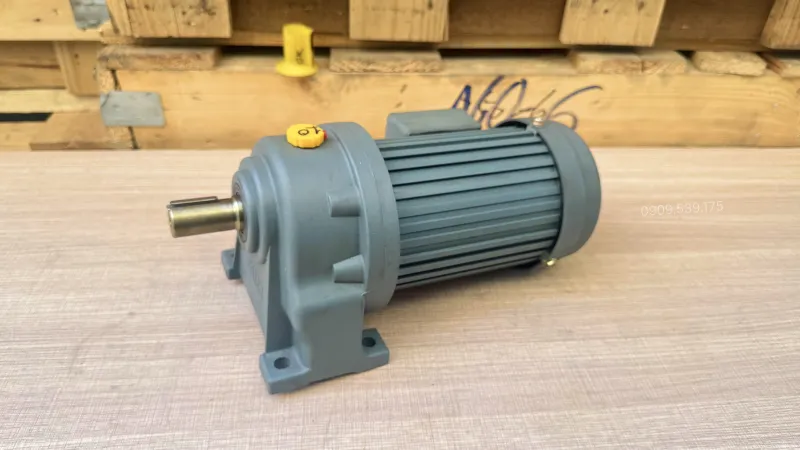

Overview of the 3-Phase Gear Motor 1.5kW 2Hp

The motor body and the reduction gearbox are the 2 components that make up the integral gear motor with an extremely high synchronous mechanical structure. The close connection between the power supply part and the mechanical transmission part creates a closed-loop device that operates durably in various environmental conditions.

• 2 Hp Motor (Gear Motor 2Hp):
  • Function: The electric motor is the core power-generating component of the entire system, responsible for receiving 3-phase AC power and converting it into basic kinetic energy, rotating the magnetic field shaft at a high rated rpm.
  • Design: The outer casing of the 3-phase electric motor is originally cast from aluminum alloy or cast iron (coated with industrial gray paint) for ultra-fast heat dissipation.
• Reduction gearbox (Gearbox):
  • Function: Reduces the motor speed and is coupled with the motor to generate torque.
  • Design: The gearbox protective frame is cast from heavy-duty cast iron, closely enclosing the internal gear transmission system.

Detailed Internal Structure

The 3-phase gear motor 1.5kW 2Hp belongs to the 3-phase gear motor range from 1.1kW to 3.7kW, structured with two main parts: the gearbox and the 3-phase motor. Specifically:

• 3-phase electric motor 1.5kW 2Hp:
  • Rotor: Made of metal heat-treated at high temperatures to increase durability and motor lifespan. This machining technique completely eliminates eccentric runout, helping the machine shaft always rotate coaxially and without squealing noise.
  • Stator: Wound with 100% copper wire. The enamel insulation layer of the copper coil meets Class F heat resistance standards, preventing overcurrents that cause inductor burnouts.
• Gearbox: The gears combine to generate torque and the gear ratio of the reducer. The gear faces undergo a carbon-penetration surface hardening process to maintain smoothness and prevent chipping or breakage due to friction.
• Bearings and oil seals: Arranged with a series of industrial radial load-bearing bearings along both ends of the core shaft. Dust and oil seals are fitted at mechanical gaps to protect the transmission chamber.
• Drive shaft: Machined from solid steel blocks, resisting bending stresses when pulling conveyor chains.

Watch detailed video about the 3-phase gear motor product

Classification of the Gear Motor 1.5kW

According to the mounting type, this power 1.5kW 2Hp gear motor is divided into the 2 basic types below:

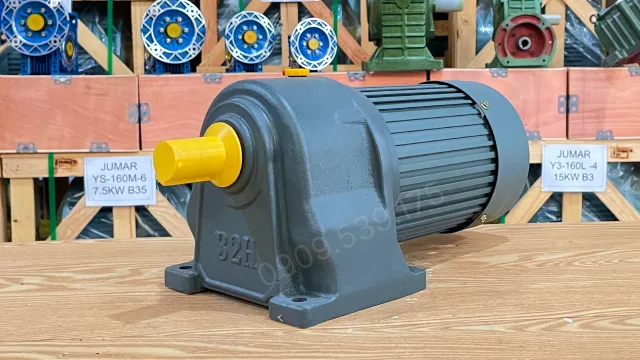

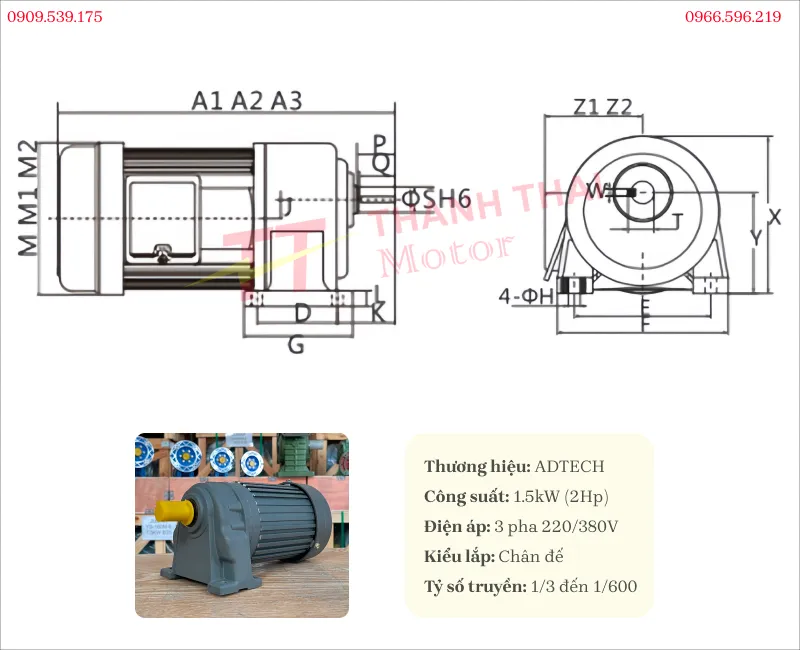

Foot-mounted 3-Phase Gear Motor 1.5kW 2Hp

Technical specifications:

Applications:

• Agricultural industry: Commonly applied in rice conveyor systems, driving grain washing machines, and pulling winches in milling plants.
• Wastewater treatment: Powers chemical agitator systems and oxygenation paddles in ponds and lakes.
• Civil construction industry: Acts as the core power source for cargo elevators and mini cranes specialized in transporting materials upwards.
• Household food industry: Smoothly operates the grinding shaft of sausage meat grinders, high-capacity sugarcane juicers, and automatic rotisseries.

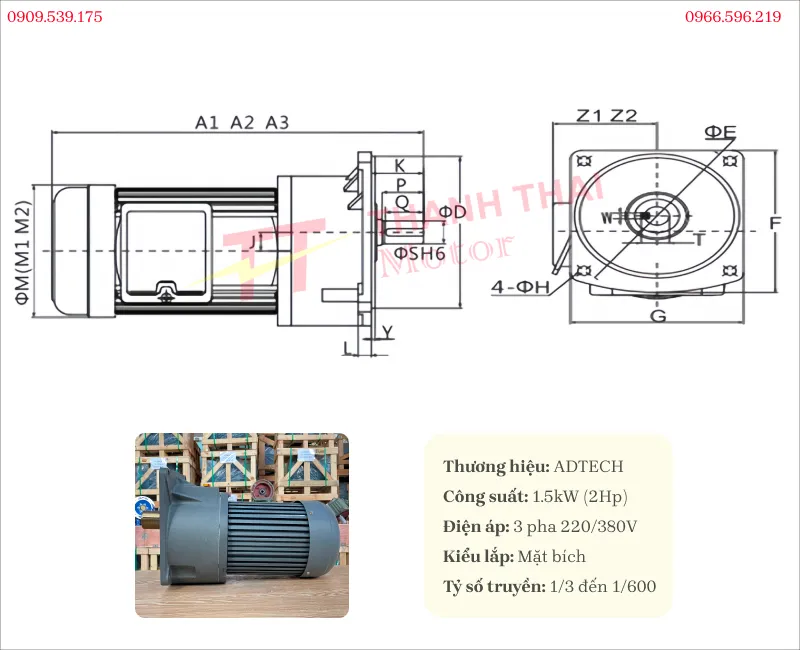

Flange-mounted 3-Phase Gear Motor 1.5kW 2Hp

Technical specifications:

Applications:

• Aquaculture industry: Directly connects to oxygen foaming aeration shaft assemblies and water paddle wheels to create currents in industrial shrimp ponds.
• Light chemical industry: Mounted on top of liquid mixing tanks, evenly stirring paint solutions or medium-viscosity solvents.
• Agriculture & Animal Husbandry: Applied in pellet feed mill systems, shrimp pond water fans, or forestry product processing equipment.
• Basic automation industry: Directly integrated into the turntable system of automatic filling lines, and vertical bucket elevator conveyor systems.

3-Phase Gear Motor Wiring Guide

To set up a safe power grid and optimize performance for the gear motor, Thanh Thai Motor guides you through the following basic, technically standard wiring steps:

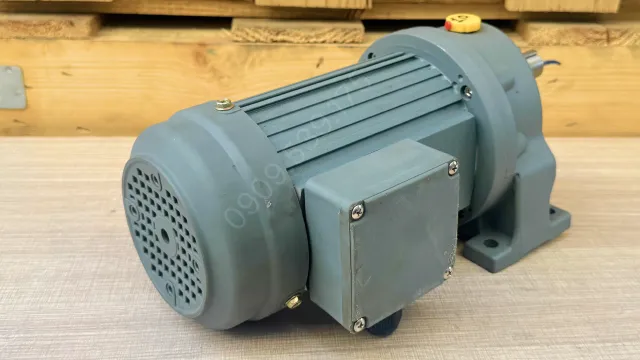

• Remove the contact terminal protection cover: Use a screwdriver to unscrew the screws fixing the terminal box cover on the machine body to reveal the electrical board and internal terminal pins.
• Secure the phase cables: Prepare 3 power wires of the 380V current, then attach and tighten the nuts onto the 3 metal terminal posts labeled U1, V1, and W1 respectively.
• Control overload risks: Absolutely avoid connecting power cables to the U1, V2, and W2 terminal strips. This mistake will directly push the system voltage to 660V, causing a short circuit and instantly burning out the motor.
• Post-assembly inspection: After safely completing the electrical contact points, turn on the power for a test run, check the rotation direction, and evaluate the smoothness of the machine.

With a variety of gear ratios, foot-mounted or flange-mounted designs, and flexible applications in the food, agriculture, wastewater treatment, and automation industries, this gear motor well meets the requirements of continuous operation in industrial environments.

Don’t forget to check out the gear motor video and summary video for a more intuitive view of the product. For any technical inquiries and quotes, Thanh Thai Motor is always ready to assist customers.
