2-Stage UDL 0.8kW – WPDS 70 Gear Motor

The 2-Stage UDL 0.8kW – WPDS 70 Gear Motor is a gear motor combined from two devices: a 2-stage gearbox and a 3-phase electric motor, making it an ideal choice for industrial production lines requiring flexible speed, stable traction, and long-term smooth operation.

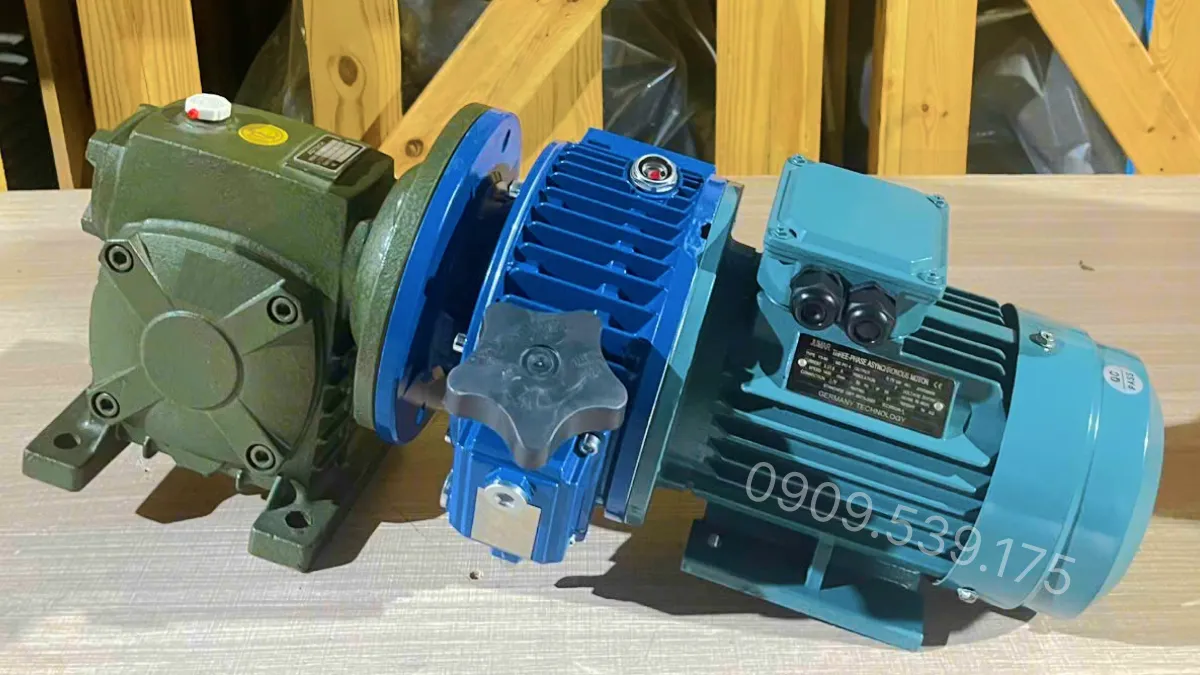

Overall design of the 2-Stage UDL 0.8kW – WPDS 70 Gear Motor

The 2-Stage UDL 0.8kW – WPDS 70 Gear Motor features an integrated monoblock design that significantly reduces power loss and increases operational stability during continuous operation. The motor body and gearbox housing are made of high-quality alloy with an anti-oxidation coating to extend lifespan when working in dusty, humid, or mechanically vibrating environments.

Structure of the 2-Stage UDL 0.8kW – WPDS 70 Gear Motor

The 2-Stage UDL 0.8kW – WPDS 70 Gear Motor is assembled from a 3-phase electric motor 0.8kW 1Hp and a 2-stage gearbox. Its detailed structure is as follows:

Electric motor structure:

• The motor housing features deep cooling ribs to support fast heat dissipation and reduce overheating.
• Precisely cast alloy rotor for smooth operation and vibration reduction.
• Surface-hardened steel shaft to increase load capacity.
• Sealed dust-proof bearings to reduce noise and increase durability.

Gearbox structure:

• 1st stage is a mechanical speed variator, specifically a 0.8kW 1Hp mechanical speed variator that changes input speed using a friction mechanism or gears before transmitting to the next stage.
• 2nd stage is a worm gearbox, specifically the WPDS 70 worm gearbox made of solid, durable cast iron, combined with an electrostatic paint layer to prevent rust.
• Housing, shafts, and lubrication system: Cast iron housing, shafts rotating on bearings; gearbox oil is used for lubrication, friction reduction, and heat dissipation.

Specifications of the 2-Stage UDL 0.8kW – WPDS 70 Gear Motor

Below are the detailed specifications of the UDL 0.8kW – WPDS 70 gear motor

Specifications of 3-phase electric motor 0.8kW 1Hp

Below are the specifications and drawings of the electric motor

Specifications of UDL 0.8kW 1Hp mechanical speed variator

Below is the basic technical information of the mechanical speed variator

Specifications of WPDS 70 worm gearbox

Below are the specifications of the WPDS worm gearbox

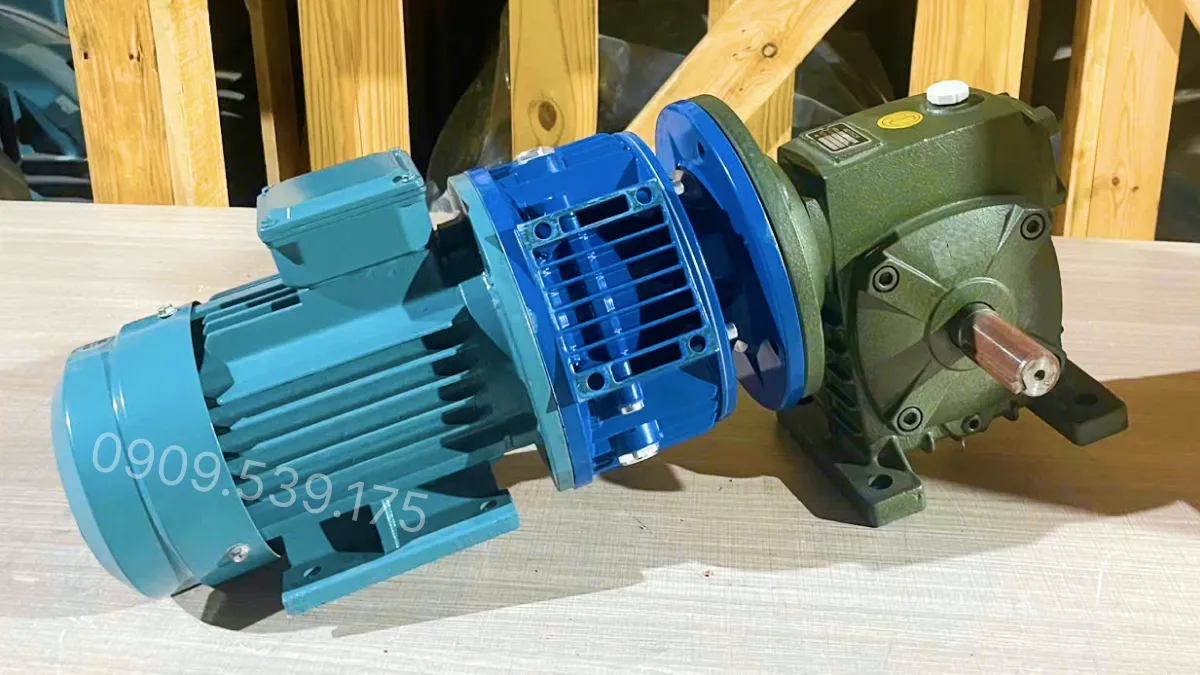

Applications of the 2-Stage UDL 0.8kW – WPDS 70 Gear Motor

• Thanks to its flexible design and high durability, the product is widely applied in:
• Light to medium-duty conveyors
• Agitators and solution mixers
• Screw conveyor feeding systems
• Sorting turntables and operation tables
• Packaging machines, product pushers, and mold-feeding conveyors
• Automation lines requiring flexible speed adjustment

Guide on assembling an electric motor with a WPDS gearbox

Proper assembly is an important factor in increasing equipment lifespan and ensuring stable transmission capability.

• Step 1: Prepare the electric motor and WPDS gearbox at the installation area. Proceed to check the condition of components such as the motor shaft, connecting flange, keyways, and connection details to ensure accuracy before assembly.
• Step 2: Insert the motor shaft into the input position of the gearbox, and align the concentricity between the two parts. Once the positions match accurately, tighten the connection bolts according to technical standards. Check again by manually turning the shaft to ensure smooth movement and no eccentricity.

Gear motor videos produced by Thanh Thai Motor provide a visual overview of the connection process between the electric motor and the gearbox. The content demonstrates operations from equipment preparation, assembly, to final inspection after fixing. This is a useful reference document for technicians, installation units, and customers learning about the structure and correct installation methods of the WPDS gear motor. Viewers can follow more thematic compilation videos at Thanh Thai Motor to update knowledge on equipment operation and maintenance.
