2-Stage UDL 0.37kW – WPDO 60 Gear Motor

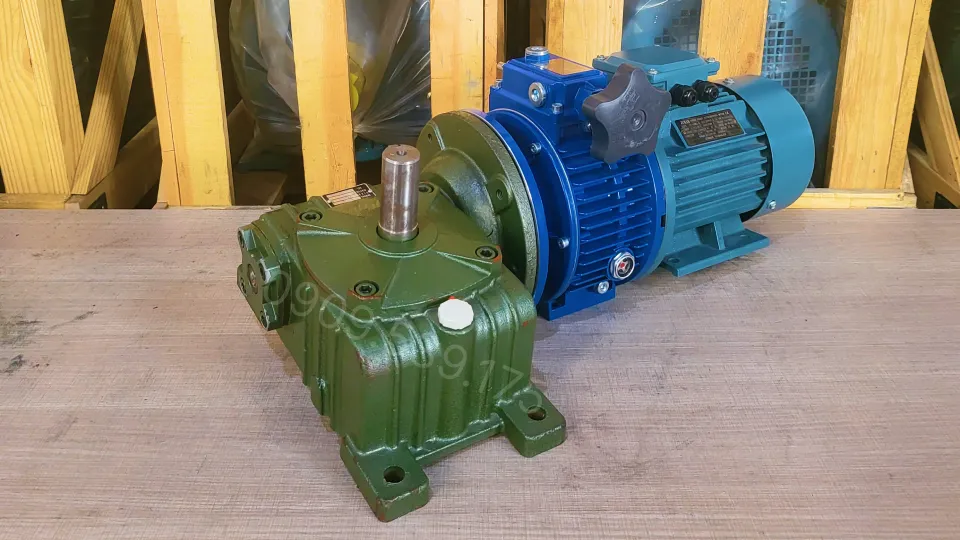

The 2-Stage UDL 0.37kW – WPDO 60 Gear Motor is a gear motor combined from two devices: a gearbox, specifically a 2-stage gearbox combined with an electric motor, specifically a 3-Phase Electric Motor with a compact structure, aluminum alloy housing, and smooth drive mechanism. The UDL allows for continuous speed variation while the machine is running. This makes the equipment suitable for systems requiring quick speed fine-tuning without causing jerks or sudden changes.

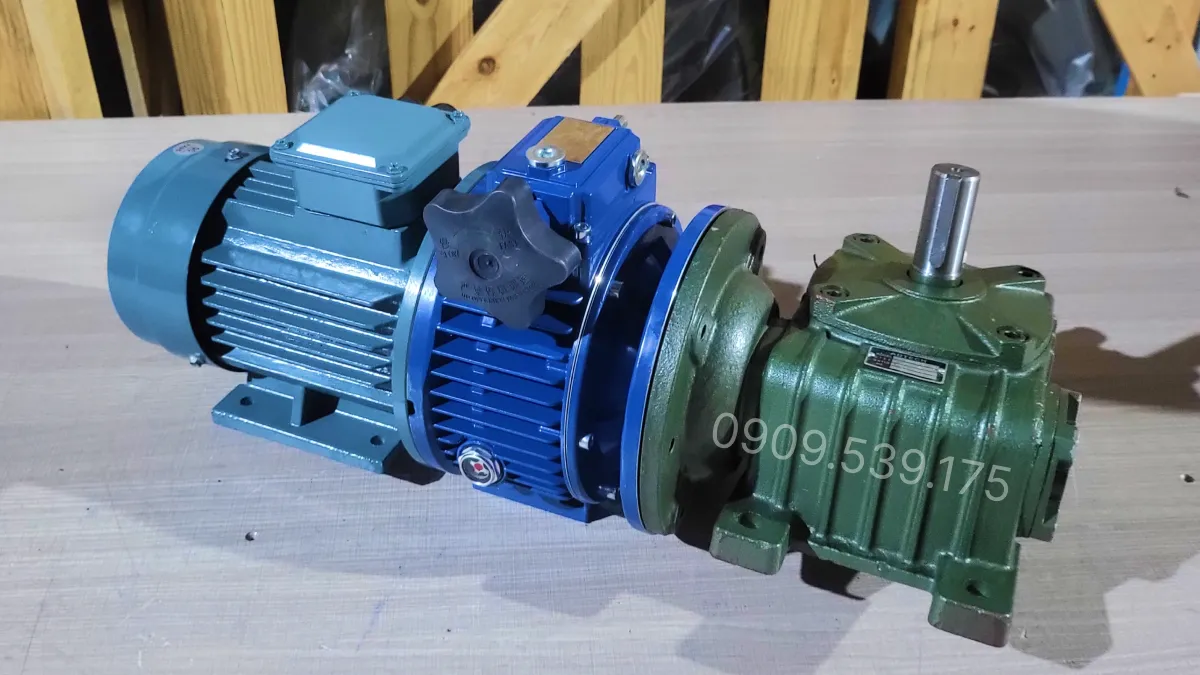

Overall Design of the 2-Stage UDL 0.37kW – WPDO 60 Gear Motor

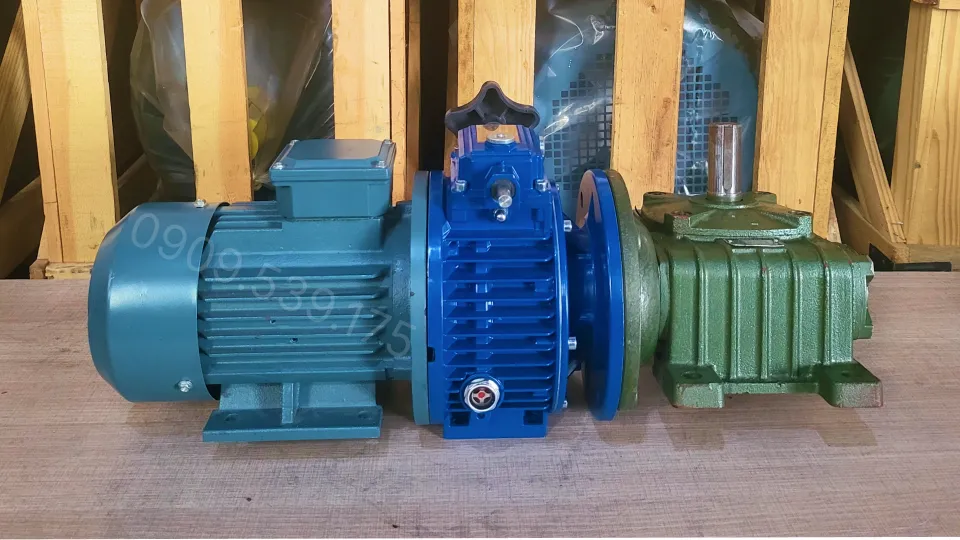

The 2-Stage UDL 0.37kW – WPDO 60 Gear Motor has a compact vertical shape, consisting of two seamlessly connected stages: the UDL mechanical speed variator at the top and the gearbox at the bottom. Overall, the entire assembly forms a balanced, solid unit that is easy to arrange in light-to-medium-duty machinery systems.

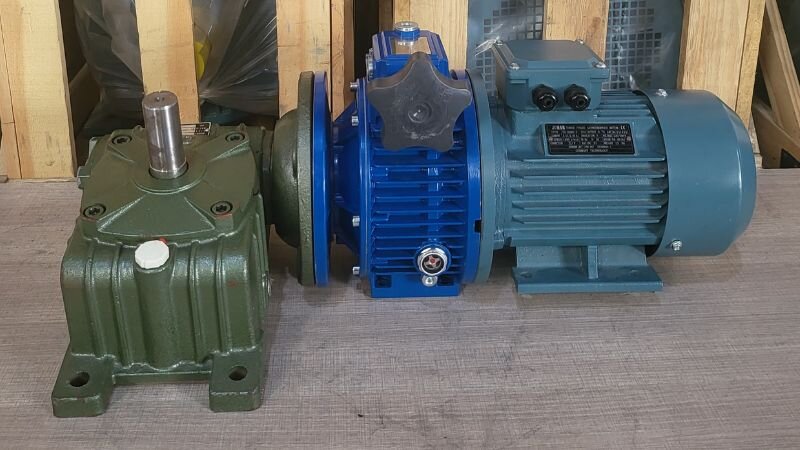

Detailed Structure of the 2-Stage UDL – WPDO Gear Motor

The 2-Stage UDL 0.37kW – WPDO 60 Gear Motor is a type of gear motor constructed from a 3-Phase Electric Motor 0.37kW 0.5Hp assembled with a 2-stage gearbox UDL 0.37kW – WPDO 60 with the following structure:

Electric Motor Structure:

• Spiral cooling fin design increases airflow, ensuring the motor is always cooled effectively.
• Stator consists of a laminated steel core and 3-phase windings creating a rotating magnetic field when powered.
• Aluminum-copper alloy rotor, precision dynamically balanced, operating smoothly and reducing vibration.
• Wear-resistant treated steel shaft, stable when connected to gears, pulleys, or gearboxes.
• Bearings located in a sealed chamber, limiting dust, reducing noise, and increasing lifespan.

Gearbox Structure:

• Stage 1: Mechanical speed variator (UDL), specifically a Mechanical Speed Variator 0.37kW 0.5Hp with a solid alloy housing that withstands vibration well and protects the internal mechanism.
• Stage 2: Worm gearbox, specifically the WPDO 60 worm gearbox with a double-chamber housing helps reduce vibration under heavy loads and limits shock transmission to the outside.
• Multi-thread worm shaft precisely ground, helping transmit force smoothly and increasing mesh accuracy.
• Durable zinc-copper alloy worm gear, highly wear-resistant during continuous operation.
• Dual oil seals prevent leaks, protecting the gearbox in dusty, humid, or high-temperature environments.

Technical Specifications of the 2-Stage UDL 0.37kW – WPDO 60 Gear Motor

Each component in the gear motor assembly is designed with specific technical characteristics to meet the system’s transmission requirements. The section below provides an overview of the technical information for the 2-stage UDL – WPDO gear motor assembly, helping users easily look up and evaluate before use.

Technical Specifications of 3-Phase Electric Motor 0.37kW 0.5Hp

Technical Specifications of Mechanical Speed Variator UDL 0.37kW 0.5Hp

Technical Specifications of WPDO 60 Gearbox

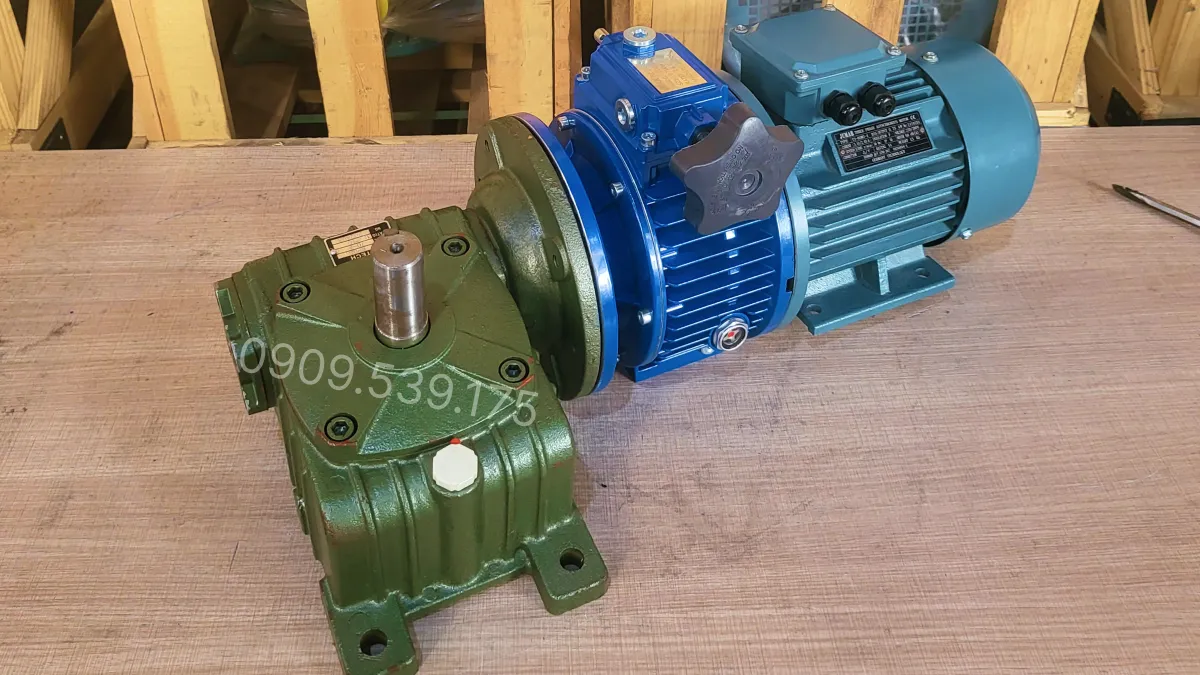

Applications of the 2-Stage UDL 0.37kW – WPDO 60 Gear Motor

Thanks to its flexible speed adjustment capability and stable traction, the 2-stage UDL 0.37kW – WPDO 60 gear motor is suitable for a wide range of light to medium industrial equipment:

• Worktable rotation systems, positioning turntables
• Small conveyors, sorting conveyors, feeding conveyors
• Mini mixers, small-capacity agitators
• Drying rotation equipment, material turning devices in drying systems
• Product pushing mechanisms, automatic packaging machines
• Screw conveyor material dispensing applications

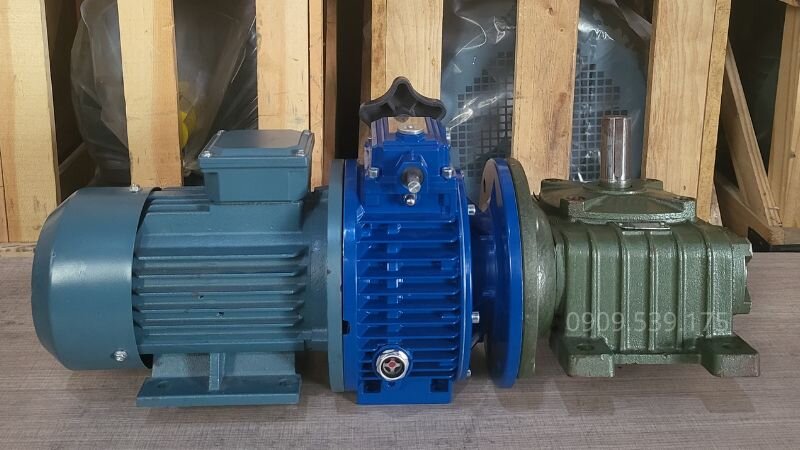

How to Assemble an Electric Motor with a Mechanical Speed Variator and WPDO Gearbox to Form a 2-Stage Gear Motor

To successfully synchronize the drive system into a 2-stage gear motor, users need to understand how to connect the electric motor, stepless mechanical speed variator, and WPDO gearbox. Below is a guide to simple, safe, and standard procedures:

• Step 1: Secure the motor and speed variator: Couple the flange of the 3-phase electric motor to the input section of the UDL B5 mechanical speed variator. Use tightening tools with evenly distributed force to ensure the flange fits completely, avoiding shaft misalignment.
• Step 2: Integrate the WPDO gearbox: Insert the output of the speed variator directly into the input shaft of the WPDO gearbox. Dimension synchronization will make this process easy.
• Step 3: Tighten screws and inspect: Securely fasten the connection bolts on the gearbox flange. At this point, the 3 separate devices have become a solid monolithic assembly, completing the 2-stage motor manufacturing process.

The 2-Stage UDL 0.37kW – WPDO 60 Gear Motor features a high-quality dual oil seal system protecting the entire oil reservoir, ensuring the gearbox is always perfectly lubricated and leak-free in harsh industrial environments.

If you need to view detailed precise dimensions and the actual appearance of the equipment, please watch the gear motor video. The products in the compiled video list will give you more peace of mind when making purchasing decisions for transmission equipment.
