Centrifugal fan bearing 6309

Centrifugal Fan Bearing 6309 is an important component that links the motor to the fan blades, ensuring stable and continuous transmission. With a sturdy design, good load-bearing capacity, and smooth operation, the 6309 bearing helps reduce friction, limit vibration, and enhance the lifespan of the centrifugal fan system.

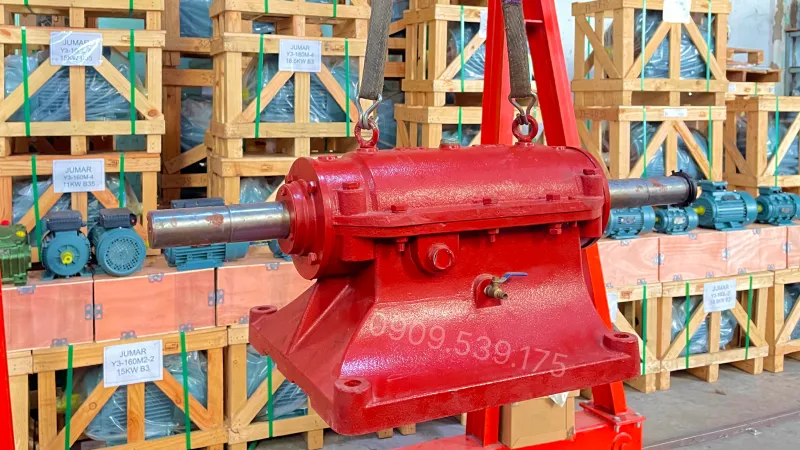

General design of the centrifugal fan bearing 6309

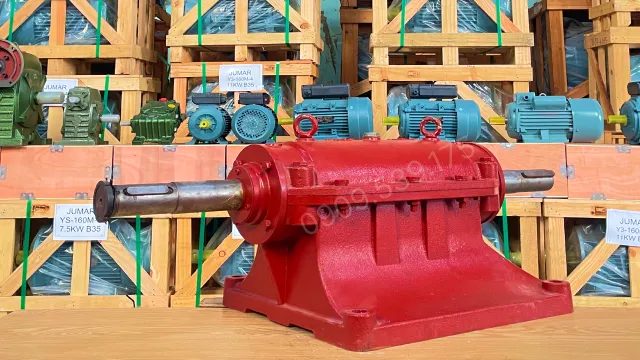

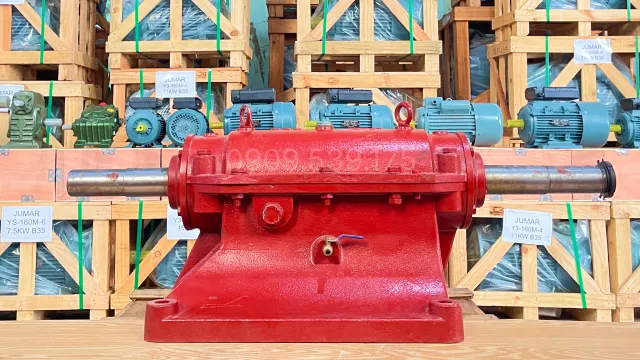

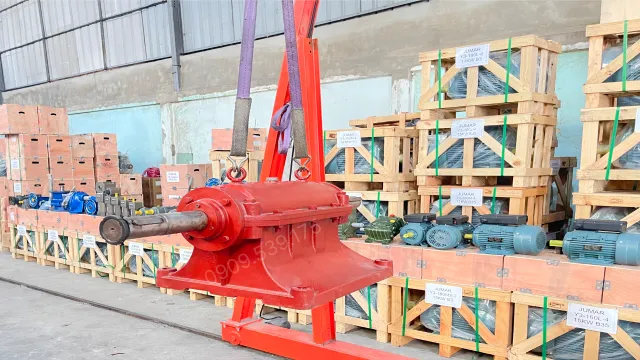

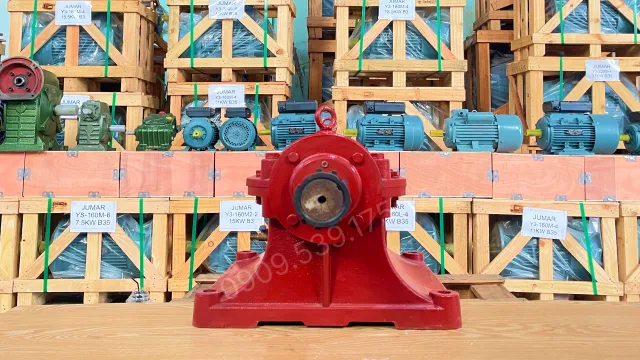

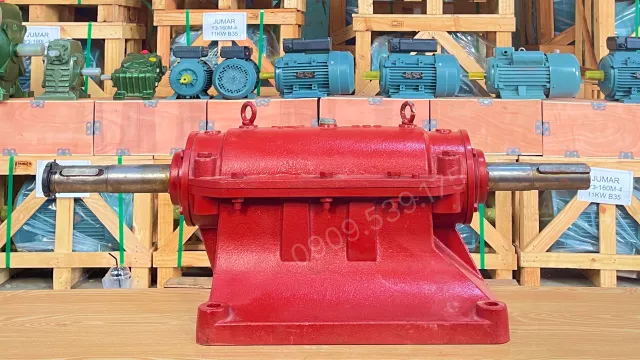

The centrifugal fan bearing has a compact and sturdy design, specialized for connecting the motor and the centrifugal fan blades. The product consists of a heavy-duty cast iron housing, a high-strength steel shaft, an oil-bath bearing, and an oil seal to help ensure stable transmission, reduce friction, and increase durability during continuous operation.

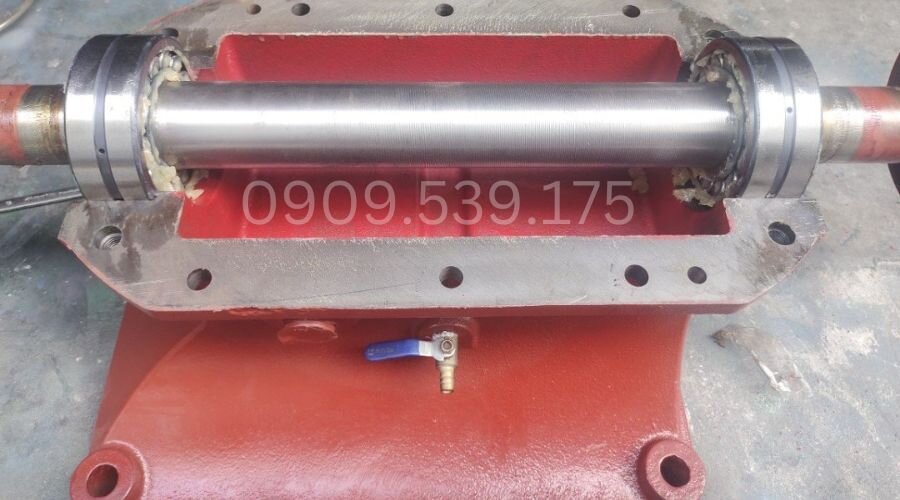

Internal structure of the centrifugal fan bearing 6309

Length of the 6309 bearing: 495mm.

• Bearing housing: Made from high-quality cast iron, offering good load-bearing capacity and deformation resistance during operation.
• Bearing shaft: Uses precision-machined hardened steel, helping to transmit motion stably and limit vibration.
• Dual protective end caps: Designed to shield the bearing, preventing dust, moisture, and impurities from penetrating inside.
• Oil filling and draining ports: Scientifically designed, convenient for adding, changing oil, and periodic maintenance, helping the bearing operate more durably.

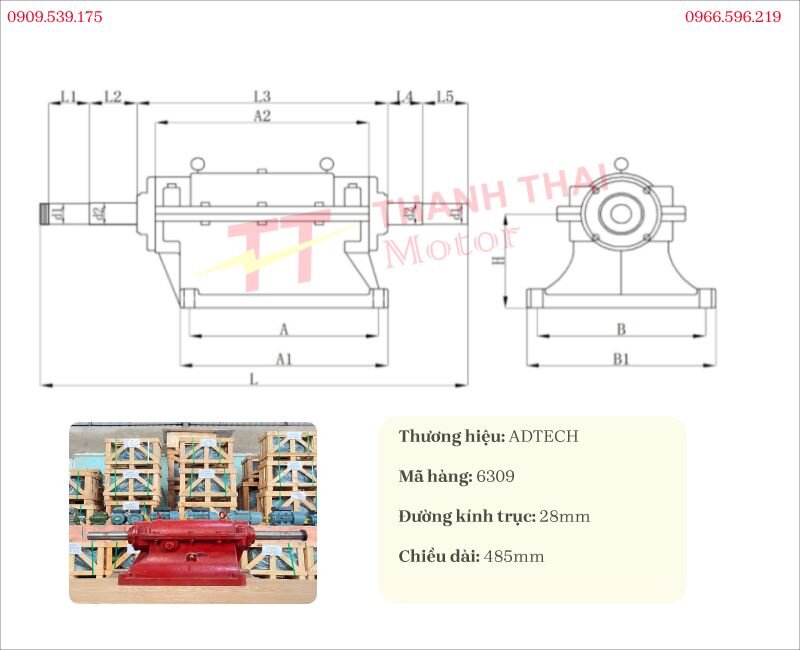

Technical specifications of the centrifugal fan bearing 6309

Below are the specifications of the centrifugal fan bearing 6309:

Functions and applications of the centrifugal fan bearing 6309

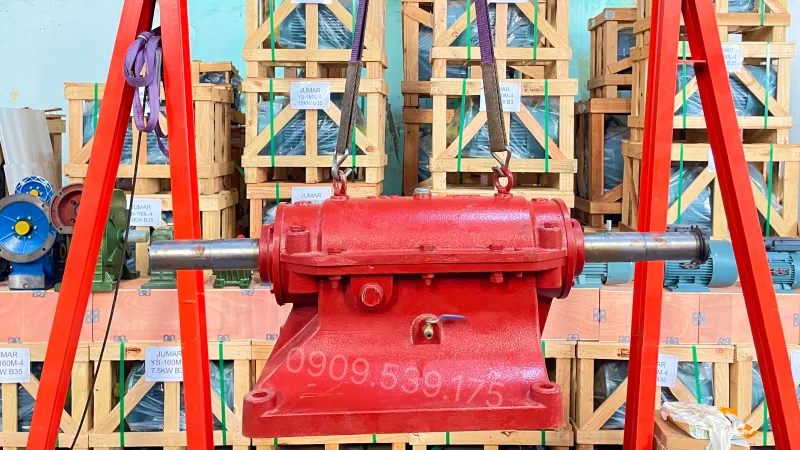

Oil-bath bearing 6309 is also another name for the centrifugal fan bearing 6309, this bearing is a device located between the centrifugal fan and the motor. This bearing is installed when the motor operates in harsh environments, and requires a centrifugal fan to dissipate heat for the motor as well as machinery equipment.

User guide for the centrifugal fan bearing 6309

To use the centrifugal fan bearing 6309, we need to note the following:

• Check compatibility: Before assembly, measure and ensure that the motor shaft size and the centrifugal fan shaft size completely match the specifications of the 6309 bearing. Directly check the tolerance to avoid looseness or being too tight, which can cause shaft binding.
• Clean equipment: Ensure the bearing, ball bearings, and mounting surfaces are clean, free of dirt or rust.
• Determine mounting position: Place the bearing on the support base or fan frame at a flat, sturdy position. The base must be rigid enough to withstand vibration forces when the fan runs.
• Align concentricity: This is an extremely important step. You must align so that the motor shaft and the centrifugal fan shaft lie on the same straight line (concentric). If misaligned, the bearing will wear out quickly and produce loud noise.
• Secure the bearing: Tighten the bolts at the bearing base evenly and securely to fix the position.

Watch Thanh Thai Motor’s centrifugal fan bearing video to learn how to check, maintain, and select the appropriate bearing. Do not miss the compilation video with many practical and easy-to-apply technical contents.
