Centrifugal fan bearing 6314

Centrifugal Fan Bearing 6314 is an indispensable mechanical component in high-capacity industrial air blower systems, playing a crucial role in transmitting smooth and stable motion between the motor and the impeller. Featuring an ultra-durable steel shaft and a sturdy cast iron housing, this centrifugal fan bearing not only withstands heavy loads but also ensures smooth system operation, increasing machinery lifespan.

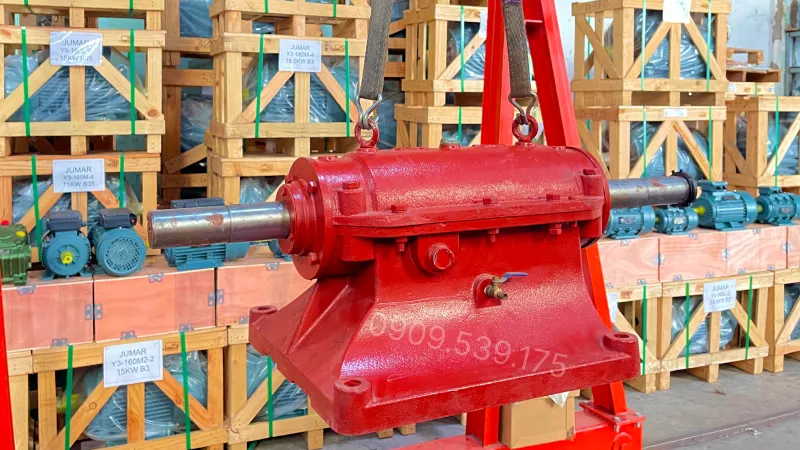

Overview design of Centrifugal Fan Bearing 6314

The Centrifugal Fan Bearing 6314 exudes sturdiness thanks to its thick, monolithic cast iron housing structure. The cast iron surface is usually smoothed and coated with anti-rust industrial paint, helping the equipment resist corrosive agents from harsh external environments.

The bearing shaft is designed to protrude and seamlessly connect from both ends of the motor, forming a unified drive system. On the bearing housing body, manufacturers typically arrange grease fittings in easily accessible positions, providing maximum convenience for technicians during routine maintenance as well as installation with centrifugal fans.

Internal structure of Centrifugal Fan Bearing 6314

Boasting an overall length of 840mm, Centrifugal Fan Bearing 6314 is a precision mechanical assembly that requires perfect coordination among its components. The 6314 bearing consists of the following main structural parts:

Centrifugal Fan Bearing 6314 consists of the following structural parts:

• Bearing housing: Made of high-strength grey cast iron material, possessing excellent vibration absorption capabilities, helping the system run smoothly even at high RPMs.
• Bearing shaft (Drive shaft): Connected across both ends, usually machined from ultra-durable alloy steel (such as S45C or 40Cr), undergoing precise CNC turning and grinding to prevent warping and withstand high torsional forces.
• Bearing system: This is an essential transmission component, closely hugging the shaft inside the housing. High-load bearings help minimize metal friction and maintain stable rotation speed.
• Dust/oil seal: Located at both ends of the bearing, protecting the bearing from industrial dust while retaining the internal lubricating grease from leaking out.

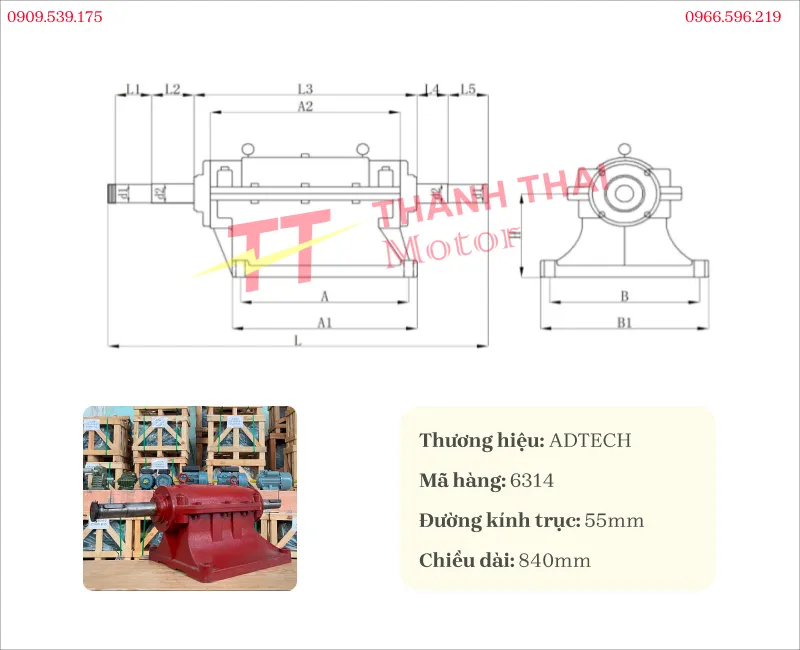

Technical specifications of Centrifugal Fan Bearing 6314

Understanding the technical specifications is the most important factor for synchronized installation of air blower systems. Below is the basic specification table for the 6314 bearing model:

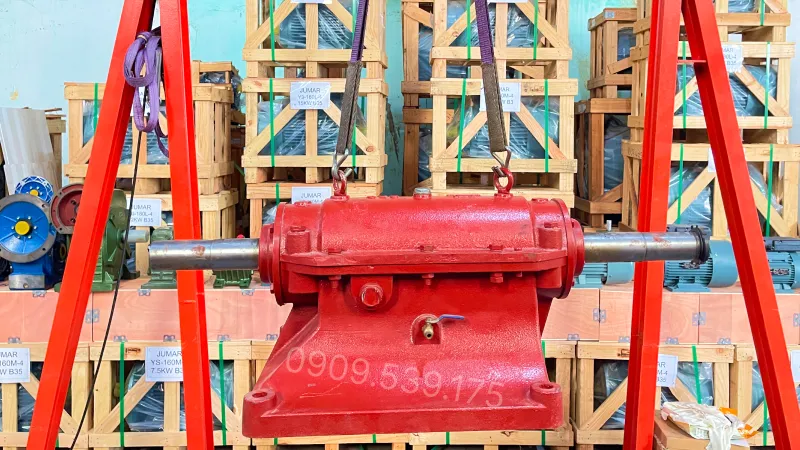

Applications and functions of Centrifugal Fan Bearing 6314

The 6314 air blower bearing is frequently applied to high-capacity fan systems (typically over 3.7kW) such as: factory dust collection fans, mine ventilation fans, exhaust gas extraction systems, industrial boilers, or agricultural drying lines.

The main function of this bearing assembly is to provide a solid mechanical connection between the motor and the centrifugal impeller. When the motor operates, the bearing is responsible for receiving and transmitting torque, rotating along with the motor and causing the centrifugal fan to rotate smoothly. In addition, the bearing plays a role in bearing the entire load (the weight of the impeller assembly) and distributing radial forces, helping protect the motor shaft from being overloaded or fractured.

Instructions for using Centrifugal Fan Bearing 6314

To ensure performance and lifespan for the industrial fan system, when installing and using Centrifugal Fan Bearing 6314, you need to pay close attention to the following technical issues:

• Synchronized parameter selection: Ensure selecting a bearing with a shaft diameter (55mm) that is completely compatible with the motor pulley specifications and the centrifugal fan’s shaft journal.
• Concentric alignment: Choose an installation location with a flat surface and a sturdy U/I-steel or concrete base structure. A dial indicator or laser device must be used to achieve absolute concentric alignment between the motor shaft and the bearing shaft, minimizing deviations as much as possible.
• Lubrication inspection before running: Before powering on, check whether the bearing has been sufficiently pumped with heat-resistant lubricating grease. Manually rotate the shaft to check for any jamming or abnormal squeaking noises.
• Operation: When the motor is powered, the motor rotates, causing the motor shaft to turn accordingly, transmitting motion via V-belts or couplings to operate the bearing, thereby driving the centrifugal fan to blow air. Always monitor the temperature of the bearing housing during the initial trial run period.

Centrifugal Fan Bearing 6314 ensures powerful and harmonious force transmission between the motor and the centrifugal impeller. With a sturdy cast iron housing structure, an alloy steel shaft with a diameter of 55mm optimizing durability, and a smooth-running bearing transmission system, the 6314 bearing model from the ADTECH brand perfectly meets heavy-duty industrial fan systems with capacities from 3.7kW and above.

If you are hesitating between various models, the centrifugal fan bearing video and summary video will help you visually evaluate designs, dimensions, and select the right product.
