3-Phase Water Pump 2.2kW 3HP

The 3-Phase Water Pump 2.2kW 3HP is a modernly designed water pump (motor water pump), commonly used in factories with sufficient power for agricultural and forestry irrigation systems. Below, Thanh Thai Motor will share more with you about this water pump line

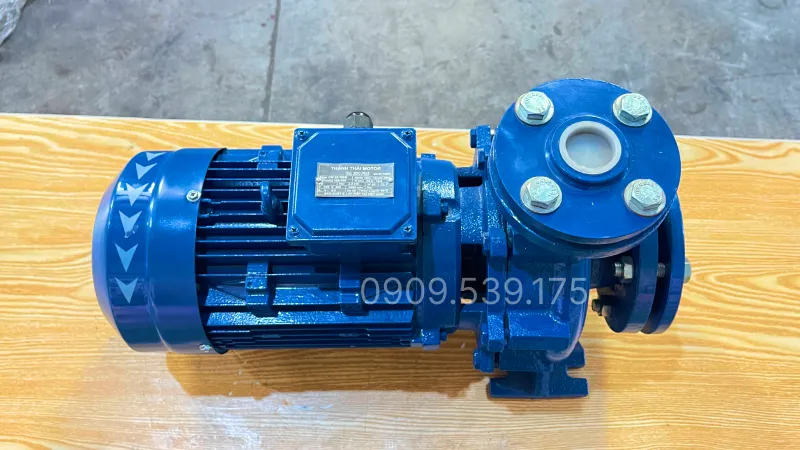

General Design of the 3-Phase Water Pump 2.2kW 3HP

The 3-phase water pump (3-phase motor water pump) belongs to the centrifugal water pump line, consisting of 2 main parts: the pump head and the pump body which is an electric motor (electric motor), specifically a 3-phase electric motor (3-phase electric motor):

• The 3-phase electric motor 2.2kW 3HP (3-phase electric motor 2.2kW 3HP) is made of aluminum or cast iron depending on customer requirements.
• The pump head is an important part of the water pump, responsible for drawing water from wells, ponds, and lakes and discharging it upward.

Structure of the 3-Phase Water Pump 2.2kW 3HP

Motor (3-Phase Motor)

• Stator: The stationary part assembled from slotted electrical engineering steel sheets, wound internally with heat-resistant copper coils. The 3-phase 380V alternating current enters to create a rotating magnetic field.
• Rotor: The rotating part located inside the Stator, cast from aluminum or copper bars to form a squirrel cage, responsible for rotating when the magnetic field sweeps across.
• Motor Casing: Usually made of aluminum or cast iron, with heat dissipation fins to cool the motor during operation.
• Cooling Fan and Cover: Located at the rear of the motor to circulate cooling air; terminal box for connecting the 3-phase power source.

Pump Head

• Impeller: The part that transmits kinetic energy to the water, usually made of brass, cast iron, or stainless steel. The impeller is mounted directly onto the motor shaft.
• Pump Chamber: The outer casing of the impeller, usually cast in cast iron or stainless steel. The pump chamber design features a suction port and a discharge port to direct the water flow.
• Pump Shaft: A steel or stainless steel rod extending from the Rotor to the pump head to transmit rotational force from the motor to the impeller.
• Mechanical Seal: Seals the gap between the motor section and the pump head, preventing water from leaking into the motor and causing short circuits/burnouts.
• Bearings: Support smooth shaft rotation, reducing friction and vibration when the machine operates at high speeds.

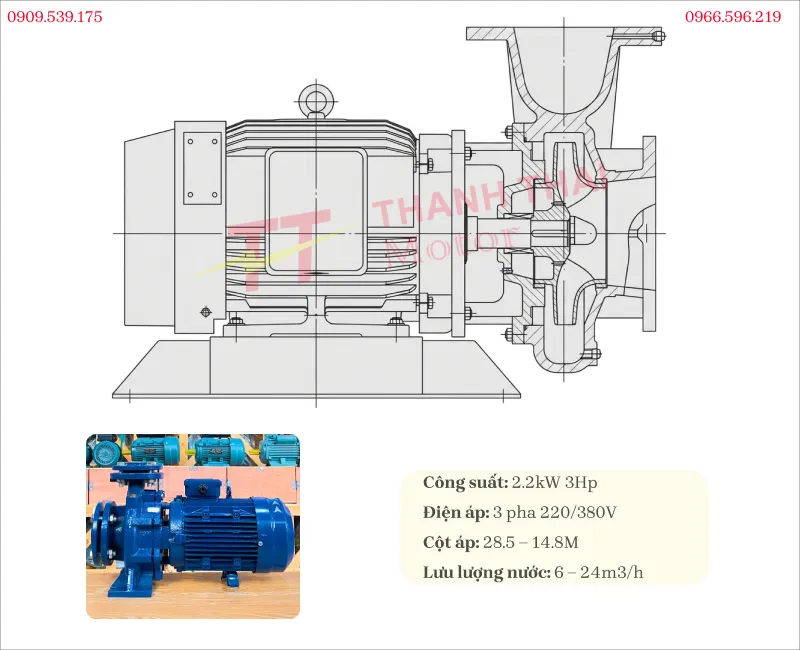

Technical Specifications of the 3-Phase Water Pump 2.2kW 3HP

The 3-Phase Water Pump 2.2kW 3HP features a compact design, suitable for medium-scale civil, agricultural, and industrial water pumping systems. Below are the main technical specifications of the product.

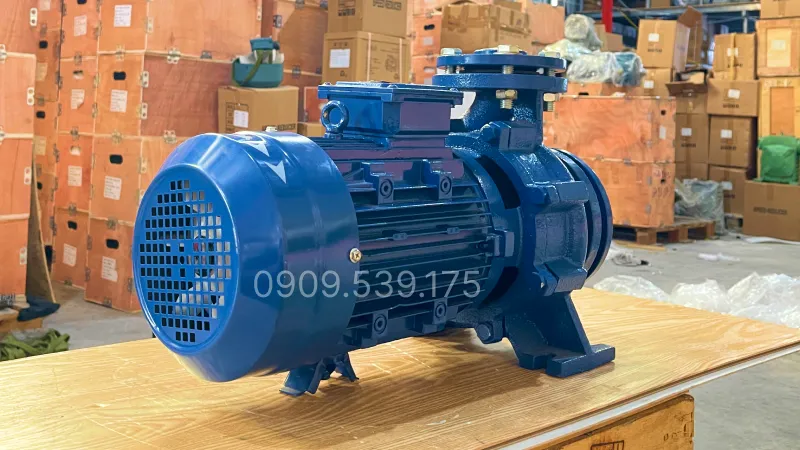

Applications of the 3-Phase Water Pump 2.2kW 3HP

The 3-Phase Water Pump 2.2kW 3HP, abbreviated as the 3HP Water Pump, is widely used in all industrial and agricultural fields such:

• Pumping water for garden irrigation: rubber, coffee, pepper, etc.
• Pumping water to storage tanks and reservoirs.
• Pumping water for industrial factories.

The 3-Phase Water Pump 2.2kW 3HP is a water pumping device with a compact design and stable operation, suitable for various irrigation, water supply, and production systems. You can refer to the water pump video shared by Thanh Thai Motor to better understand the actual operating performance of the product. In addition, the comprehensive video category also updates many pump lines with diverse capacities, supporting the selection of equipment suitable for each usage need.

Warranty, Shipping, and Commitment Policy when purchasing water pumps at Thanh Thai Motor

Up to 24-month warranty for water pumps

All water pump lines supplied by Thanh Thai Motor come with an official warranty of up to 24 months. We are committed to providing fast, transparent, and professional warranty support – ensuring complete peace of mind for customers during use.

Nationwide Delivery – Fast and Secure

We offer nationwide delivery, ensuring that pumps are carefully transported and delivered on schedule to customers in all provinces and cities across the country. From Hanoi, Da Nang to Ho Chi Minh City or industrial zones – Thanh Thai Motor is always ready to serve.

Advanced Technology – European Standard

All water pump lines at Thanh Thai Motor are manufactured with German technology, meeting European standards, ensuring high durability, stable operation, power saving, and suitability for many demanding environments such as construction sites, agriculture, manufacturing plants, etc.

Competitive Prices – Attractive Offers for Dealers, Wholesale Customers

We offer reasonable and the most competitive prices in the market. We also have a high discount policy for bulk purchasers, project customers, and long-term distribution partners.

Quality Commitment – Powerful Pump, Energy Saving

All pumps are constructed with 100% copper windings, ensuring powerful operation – low power consumption – minimal vibration – less heating, smooth and durable performance over time. Thanh Thai Motor only sells genuine products – we say no to counterfeit and low-quality goods.

Full CO, CQ Certificates

Each product comes with a Certificate of Origin (CO) and a Certificate of Quality (CQ) – fully meeting the requirements for construction projects, acceptance documents, and engineering projects.
