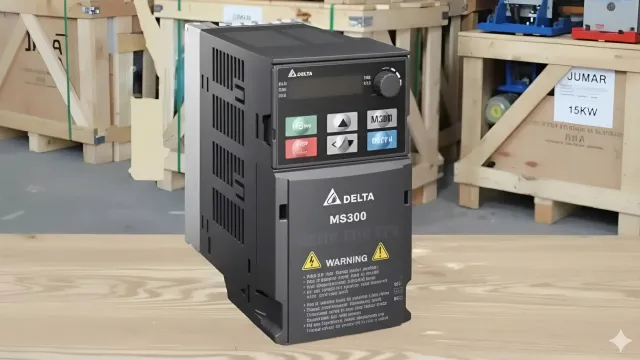

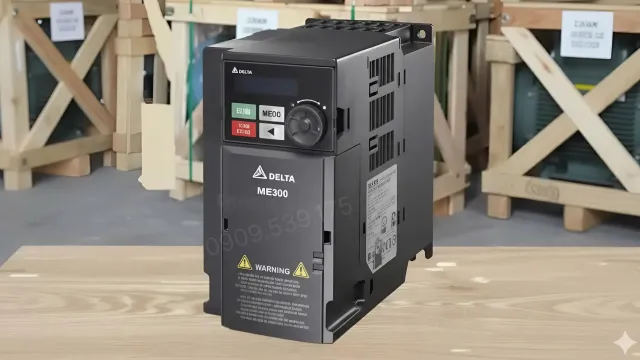

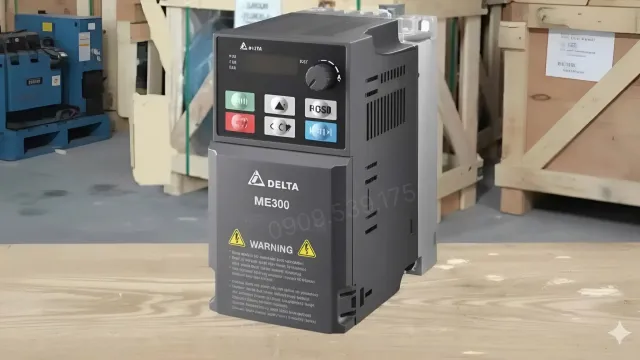

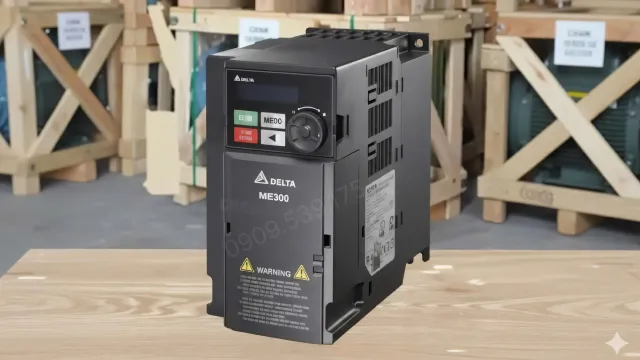

Delta Variable Frequency Drive 22kW

The Delta Variable Frequency Drive 22kW is a high-capacity electric motor control device, developed to meet continuous, stable, and efficient operation requirements in industrial environments. This inverter product can precisely adjust the speed, torque, and rotation direction of the motor. The 22kW Delta Variable Frequency Drive line is an ideal choice for businesses looking to enhance operational efficiency and reduce long-term operating costs.

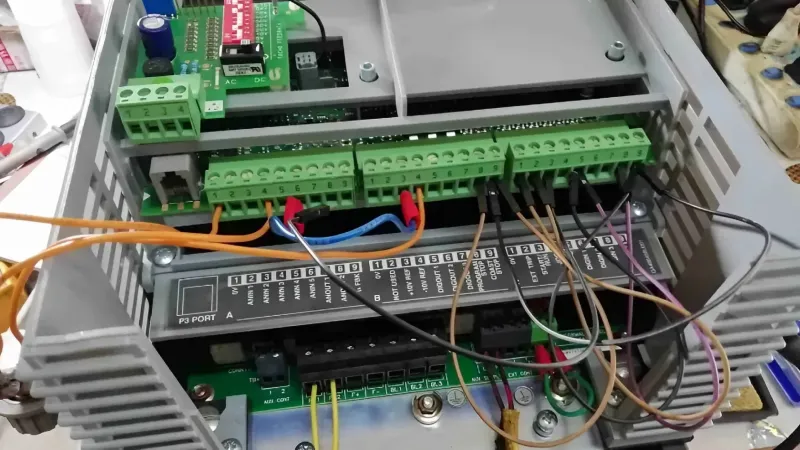

General design of the Delta Variable Frequency Drive 22kW

Delta variable frequency drives over 10kW are modernly designed with a sturdy structure, meeting industrial standards for durability and safety. The outer shell uses flame-retardant and dust-resistant materials, ensuring stable operation in harsh working environments such as factories, production workshops, or industrial zones with high humidity and dust.

The front panel of the drive is equipped with a clear LED or LCD display showing operating parameters, along with a control keypad that allows users to easily set, monitor, and adjust technical specifications. The cooling section is scientifically arranged with a high-capacity cooling fan, helping to quickly reduce temperature and maintain stable working performance over a long period, suitable for various types of motors in heavy industrial applications.

Structure of the Delta Variable Frequency Drive 22kW

Variable frequency drives over 10kW include the following main parts:

• Control circuit: The processing center of the variable frequency drive, responsible for monitoring and adjusting operating parameters such as frequency, voltage, and current to ensure the drive operates stably, accurately, and matches load requirements.
• Rectifier: Performs the task of converting alternating current (AC) from the power supply into direct current (DC) through a system of semiconductor diodes. This is the first step in the power conversion process of the variable frequency drive.
• Inverter: After being stabilized through filter capacitors, the direct current is converted back into alternating current with adjustable output frequency and voltage. This component uses power components like IGBTs to control motor speed and torque according to operational requirements.

Technical specifications of the Delta Variable Frequency Drive 22kW

The Delta Variable Frequency Drive 22kW is an industrial variable frequency drive used to control 3-phase motor speeds, ensuring stable operation, energy savings, and meeting various applications thanks to its wide output frequency range.

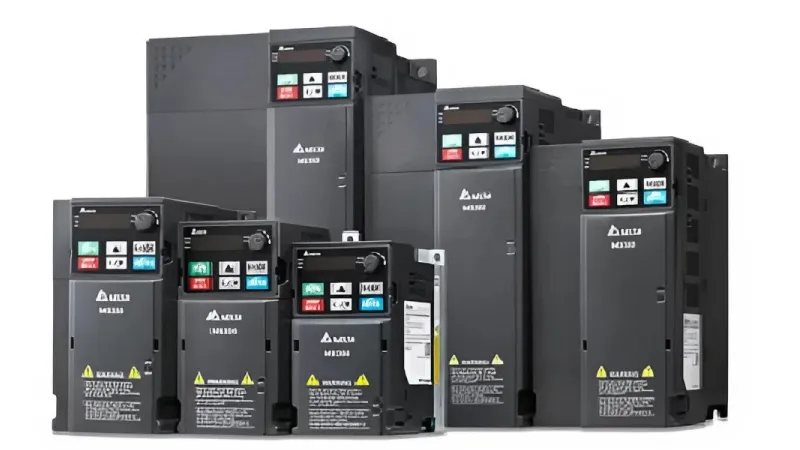

Common applications of the Delta Variable Frequency Drive 22kW

The Delta Variable Frequency Drive 22kW is applied in various industrial and infrastructure fields due to its flexible control capability and energy savings. Some typical applications include:

• Motor speed control: Helps flexibly adjust the operating speed of devices such as industrial fans, air compressors, etc., thereby reducing electricity consumption and extending machine lifespan.
• Elevator systems: Acts to control smooth movement, limiting vibration during start-up and stopping, providing safety and comfort for users.
• Water supply systems: Applied in pumping stations, smart irrigation systems – supporting water flow adjustment according to actual demand, reducing waste and increasing operational efficiency.
• Ventilation and air filtration: Optimizes the operation of ventilation fans, smoke extraction systems, or air conditioning in workshops and large buildings, contributing to improving the working environment.

User guide for the Delta Variable Frequency Drive 22kW

Below is a basic guide to using the Delta Variable Frequency Drive 22kW safely and effectively:

• Read technical documents carefully: Before operation, thoroughly consult the user manual included with the product to clearly understand functions, parameters, and wiring diagrams.
• Install in the correct position: Place the variable frequency drive in a dry, well-ventilated area, avoiding humid environments or those with dust, grease, and do not place it near heat sources or direct sunlight.
• Set operating parameters: Use the control panel or dedicated software to configure parameters such as frequency, voltage, starting current, and control modes suitable for each specific motor and application.
• Do not disassemble arbitrarily: Avoid tampering with internal components without technical training to ensure safety and prevent damage.
• Periodic maintenance: Check the cooling fan, clean the heatsink, tighten terminals, and observe error warnings to maintain performance and extend device lifespan.

What devices can the Delta Variable Frequency Drive 22kW be combined with?

The Delta Variable Frequency Drive 22kW can be combined with many devices using 3-phase 22kW (30Hp) motors for speed control, soft starting, energy saving, and motor protection. Some common devices include:

• 3-phase 22kW 30Hp electric motor: Flexibly adjust rotation speed according to production needs.
• 22kW 30Hp brake motor: Suitable for lifting systems, overhead cranes, and winches requiring precise stopping.
• 22kW 30Hp explosion-proof motor: Applied in environments with explosion risks such as chemicals, petroleum, and mining.
• 22kW 30Hp gear motor: Controls speed and torque for conveyors, mixers, and agitators.
• 22kW 30Hp industrial fan: Adjusts air volume and reduces electricity consumption.
• 22kW 30Hp water pump: Controls flow rate and pressure according to actual demand, limiting water hammer phenomena.
• 22kW 30Hp vacuum pump: Maintains stable vacuum pressure and optimizes working performance.

The Delta Variable Frequency Drive 22kW is a suitable solution for industrial systems requiring large-capacity motor control, stable operation, and optimized electricity usage efficiency. To learn more about various models from the same brand, you can follow the summary video shared by Thanh Thai Motor. At the same time, the inverter video will help you refer to additional information about features, characteristics, and applications of Delta variable frequency drive lines in practice.

Purchasing Policy and Commitment at Thanh Thai Motor

Extended 24-Month Warranty

All VFDs (VFD cabinets or VFD units) supplied by Thanh Thai Motor are from renowned Chinese VFD manufacturers and come with an official warranty of up to 24 months. We are committed to providing absolute peace of mind with transparent, fast, and dedicated after-sales service.

Nationwide Door-to-Door Delivery

No matter where you are in Vietnam, we ensure that products are delivered to you quickly, safely, and on time, without geographical limitations.

European Standard Quality, German Technology

Thanh Thai Motor's 1-phase 220V VFDs or 3-phase 220V/380V VFDs are manufactured using advanced German technology and strictly meet European quality standards. This ensures the equipment has superior durability and stable operation over a long period, suitable for industrial VFD products.

Competitive Pricing, Discounts for Partners and Bulk Orders

We always offer reasonable VFD prices for 1-phase or 3-phase VFDs, along with many attractive discount policies exclusively for dealers and bulk buyers with the most affordable VFD prices. The more you buy, the higher the discount, helping to optimize your profit.

Complete, Transparent Documentation (CO, CQ)

Each VFD is provided with a full Certificate of Origin (CO) and Certificate of Quality (CQ). These documents are clear proof of origin and quality, providing absolute confidence to customers when purchasing VFDs for projects requiring technical documentation.

Are you looking for the most suitable motor VFD for your system? Do not hesitate to contact Thanh Thai Motor immediately through the following channels:
