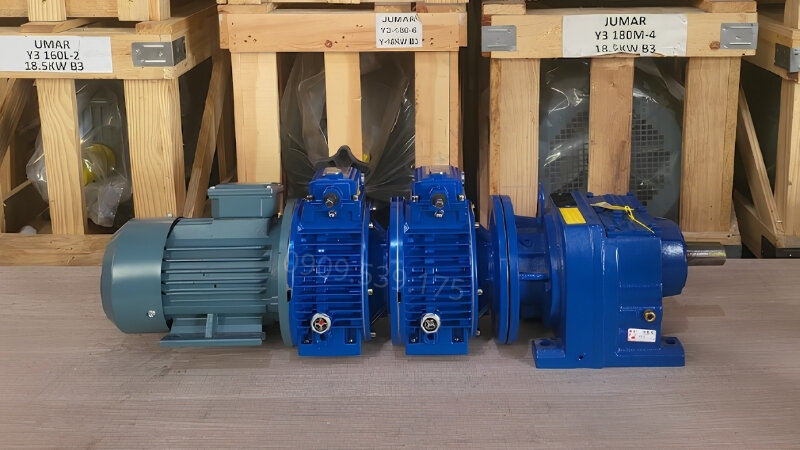

Heavy Duty R-Series Inline Helical Gear Motors are gear motors designed with an output shaft aligned with the motor shaft, enabling direct, efficient power transmission and saving installation space. Thanks to their robust helical gear structure, R-series inline gear motors are capable of handling heavy loads, providing high torque, and operating stably under continuous working conditions. This line of heavy duty R-series inline helical geared motors is particularly suited for heavy industrial applications such as high-capacity conveyors, agitators, mixers, and production lines requiring high durability and performance.

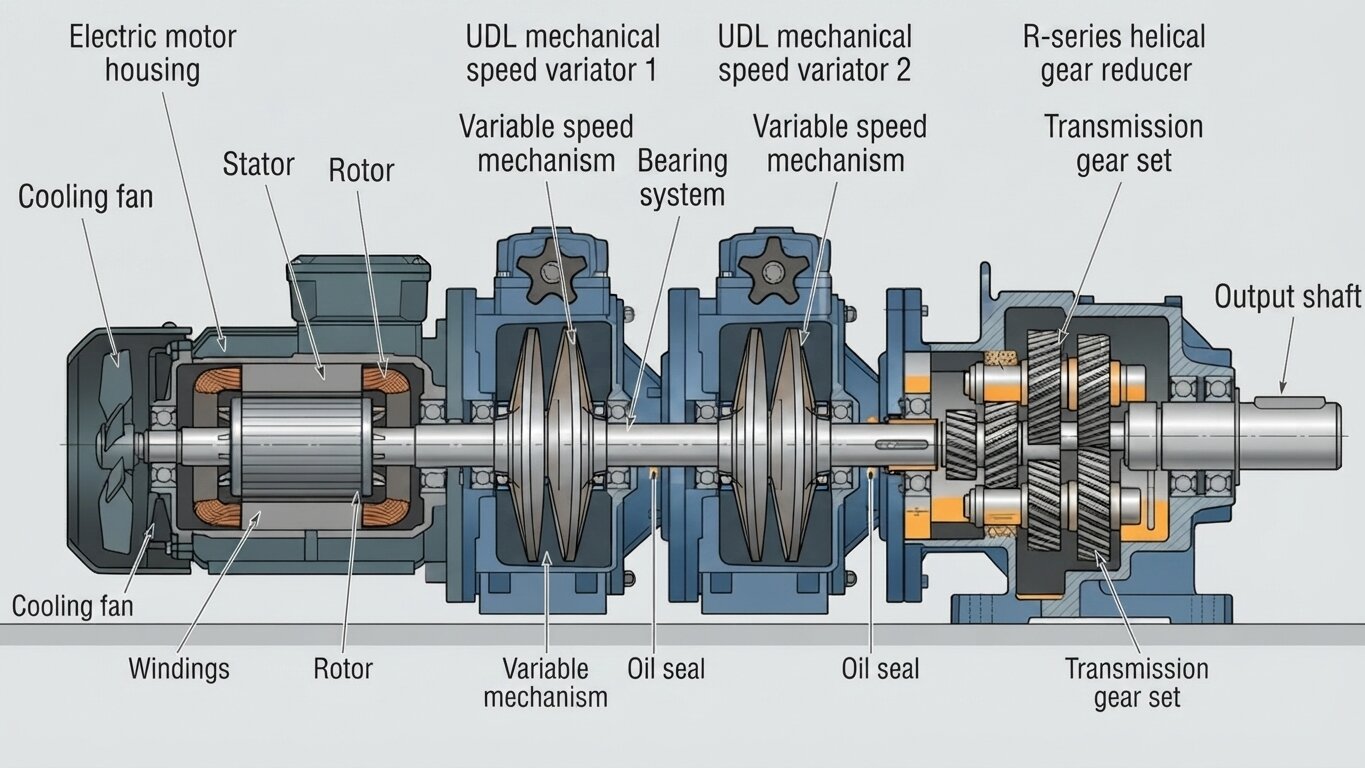

R-series inline helical gear motors are industrial power transmission equipment featuring an inline output shaft design, ensuring efficient power transmission, stable operation, and suitability for various machinery systems. The equipment’s structure is optimized to ensure high durability and continuous operation in industrial environments.
R-series inline helical gear motors operate based on the mechanism where an electric motor generates initial rotational movement, which is then transmitted into the coaxial gearbox system. Here, successive meshing gear pairs reduce the rotational speed according to the pre-designed transmission ratio while increasing torque to meet the working load.
After passing through the gearbox, the movement is transferred to the inline R-shaft to directly drive the equipment. Thanks to the coaxial structure, the power transmission process occurs stably, reducing vibration, minimizing energy loss, and making it suitable for continuous industrial operation systems.
Heavy Duty R-Series Inline Helical Gear Motors are classified based on power source, capacity, and operational requirements to meet diverse applications in industrial drive systems.

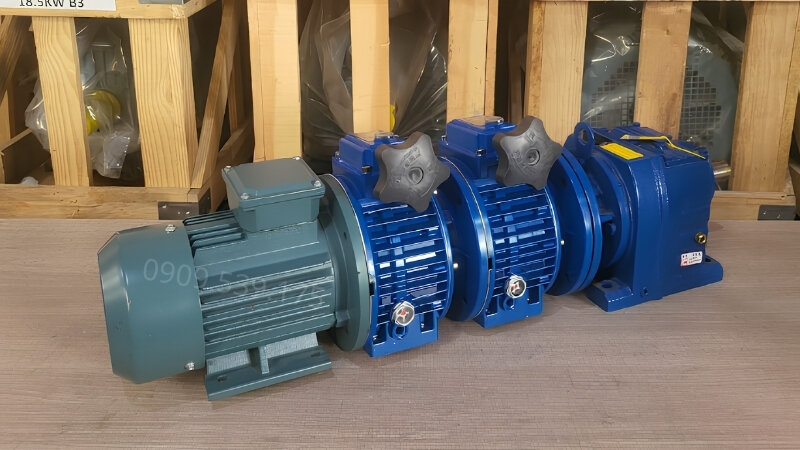

3-phase heavy duty R-series inline helical gear motors use a 3-phase power supply, suitable for industrial applications requiring large loads and continuous operation times. This motor line delivers stable working performance, high load capacity, and good durability, making it ideal for installation in factories, industrial zones, and automated production lines.

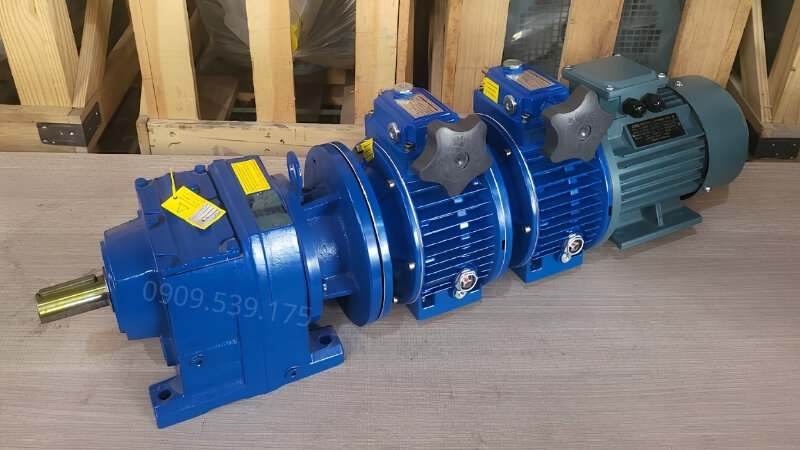

Heavy duty R-series inline helical gear motors under 1.1kW are suitable for systems with moderate loads, small to medium scales, and limited installation space. This equipment line ensures stable transmission capabilities, energy savings, and meets basic industrial applications well.
Heavy duty R-series inline helical gear motors from 1.1kW to 3.7kW belong to the medium power group, effectively meeting common industrial applications. This equipment line features high torque, durable and stable operation, and is frequently used in conveyors, agitators, mixers, and continuous transmission systems.
Below is the price list for heavy duty R-series inline helical gear motors at Thanh Thai Motor with various power ranges, mounting styles, and gear ratios, suitable for conveyor systems, lifting equipment, and heavy-load industrial machinery.
For heavy duty R-series inline helical gear motors to operate stably and achieve high durability, customers should pay attention to several important points during installation and usage:
Customers can also refer to the gear motor video collection summary to observe a variety of product lines in practice, thereby easily grasping installation, operation, and selecting the right model to suit your usage needs.
Because the parallel shaft design provides stable power transmission, reduces vibration, increases durability, and is suitable for continuous running in industrial environments.
They may get slightly warm during continuous operation, but excessive heat is usually caused by overloading or insufficient gearbox lubrication.
R-series inline motors use cylindrical gears for better load capacity and stronger power transmission, whereas NMRV uses worm gears suitable for lighter loads and quieter operation.
