ZQ 1000 Gearbox (Size 1000) – Output Shaft 150mm | Load 70-100 Tons

The ZQ 1000 Gearbox is the largest mechanical transmission gearbox in the standard JZQ/ZQ series. Built to operate durably for 20-30 years, the ZQ 1000 plays a vital role in heavy industrial production lines, where downtime can cost billions of VND per hour.

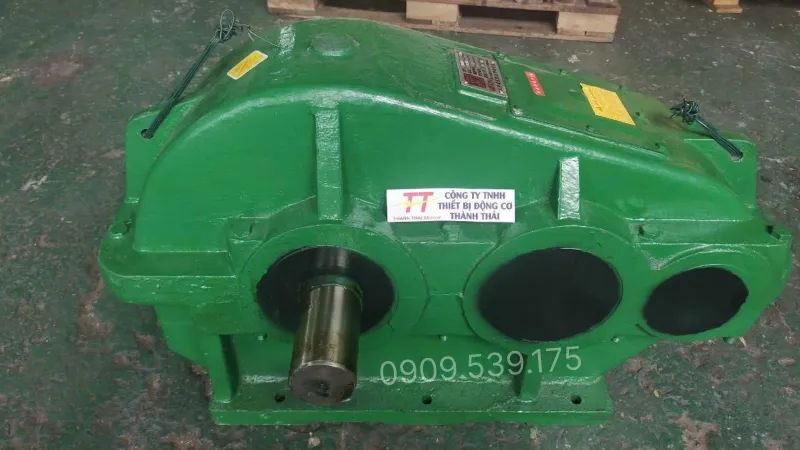

General design of the ZQ 1000 Gearbox

The ZQ gearbox is a heavy-duty industrial gearbox system utilizing a 2-stage helical gear transmission. It features a center distance of 1000 mm between the input and output shafts. Specially designed for winches and overhead cranes, it effectively reduces motor speed and increases torque.

Structure of the heavy-duty ZQ 1000 Gearbox

The ZQ 1000 Gearbox is a heavy industrial device used to reduce rotational speed and increase torque. Its structure consists of 3 main parts: a 2-stage helical gear system, a sturdy cast iron housing, and high-load transmission shafts.

Specific details include:

• Housing: Made from one-piece cast iron with a heat-dissipating design. The housing protects internal components from dust and impact while holding the lubricating oil.
• Gear system: Consists of 2 reduction stages using helical gears. The gears are made from high-quality alloy steel, hardened to withstand extreme loads and resist wear.
• Input and output shafts: Made from solid steel, transmitting power from the motor into the gearbox and transferring the reduced power to the driven machine.
• Bearings: Support smooth shaft rotation, reduce friction, and withstand heavy axial and radial loads.
• Lubrication system: Contains oil inside the housing to cool and lubricate the gears, ensuring smooth operation.

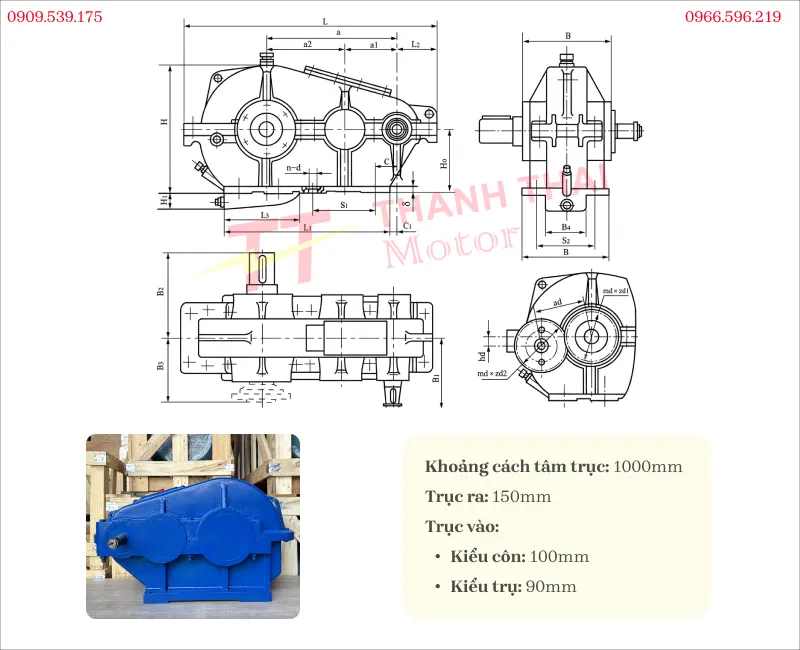

Specifications of the ZQ 1000 Gearbox

The ZQ 1000 Gearbox belongs to the heavy-duty gearbox series, used in drive systems requiring high torque and continuous operation. Below are the basic technical specifications of the product.

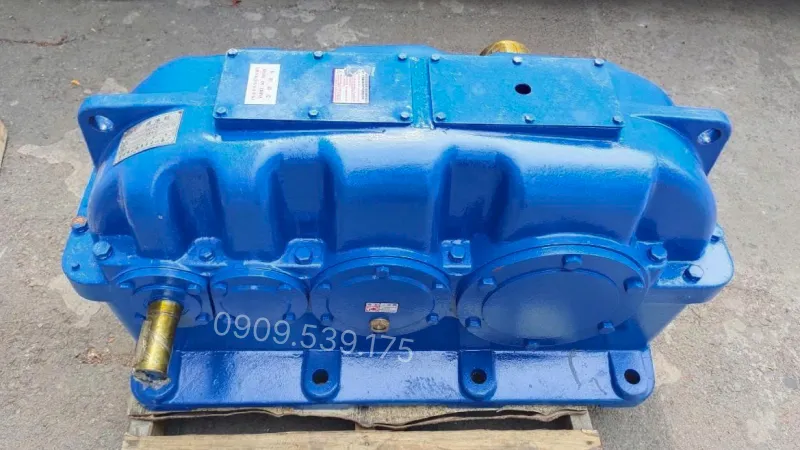

Practical applications of the ZQ 1000 Gearbox

The ZQ 1000 Gearbox is specially designed for heavy-duty tasks. Below are practical examples:

• Lifting equipment: Used as mine hoists or overhead cranes. It helps cranes safely lift large cargo bundles from ships ashore.
• Conveyor systems: Used in mining tunnels or building material manufacturing plants. It helps conveyors transport stone, sand, or coal stably.
• Industrial machinery: Used for concrete mixers or press machines. This component provides enough force to crush or thoroughly mix heavy raw materials.

The ZQ 1000 Gearbox is a suitable choice for high-power drive systems that require continuous operation and high load capacity in industrial environments. Customers can refer to additional gearbox videos at Thanh Thai Motor to view practical images and products in the same segment. Additionally, the comprehensive video category will help you easily compare specifications and choose the equipment that suits your usage needs.

Warranty, Shipping, and Commitment Policy at Thanh Thai Motor

When purchasing gearboxes at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 months

Gearbox products at Thanh Thai Motor are covered by a genuine warranty for up to 24 months. Customers can be completely confident in using them with a clear, transparent, and prompt after-sales policy.

Nationwide Delivery

We support fast delivery to all provinces and cities nationwide. Wherever you are, products are guaranteed to arrive on time and safely.

Products meeting European quality standards with German technology

Gearboxes at Thanh Thai Motor are manufactured using advanced German technology, meeting European quality standards. Ensuring high durability and stable operation for extended periods.

Competitive prices, good discounts for dealers and bulk customers

Reasonable prices, many attractive offers for wholesale buyers and distribution agents. The more you buy, the higher the discount – optimizing profits for customers.

Full certification documents: CO, CQ,...

Each product comes with full Certificate of Origin (CO) and Certificate of Quality (CQ). This provides assurance for customers when using them in projects or constructions requiring technical documentation.
