WPO 100 Worm Gearbox

The WPO 100 Worm Gearbox is an ideal choice for systems that require speed reduction while maintaining strong load capacity. Thanks to its unique eccentric shaft design and sturdy construction, the gearbox operates smoothly, with minimal vibration and low noise, making it especially suitable for large-scale production lines. With its large size and excellent load-bearing capacity, the WPO 100 is currently one of the models chosen by many businesses in the manufacturing and mechanical engineering sectors to enhance work efficiency and reduce maintenance costs.

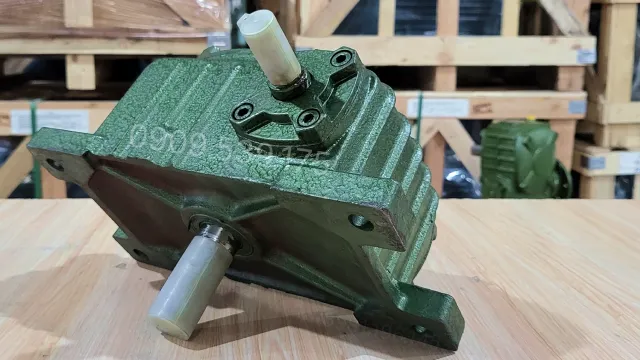

General design of the WPO 100 Worm Gearbox

The WPO 100 gearbox is manufactured with a solid cast iron housing. Inside, the worm shaft and worm gear assembly are arranged in a sealed chamber. The input shaft receives motion from the motor, and the output shaft transmits power at a right angle. The housing features designated ports for oil changes, oil level checks, and mounting fixation.

Detailed structure of the WPO 100 Worm Gearbox

The WPO 100 worm gearbox consists of main drive components and a shaft support system housed within the casing.

• Hardened steel worm shaft: Ensures efficient power transmission and excellent wear resistance, especially when equipment operates continuously under heavy loads.
• Copper alloy worm gear: Helps reduce friction, allowing the equipment to operate smoothly and durably over time.
• Wide center distance: Increases load capacity and evenly distributes force during operation.
• Smooth transmission: Thanks to the tight meshing design between the gear and shaft, helping the gearbox rotate smoothly without jolting.

Technical specifications of the WPO 100 Worm Gearbox

The following specifications are used to determine mounting dimensions and application range of the device.

Functions and applications of the WPO 100 Worm Gearbox

The WPO 100 is commonly used in large-scale production systems where high stability and durability are required:

• Heavy manufacturing industry: In cutting machine lines, crushers, steel rolling mills, etc.
• Mechanical engineering and machine building: Used for power transmission in continuous operation systems requiring high precision.
• Outdoor machinery: Such as hauling systems and conveyor drives.
• Environmental equipment: Used in waste treatment machines, sludge dewatering presses, wastewater treatment plants, etc.

Regardless of the environment, the WPO 100 maintains operational stability, ensuring that transmission capacity does not degrade over time.

Guide to distinguishing the input and output shafts of a gearbox

To correctly identify the input and output shafts of a gearbox, you can follow the steps below:

Step 1: Observe the motor installation position

Identify the end of the gearbox with a flange or connection point for the motor. This is the input shaft side, which receives motion from the motor.

Step 2: Identify the output shaft

Observe the opposite shaft end. This is the output shaft, which transmits the reduced torque and speed to the driven mechanism.

Step 3: Check identification details

Observe the flange, base, oil filling holes, oil drain holes, and connecting bolts to recognize the structure and mounting style of the gearbox.

Step 4: Check connection parameters

Compare the shaft diameter, flange dimensions, bolt hole spacing, and mounting style with system requirements to ensure compatibility.

Step 5: Final check before use

Confirm the correct input and output shaft positions and check all connection points before connecting to the motor and putting the gearbox into operation.

In addition to this article, you can refer to the gearbox video for instructions on identifying components, structures, and installation methods. Furthermore, the compilation videos on the Thanh Thai Motor channel will provide more content regarding motors, gearboxes, and industrial drive solutions.

Warranty, Shipping, and Commitment Policy at Thanh Thai Motor

When purchasing gearboxes at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 months

Gearbox products at Thanh Thai Motor are covered by a genuine warranty for up to 24 months. Customers can be completely confident in using them with a clear, transparent, and prompt after-sales policy.

Nationwide Delivery

We support fast delivery to all provinces and cities nationwide. Wherever you are, products are guaranteed to arrive on time and safely.

Products meeting European quality standards with German technology

Gearboxes at Thanh Thai Motor are manufactured using advanced German technology, meeting European quality standards. Ensuring high durability and stable operation for extended periods.

Competitive prices, good discounts for dealers and bulk customers

Reasonable prices, many attractive offers for wholesale buyers and distribution agents. The more you buy, the higher the discount – optimizing profits for customers.

Full certification documents: CO, CQ,...

Each product comes with full Certificate of Origin (CO) and Certificate of Quality (CQ). This provides assurance for customers when using them in projects or constructions requiring technical documentation.

Contact for Purchase

Do you need advice on choosing the right gearbox for your needs? Contact Thanh Thai Motor immediately using the methods below:

• WhatsApp: +84966596219
• Email: codienthanhthai@gmail.com

The WPO 100 Worm Gearbox is a powerful and reliable device suitable for a wide range of industrial applications. With its durable design, stable performance, and smooth operation, this product will certainly be an essential part of your machinery system. Contact Thanh Thai Motor immediately for consultation and to own this quality product at the best price!
