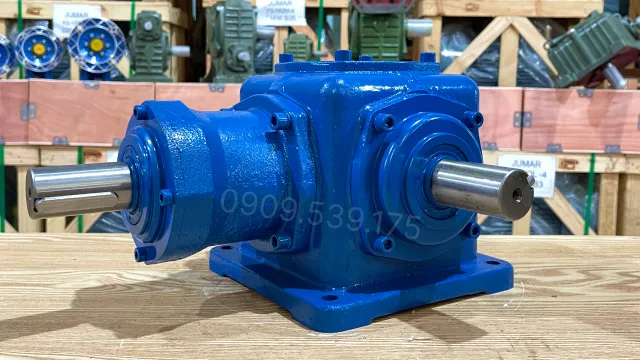

T-Series Right-Angle Bevel Gearbox

The T-Series Right-Angle Bevel Gearbox is an important device in transmission and mechanical systems, helping to efficiently adjust the movement direction of the input shaft to the output shaft direction. With a sturdy design and high flexibility, the T-Series Right-Angle Bevel Gearbox is suitable for various industrial applications. Let’s explore this T-Series Right-Angle Bevel Gearbox and its related applications with Thanh Thai Motor.

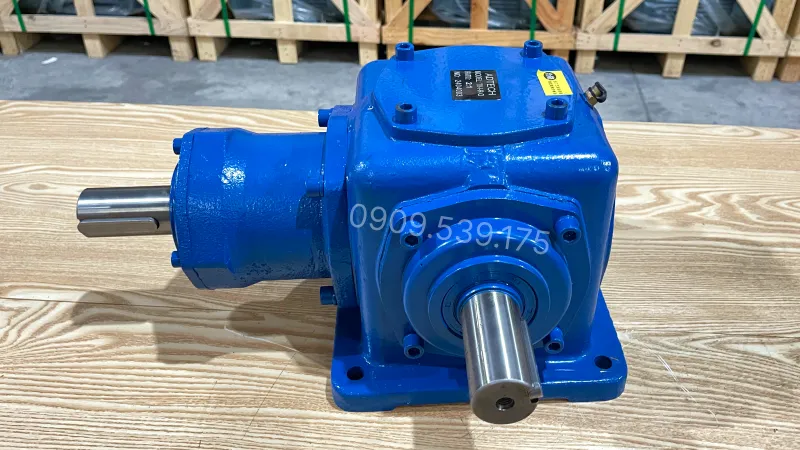

Design Overview of the T-Series Right-Angle Bevel Gearbox

The outer casing of the T-Series Right-Angle Bevel Gearbox is coated with electrostatic paint, which helps prevent rust and enhances product durability. The housing frame is made of cast iron material, providing robustness and excellent protection for internal components. The T-Series Right-Angle Bevel Gearbox is favored for its practicality and good impact resistance. In addition, the product is capable of withstanding harmful environmental agents, ensuring stable operating performance under various conditions.

When combined with an electric motor of 0.75kW or more, the T-Series Right-Angle Bevel Gearbox forms a gear motor

Internal Structure of the T-Series Right-Angle Bevel Gearbox

The internal structure of the T-Series Right-Angle Bevel Gearbox consists of two main parts:

• Bevel gears: Featuring large and small gears made of sturdy materials, which transfer motion from the input shaft to the output shaft to change the rotation direction, reduce rotational speed, and increase torque.

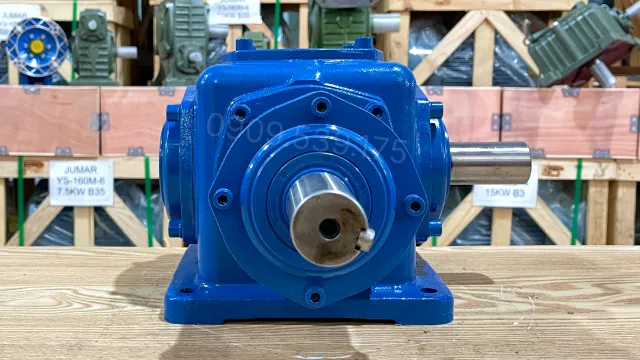

• Motor shafts (input and output shafts): Made of high-quality, durable materials that resist corrosion and withstand heavy loads.

Technical Specifications of the T-Series Right-Angle Bevel Gearbox

Below are the basic technical specifications of the T-Series Right-Angle Bevel Gearbox

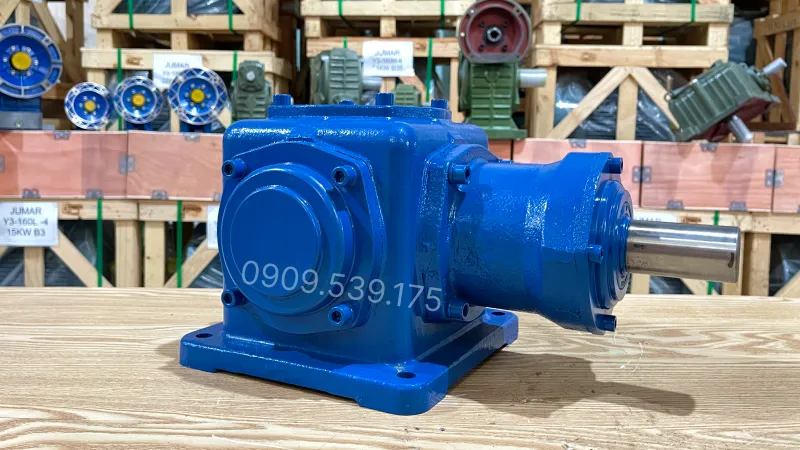

Functions and Applications of the T-Series Right-Angle Bevel Gearbox

• Used in equipment such as presses, cutting machines, and processing machines, helping to adjust operating directions and optimize production processes.
• Converts the rotation direction of the input shaft into the rotation direction of the output shaft, ensuring flexibility and efficiency in the transmission system.
• Applied in conveyors, cranes, and hoisting machines, supporting efficient goods movement and management.
• Suitable for construction machinery, agricultural machinery, and automatic door systems, bringing flexibility and performance to these devices.

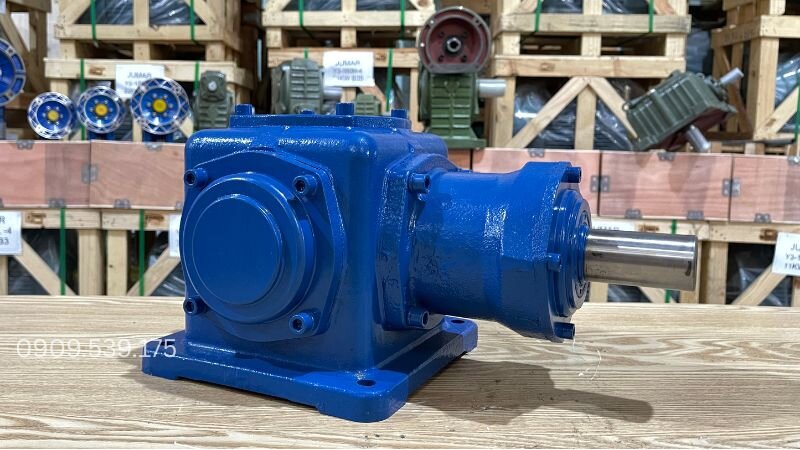

Guide to Adding Oil to the T-Series Right-Angle Bevel Gearbox

For the T-Series Right-Angle Bevel Gearbox to operate stably, reduce friction, and enhance the lifespan of the bevel gears, oil should be added according to the following proper procedure:

Step 1: Preparation before adding oil

Disconnect the system’s power supply, ensuring that the gearbox has completely stopped. Prepare industrial gear oil with the correct viscosity along with tools such as an oil funnel and cleaning rags.

Step 2: Draining old oil

Open the drain plug at the bottom of the gearbox to completely drain the old lubricating oil. After draining, thoroughly clean the drain plug and reinstall it in its correct position.

Step 3: Adding new oil

Open the oil filler plug on the body of the T-Series Right-Angle Bevel Gearbox, and slowly add oil up to the standard level indicated by the oil sight glass or dipstick of the device.

Step 4: Inspection after adding oil

Tightly close the oil filler plug, run a no-load test for a few minutes, then recheck the oil level and seal/gasket positions to ensure the gearbox does not leak before putting it into operation.

Through the instructional gearbox video from Thanh Thai Motor, you will learn how to locate the oil filler plug, oil drain plug, and oil sight glass on the T-Series Right-Angle Bevel Gearbox. The comprehensive video also guides you through the periodic oil change process and important notes to help the gearbox operate stably and durably under various working conditions.

Warranty, Shipping, and Commitment Policy at Thanh Thai Motor

When purchasing gearboxes at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 months

Gearbox products at Thanh Thai Motor are covered by a genuine warranty for up to 24 months. Customers can be completely confident in using them with a clear, transparent, and prompt after-sales policy.

Nationwide Delivery

We support fast delivery to all provinces and cities nationwide. Wherever you are, products are guaranteed to arrive on time and safely.

Products meeting European quality standards with German technology

Gearboxes at Thanh Thai Motor are manufactured using advanced German technology, meeting European quality standards. Ensuring high durability and stable operation for extended periods.

Competitive prices, good discounts for dealers and bulk customers

Reasonable prices, many attractive offers for wholesale buyers and distribution agents. The more you buy, the higher the discount – optimizing profits for customers.

Full certification documents: CO, CQ,...

Each product comes with full Certificate of Origin (CO) and Certificate of Quality (CQ). This provides assurance for customers when using them in projects or constructions requiring technical documentation.
