K-Series Helical Bevel Gearbox 22kW 30Hp

The K-Series Helical Bevel Gearbox 22kW 30Hp is an efficient transmission solution, specially designed for heavy industrial environments requiring high durability and performance. With a power of 22kW (30Hp) and a right-angle output shaft structure, the device ensures powerful transmission capabilities, increases torque, and improves operating efficiency. A gearbox is an ideal choice for conveyor systems, industrial machinery, and applications requiring heavy loads. Let’s learn more details about this product with Thành Thái Motor!

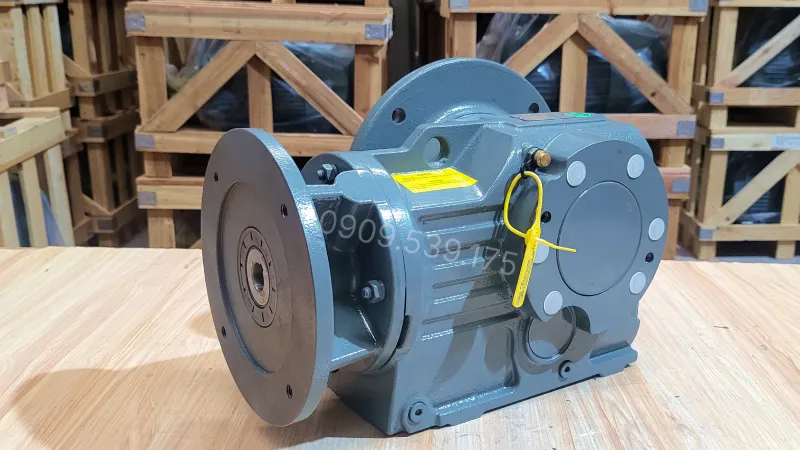

General design of the K-Series Helical Bevel Gearbox 22kW 30Hp

In addition, the K-Series Helical Bevel Gearbox is coated with electrostatic paint, which not only enhances aesthetics but also helps prevent oxidation, limits rust, and increases durability in harsh operating environments. The housing is cast from high-grade cast iron material, capable of well protecting internal components from mechanical impacts and external collisions.

Furthermore, when the gearbox is combined with an electric motor, it forms a complete gear motor, helping to optimize the transmission system by reducing rotational speed and increasing torque, well meeting operating requirements in heavy load applications.

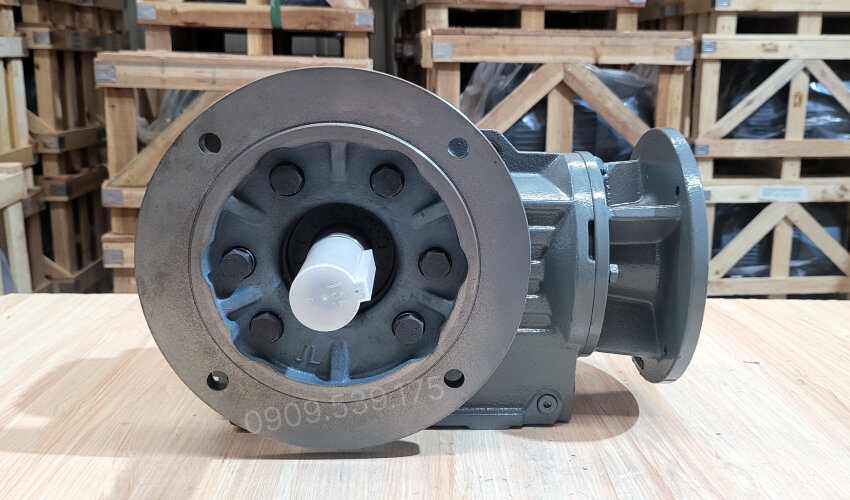

Internal structure of the K-Series Helical Bevel Gearbox 22kW 30Hp

The K-Series Helical Bevel Gearbox consists of two main parts: the motor shaft and the helical gear:

• Motor shaft: The motor shaft has a larger size compared to other types of gearboxes.
• Helical gear: Also known as bevel gears, helical gears help the gears increase the contact surface. Therefore, performance of the K-series heavy-duty right-angle motor is guaranteed.

Technical specifications of the K-Series Helical Bevel Gearbox 22kW 30Hp

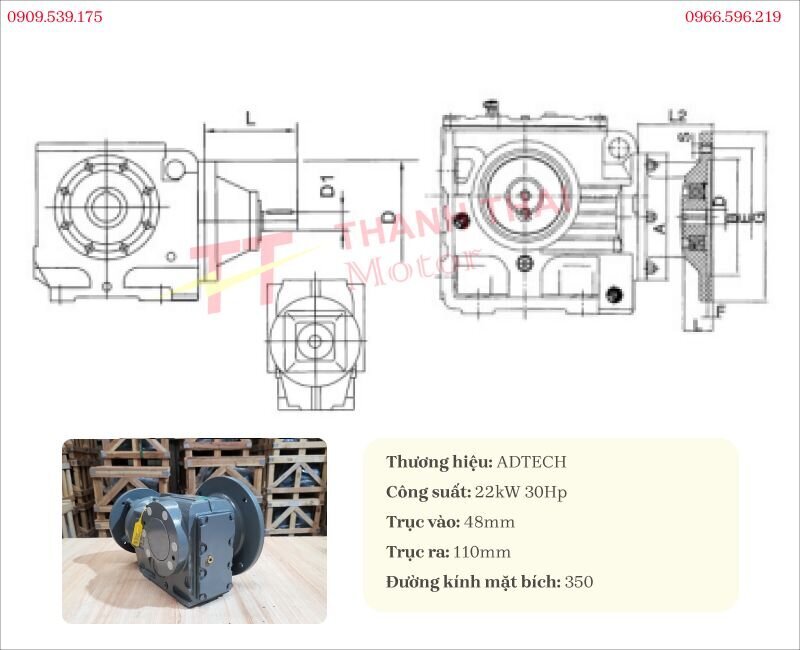

Technical drawing showing detailed installation dimensions

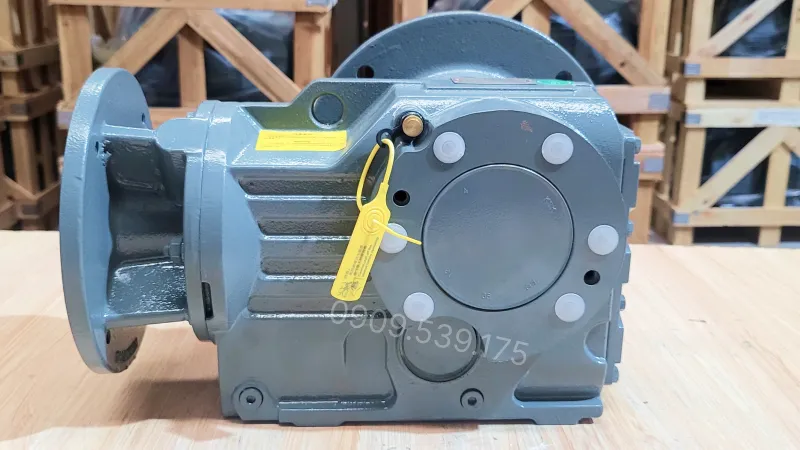

Functions and applications of the K-Series Helical Bevel Gearbox 22kW 30Hp

• Widely applied in conveyor systems for transporting goods.
• Applied in lifting equipment, cranes,… helping to move heavy load objects.
• Applied in construction works and projects to transport raw materials, crushers, presses,…
• Improve the production process in automation systems.

Instructions for adding oil to the K-Series Helical Bevel Gearbox 22kW 30Hp

To keep the K-Series Helical Bevel Gearbox 22kW 30Hp operating stably, follow these steps:

• Step 1: Disconnect the power supply and prepare the correct type of lubricating oil along with necessary tools.
• Step 2: If the gearbox has been used, open the drain plug to drain all old oil, then clean and retighten. New gearboxes can skip this step.
• Step 3: Open the oil filler plug and slowly pour oil into the gearbox.
• Step 4: Observe the oil sight glass, stop adding when the oil level reaches the specified level.
• Step 5: Tightly close the oil filler plug, wipe off external oil and check for leaks before putting the equipment into operation.

Through the Thành Thái Motor gearbox video, you will understand how to add oil and check the oil level for the K-Series Helical Bevel Gearbox 22kW 30Hp. The summary video also guides basic maintenance steps and precautions during use to help the gearbox operate stably and minimize damage.

Warranty, Shipping, and Commitment Policy at Thanh Thai Motor

When purchasing gearboxes at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 months

Gearbox products at Thanh Thai Motor are covered by a genuine warranty for up to 24 months. Customers can be completely confident in using them with a clear, transparent, and prompt after-sales policy.

Nationwide Delivery

We support fast delivery to all provinces and cities nationwide. Wherever you are, products are guaranteed to arrive on time and safely.

Products meeting European quality standards with German technology

Gearboxes at Thanh Thai Motor are manufactured using advanced German technology, meeting European quality standards. Ensuring high durability and stable operation for extended periods.

Competitive prices, good discounts for dealers and bulk customers

Reasonable prices, many attractive offers for wholesale buyers and distribution agents. The more you buy, the higher the discount – optimizing profits for customers.

Full certification documents: CO, CQ,...

Each product comes with full Certificate of Origin (CO) and Certificate of Quality (CQ). This provides assurance for customers when using them in projects or constructions requiring technical documentation.
